Eaton

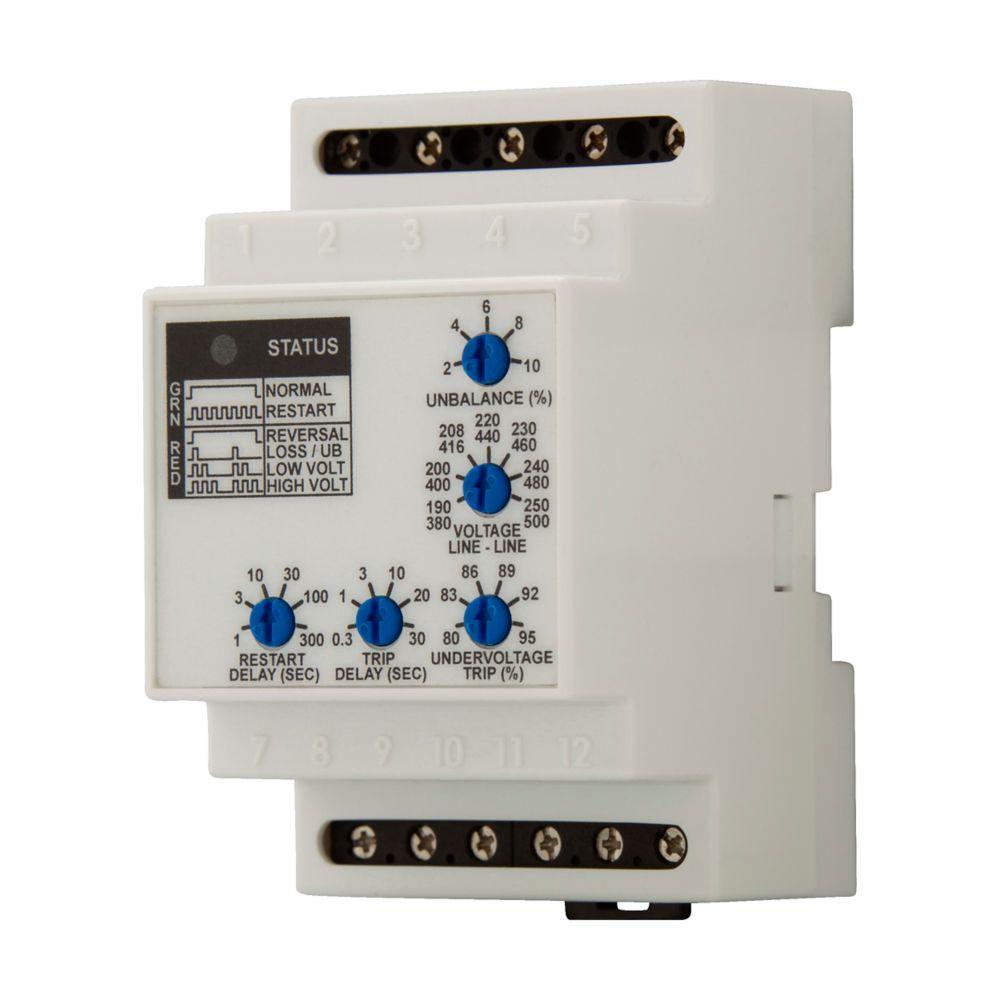

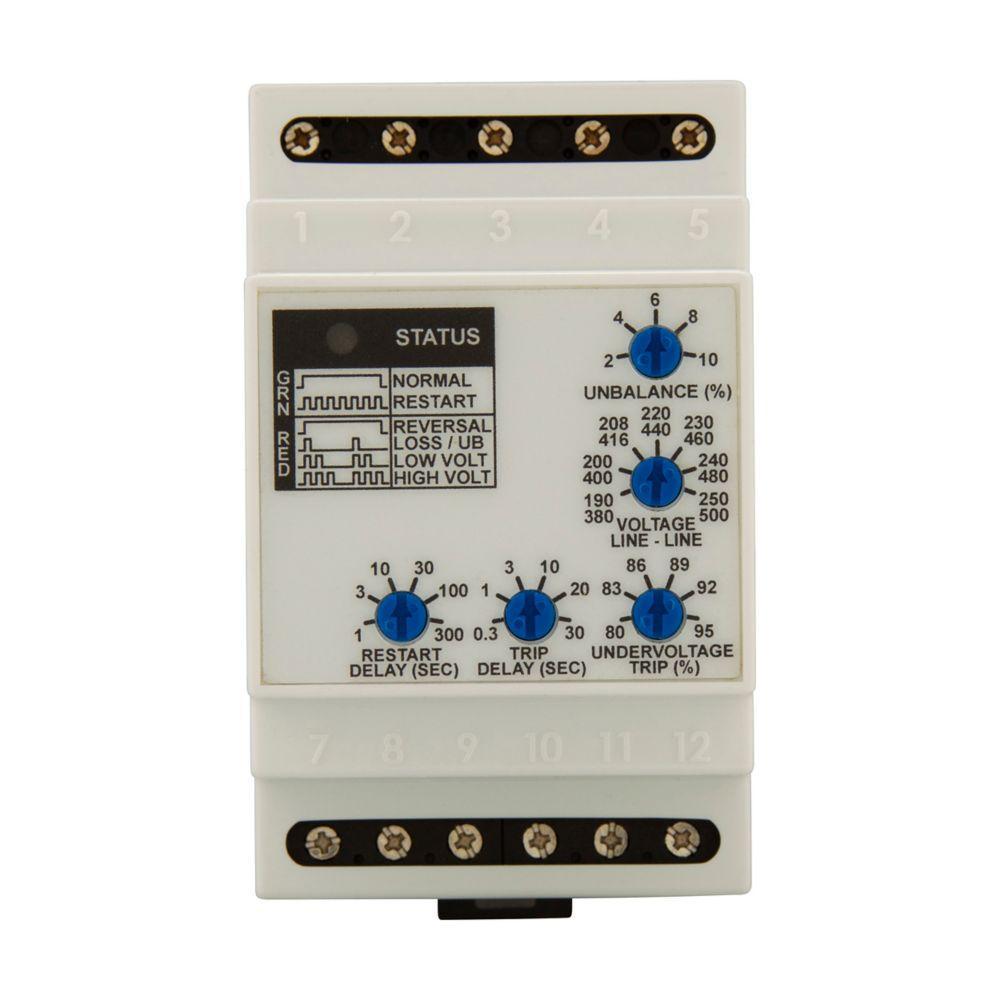

D65VMLS480C 190-500V SURFACE MOUNT UNIVERSAL VOLTAGE MONITOR

Mouse over image to zoom, click to enlarge

Description: EATON Voltage/Phase Monitoring Relay, Full Featured, Series: D65, 240 to 480 V AC, 50/60 Hz, DPDT, DIN Rail/Surface Mount, 2.07 in L x 2.4 in W x 3.4 in H

Manufacturer PN: D65VMLS480C

Kendall Electric Inc PN: 4486512

Invoice Description:

D65VMLS480C 190-500V SURFACE MOUNT UNIVERSAL VOLTAGE MONITOR

SPEC SHEET

▸ See All in Phase Monitoring Relays

How Can We Make This Page Better?

EATON D65VMLS480C Full Featured Voltage/Phase Monitoring Relay, 240 to 480 V AC, DPDT Contact

Note: Lead times are estimates only

Description Specifications Features Resources

Description

Eaton’s D65 series phase monitoring relays prevent motors from running at temperatures above approved ratings. The devices provide protection against phase loss, phase reversal, and phase unbalance due to blown fuses, broken wires or worn contacts. They monitor simultaneous voltage drops/increases and help to prevent damaged machinery and the injury of personnel.

EATON Voltage/Phase Monitoring Relay, Full Featured, Series: D65, 240 to 480 V AC, 50/60 Hz, DPDT, DIN Rail/Surface Mount, 2.07 in L x 2.4 in W x 3.4 in H

Specifications

Brand Name	EATON
Contact Configuration	DPDT
Dimensions	2.07 in L x 2.4 in W x 3.4 in H
Frequency Rating	50/60 Hz
Manufacturer Part Number	D65VMLS480C
Mounting Type	DIN Rail/Surface
PART NUMBER KEYWORDS	D65VMLS480C ; 13219033 ; 786685970974 ; 78668597097 ; 00786685970974
Series	D65
Standards/Approvals	UL Recognized
Type	Full Featured
Voltage Rating	240 to 480 V AC

Features

▪ Automatic or manual reset after the fault condition is corrected

▪ User adjustable settings include nominal voltage, percent phase imbalance, undervoltage drop out, time delay on undervoltage and time delay on restart after fault
