Eaton

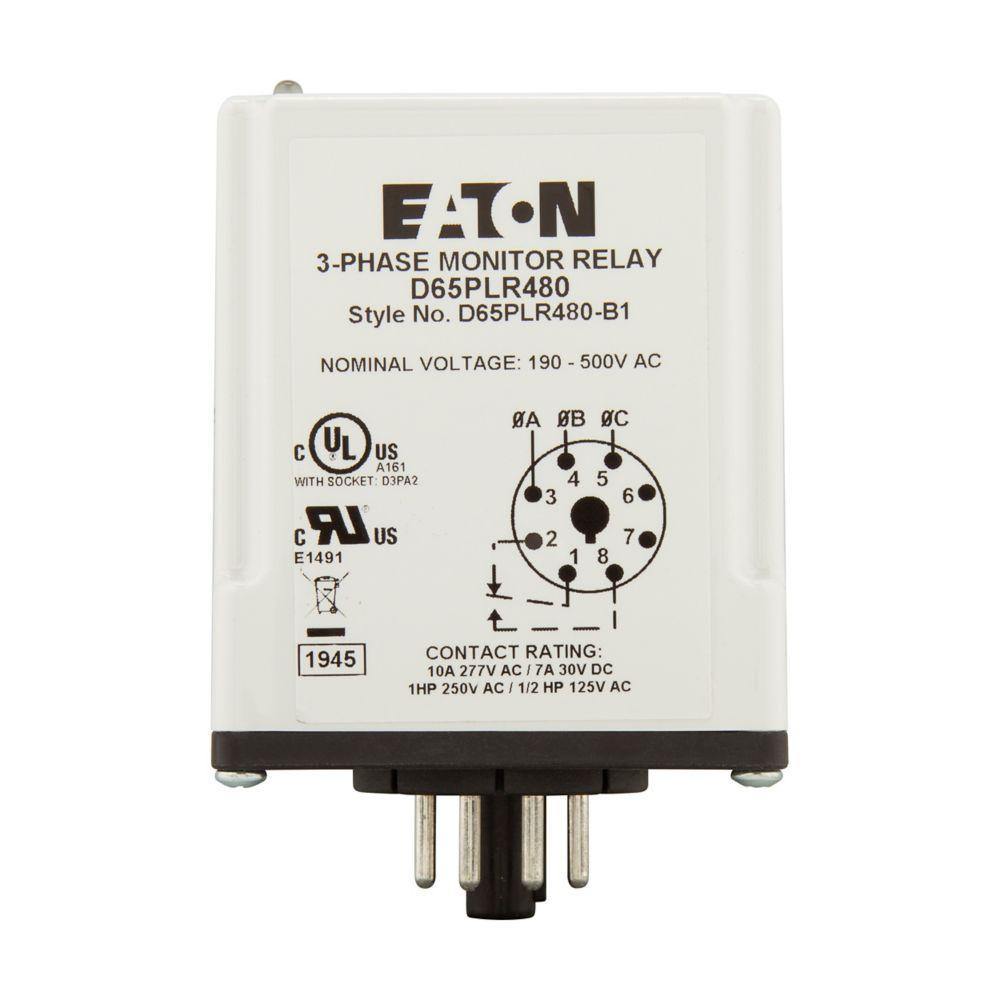

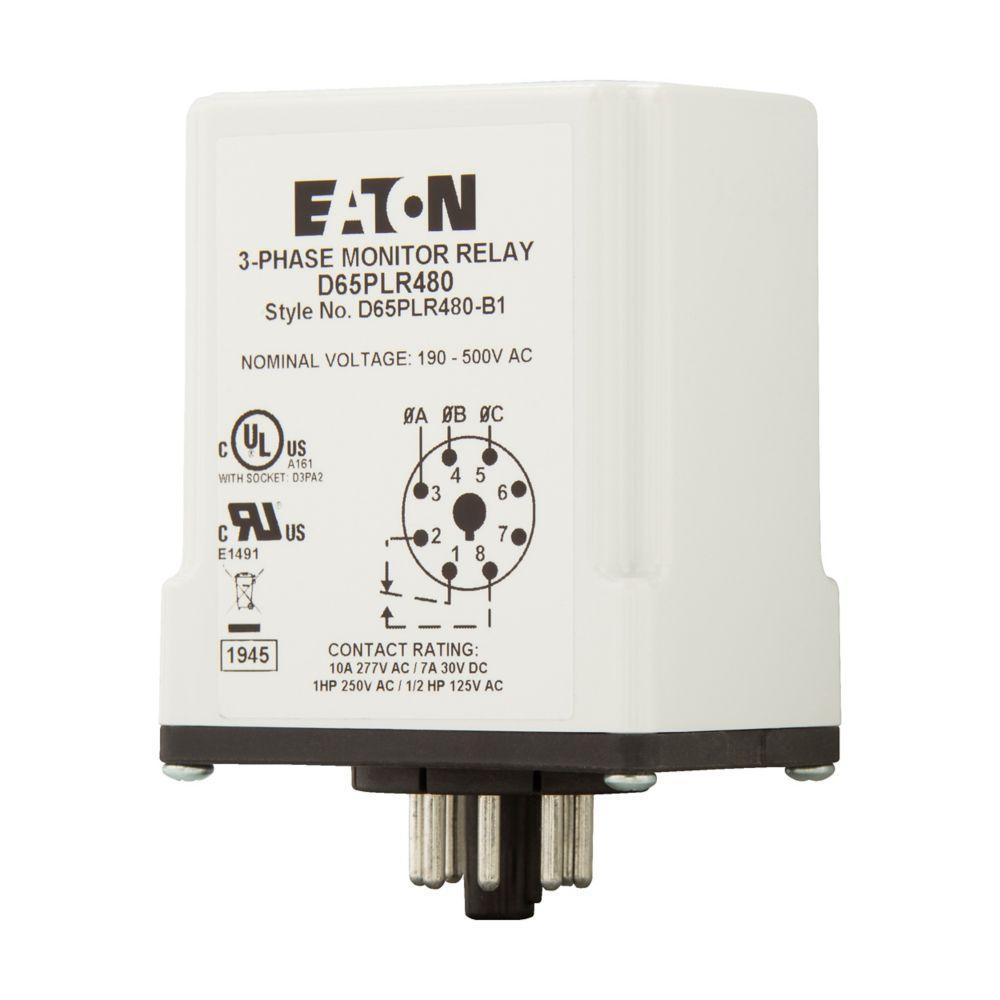

D65PLR480 CH 190-500V 8-PIN PLUG-IN PHASE MONITOR RELAY

Mouse over image to zoom, click to enlarge

  • D65PLR480 CH 190-500V 8-PIN PLUG-IN PHASE MONITOR RELAY
  • D65PLR480 CH 190-500V 8-PIN PLUG-IN PHASE MONITOR RELAY
  • D65PLR480 CH 190-500V 8-PIN PLUG-IN PHASE MONITOR RELAY

Description: EATON Phase Loss Monitoring Relay, Reversal, Series: D65PLR, 240/480 V AC, 10 A, 50/60 Hz Frequency, SPDT Contact Configuration, 8 Pins, Octal Plug-In/DIN Rail Mounting, LED Display, 50 ms Response, 2 x 1.7 x 2.4 in Dimensions

Manufacturer PN: D65PLR480

UPC:  78668512276

Kendall Electric Inc PN: 2620497

Invoice Description:

D65PLR480 CH 190-500V 8-PIN PLUG-IN PHASE MONITOR RELAY


SPEC SHEET

▸ See All in Phase Monitoring Relays


How Can We Make This Page Better?

EATON D65PLR480 Reversal Phase Loss Monitoring Relay, 240/480 V AC, 10 A, 8 Pin, SPDT Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s D65 series phase monitoring relays prevent motors from running at temperatures above approved ratings. The devices provide protection against phase loss, phase reversal, and phase unbalance due to blown fuses, broken wires or worn contacts. They monitor simultaneous voltage drops/increases and help to prevent damaged machinery and the injury of personnel.
EATON Phase Loss Monitoring Relay, Reversal, Series: D65PLR, 240/480 V AC, 10 A, 50/60 Hz Frequency, SPDT Contact Configuration, 8 Pins, Octal Plug-In/DIN Rail Mounting, LED Display, 50 ms Response, 2 x 1.7 x 2.4 in Dimensions

Specifications

 Amperage Rating 10 A
 Application Automation and Logic Control Equipment Applications
 Brand Name EATON
 Contact Configuration SPDT
 Dimensions 2 x 1.7 x 2.4 in
 Frequency Rating 50/60 Hz
 Manufacturer Part Number D65PLR480
 Mounting Type Octal Plug-In/DIN Rail
 Number of Pins 8
 PART NUMBER KEYWORDS D65PLR480 ; 9592028 ; 786685122762 ; 78668512276 ; 00786685122762
 Response Time 50 ms
 Series D65PLR
 Standards/Approvals cULus Recognized|UL Listed|CE Marked
 Type Reversal
 Voltage Rating 240/480 V AC

Features

▪ -28 to 65 deg C operating temperature
▪ 100000 operations full load life
▪ 10 A SPDT at 240 VAC, 1/3 hp at 240 VAC (NO), 1/6 hp at 240 VAC (NC) output contacts
▪ Automatic upon correction of fault reset type
▪ Protects against phase loss, phase reversal and undervoltage
▪ LED indicates both normal and fault conditions

Resources

 Catalog Page
 Product Data Sheet
