Schneider Electric

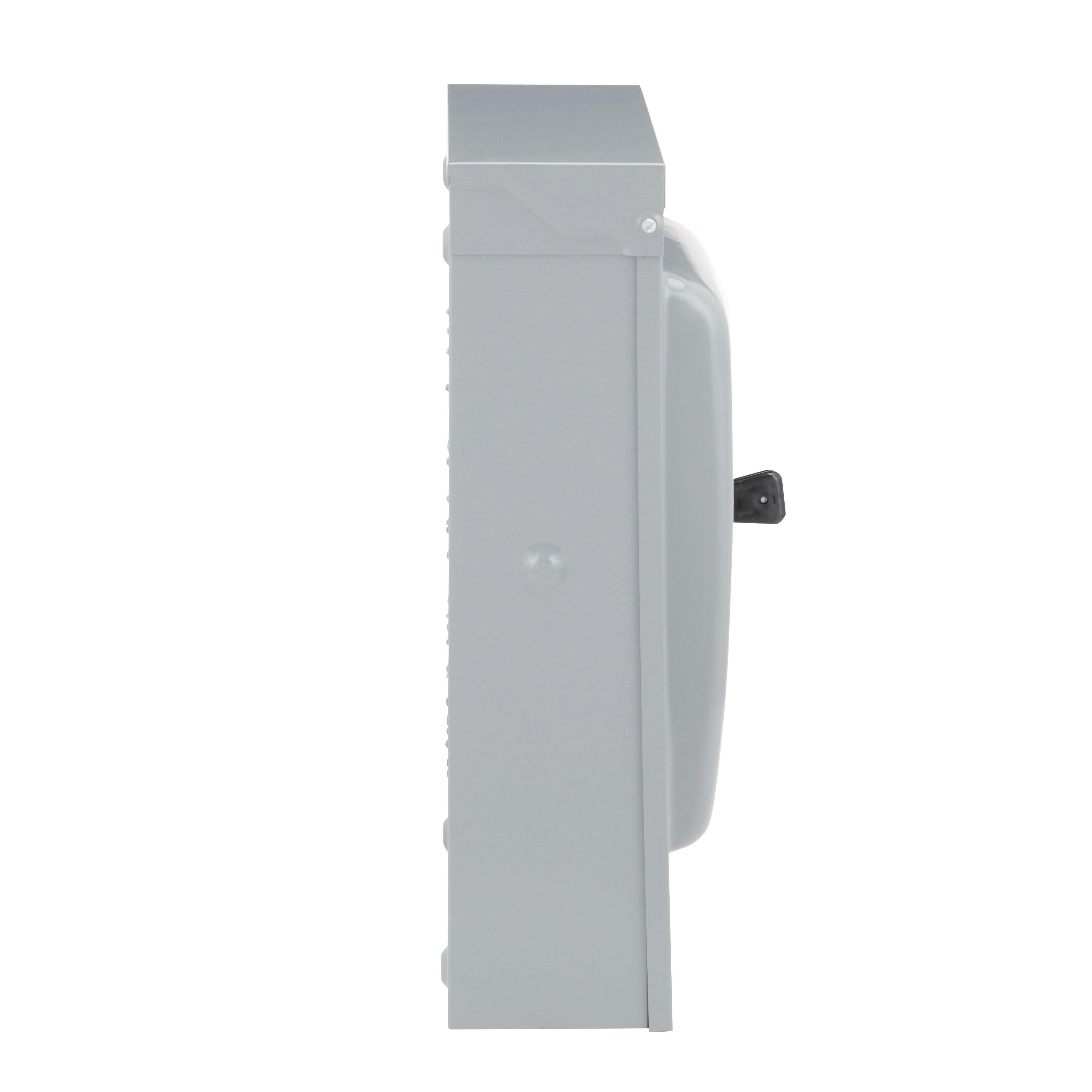

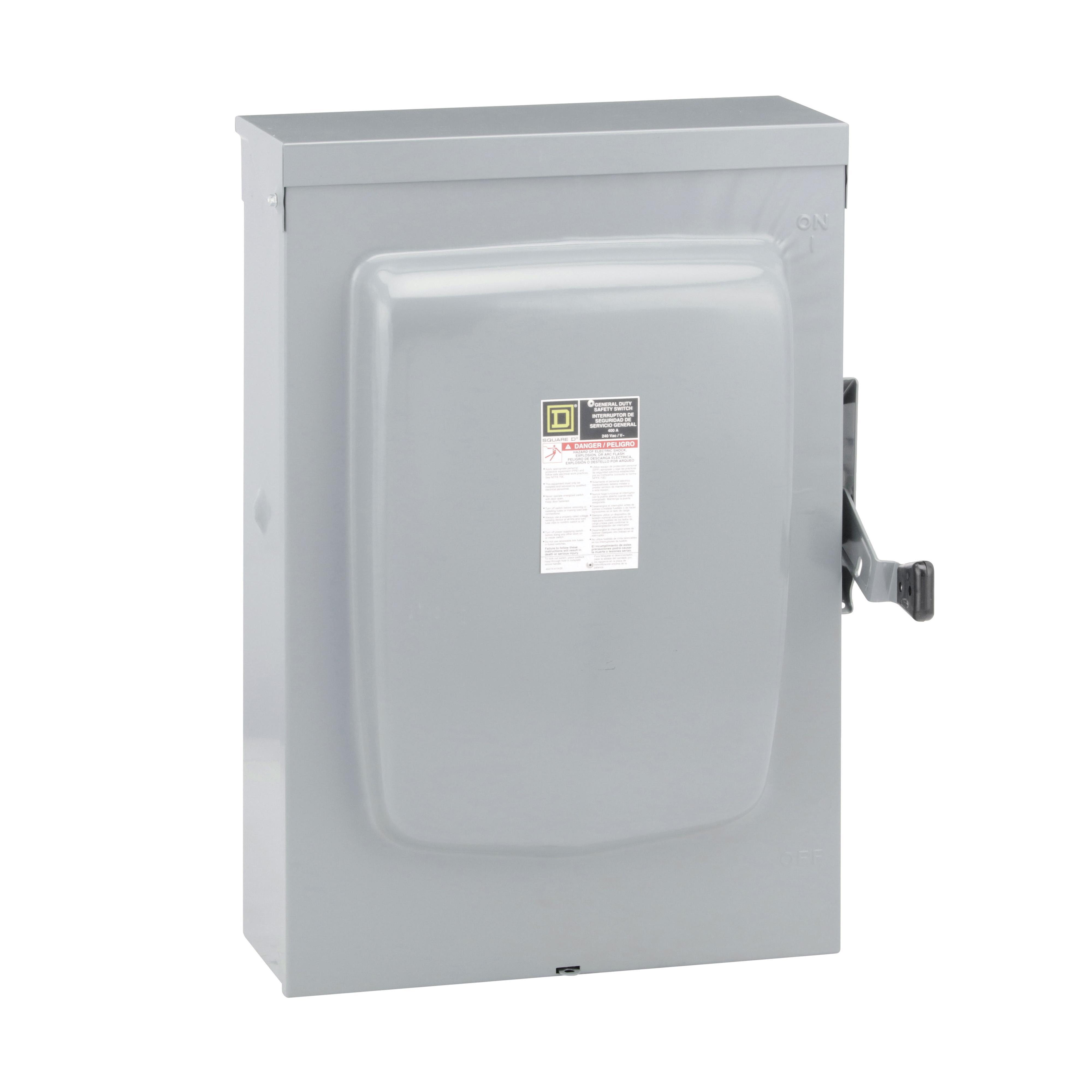

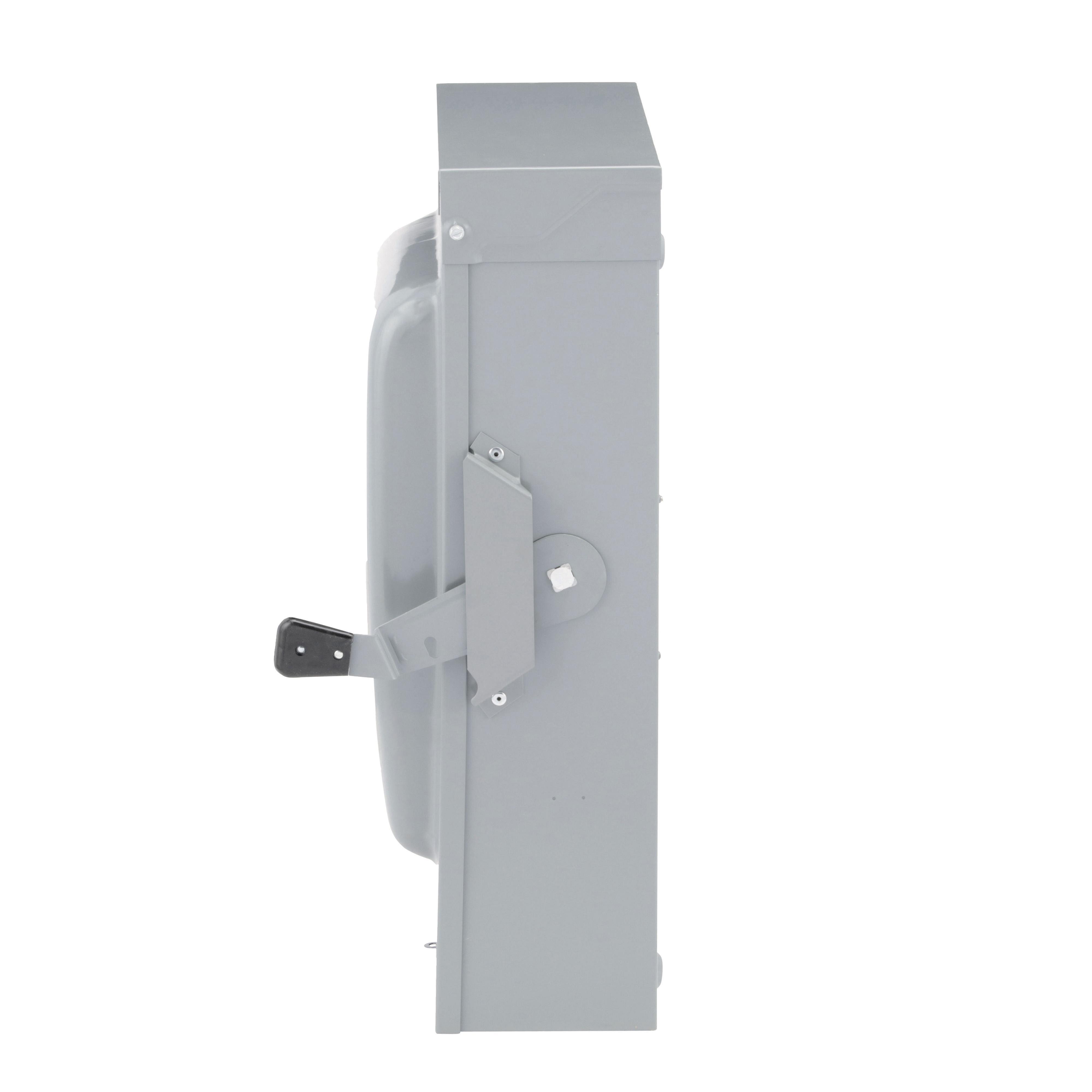

  • D325NR SQD SWITCH FUSIBLE GD 240V
  • D325NR SQD SWITCH FUSIBLE GD 240V
  • D325NR SQD SWITCH FUSIBLE GD 240V
  • D325NR SQD SWITCH FUSIBLE GD 240V
  • D325NR SQD SWITCH FUSIBLE GD 240V

Description: Square D™ Safety Switch, Fusible General Duty Iceproof Rainproof, Series: E1 Series, 240 V AC, 400 A, 125 hp, 50/60 Hz, 3 Pole, 3 Wires, 100 kA Short Circuit Current, 3PST, Handle Actuator, NEMA 3R, Surface Mount, Lug Terminal, 21.38 in W x 10.13 in D x 30.63 in H, Steel, Hot Dipped Galvanized

Manufacturer PN: D325NR

UPC:  78590146157

Kendall Electric Inc PN: 3999341

Invoice Description:

D325NR SQD SWITCH FUSIBLE GD 240V


SPEC SHEET

▸ See All in General Duty Safety Switches


How Can We Make This Page Better?

Square D™ D325NR E1 Series Fusible General Duty Iceproof Rainproof Safety Switch, 240 V AC, 400 A, 125 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 400A for 240VAC. This general duty switch has a 4 wire configuration with 3 poles and a factory installed neutral. The device accepts H, K, J or R fuse types. The enclosure is surface mounted and is a Type 3R. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
Square D™ Safety Switch, Fusible General Duty Iceproof Rainproof, Series: E1 Series, 240 V AC, 400 A, 125 hp, 50/60 Hz, 3 Pole, 3 Wires, 100 kA Short Circuit Current, 3PST, Handle Actuator, NEMA 3R, Surface Mount, Lug Terminal, 21.38 in W x 10.13 in D x 30.63 in H, Steel, Hot Dipped Galvanized

Specifications

 Actuator Type Handle
 Amperage Rating 400 A
 Application Indoor and Outdoor Applications
 Brand Name Square D
 Contact Form 3PST

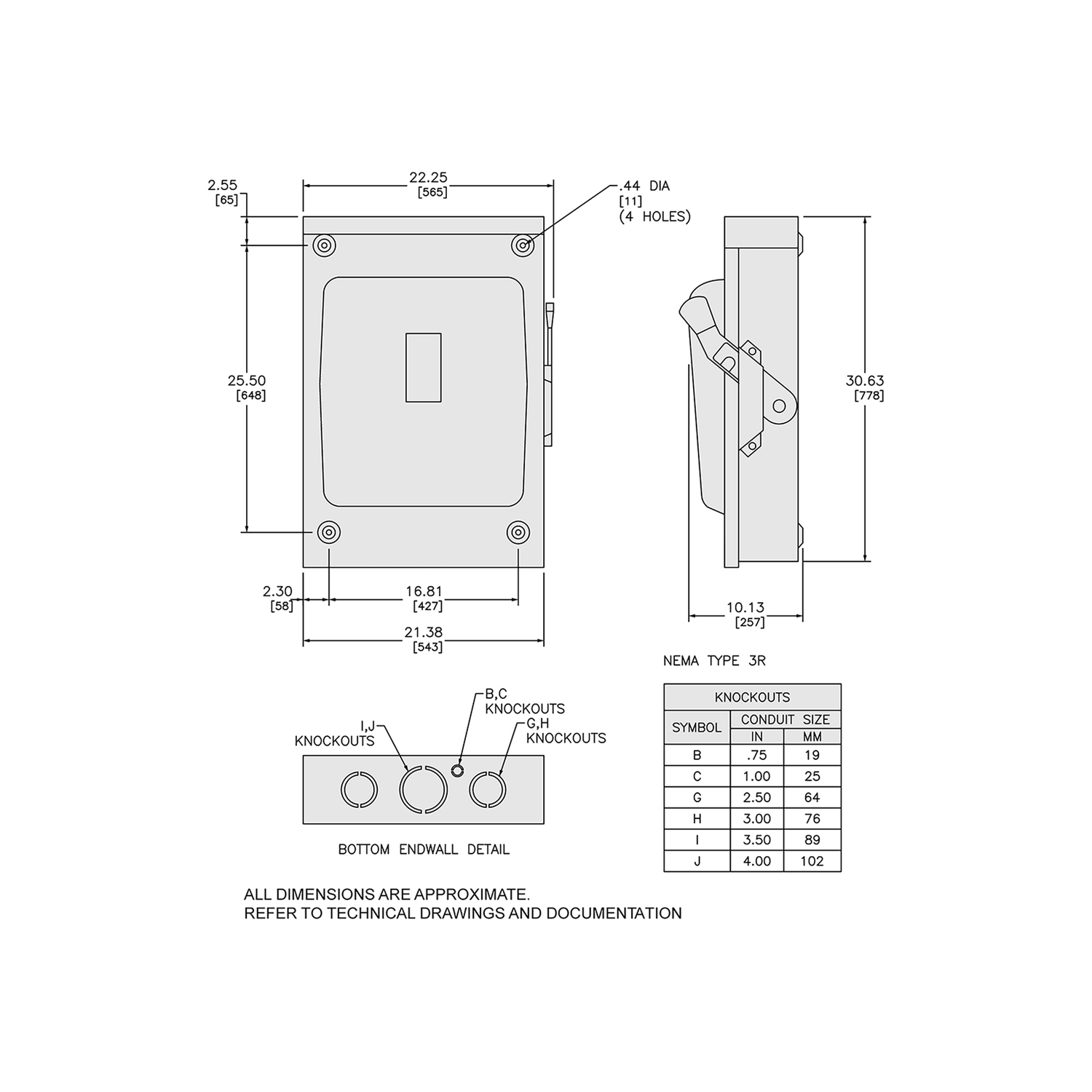

 Dimensions 21.38 in W x 10.13 in D x 30.63 in H
 Enclosure NEMA 3R
 Finish Hot Dipped Galvanized
 Frequency Rating 50/60 Hz
 Horsepower 125 hp
 Manufacturer Part Number D325NR
 Material Steel
 Mounting Type Surface
 Number of Poles 3
 Number of Wires 3
 PART NUMBER KEYWORDS D325NR ; 8056104 ; 785901461579 ; 78590146157 ; 00785901461579 ; 0785901461579
 Series E1 Series
 Short Circuit Current Rating 100 kA
 Standards/Approvals RoHS Compliant|UL File No. E2875|NEMA KS1-1990|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Terminal Type Lug
 Type Fusible General Duty Iceproof Rainproof
 Voltage Rating 240 V AC

Features

▪ Excellent for disconnecting lighting, air condition, and appliances
▪ Quick-make, quick-break operating mechanism
