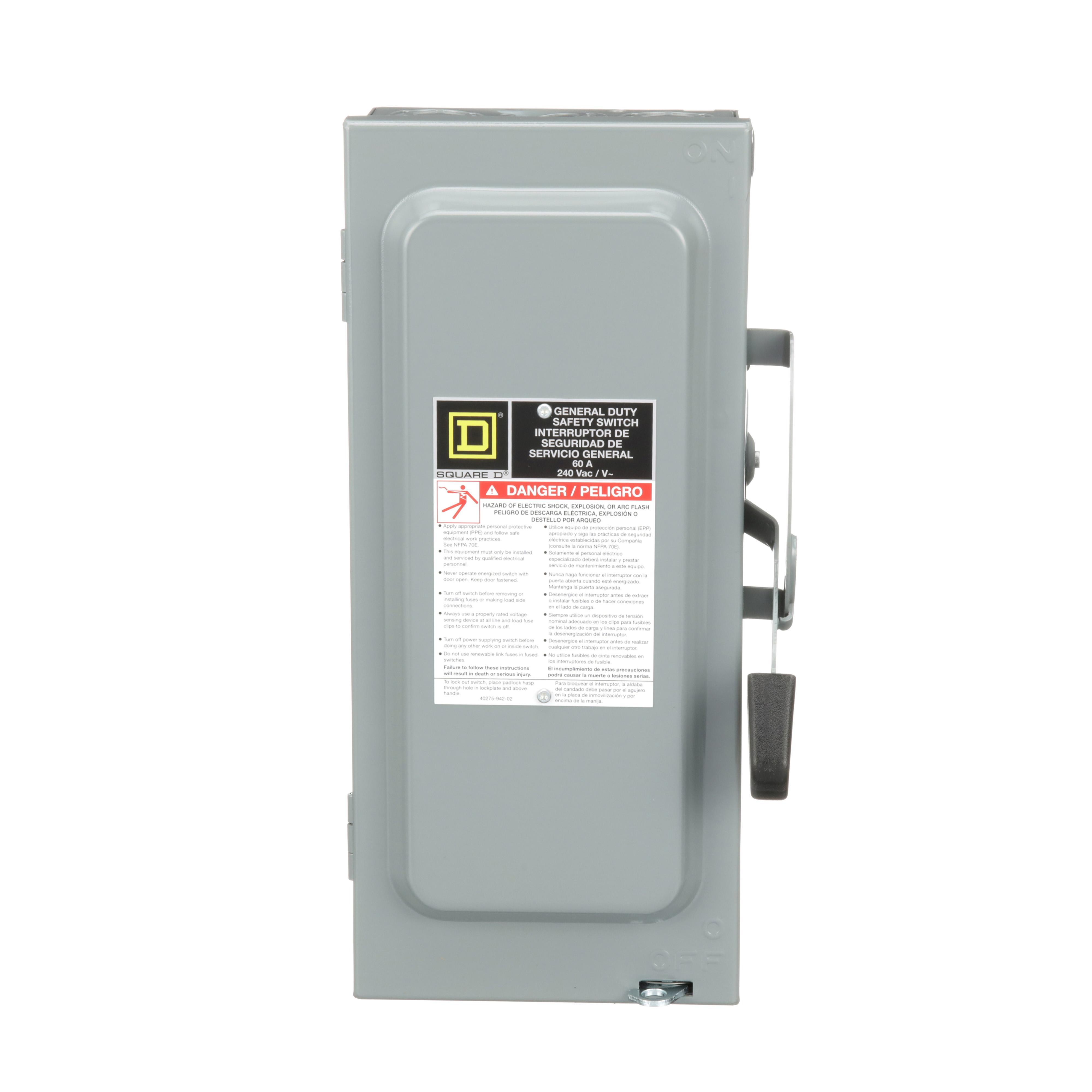

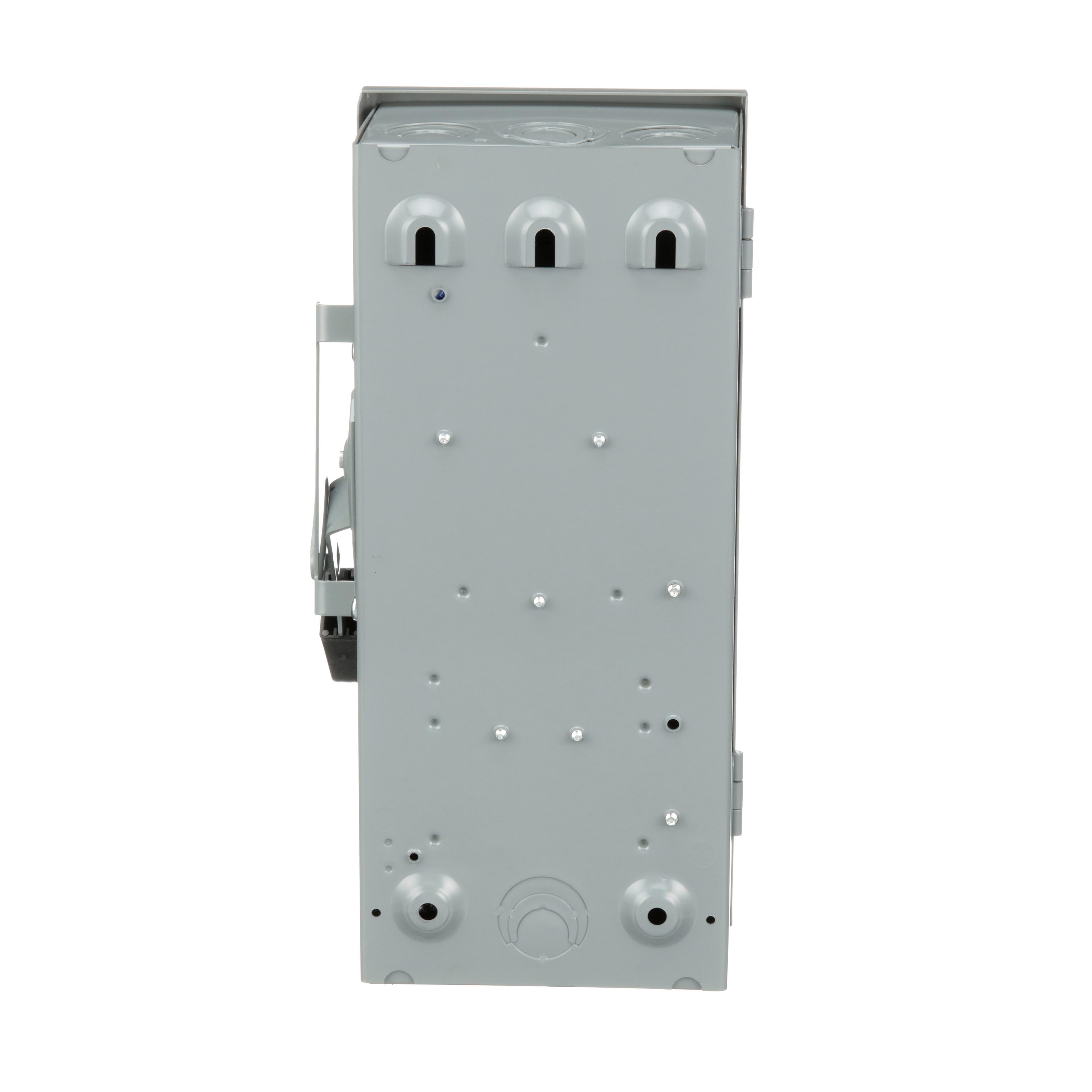

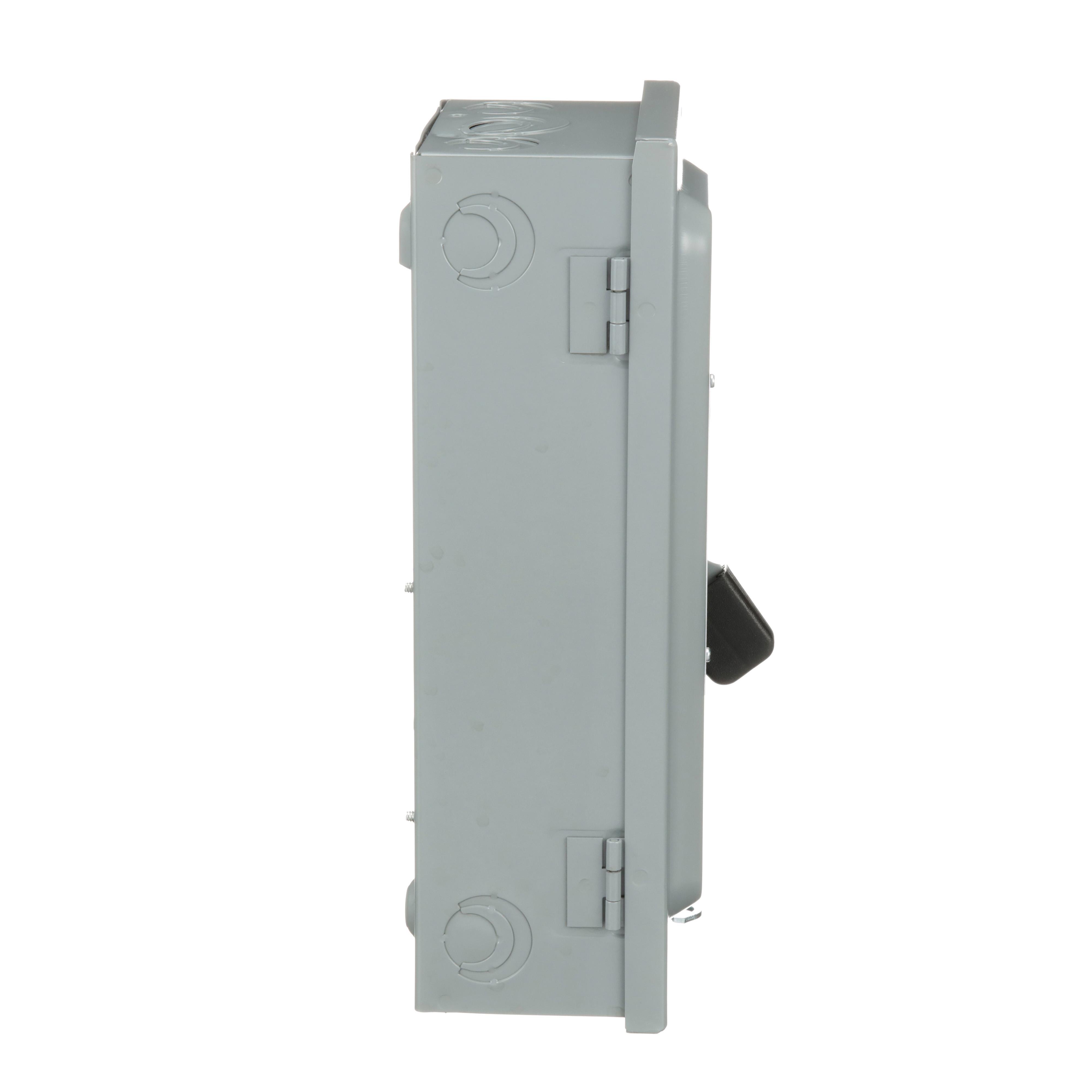

Description: Square D™, D322N, Safety Switch, Fusible General Duty, Series: F1 Series, 240 V AC, 60 A, 15 hp, 1/3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 100 kA Short Circuit, 3PST Contact Form, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, 6.51 in W x 4.87 in D x 14.6 in H Dimensions, Steel, Galvanized

Manufacturer PN: D322N

UPC:  78590146123

Kendall Electric Inc PN: 3999338

Invoice Description:

D322N SQD SWITCH FUSIBLE GD 240V


SPEC SHEET

▸ See All in General Duty Safety Switches


How Can We Make This Page Better?

Square D™ D322N F1 Series Fusible General Duty Safety Switch, 240 V AC, 60 A, 15 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 60A for 240VAC. This general duty switch has a 4 wire configuration with 3 poles and a factory installed neutral. The device accepts H, K or R fuse types. The enclosure is surface mounted and is a Type 1. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
Square D™, D322N, Safety Switch, Fusible General Duty, Series: F1 Series, 240 V AC, 60 A, 15 hp, 1/3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 100 kA Short Circuit, 3PST Contact Form, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, 6.51 in W x 4.87 in D x 14.6 in H Dimensions, Steel, Galvanized

Specifications

 Actuator Type Handle
 Amperage Rating 60 A
 Application General Purpose and Indoor Applications
 Brand Name Square D
 Contact Form 3PST
 Dimensions 6.51 in W x 4.87 in D x 14.6 in H
 Enclosure NEMA 1
 Finish Galvanized
 Frequency Rating 50/60 Hz
 Horsepower 15 hp
 Manufacturer Part Number D322N
 Material Steel
 Mounting Type Surface
 Number of Poles 3
 Number of Wires 3
 Phase 1/3
 Series F1 Series
 Short Circuit Current Rating 100 kA
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL File No. E2875|NEMA KS1-1990|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Terminal Type Lug
 Type Fusible General Duty
 Video Links
 Voltage Rating 240 V AC

Features

▪ Provides over-current and short circuit protection
▪ Excellent for disconnecting lighting, air condition, and appliances
▪ Quick make, quick break operating mechanism
