D25614K DEWALT 1-3/4IN SDS MAX COMBI HAMMER

Mouse over image to zoom, click to enlarge

Description: DeWALT® Rotary Hammer Kit, Combination Corded, 1-3/4 in Chuck, SDS MAX® Chuck, 1450 to 2900 bpm Blows per Minute, 10.5 J Impact Energy, 190 to 380 rpm No-Load, 120 V AC, 14 A, SHOCKS® Active Vibration/Variable Speed Control, No Reversible, 20-1/2 in Overall Length, 11-1/2 in H Dimensions

Manufacturer PN: D25614K

UPC: 88591161841

Kendall Electric Inc PN: 4617499

Invoice Description:

D25614K DEWALT 1-3/4IN SDS MAX COMBI HAMMER

How Can We Make This Page Better?

DeWALT® D25614K Combination Corded Rotary Hammer Kit, 1-3/4 in SDS MAX® Chuck, 1450 to 2900 bpm, 190 to 380 rpm No-Load, 20-1/2 in OAL

Note: Lead times are estimates only

Description Specifications Features Resources

Description

The 1-3/4 in SDS MAX® combination hammer is a midweight, high performance hammer that is powered by durable German engineered mechanisms. It delivers 10.5 J of impact energy for fast drilling and chipping, even in the hardest concrete. Constant speed electronics allow the tool to maintain speed under load, while the patented E-Clutch® system helps protect the user in bind up situations by stopping the rotation of the bit. The midweight design makes it ideally suited for high performance, horizontal serial drilling for #5 to #8 rebar, dry coring up to 4 in, chipping in any upper to lower wall and bushing applications. The SHOCKS Active Vibration Control® system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. This tool comes Tag Ready™, so users and companies can attach the DeWALT® tag and track its location virtually anywhere via the Tool Connect™ app.

DeWALT® Rotary Hammer Kit, Combination Corded, 1-3/4 in Chuck, SDS MAX® Chuck, 1450 to 2900 bpm Blows per Minute, 10.5 J Impact Energy, 190 to 380 rpm No-Load, 120 V AC, 14 A, SHOCKS® Active Vibration/Variable Speed Control, No Reversible, 20-1/2 in Overall Length, 11-1/2 in H Dimensions

Specifications

Amperage Rating	14 A
Blows per Minute	1450 to 2900 bpm
Brand Name	DeWALT®
Chuck Size	1-3/4 in
Chuck Type	SDS MAX®
Control Type	SHOCKS® Active Vibration/Variable Speed
Dimensions	11-1/2 in H
Impact Energy	10.5 J

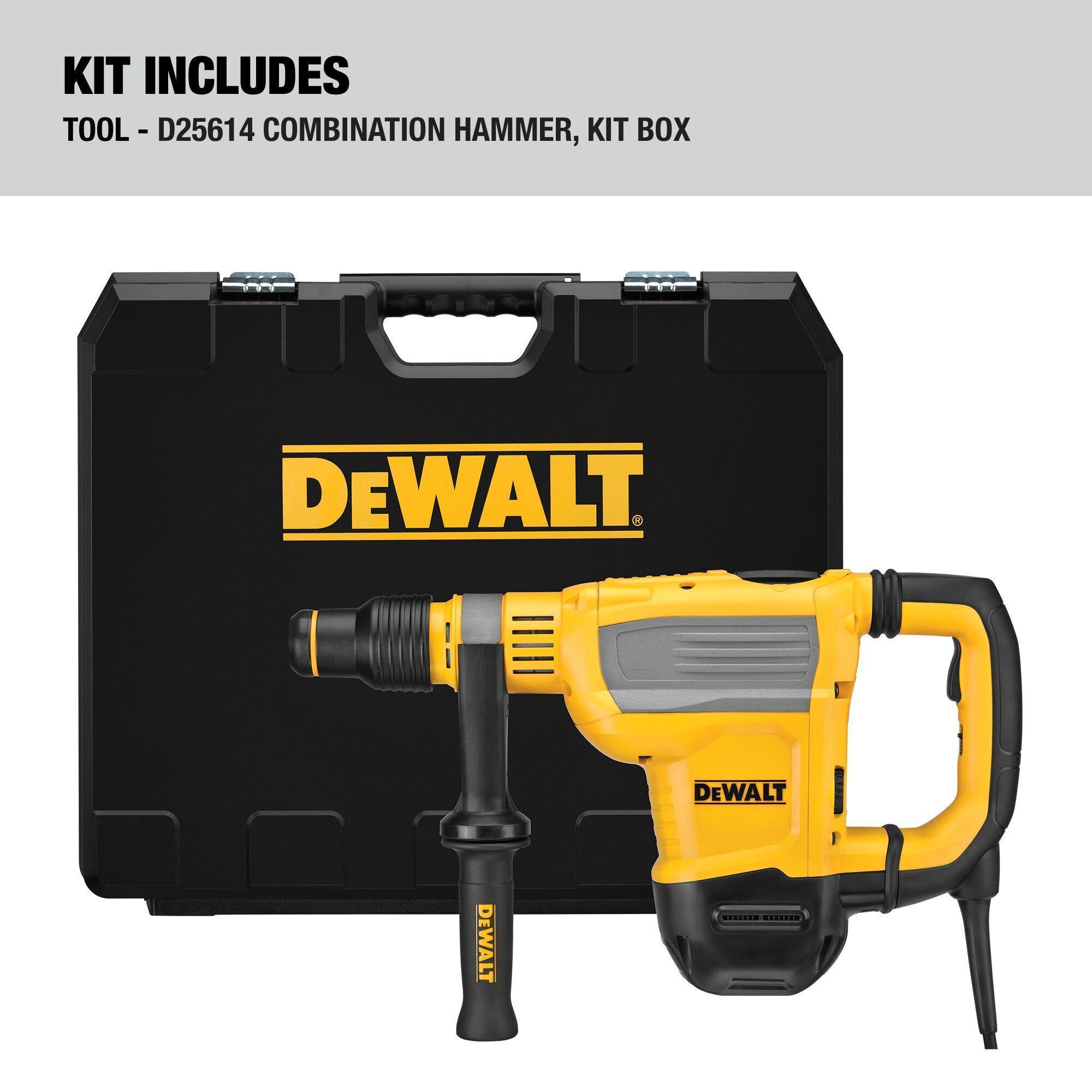

Includes	D25614K 1-3/4 in SDS MAX® Hammer and Kit Box
Manufacturer Part Number	D25614K
No Load Speed	190 to 380 rpm
Overall Length	20-1/2 in
PART NUMBER KEYWORDS	D25614K ; 15599000 ; 885911618410 ; 88591161841 ; 00885911618410
Reversible	No
Tool Kit	Kit
Type	Combination Corded
Voltage Rating	120 V AC

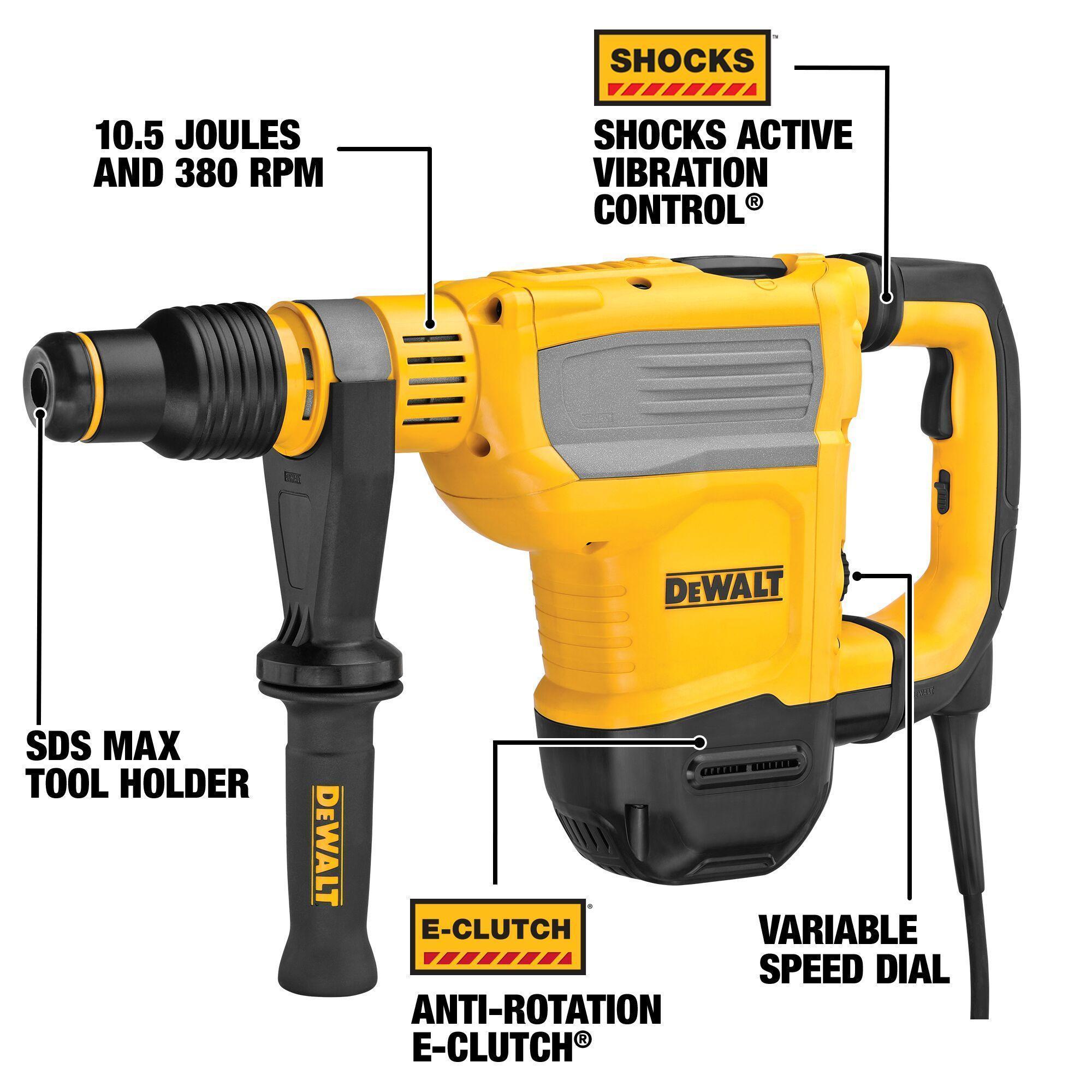

Features

▪ 10.5 J of impact energy for fast drilling and chipping, even in the hardest concrete

▪ 7-position, variable-speed control for precision hole placement, chipping, and drilling with Atomic Undercut bits

▪ Constant-speed electronics allow the tool to maintain speed under load

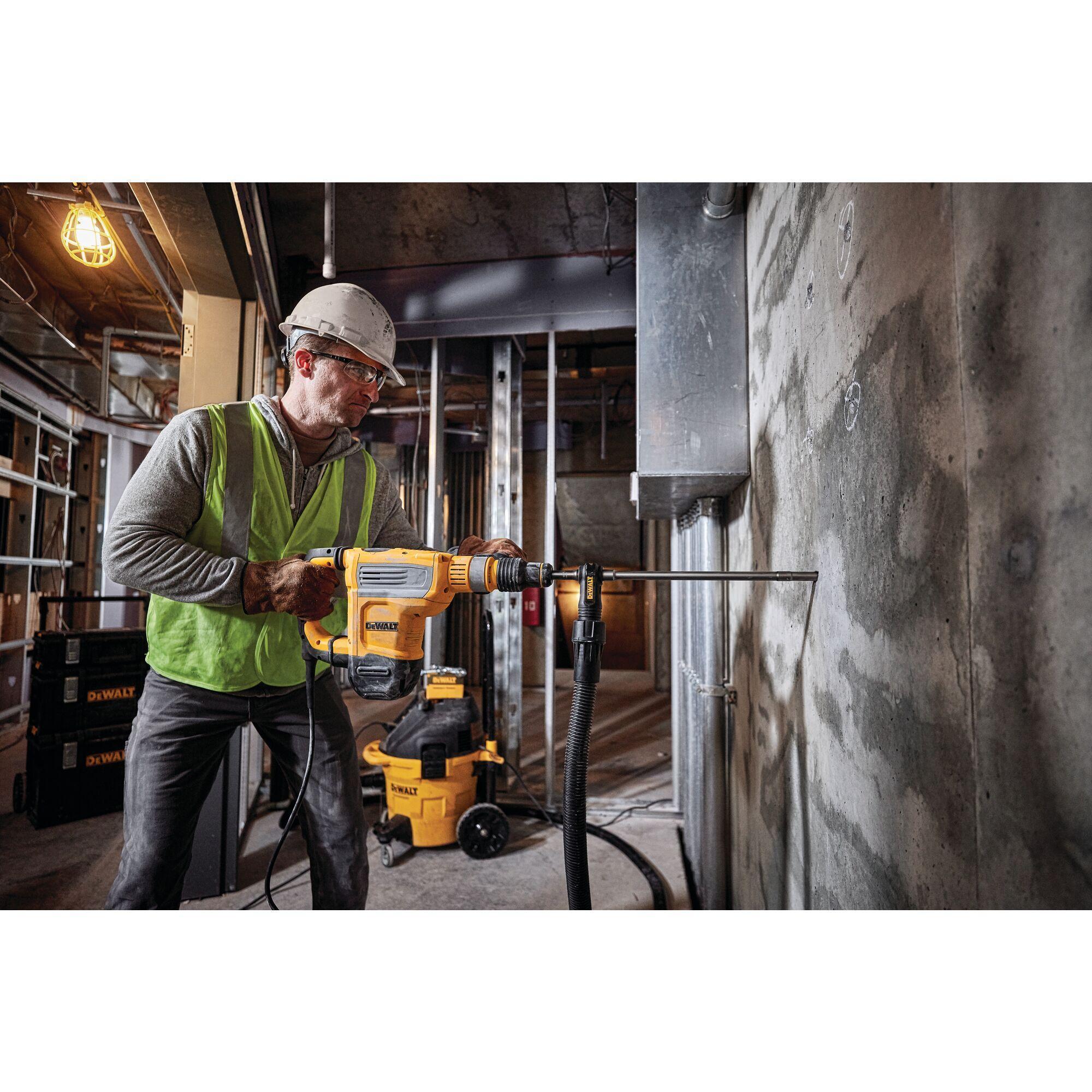

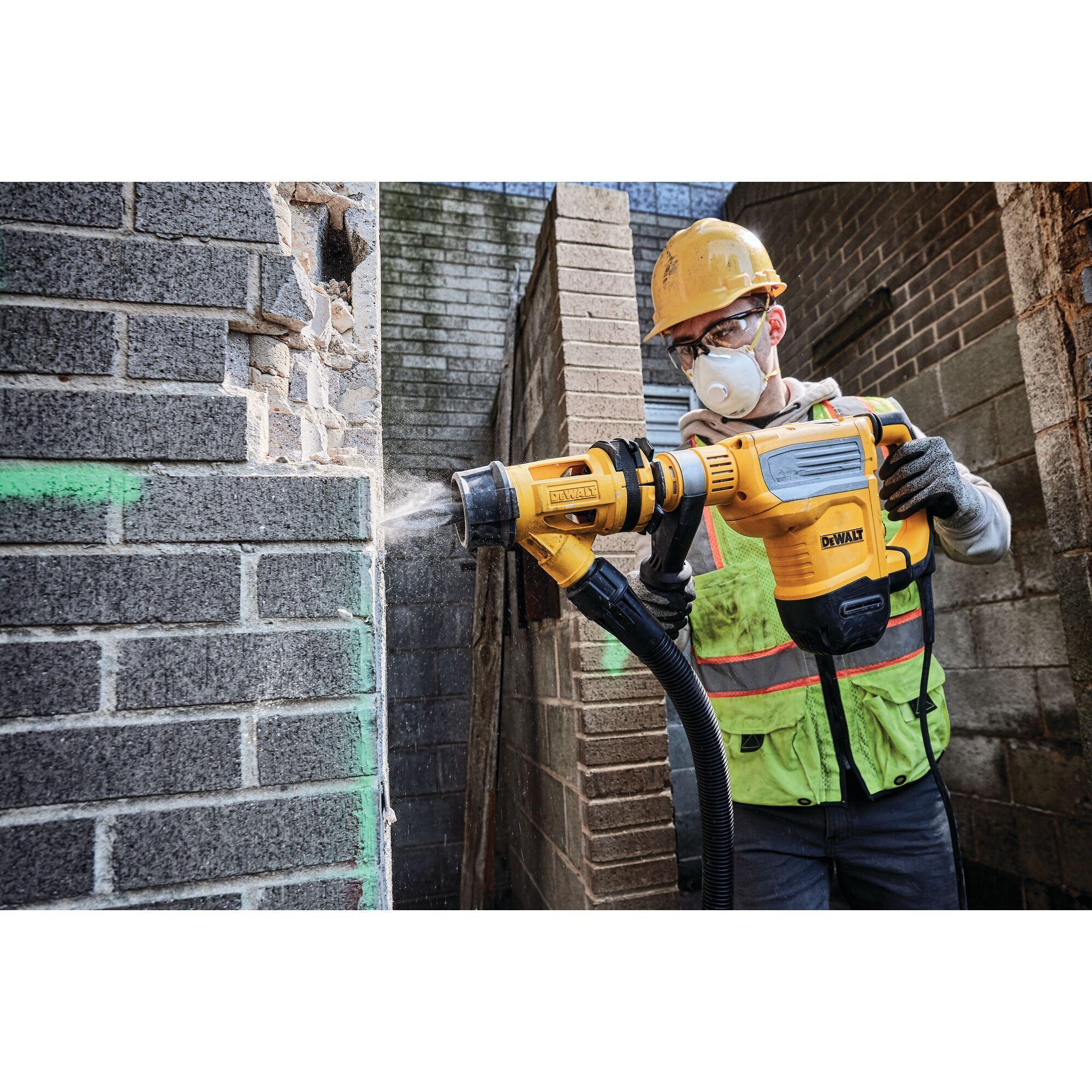

▪ The midweight design makes it ideally suited for high-performance, horizontal serial drilling for 5 - 8 rebar, dry coring up to 4 in, chipping in any upper to lower wall, and bushing applications

▪ The shocks active vibration control system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature

▪ E-Clutch system protects the user in bind up situations by stopping the rotation of the bit

▪ The Tag Ready feature lets users and companies attach the DeWALT tag to track its location virtually anywhere via the DeWALT Tool Connect app
