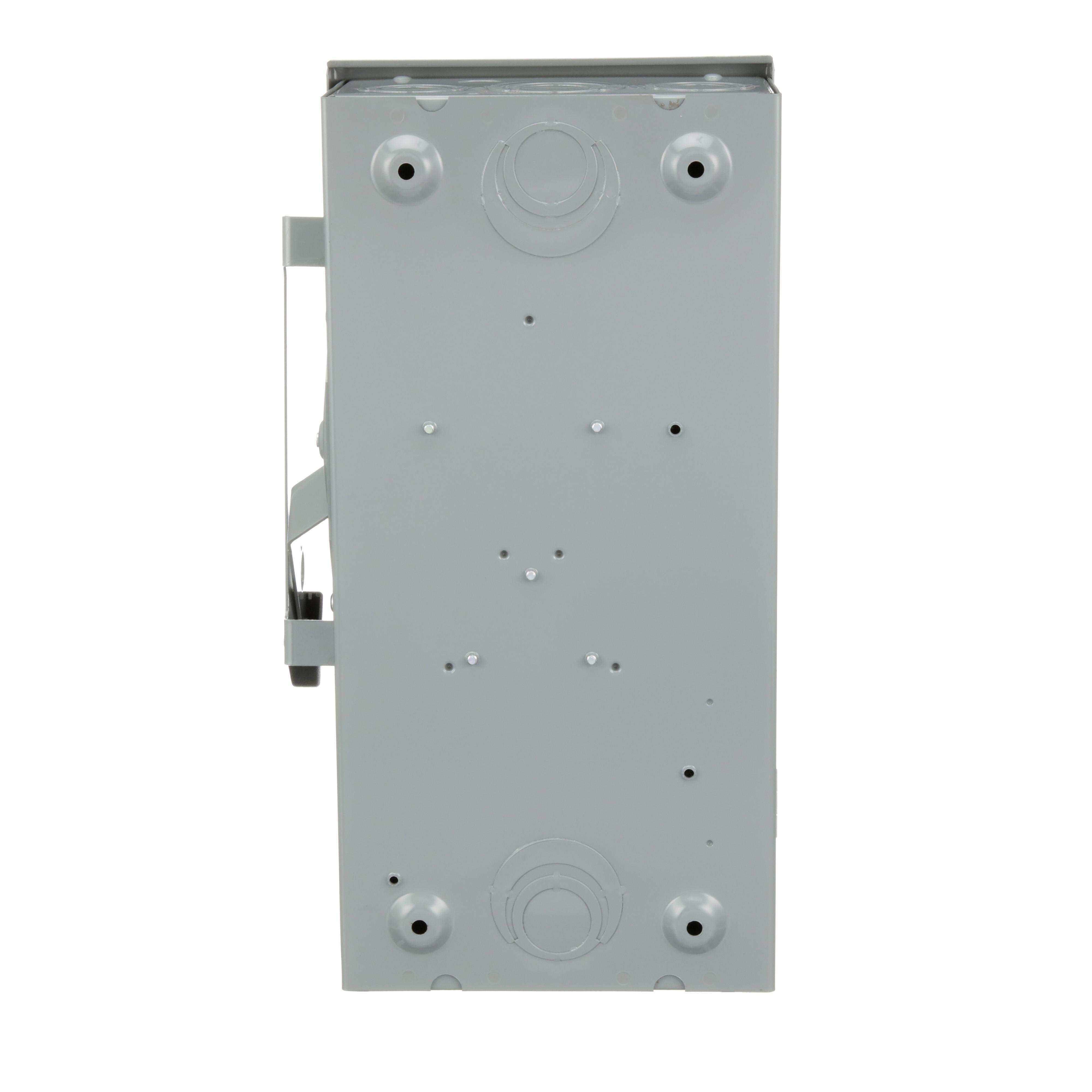

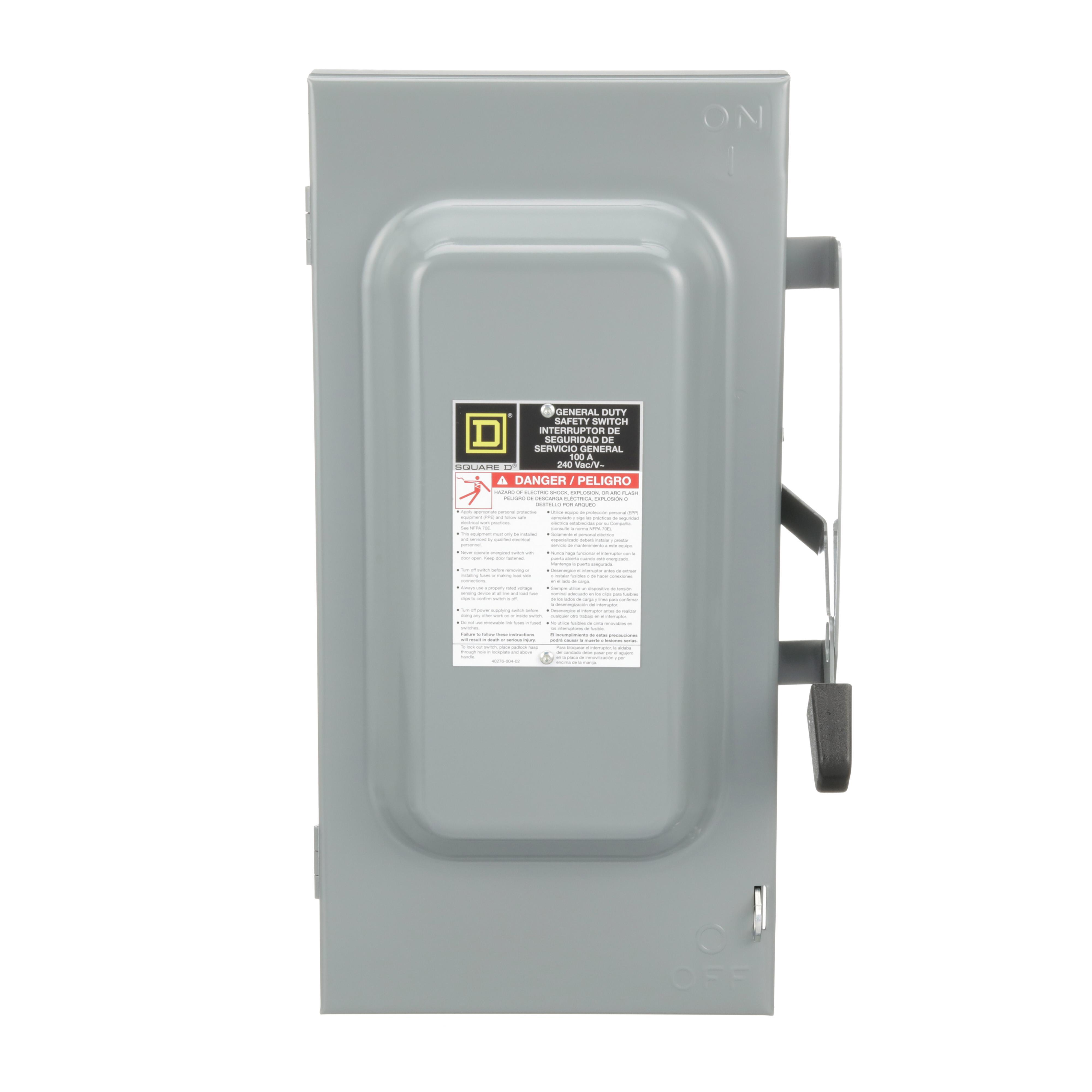

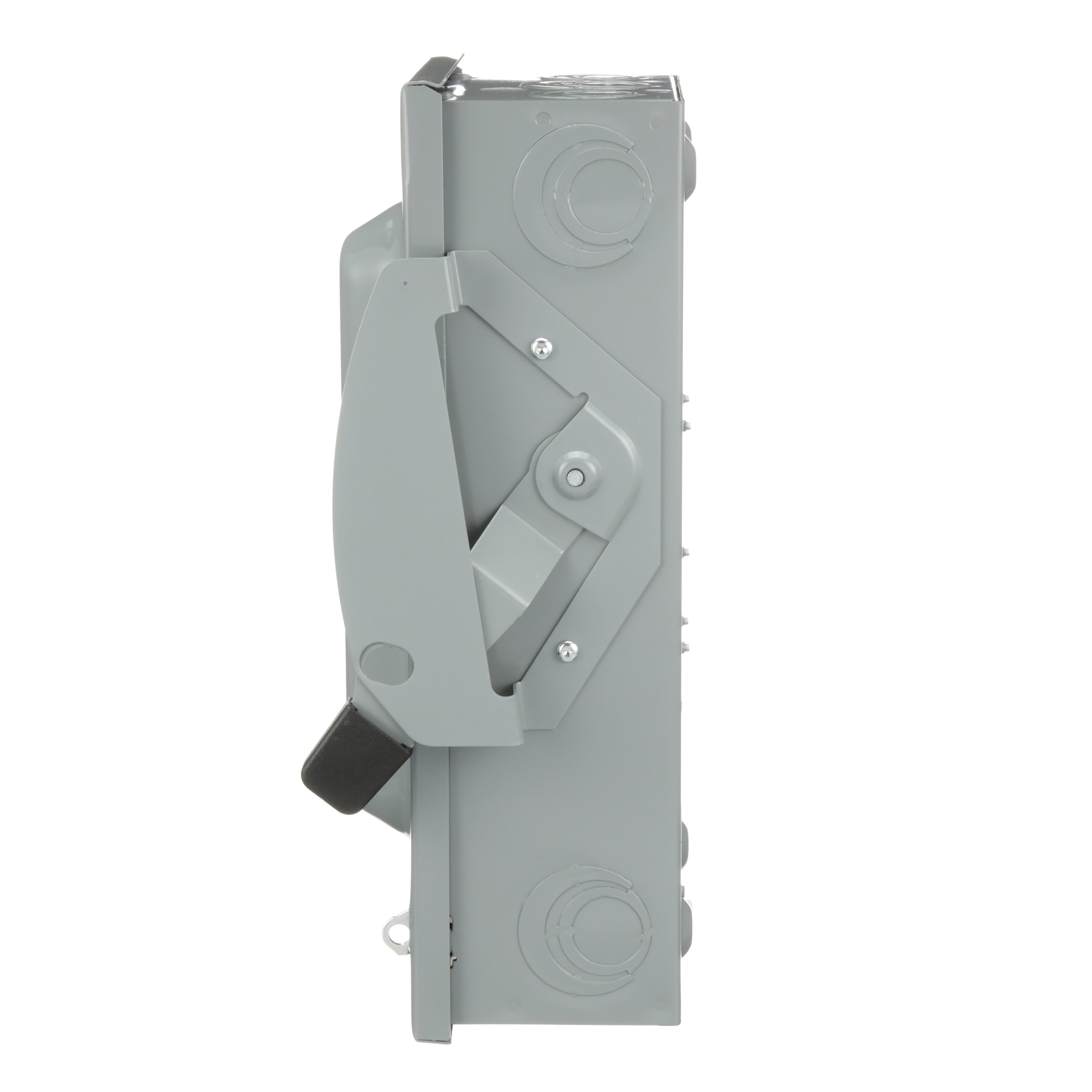

Description: Square D™ Safety Switch, Enclosed Fusible General Duty, Series: F3 Series, 240 VAC, 100 A, 15 to 30 hp, 1/3 ph, 50/60 Hz, 2 Pole, 3 Wires, 100 kA Short Circuit Current, DPST, Handle Actuator, NEMA 1, Surface Mount, Lug Terminal, 8-1/2 in W x 6-1/2 in D x 17-1/2 in H, Steel, Hot Dipped Galvanized

Manufacturer PN: D223N

UPC:  78590146068

Kendall Electric Inc PN: 3958790

Invoice Description:

D223N SQD SWITCH FUSIBLE GD 240V


SPEC SHEET

▸ See All in General Duty Safety Switches


How Can We Make This Page Better?

Square D™ D223N F3 Series Enclosed Fusible General Duty Safety Switch, 240 VAC, 100 A, 15 to 30 hp, DPST Contact, 2 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads are lighting, air conditioning and appliances. When equipped with fuses, over current and short circuit protection is also available. The switches are also suitable as service equipment when equipped with a factory installed neutral assembly or a field installed equipment grounding kit.
Square D™ Safety Switch, Enclosed Fusible General Duty, Series: F3 Series, 240 VAC, 100 A, 15 to 30 hp, 1/3 ph, 50/60 Hz, 2 Pole, 3 Wires, 100 kA Short Circuit Current, DPST, Handle Actuator, NEMA 1, Surface Mount, Lug Terminal, 8-1/2 in W x 6-1/2 in D x 17-1/2 in H, Steel, Hot Dipped Galvanized

Specifications

 Actuator Type Handle
 Amperage Rating 100 A
 Application General Purpose and Indoor Applications
 Brand Name Square D
 Contact Form DPST
 Dimensions 8-1/2 in W x 6-1/2 in D x 17-1/2 in H
 Enclosure NEMA 1
 Finish Hot Dipped Galvanized
 Frequency Rating 50/60 Hz
 Horsepower 15 to 30 hp
 Manufacturer Part Number D223N
 Material Steel
 Mounting Type Surface
 Number of Poles 2
 Number of Wires 3
 Phase 3-Jan
 Series F3 Series
 Short Circuit Current Rating 100 kA
 Standards/Approvals Buy American Act Compliant|RoHS Compliant|UL File No. E2875|NEMA KS1|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Terminal Type Lug
 Type Enclosed Fusible General Duty
 Voltage Rating 240 VAC

Features

▪ Horsepower rated for motor applications
▪ Tangential knockout alleviate the need for offset bends
▪ Spring reinforced, plated copper fuse clips
▪ Insulated, bonded solid neutral assemblies are standard in fusible switches
▪ Visible blades
▪ Quick-make and quick-break operating mechanism
▪ Cover padlock hasp and handle lock-off
▪ Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel
