Description: Square D™, D222N, General Duty Safety Switch, Enclosed Fusible, Series: F1, 240 V AC, 60 A, 10 hp/15 hp, 1/3 ph, 50/60 Hz Frequency, 2 Pole, 3 Wires, 100 kA Short Circuit, DPST Contact Form, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, 14.6 in H x 6.51 in W x 4.87 in D Dimensions, Steel, Galvanized

Manufacturer PN: D222N

UPC:  78590146062

Kendall Electric Inc PN: 3999336

Invoice Description:

D222N SQD SWITCH FUSIBLE GD 240V


SPEC SHEET

▸ See All in General Duty Safety Switches


How Can We Make This Page Better?

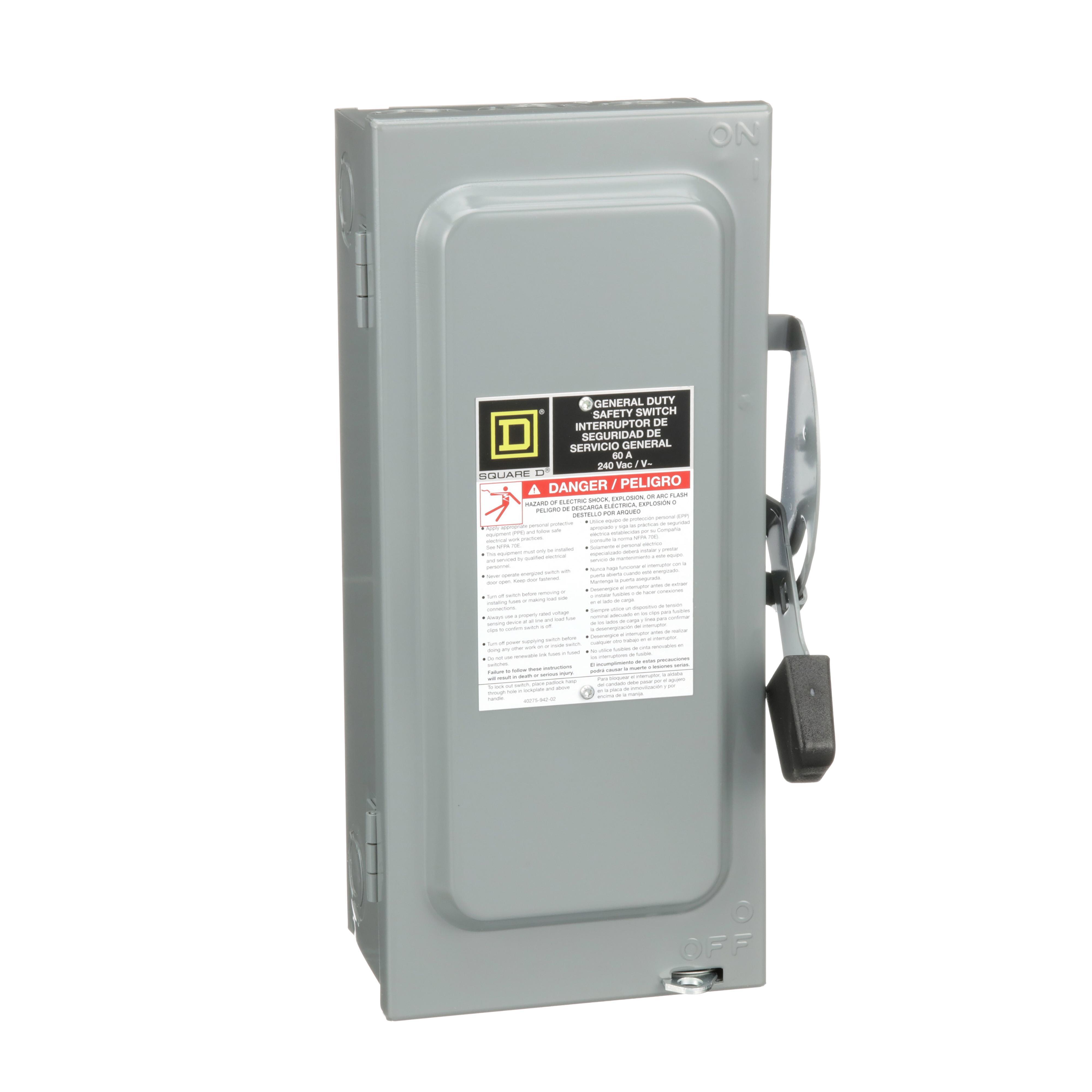

Square D™ D222N F1 Enclosed Fusible General Duty Safety Switch, 240 V AC, 60 A, 10 hp/15 hp, DPST Contact, 2 Poles

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 60A for 240VAC. This general duty switch has a 3 wire configuration with 2 poles and a factory installed neutral. The device accepts H, K or R fuse types. The enclosure is surface mounted and is a Type 1. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.
Square D™, D222N, General Duty Safety Switch, Enclosed Fusible, Series: F1, 240 V AC, 60 A, 10 hp/15 hp, 1/3 ph, 50/60 Hz Frequency, 2 Pole, 3 Wires, 100 kA Short Circuit, DPST Contact Form, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, 14.6 in H x 6.51 in W x 4.87 in D Dimensions, Steel, Galvanized

Specifications

 Actuator Type Handle
 Amperage Rating 60 A
 Application General Purpose and Indoor Applications
 Brand Name Square D
 Contact Form DPST

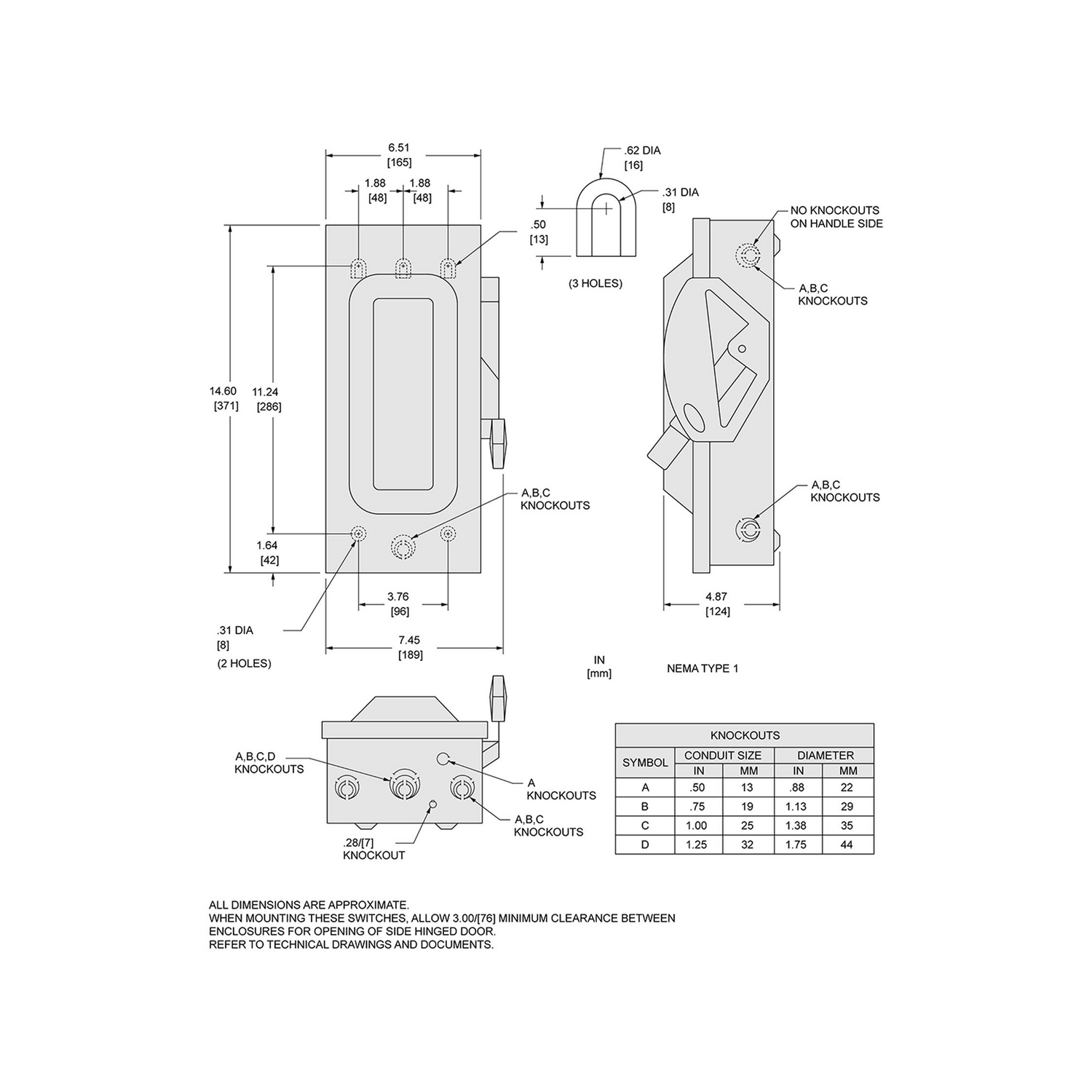

 Dimensions 14.6 in H x 6.51 in W x 4.87 in D
 Enclosure NEMA 1
 Finish Galvanized
 Frequency Rating 50/60 Hz
 Horsepower 10 hp/15 hp
 Manufacturer Part Number D222N
 Material Steel
 Mounting Type Surface
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS D222N ; 8055690 ; 13917743 ; 785901460626 ; 78590146062 ; 00785901460626 ; 0785901460626
 Phase 1/3
 Series F1
 Short Circuit Current Rating 100 kA
 Standards/Approvals RoHS Compliant|UL File NO. E2875|NEMA KS1
 Terminal Type Lug
 Type Enclosed Fusible
 Voltage Rating 240 V AC

Features

▪ Fusible switches provide over-current and short circuit protection
▪ Excellent for disconnecting lighting, air condition, and appliances
▪ Quick make, quick break operating mechanism
