Schneider Electric

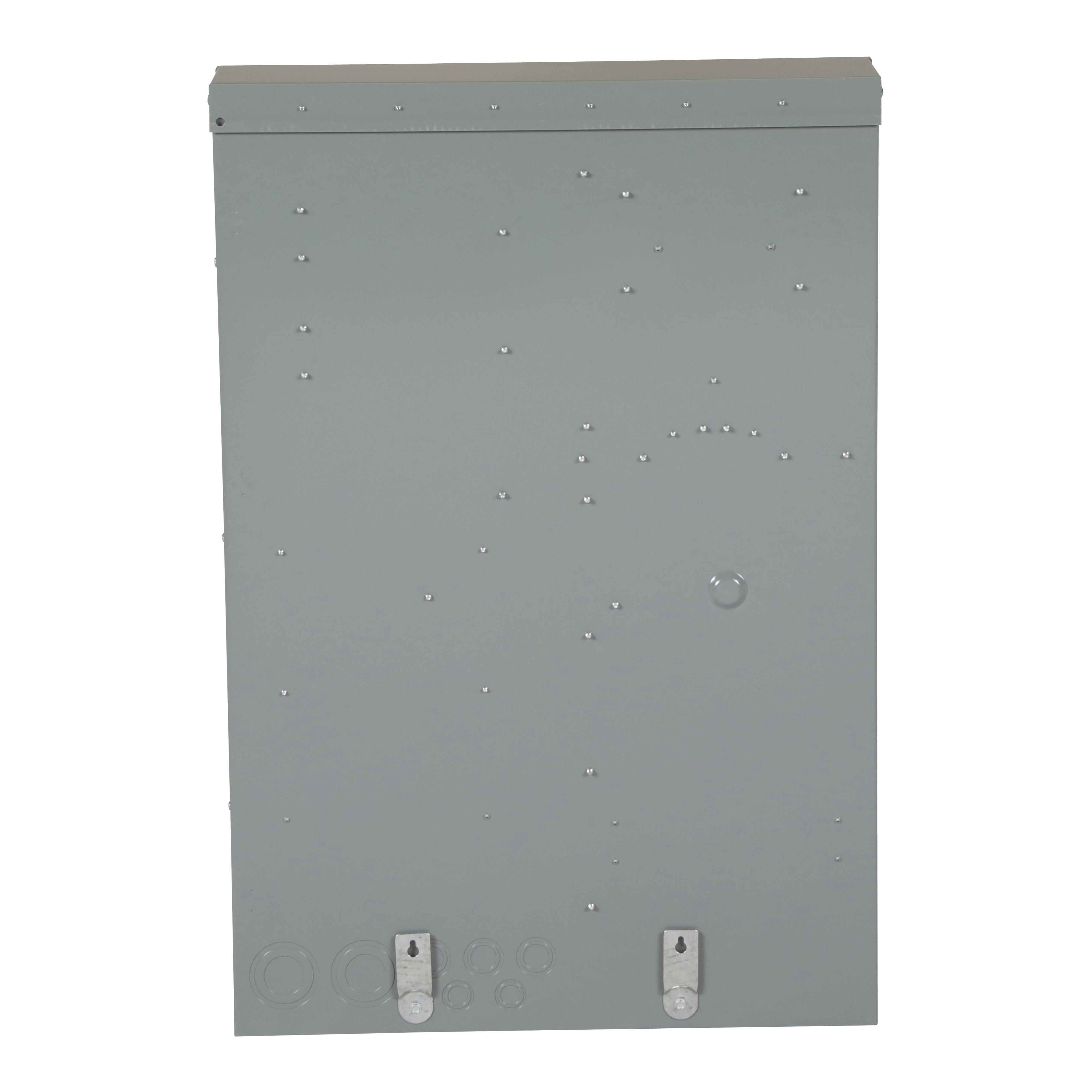

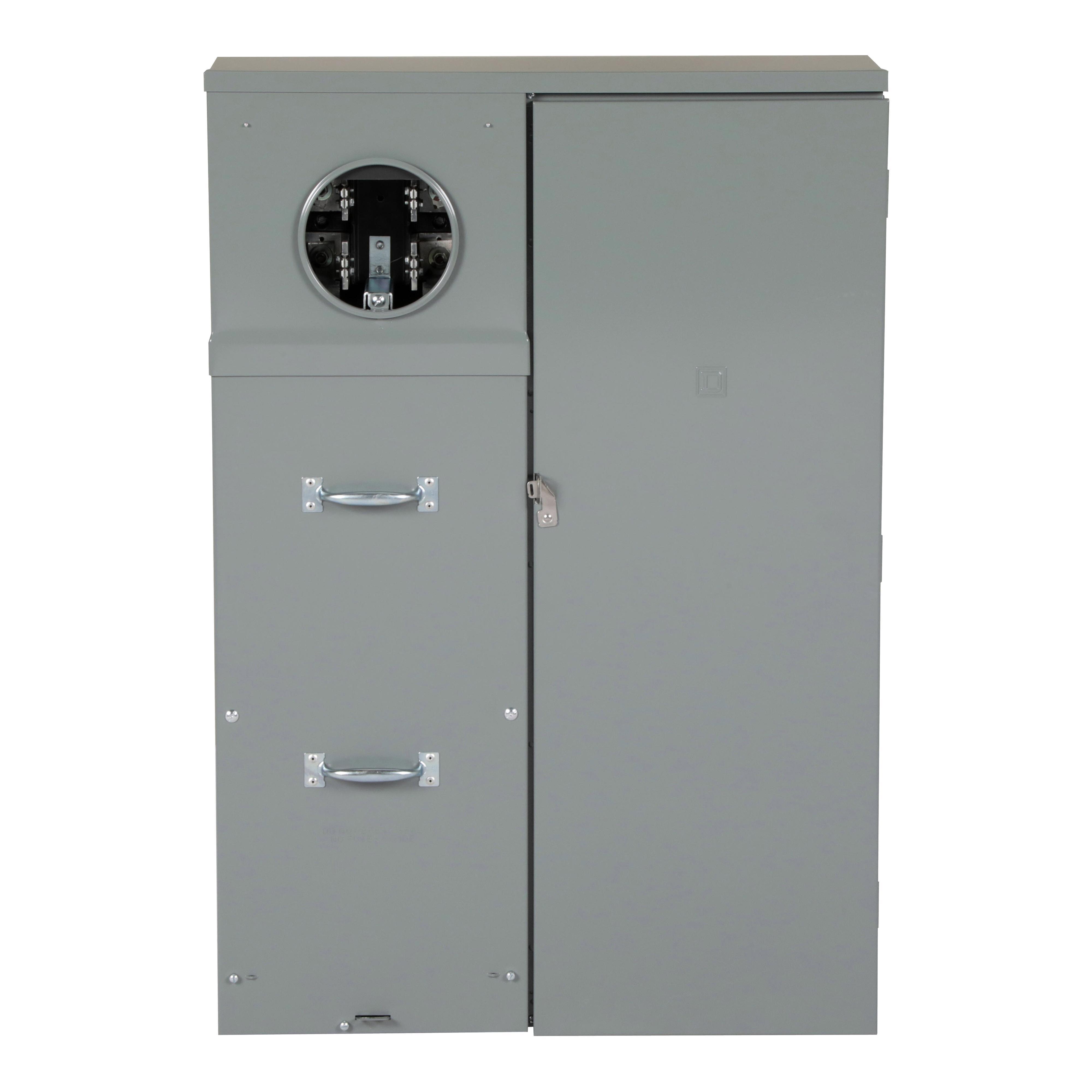

  • CU816D400CN SQD METER MAIN 400A
  • CU816D400CN SQD METER MAIN 400A
  • CU816D400CN SQD METER MAIN 400A
  • CU816D400CN SQD METER MAIN 400A

Description: Square D™ QO™ Combination Service Entrance Meter Main, 3-Wire 8-Circuit 16-Space Field Installed Rainproof, 120/240 V AC, 400 A, 1 ph, Underground Feed, 4 Jaws, 4 AWG to 250 kcmil Aluminum/Copper Wire, A-L Hub, 2-1/2 in, 3 in, 3-1/2 in, 4 in Hub, Ring Cover, Line/Service Ground/Feed Through Lug Terminal, Flush Mounting, NEMA 3R Enclosure, 41-1/4 in H x 28-1/4 in W x 7-1/2 in D Dimensions

Manufacturer PN: CU816D400CN

UPC:  78590154529

Kendall Electric Inc PN: 4714503

Invoice Description:

CU816D400CN SQD METER MAIN 400A


SPEC SHEET

▸ See All in Meter Socket Meter Main Combinations


How Can We Make This Page Better?

Square D™ QO™ CU816D400CN 3-Wire 8-Circuit 16-Space Field Installed Rainproof Combination Service Entrance Meter Main With Class 320 Test Block Bypass, Field Installed Flange Kit, 120/240 V AC, 400 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D? Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ring type, class 320 socket with no bypass, and underground feed. With a current rating of 400A, this product has a short circuit current rating of 25kA. This unit is supplied with factory installed QDL22200 main breaker. Dual main service disconnects with feedthru lugs option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.
Square D™ QO™ Combination Service Entrance Meter Main, 3-Wire 8-Circuit 16-Space Field Installed Rainproof, 120/240 V AC, 400 A, 1 ph, Underground Feed, 4 Jaws, 4 AWG to 250 kcmil Aluminum/Copper Wire, A-L Hub, 2-1/2 in, 3 in, 3-1/2 in, 4 in Hub, Ring Cover, Line/Service Ground/Feed Through Lug Terminal, Flush Mounting, NEMA 3R Enclosure, 41-1/4 in H x 28-1/4 in W x 7-1/2 in D Dimensions

Specifications

 Amperage Rating 400 A
 Application Residential Applications
 Brand Name Square D
 Cover Type Ring
 Dimensions 41-1/4 in H x 28-1/4 in W x 7-1/2 in D
 Enclosure NEMA 3R
 Feed Type Underground
 Hub Size 2-1/2 in, 3 in, 3-1/2 in, 4 in
 Hub Type A-L
 Includes Load Side Feed Through Lugs
 Manufacturer Part Number CU816D400CN
 Mounting Type Flush
 Number of Jaws 4
 Phase 1
 Standards/Approvals UL 50|UL 67|UL 414|UL File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
 Terminal Type Line/Service Ground/Feed Through Lug
 Type 3-Wire 8-Circuit 16-Space Field Installed Rainproof
 Voltage Rating 120/240 V AC

Features

▪ This single compact solution provides a time and space saving solution for contractors and installers
▪ Suitable for use as service entrance equipment
▪ CSED integrate meter socket that, a main disconnect and load center into one compact design
