Hubbell

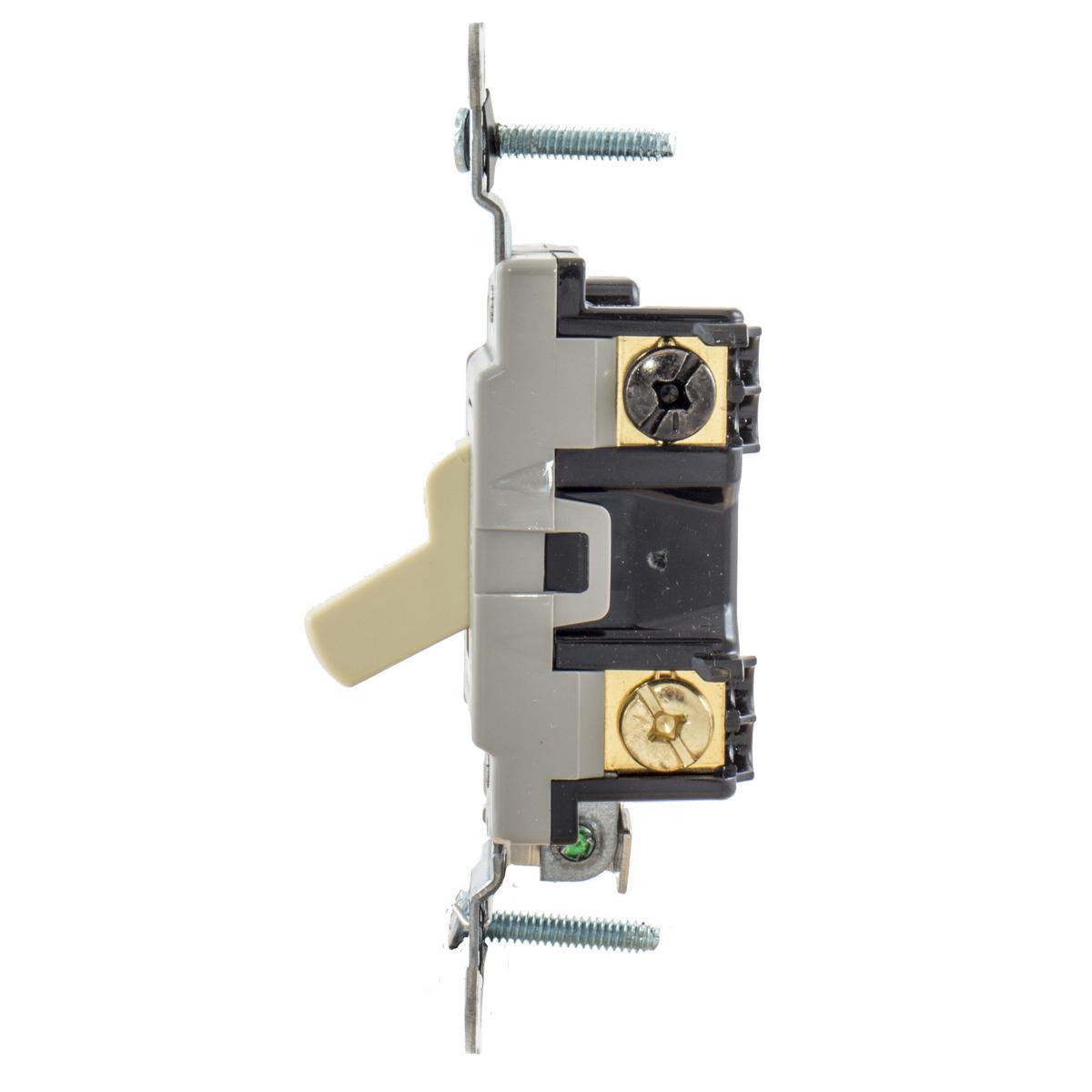

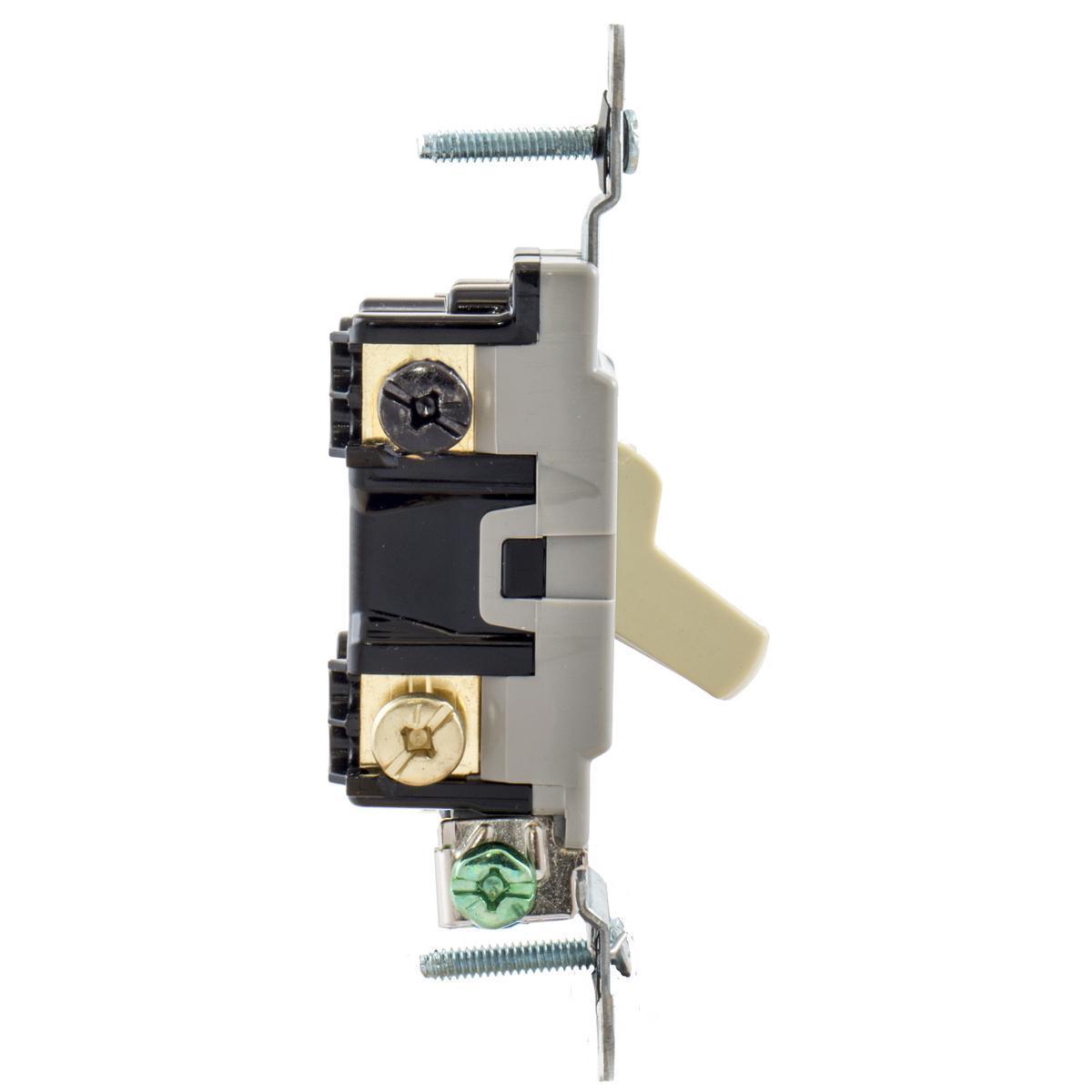

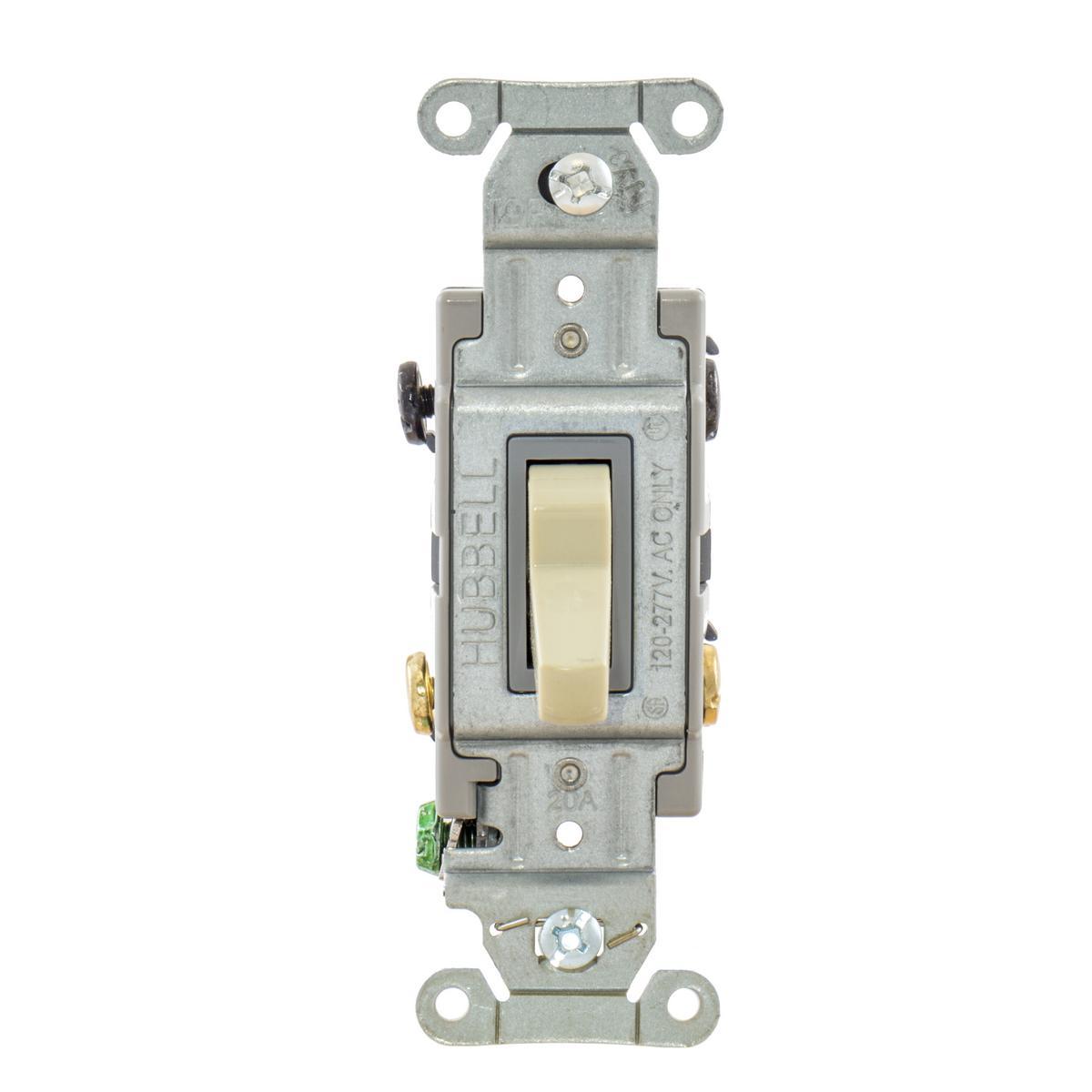

CSB420I HUBBELL SWITCH, SPEC, 4W, 20A 120/277V, B+S, IV 78358515431..

Mouse over image to zoom, click to enlarge

  • CSB420I HUBBELL SWITCH, SPEC, 4W, 20A 120/277V, B+S, IV 78358515431..
  • CSB420I HUBBELL SWITCH, SPEC, 4W, 20A 120/277V, B+S, IV 78358515431..
  • CSB420I HUBBELL SWITCH, SPEC, 4W, 20A 120/277V, B+S, IV 78358515431..
  • CSB420I HUBBELL SWITCH, SPEC, 4W, 20A 120/277V, B+S, IV 78358515431..
  • CSB420I HUBBELL SWITCH, SPEC, 4W, 20A 120/277V, B+S, IV 78358515431..

Description: Hubbell Wiring Device-Kellems, CSB420I, Toggle Switch, 4-Way 2-Position Specification/Commercial Grade Standard, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 2 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Ivory, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions

Manufacturer PN: CSB420I

UPC:  78358515431

Kendall Electric Inc PN: 2691504

Invoice Description:

CSB420I HUBBELL SWITCH, SPEC, 4W, 20A 120/277V, B+S, IV 78358515431..


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems CSB420I 4-Way 2-Position Specification/Commercial Grade Standard Toggle Switch, 120 to 277 V AC, 20 A, 5540 W Power Rating, 2-Position Contact

Log In for Pricing and Availability




Description

Hubbell Wiring Device-Kellems, CSB420I, Toggle Switch, 4-Way 2-Position Specification/Commercial Grade Standard, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 2 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Ivory, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions

Specifications

 Actuator Toggle
 Amperage Rating 20 A
 Application General Purpose AC and Indoor Applications
 Brand Name Hubbell Premise Wiring
 Color Ivory
 Contact Configuration 2-Position
 Dimensions 4.18 x 1.49 x 1.83 in
 Environmental Conditions -40 to 75 deg C
 Manufacturer Part Number CSB420I
 Material Nylon
 Mounting Threaded
 Number of Poles 2
 Operating Cycles 50000 Cycles
 PART NUMBER KEYWORDS CSB420I ; 10084999 ; 11814457 ; 783585154312 ; 78358515431 ; 00783585154312 ; 0783585154312
 Power Rating 5540 W
 Standards/Approvals RoHS Compliant|UL 20|UL94 V-2 Flammability Rating|CSA Certified|Federal Specification WS896|NEMA WD1
 Terminal Type Back/Side Wire
 Type 4-Way 2-Position Specification/Commercial Grade Standard
 Voltage Rating 120 to 277 V AC

Features

▪ Abuse resistant nylon toggle
▪ Steel, zinc plated bridge is corrosion resistant
▪ Thread cleaning captive mounting screw
