Hubbell

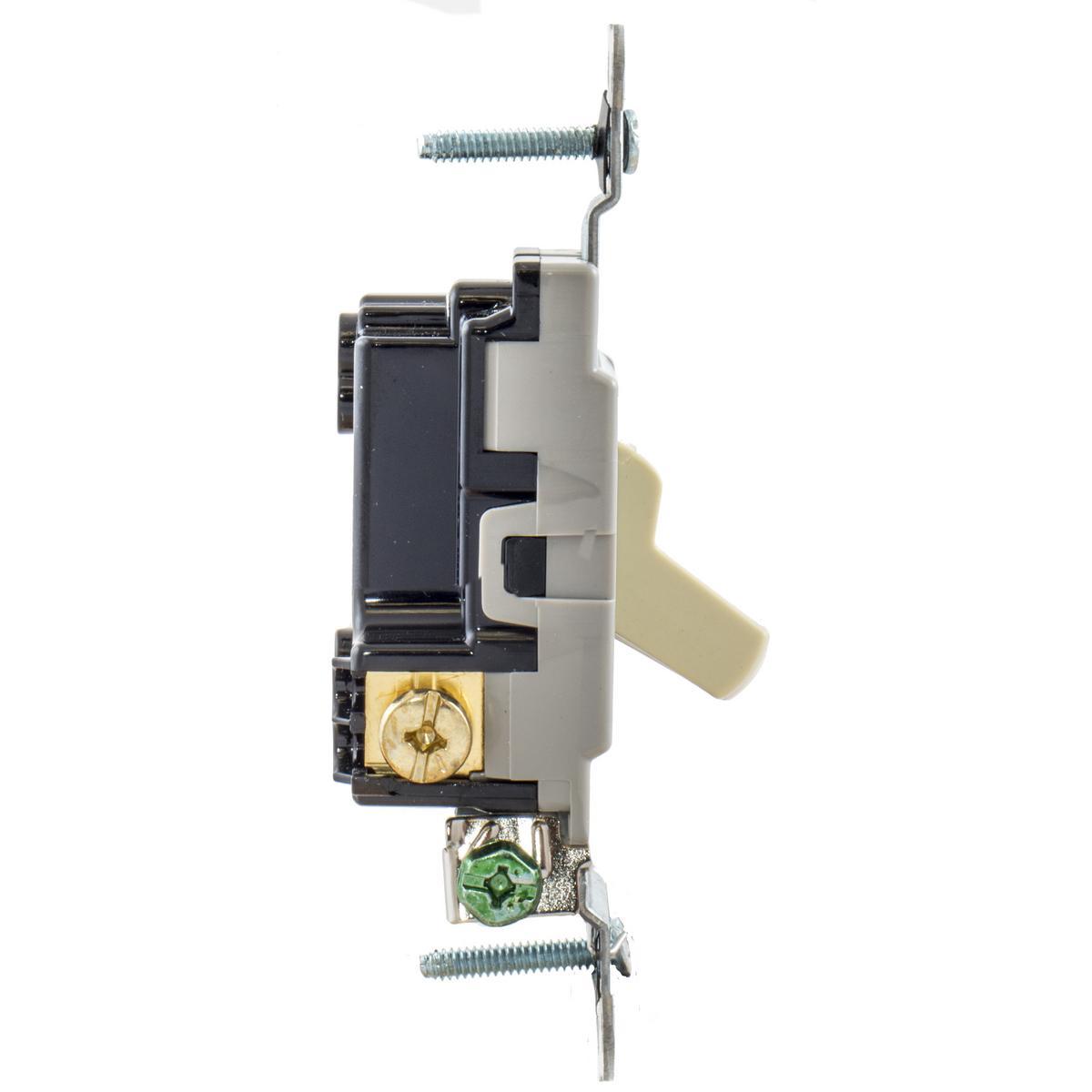

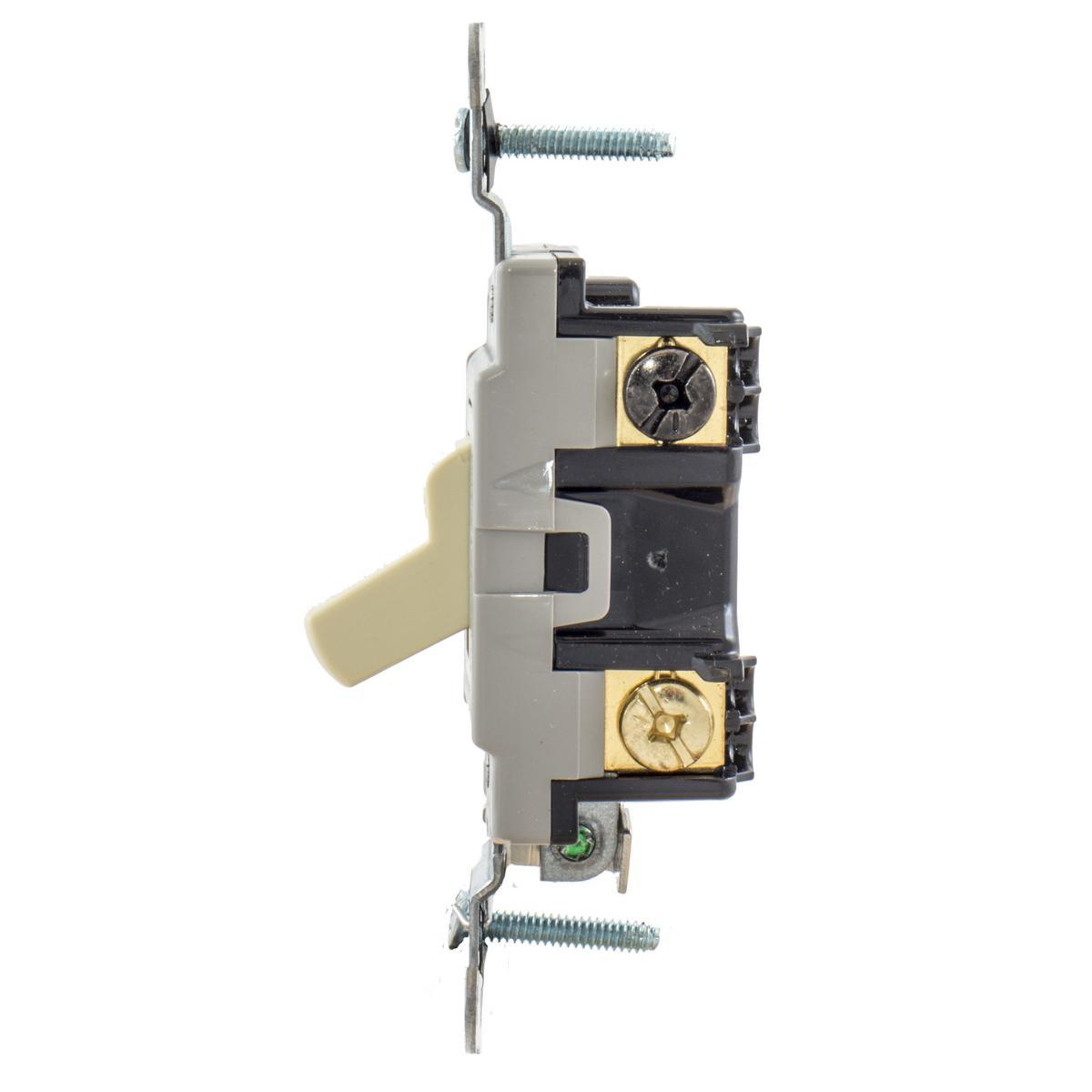

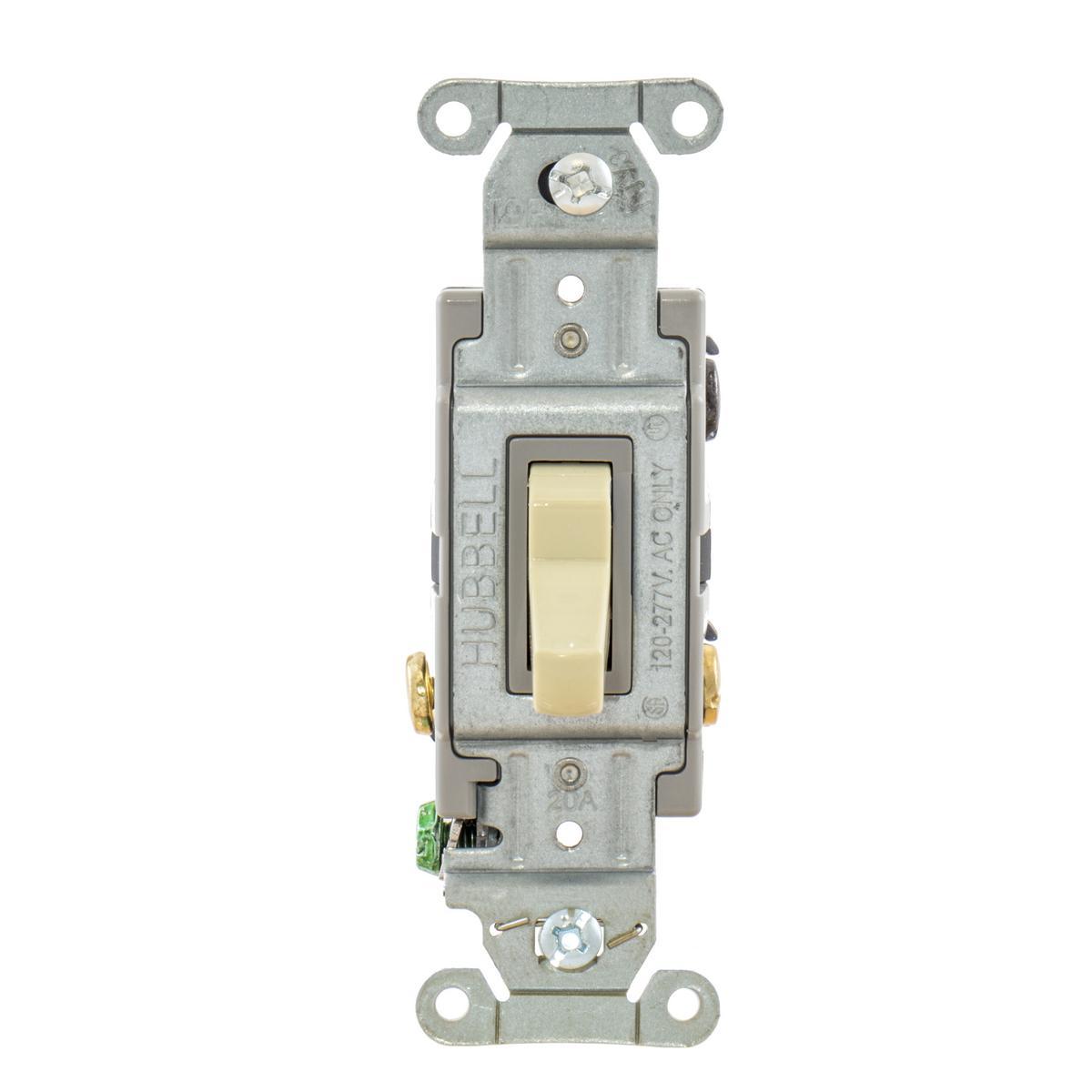

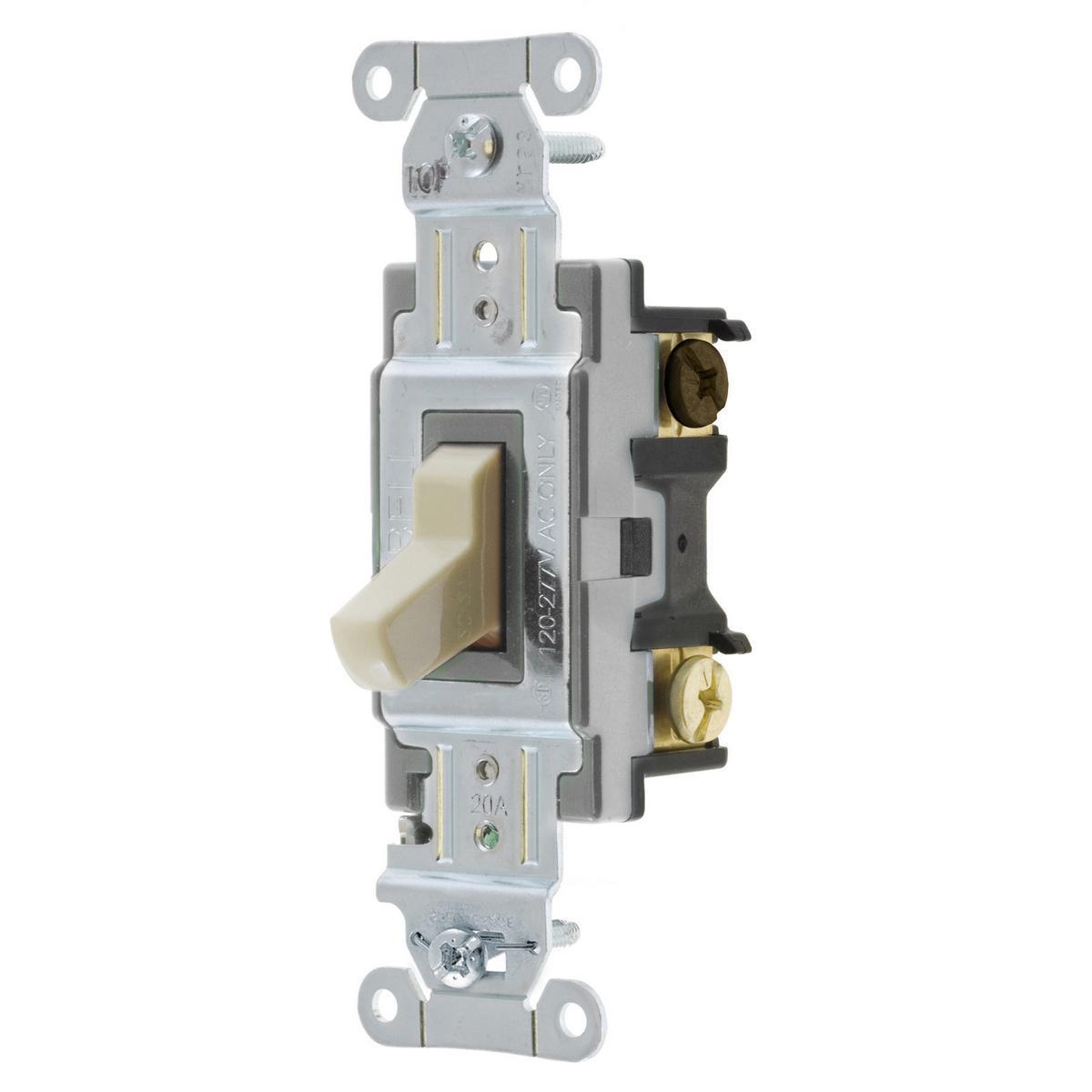

CSB320I HUB 3-WAY TOGGLE SPEC GRADE 20A 120/277 IVORY..

Mouse over image to zoom, click to enlarge

  • CSB320I HUB 3-WAY TOGGLE SPEC GRADE 20A 120/277 IVORY..
  • CSB320I HUB 3-WAY TOGGLE SPEC GRADE 20A 120/277 IVORY..
  • CSB320I HUB 3-WAY TOGGLE SPEC GRADE 20A 120/277 IVORY..
  • CSB320I HUB 3-WAY TOGGLE SPEC GRADE 20A 120/277 IVORY..
  • CSB320I HUB 3-WAY TOGGLE SPEC GRADE 20A 120/277 IVORY..

Description: Hubbell Wiring Device-Kellems, CSB320I, Toggle Switch, 2-Position 3-Way Standard, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Ivory, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions

Manufacturer PN: CSB320I

UPC:  78358515422

Kendall Electric Inc PN: 2680790

Invoice Description:

CSB320I HUB 3-WAY TOGGLE SPEC GRADE 20A 120/277 IVORY..


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems CSB320I 2-Position 3-Way Standard Toggle Switch, 120 to 277 V AC, 20 A, 5540 W Power Rating, 2-Position Contact

Log In for Pricing and Availability




Description

Hubbell Wiring Device-Kellems, CSB320I, Toggle Switch, 2-Position 3-Way Standard, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Ivory, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions

Specifications

 Actuator Toggle
 Amperage Rating 20 A
 Application Commercial Applications
 Brand Name Hubbell Premise Wiring
 Color Ivory
 Contact Configuration 2-Position
 Dimensions 4.18 x 1.49 x 1.83 in
 Environmental Conditions -40 to 75 deg C
 Manufacturer Part Number CSB320I
 Material Nylon
 Mounting Threaded
 Number of Poles 1
 Operating Cycles 50000 Cycles
 PART NUMBER KEYWORDS CSB320I ; 11814448 ; 10084992 ; 783585154220 ; 78358515422 ; 00783585154220 ; 0783585154220
 Power Rating 5540 W
 Standards/Approvals RoHS Compliant|CSA Certified|Federal Specification W-S-896|NEMA WD1|UL Listed
 Terminal Type Back/Side Wire
 Type 2-Position 3-Way Standard
 Voltage Rating 120 to 277 V AC

Features

▪ Steel, zinc plated bridge is corrosion resistant
▪ Abuse resistant nylon toggle
▪ Thread cleaning captive mounting screw
