Hubbell

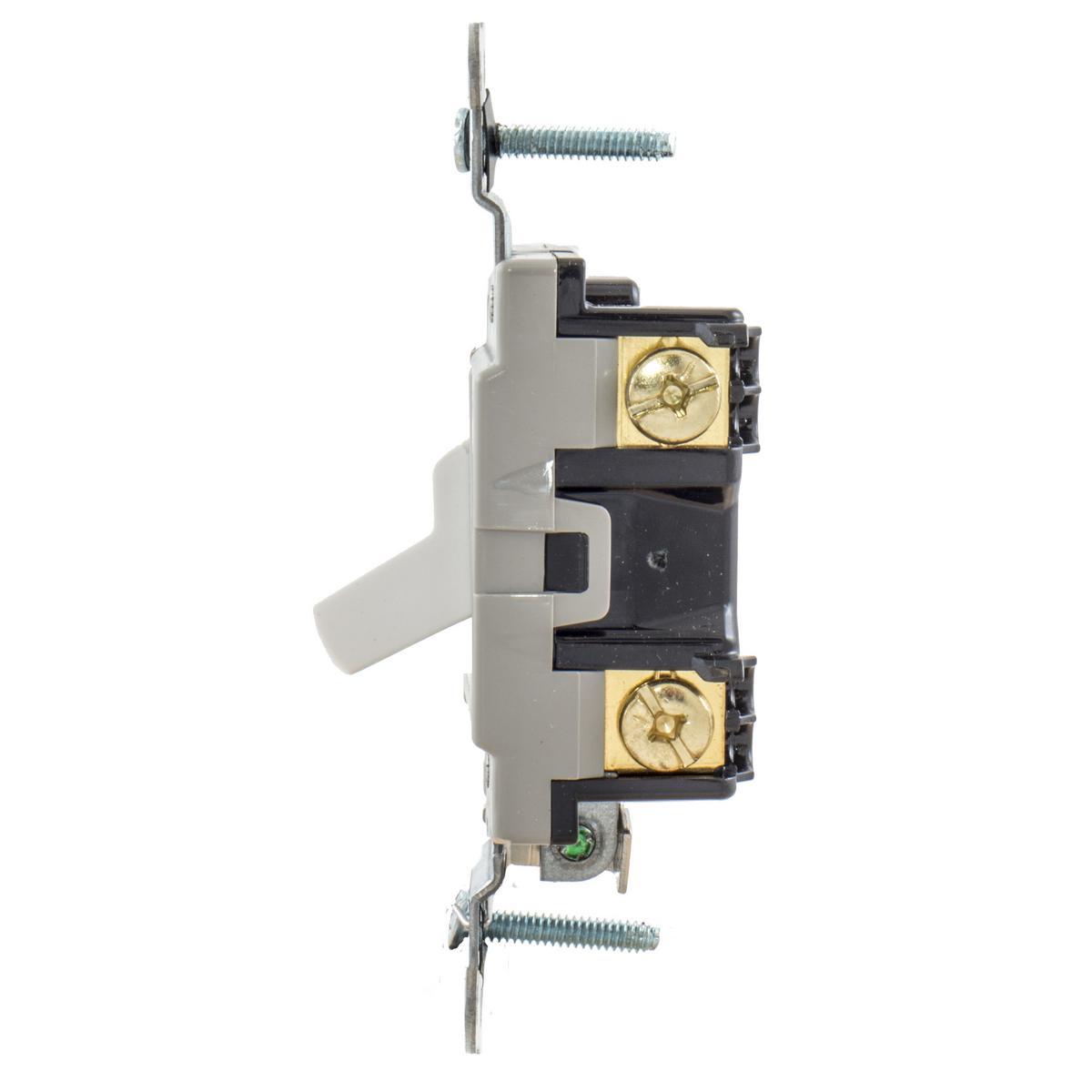

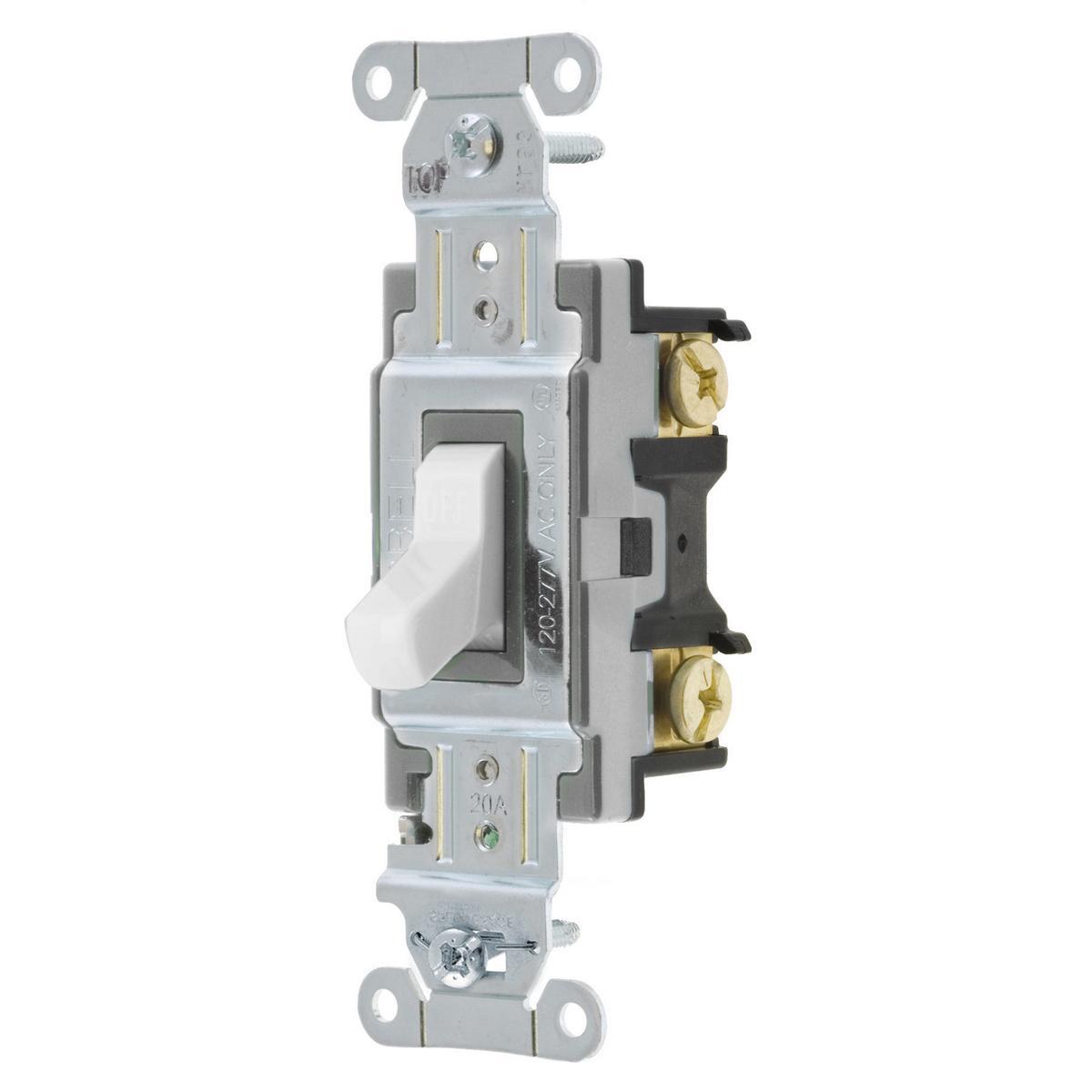

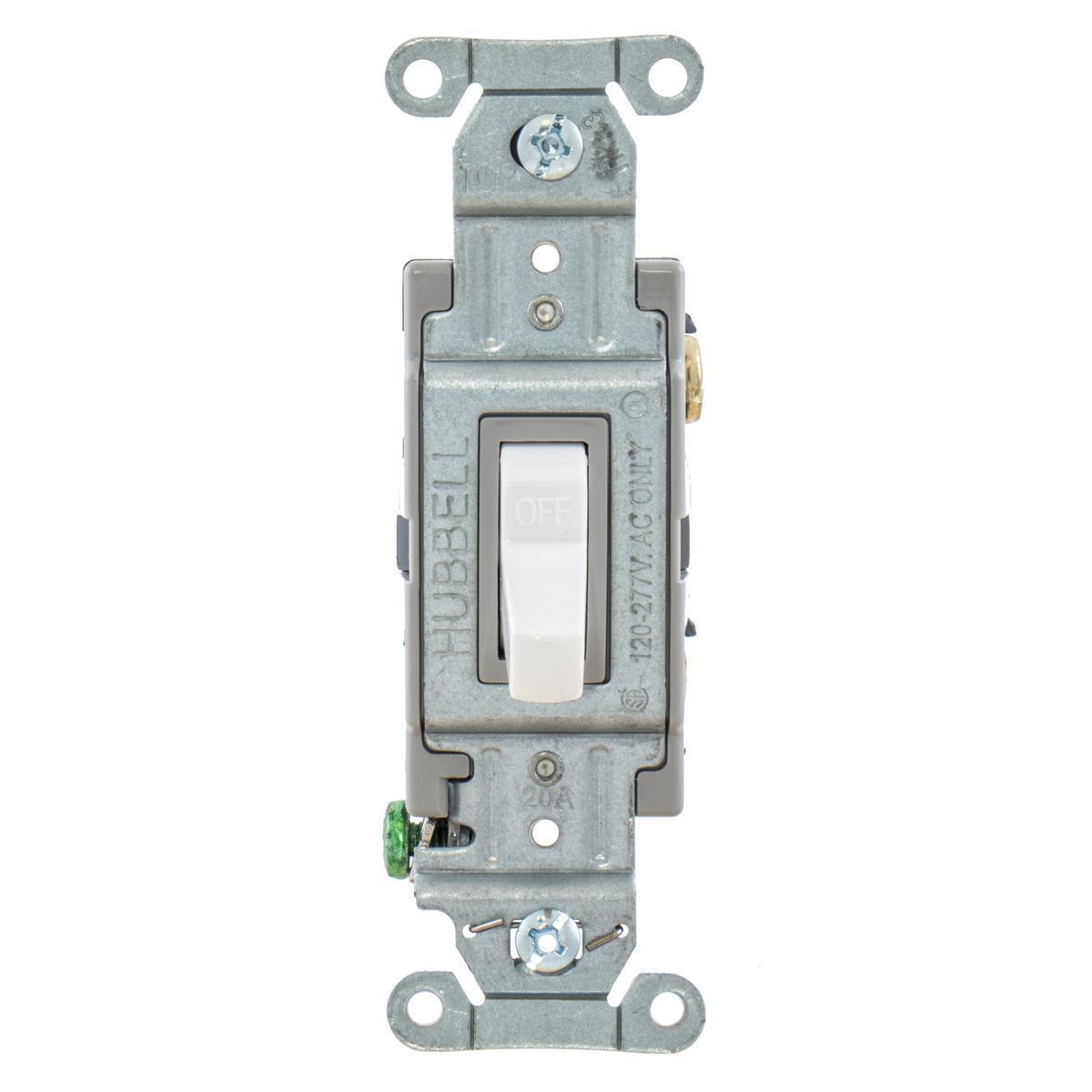

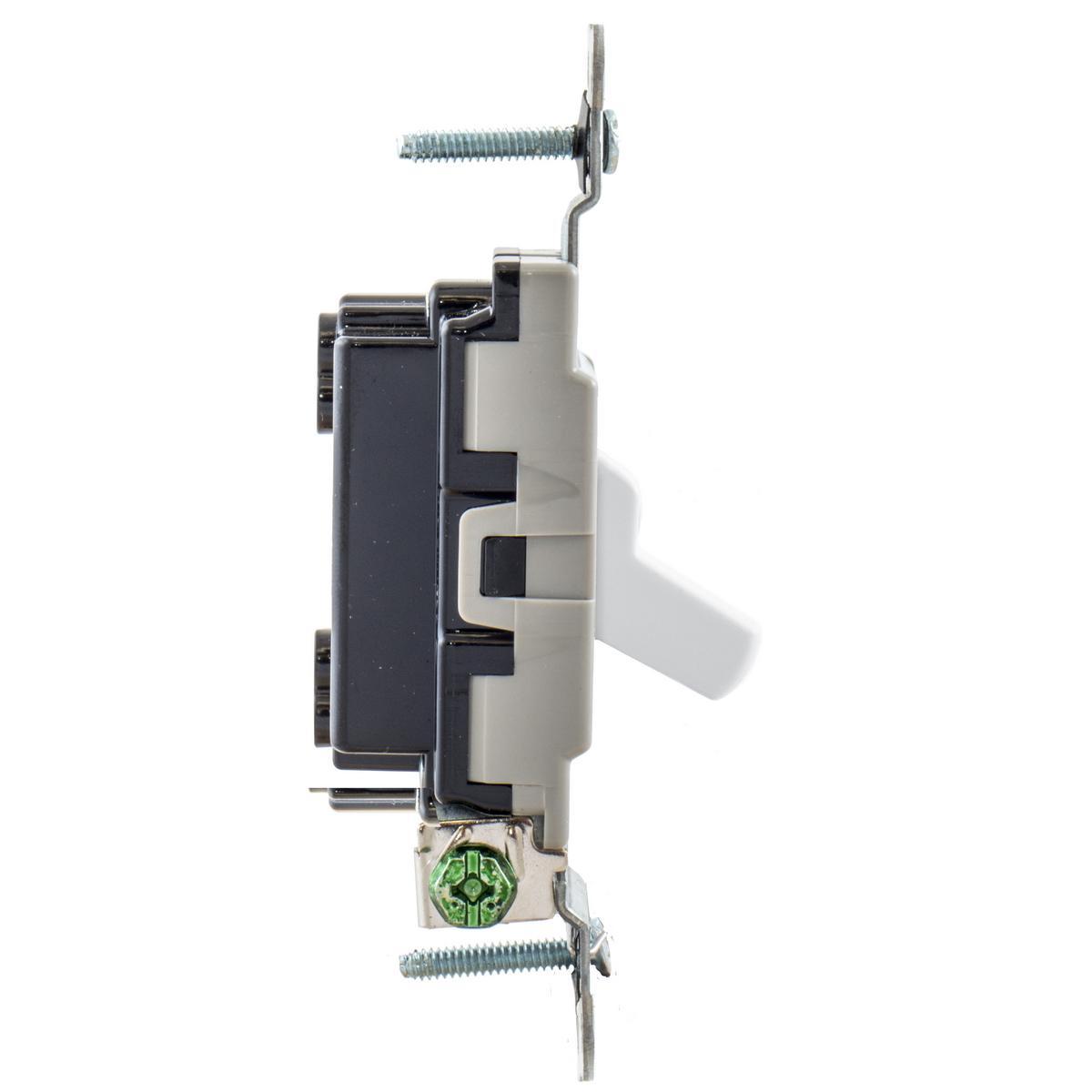

CSB120W HUBBELL SP TOG, SPEC GRD COM SER,20A 120/277 WH 78358515406..

Mouse over image to zoom, click to enlarge

  • CSB120W HUBBELL SP TOG, SPEC GRD COM SER,20A 120/277 WH 78358515406..
  • CSB120W HUBBELL SP TOG, SPEC GRD COM SER,20A 120/277 WH 78358515406..
  • CSB120W HUBBELL SP TOG, SPEC GRD COM SER,20A 120/277 WH 78358515406..
  • CSB120W HUBBELL SP TOG, SPEC GRD COM SER,20A 120/277 WH 78358515406..
  • CSB120W HUBBELL SP TOG, SPEC GRD COM SER,20A 120/277 WH 78358515406..

Description: Hubbell Wiring Device-Kellems, CSB120W, Toggle Switch, 2-Position Standard, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, White, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions

Manufacturer PN: CSB120W

UPC:  78358515406

Kendall Electric Inc PN: 2643963

Invoice Description:

CSB120W HUBBELL SP TOG, SPEC GRD COM SER,20A 120/277 WH 78358515406..


SPEC SHEET

▸ See All in Toggle Switches


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems CSB120W 2-Position Standard Toggle Switch, 120 to 277 V AC, 20 A, 5540 W Power Rating, 2-Position Contact

Log In for Pricing and Availability




Description

Hubbell Wiring Device-Kellems, CSB120W, Toggle Switch, 2-Position Standard, 120 to 277 V AC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, White, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions

Specifications

 Actuator Toggle
 Amperage Rating 20 A
 Application Commercial Applications
 Brand Name Hubbell Premise Wiring
 Color White
 Contact Configuration 2-Position
 Dimensions 4.18 x 1.49 x 1.83 in
 Environmental Conditions -40 to 75 deg C
 Manufacturer Part Number CSB120W
 Material Nylon
 Mounting Threaded
 Number of Poles 1
 Operating Cycles 50000 cycles
 PART NUMBER KEYWORDS CSB120W ; 10084981 ; 11814432 ; 783585154060 ; 78358515406 ; 00783585154060 ; 0783585154060
 Power Rating 5540 W
 Standards/Approvals RoHS Compliant|CSA Certified|Federal Specification W-S-896|NEMA WD1|UL Listed
 Terminal Type Back/Side Wire
 Type 2-Position Standard
 Voltage Rating 120 to 277 V AC

Features

▪ Thread cleaning captive mounting screw
▪ Steel, zinc plated bridge is corrosion resistant
