Leviton

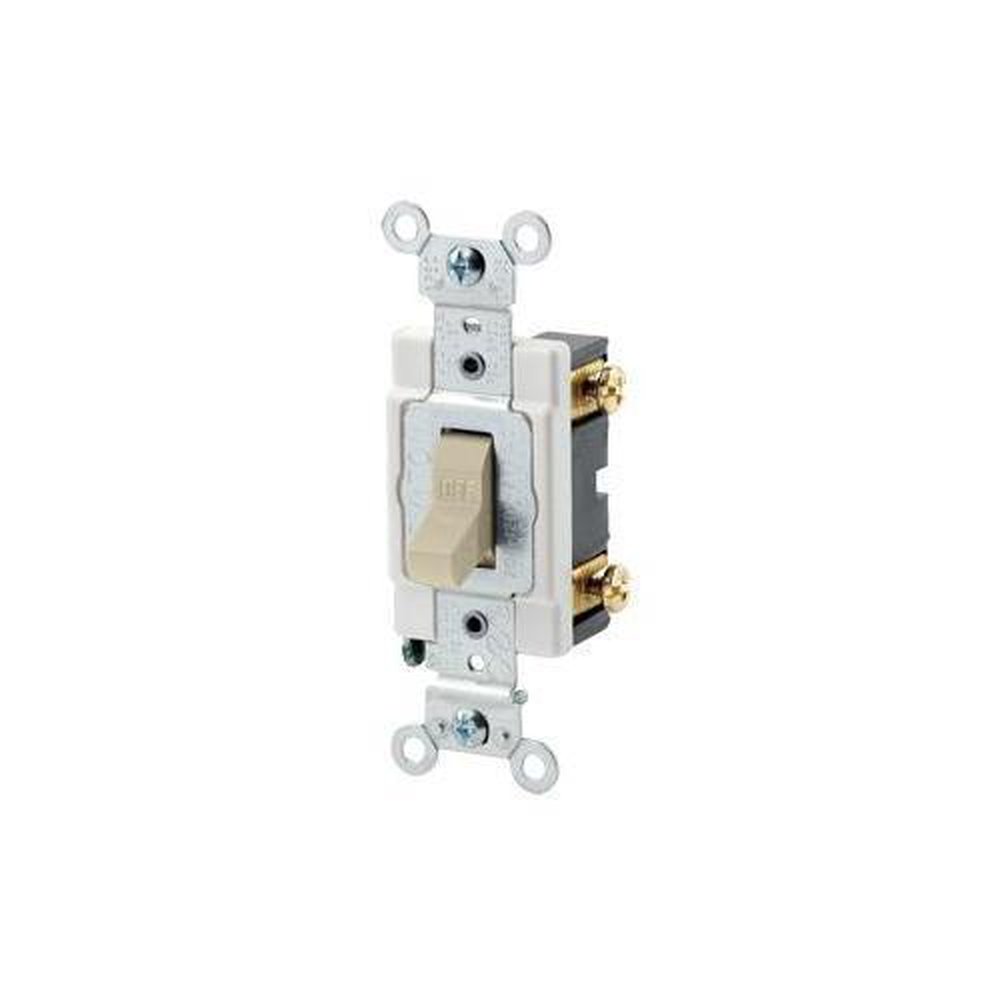

CSB1-15I LEVITON SP SW/53501-I 07847781589

Mouse over image to zoom, click to enlarge

Description: Leviton®, CSB1-15I, Toggle Switch, Grounding, 120/277 V AC, 15 A, 1/2, 2 hp Power, 1/2 hp at 120 V AC, 2 hp at 240 to 277 V AC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, Thermoplastic, Ivory, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.31 in W x 1.47 in D Dimensions

Manufacturer PN: CSB1-15I

UPC:  07847724025

Kendall Electric Inc PN: 2238801

Invoice Description:

CSB1-15I LEVITON SP SW/53501-I 07847781589


SPEC SHEET

▸ See All in Toggle Switches


How Can We Make This Page Better?

Leviton® CSB1-15I Grounding Toggle Switch, 120/277 V AC, 15 A, 1/2, 2 hp Power Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton® commercial specification grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton® offers a large selection of 15 and 20 A commercial switches, available in a wide variety of colors, wiring options and other features.
Leviton®, CSB1-15I, Toggle Switch, Grounding, 120/277 V AC, 15 A, 1/2, 2 hp Power, 1/2 hp at 120 V AC, 2 hp at 240 to 277 V AC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, Thermoplastic, Ivory, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.31 in W x 1.47 in D Dimensions

Specifications

 Actuator Toggle
 Amperage Rating 15 A
 Application Commercial Applications
 Brand Name Leviton®
 Color Ivory
 Contact Rating 1/2 hp at 120 V AC, 2 hp at 240 to 277 V AC
 Dimensions 46 in H x 1.31 in W x 1.47 in D
 Enclosure NEMA WD-1/WD-6
 Environmental Conditions -40 to 120 deg C Operating Temperature
 Manufacturer Part Number CSB1-15I
 Material Thermoplastic
 Mounting Surface
 Number of Poles 1
 PART NUMBER KEYWORDS CSB1-15I ; CSB115I ; 9081560 ; 10740965 ; CSB115I ; 078477240250 ; 78477240250 ; 07847724025 ; 00078477240250
 Power Rating 1/2, 2 hp
 Standards/Approvals ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
 Terminal Type Back/Side Wire
 Type Grounding
 Voltage Rating 120/277 V AC

Features

▪ Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installation
▪ Heavy gauge, rust resistant steel mounting strap
▪ Accepts no 14 to 12 AWG copper or copper clad wire
▪ Convenient break-OFF plaster ears for best alignment
▪ Large switch contacts for maximum conductivity
▪ 1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
