Hubbell
CS8369 HUB 3P-4W 50A 250V RECPT..

Mouse over image to zoom, click to enlarge

  • CS8369 HUB 3P-4W 50A 250V RECPT..
  • CS8369 HUB 3P-4W 50A 250V RECPT..
  • CS8369 HUB 3P-4W 50A 250V RECPT..

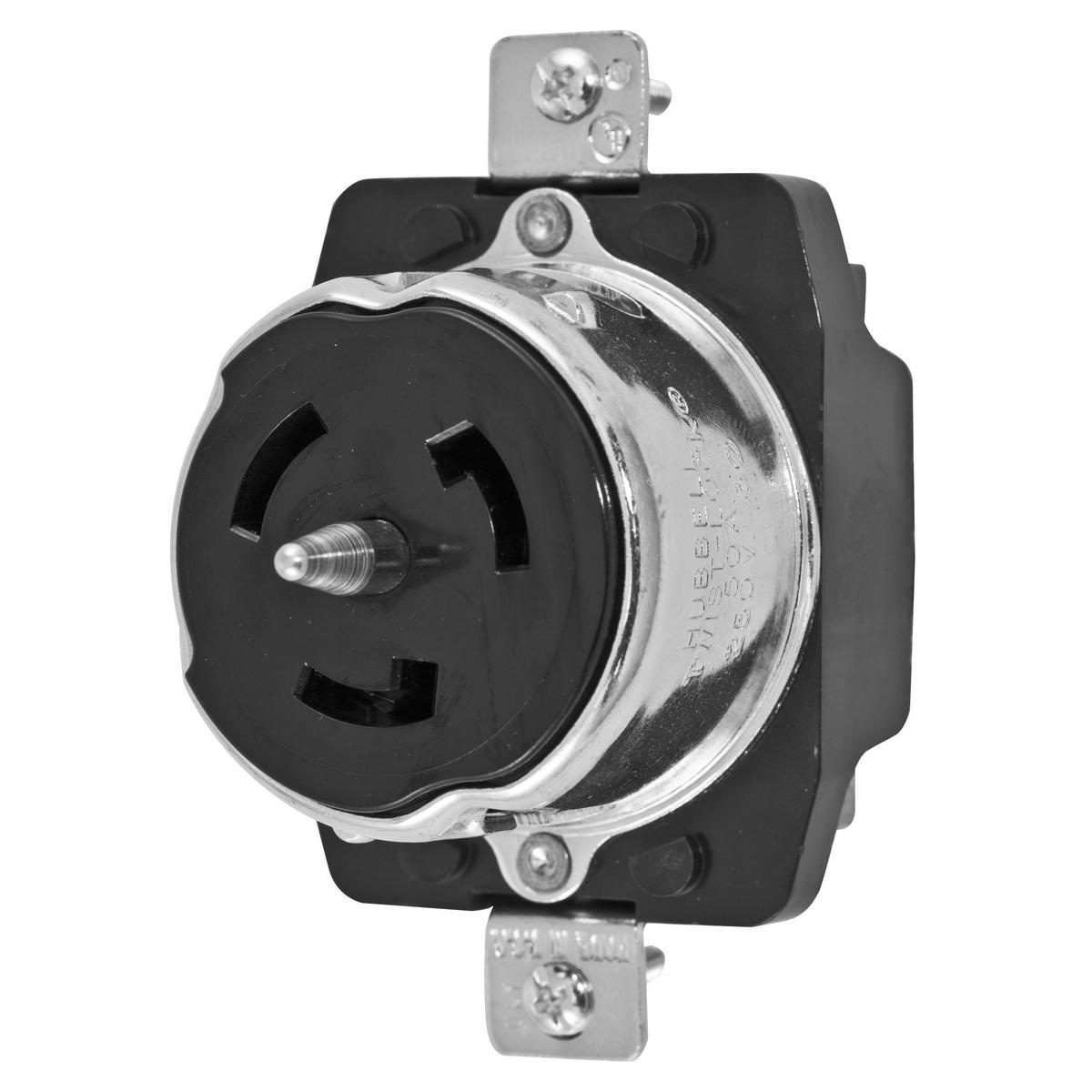

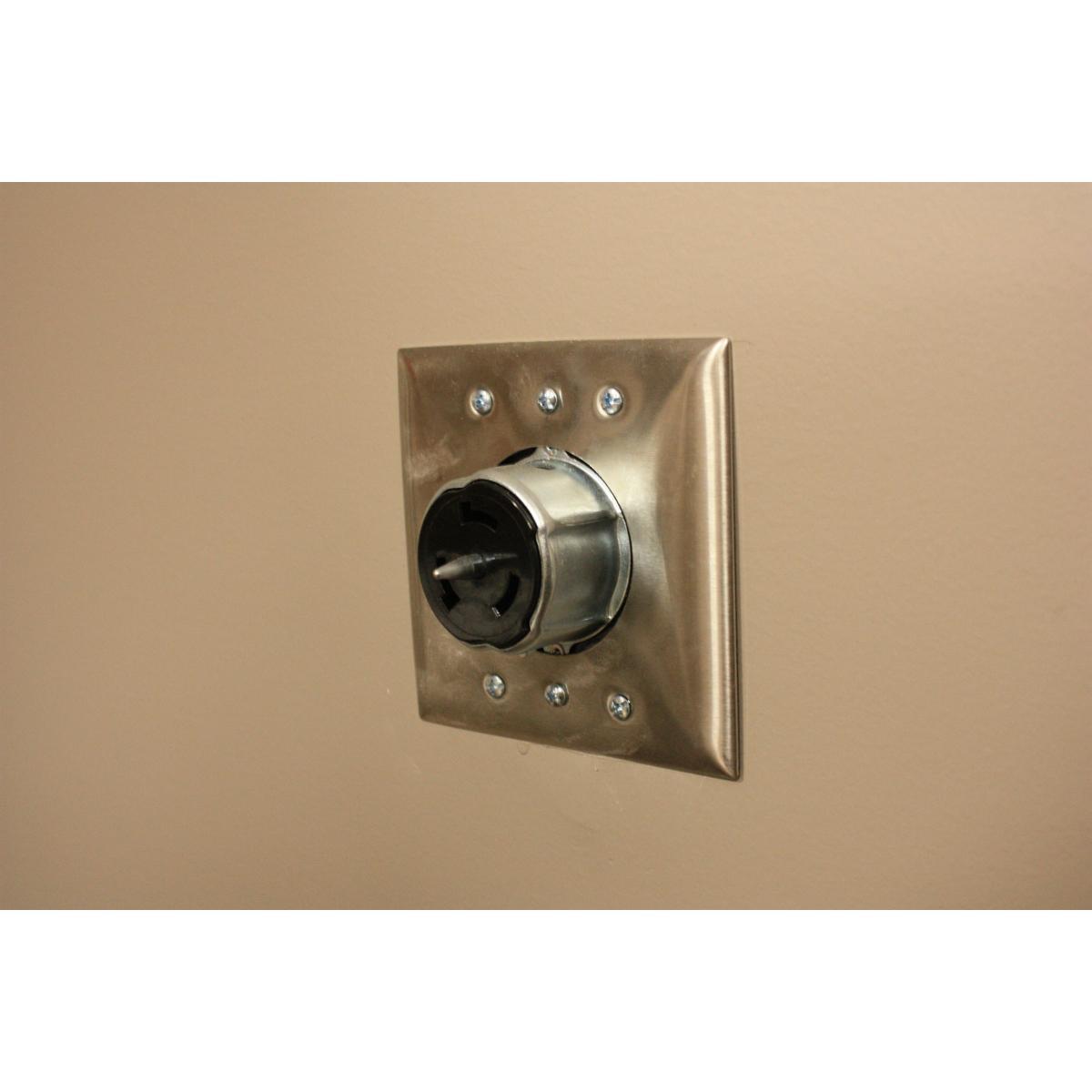

Description: Hubbell Wiring Device-Kellems Twist-Lock®, CS8369, Locking Receptacle, 3-Phase Grounding Heavy Duty Single Screw Mount, Series: CS Series, 250 V AC, 50 A, 3 Pole, 4 Wires, Industrial Grade, NEMA 4/4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Phenolic, Black, 2.69 x 2.12 x 2.36 in Dimensions

Manufacturer PN: CS8369

UPC:  78358582907

Kendall Electric Inc PN: 32193

Invoice Description:

CS8369 HUB 3P-4W 50A 250V RECPT..


SPEC SHEET

▸ See All in Locking Receptacles


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Twist-Lock® CS8369 CS Series 3-Phase Grounding Heavy Duty Single Screw Mount Locking Receptacle, 250 V AC, 50 A, 3 Poles, 4 Wires, Black

Log In for Pricing and Availability




Description

Hubbell Wiring Device-Kellems Twist-Lock®, CS8369, Locking Receptacle, 3-Phase Grounding Heavy Duty Single Screw Mount, Series: CS Series, 250 V AC, 50 A, 3 Pole, 4 Wires, Industrial Grade, NEMA 4/4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Phenolic, Black, 2.69 x 2.12 x 2.36 in Dimensions

Specifications

 Amperage Rating 50 A
 Brand Name Hubbell Premise Wiring
 Color Black
 Dimensions 2.69 x 2.12 x 2.36 in
 Enclosure NEMA 4/4X/12/IP20
 Grade Industrial
 Includes Locking Cover
 Manufacturer Part Number CS8369
 Material Phenolic
 Number of Poles 3
 Number of Wires 4
 Series CS Series
 Standards/Approvals CSA C22.2 No. 42 Certified|RoHS Compliant|UL 498
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type 3-Phase Grounding Heavy Duty Single Screw Mount
 Video Links
 Voltage Rating 250 V AC

Features

▪ Thermoset construction offers high heat resistance
▪ One piece contacts provide low operating temperatures
▪ Armored housing provides superior impact resistance

Resources

 Catalog Page
 Line Drawing
 Line Drawing URL
 MSDS URL None Required
 Product Data Sheet
