Eaton

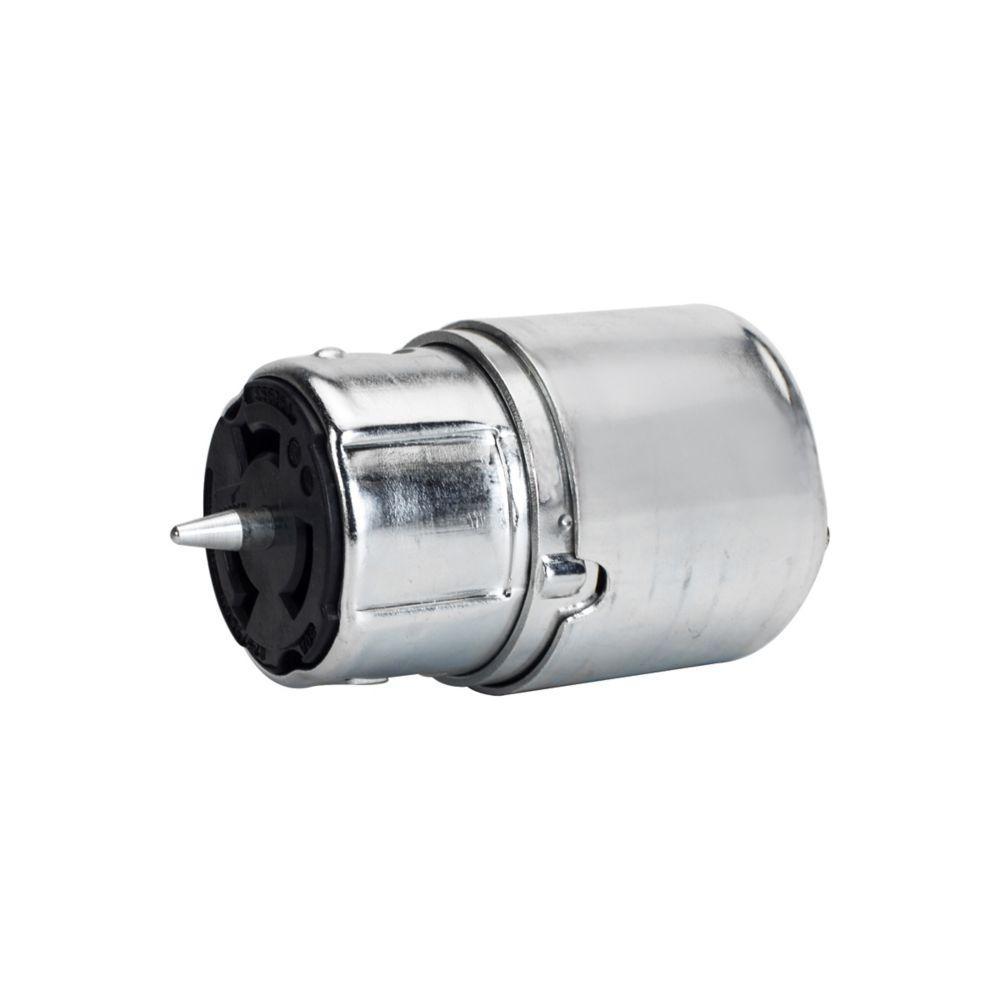

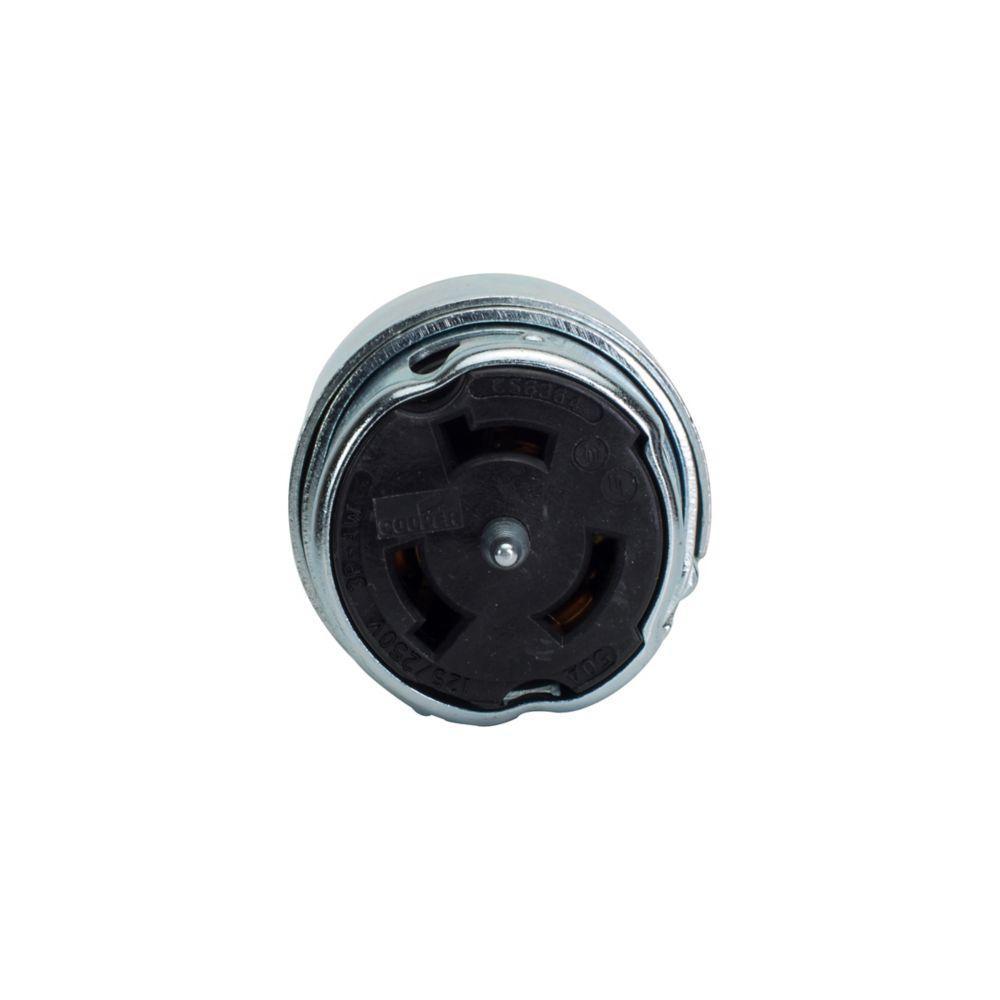

CS6364 CWD 3P 4W 50A 125V ARMORED CONN CALIF STYLE

Mouse over image to zoom, click to enlarge

  • CS6364 CWD 3P 4W 50A 125V ARMORED CONN CALIF STYLE
  • CS6364 CWD 3P 4W 50A 125V ARMORED CONN CALIF STYLE
  • CS6364 CWD 3P 4W 50A 125V ARMORED CONN CALIF STYLE

Description: EATON Arrow Hart™ Hart-Lock® Eaton Wiring Devices Locking Connector, Armored California Standard Grounding, 125/250 V AC, 50 A, 3 Pole, 4 Wires, Industrial Grade, 0.68 to 1.13 in Diameter Cord, -40 to 95 deg C, Screw Terminal, Cold Rolled Steel, 2.55 in Dia x 5.52 in H Dimensions

Manufacturer PN: CS6364

UPC:  04089367665

Kendall Electric Inc PN: 2200256

Invoice Description:

CS6364 CWD 3P 4W 50A 125V ARMORED CONN CALIF STYLE


SPEC SHEET

▸ See All in Locking Connectors


How Can We Make This Page Better?

EATON Arrow Hart™ Hart-Lock® Eaton Wiring Devices CS6364 Armored California Standard Grounding Locking Connector, 125/250 V AC, 50 A, 3 Poles, 4 Wires

Log In for Pricing and Availability




Description

Eaton's Arrow Hart 50A locking devices unique pro grip design allows for quick and easy termination and assembly, saving valuable time on the job site. Superior design combined with rugged materials make these devices ideal for temporary power applications.
EATON Arrow Hart™ Hart-Lock® Eaton Wiring Devices Locking Connector, Armored California Standard Grounding, 125/250 V AC, 50 A, 3 Pole, 4 Wires, Industrial Grade, 0.68 to 1.13 in Diameter Cord, -40 to 95 deg C, Screw Terminal, Cold Rolled Steel, 2.55 in Dia x 5.52 in H Dimensions

Specifications

 Amperage Rating 50 A
 Application For locking device applications
 Brand Name EATON
 Cord Diameter 0.68 to 1.13 in
 Dimensions 2.55 in Dia x 5.52 in H
 Grade Industrial
 Manufacturer Part Number CS6364
 Material Cold Rolled Steel
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS CS6364 ; 9593304 ; 040893676654 ; 40893676654 ; 04089367665 ; 00040893676654
 Standards/Approvals CSA certified,cULus Listed
 Temperature Rating -40 to 95 deg C
 Terminal Type Screw
 Type Armored California Standard Grounding
 Video Links
 Voltage Rating 125/250 V AC

Features

▪ Zinc plated cold rolled steel outer shell, glass filled nylon interior body/terminal retainer
▪ Non-NEMA configuration
▪ 10 to 6 AWG wire
▪ Pro-grip lock provides visual confirmation that device is assembled properly
▪ Deep tapered wire wells accept up to 4 AWG UL wire key for long cable runs
▪ Glass filled nylon body for superior strength and heat performance
▪ Unique 3-step assembly process for Pro-grip plugs and connectors
▪ 1-piece heavy duty plated mounting strap
▪ Stainless steel Tri-combo assembly screws
▪ Receptacles utilize rugged, 1-piece plated mounting strap for corrosion-resistance
▪ Primary applications are temp power generators, heavy equipment
▪ 1000 V dielectric strength

Resources

 Catalog Page
 Product Data Sheet
