Specified Technologies
CS2852 SPEC TEC 28 X 52 IN. (71 X 132 CM) COMPOSITE SHEET 73057315228

Mouse over image to zoom, click to enlarge

  • CS2852 SPEC TEC 28 X 52 IN. (71 X 132 CM) COMPOSITE SHEET 73057315228
  • CS2852 SPEC TEC 28 X 52 IN. (71 X 132 CM) COMPOSITE SHEET 73057315228
  • CS2852 SPEC TEC 28 X 52 IN. (71 X 132 CM) COMPOSITE SHEET 73057315228
  • CS2852 SPEC TEC 28 X 52 IN. (71 X 132 CM) COMPOSITE SHEET 73057315228
  • CS2852 SPEC TEC 28 X 52 IN. (71 X 132 CM) COMPOSITE SHEET 73057315228

Description: SpecSeal® Intumescent Composite Sheet, Lightweight, Series: CS Series, 52 in Length, 28 in Width, 0.1 in Height, Fire Rating: Up to 4 hr, Specifications Met: ASTM E814, UL 1479, CAN/ULC-S115, UL R14288, Silver, Galvanized Steel

Manufacturer PN: CS2852

UPC:  73057315228

Kendall Electric Inc PN: 2669387

Invoice Description:

CS2852 SPEC TEC 28 X 52 IN. (71 X 132 CM) COMPOSITE SHEET 73057315228


SPEC SHEET

▸ See All in Firestop Pillows, Sheets & Wraps


How Can We Make This Page Better?

SpecSeal® CS2852 CS Series Lightweight Intumescent Composite Sheet, 52 in L x 28 in W, Up to 4 hr Fire Rating, Galvanized Steel, ASTM E814, UL 1479, CAN/ULC-S115, UL R14288

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

SpecSeal® Composite Sheet is a lightweight, rigid fire-resistant panel consisting of an intumescent layer bonded to a galvanized steel sheet reinforced with steel wire mesh covered with aluminum foil. SpecSeal® Composite Sheet is designed to seal medium to large size openings with a variety of different penetrants in both fire resistance rated floors and walls When exposed to temperatures in excess of 350 deg F (177 deg C), SpecSeal® Composite Sheet expands minimum 15x to form a dense insulative char that minimizes heat transfer.
SpecSeal® Intumescent Composite Sheet, Lightweight, Series: CS Series, 52 in Length, 28 in Width, 0.1 in Height, Fire Rating: Up to 4 hr, Specifications Met: ASTM E814, UL 1479, CAN/ULC-S115, UL R14288, Silver, Galvanized Steel

Specifications

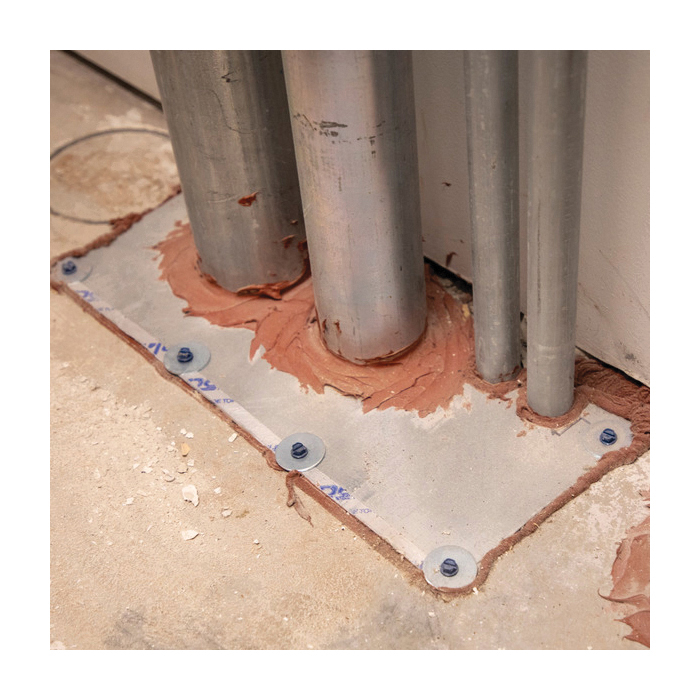

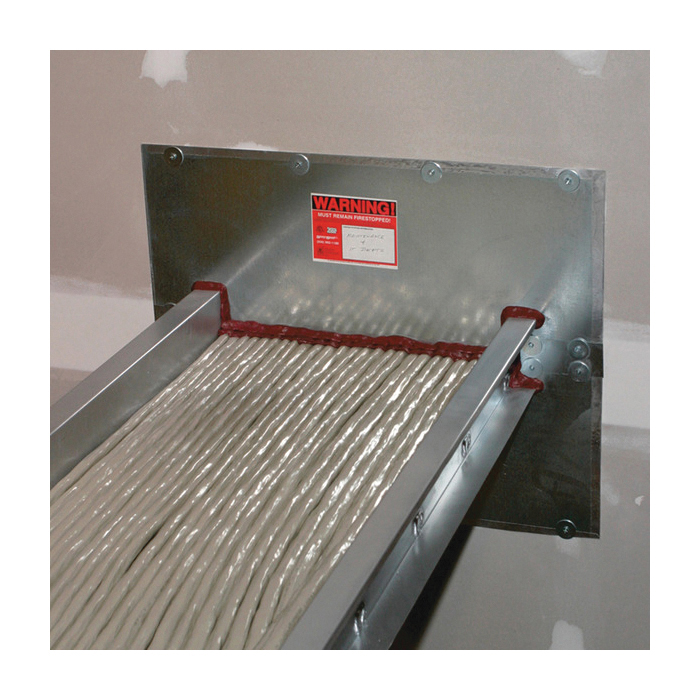

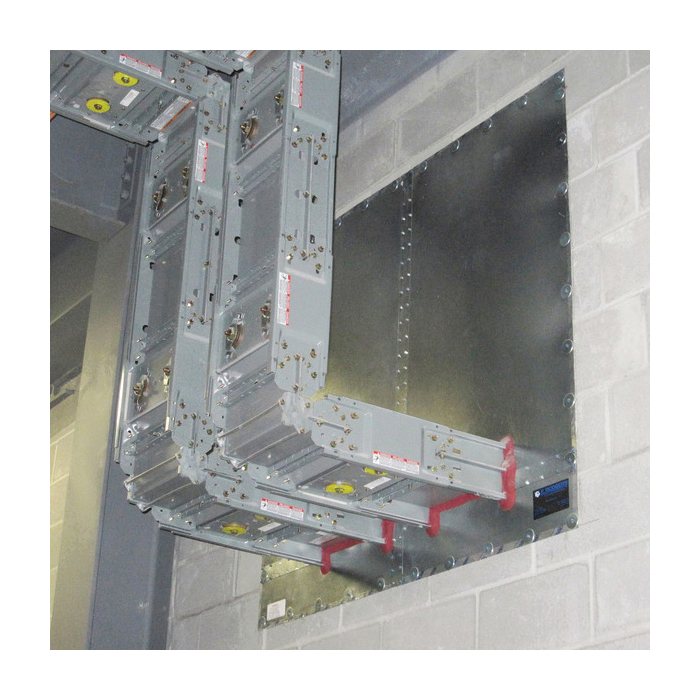

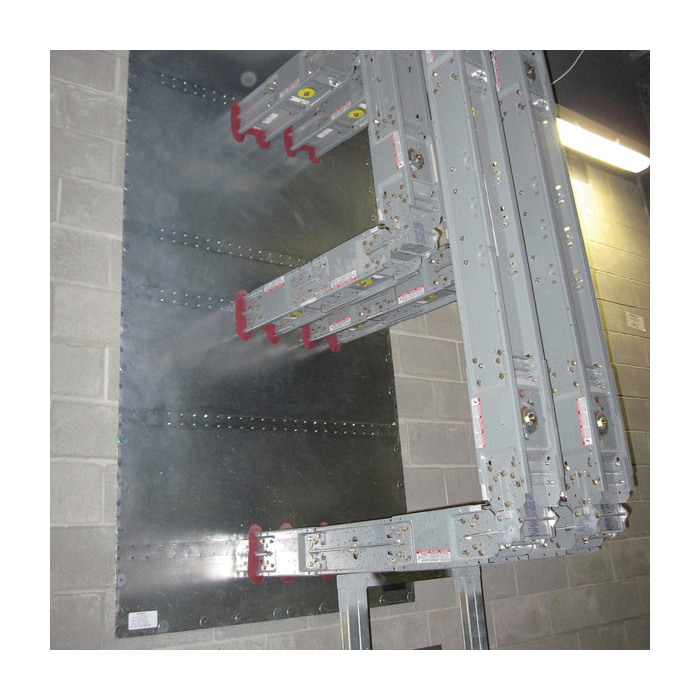

 Application For seal penetrations through both fire resistance rated walls and floors for metallic and non-metallic pipes, insulated pipes, cable trays, cables, conduits, steel ducts, busways or blank openings applications
 Brand Name SpecSeal®
 Color Silver
 Fire Rating Up to 4 hr
 Height 0.1 in
 Length 52 in
 Manufacturer Part Number CS2852
 Material Galvanized Steel
 Series CS Series
 Specifications Met ASTM E814, UL 1479, CAN/ULC-S115, UL R14288
 Standards/Approvals ARRA Compliant|Buy American Compliant|cULus Listed|FM Approved|RoHS Compliant
 Type Lightweight
 Video Links
 Width 28 in

Features

▪ Easily cut with hand sheers using sheet metal tools
▪ Lightweight for easy handling and fabrication and less hanging weight on walls
▪ Highly intumescent expands up to 15X
▪ Hole reduction used in conjunction with other SpecSeal® or EZ-Path® products for reducing large openings
▪ Versatile performer for a wide range of complex applications
▪ Paintable
