nVent

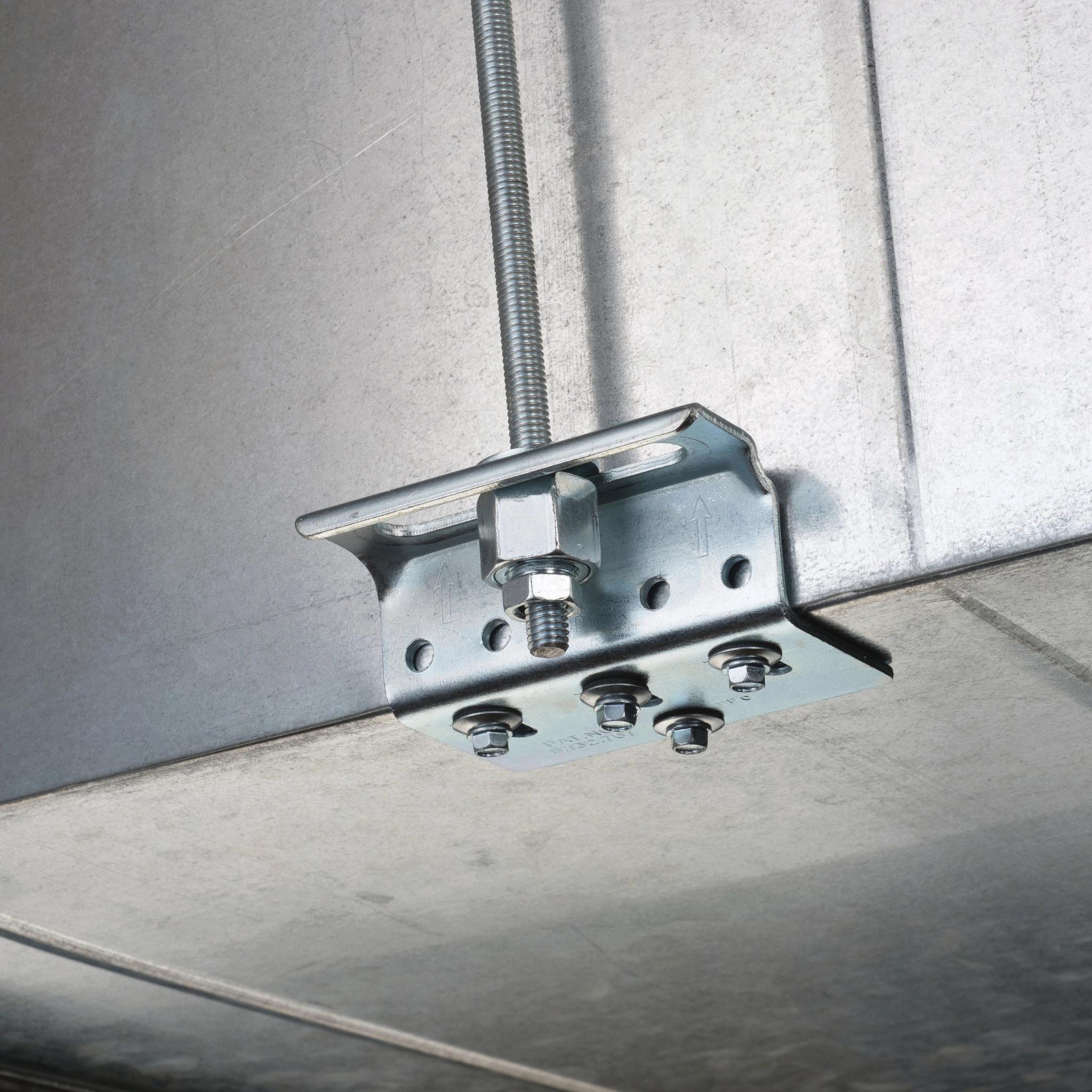

CRLD37BEG 3/8 ROD LOCK BOTTOM DUCT BRACKET

Mouse over image to zoom, click to enlarge

  • CRLD37BEG 3/8 ROD LOCK BOTTOM DUCT BRACKET
  • CRLD37BEG 3/8 ROD LOCK BOTTOM DUCT BRACKET

Description: nVent CADDY Duct Bracket, Rod Lock, Bottom Mount, 3/8 in Rod, Steel, Electro-Galvanized, 3.5 in L x 4 in W x 1.7 in H

Manufacturer PN: CRLD37BEG

UPC:  78285679394

Kendall Electric Inc PN: 4414992

Invoice Description:

CRLD37BEG 3/8 ROD LOCK BOTTOM DUCT BRACKET


SPEC SHEET

▸ See All in Hanger Rod Brackets


How Can We Make This Page Better?

nVent CADDY CRLD37BEG Rod Lock Duct Bracket, Bottom Mount, Steel, Electro-Galvanized

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

nVent CADDY Duct Bracket, Rod Lock, Bottom Mount, 3/8 in Rod, Steel, Electro-Galvanized, 3.5 in L x 4 in W x 1.7 in H

Specifications

 Application HVAC, Plumbing and Refrigeration Applications
 Brand Name nVent CADDY
 Dimensions 3.5 in L x 4 in W x 1.7 in H
 Finish Electro-Galvanized
 Includes Sheet Metal Screw
 Manufacturer Part Number CRLD37BEG
 Material Steel
 Mounting Type Bottom
 Specifications 3/8 in Rod
 Standards/Approvals SMACNA Compliant
 Type Rod Lock

Features

▪ Ideal for modular assembly allows attachment of brackets to sections of duct while safely on the ground
▪ Slotted holes in bracket allow for horizontal adjustment of the bracket relative to the duct
▪ Easy push-to-install design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position
▪ Ready to use out of the box and eliminates the need for cutting and preparing sections of strut, angle iron or strap
▪ Integrated adjustment nut enables fine tuning the system height up or down
▪ Lock nut can be finger tightened, locking the rod in place
▪ Extremely useful in tight spaces where wrenches are difficult to use
▪ Self-tapping sheet metal screws to attach bracket to duct
