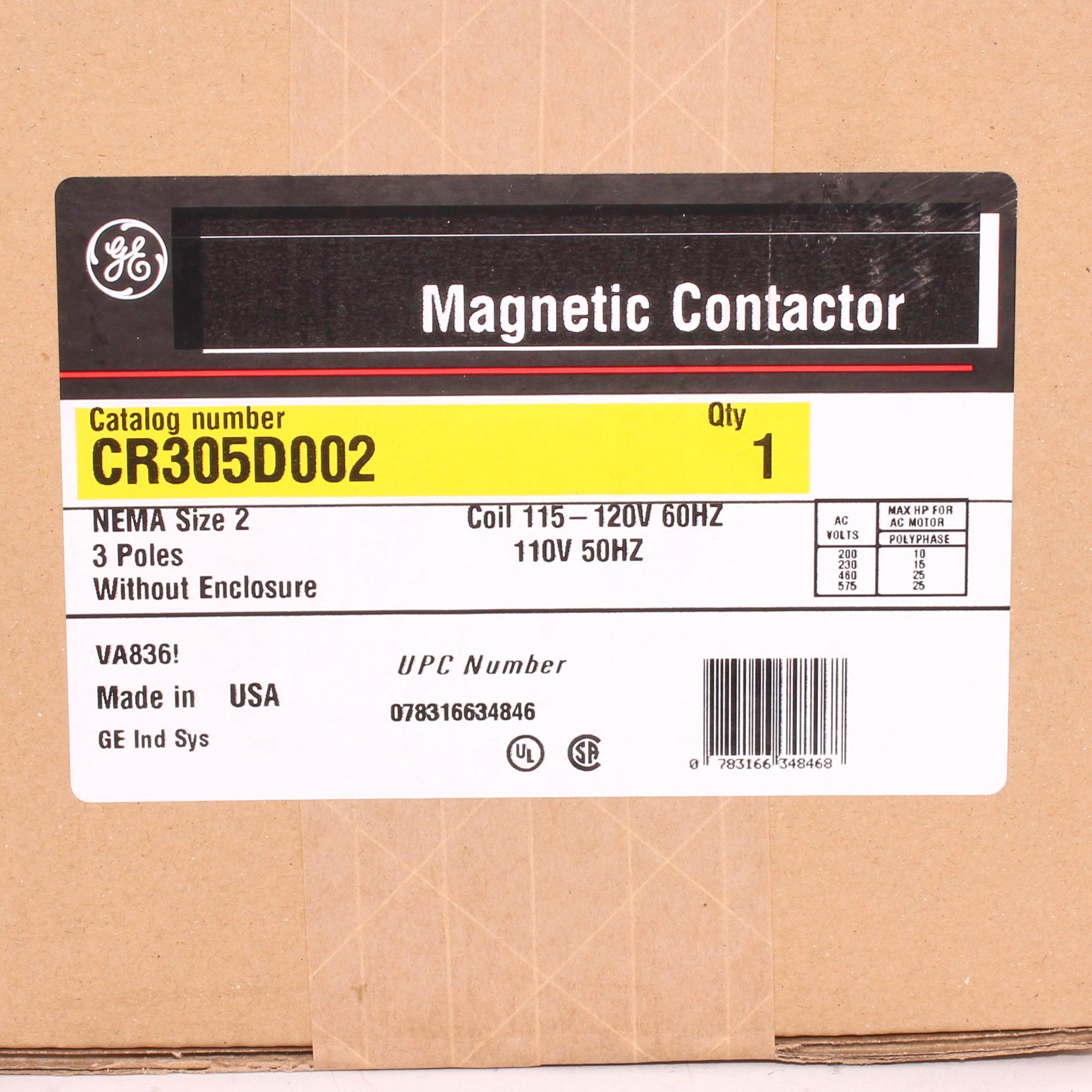

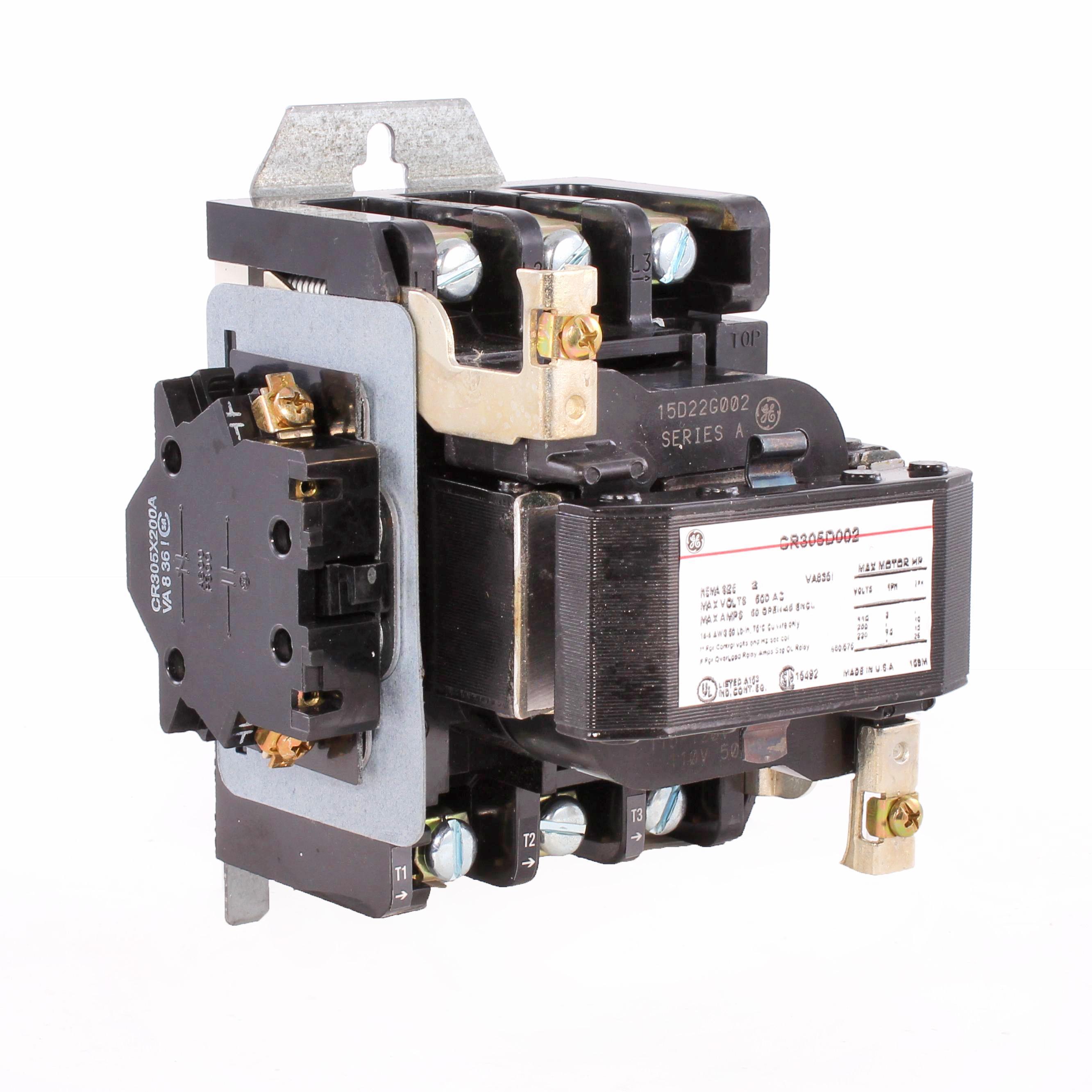

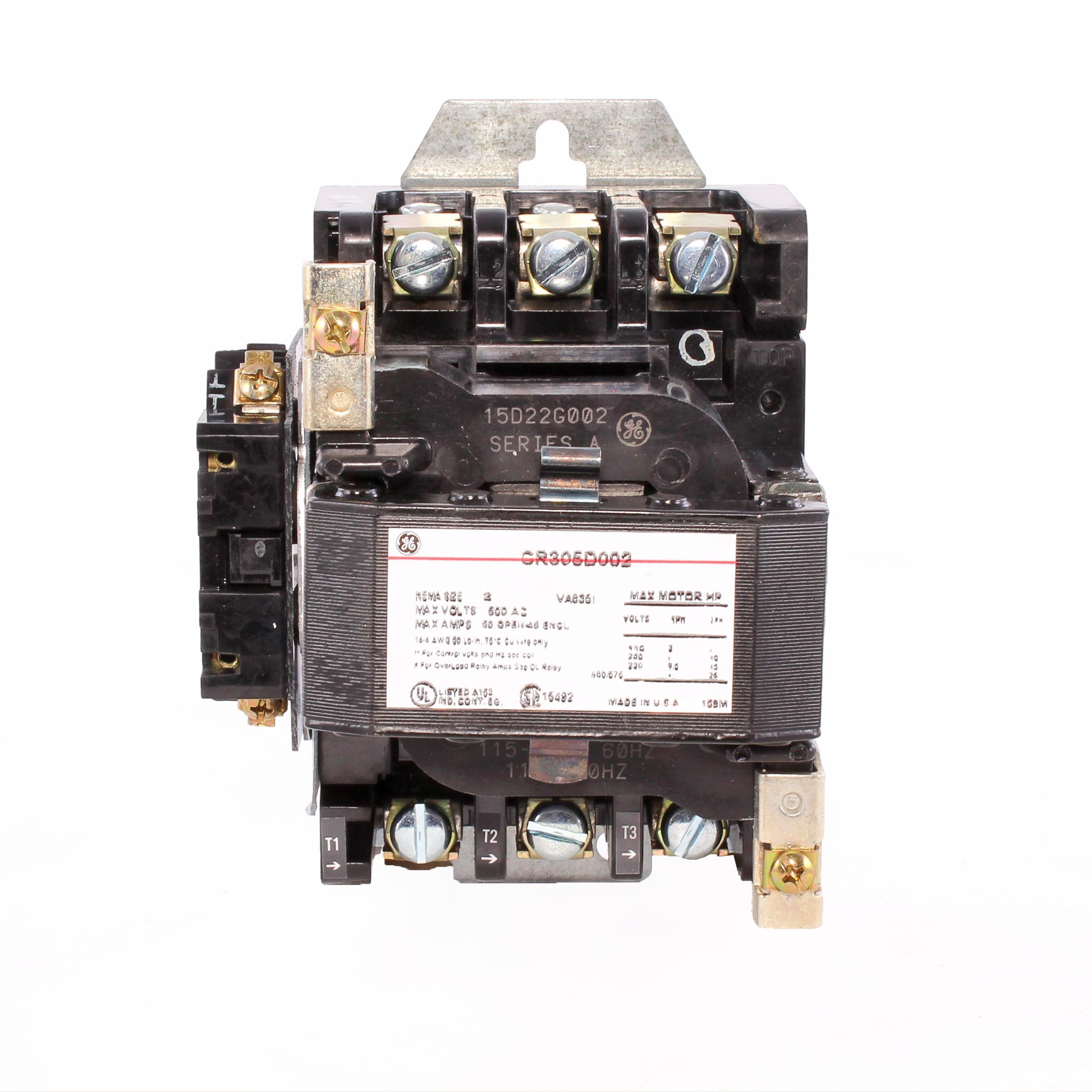

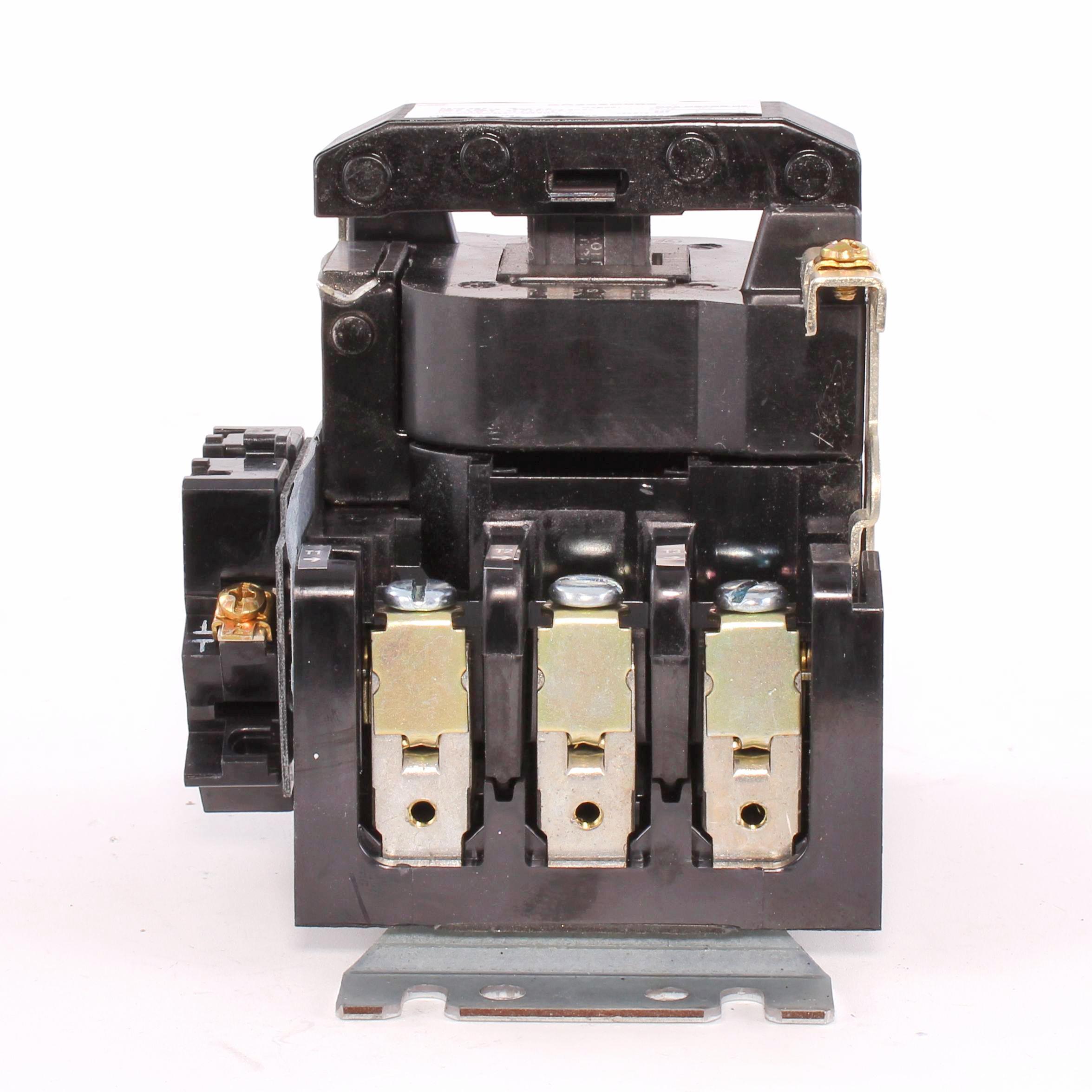

CR305D002 GE CONTACTOR 78316634846

Mouse over image to zoom, click to enlarge

  • CR305D002 GE CONTACTOR 78316634846
  • CR305D002 GE CONTACTOR 78316634846
  • CR305D002 GE CONTACTOR 78316634846
  • CR305D002 GE CONTACTOR 78316634846
  • CR305D002 GE CONTACTOR 78316634846

Description: GE Contactor, Full Voltage Magnetic Non-Reversing, Series: CR305, 115 to 120 V AC Coil, 50 A Maximum Load Current, 7-1/2 hp at 230 VAC Coil Power Rating, 3 Poles, 50/60 Hz, Auxiliary Contact, 1NO, NEMA 2/Open, Surface Mount, 6.62 in H x 5.44 in W x 5.5 in D

Manufacturer PN: CR305D002

UPC:  78316634846

Kendall Electric Inc PN: 2306575

Invoice Description:

CR305D002 GE CONTACTOR 78316634846


SPEC SHEET

▸ See All in NEMA & IEC Contactors


How Can We Make This Page Better?

GE CR305D002 Full Voltage Magnetic Non-Reversing Contactor, 115 to 120 V AC Coil, 50 A, 1NO, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

GE Contactor, Full Voltage Magnetic Non-Reversing, Series: CR305, 115 to 120 V AC Coil, 50 A Maximum Load Current, 7-1/2 hp at 230 VAC Coil Power Rating, 3 Poles, 50/60 Hz, Auxiliary Contact, 1NO, NEMA 2/Open, Surface Mount, 6.62 in H x 5.44 in W x 5.5 in D

Specifications

 Application For handling the switching of resistance heating and capacitor circuit loads, their compact size also fits the needs of the panel building industry, electrical distribution and control applications
 Brand Name GE
 Coil Power Rating 7-1/2 hp at 230 VAC
 Coil Voltage 115 to 120 V AC
 Contact Configuration 1NO
 Contact Type Auxiliary
 Dimensions 6.62 in H x 5.44 in W x 5.5 in D
 Enclosure NEMA 2/Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number CR305D002
 Maximum Load Current 50 A
 Mounting Type Surface
 Number of Poles 3
 PART NUMBER KEYWORDS CR305D002 ; 7786356 ; 783166348468 ; 78316634846 ; 00783166348468
 Series CR305
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant
 Type Full Voltage Magnetic Non-Reversing

Features

▪ Easy disassembly for maintenance and inspection of contacts
▪ Auxiliary contacts with vertical contact surfaces enclosed to prevent accumulation of dust and dirt
▪ Attractive, modern squared off design enclosure
▪ Magnet faces specially treated to resist rust
▪ Provision for ring terminals may be specified as a special feature, if required
▪ 600 VAC maximum voltage

Resources

 Catalog Page
 Product Data Sheet
