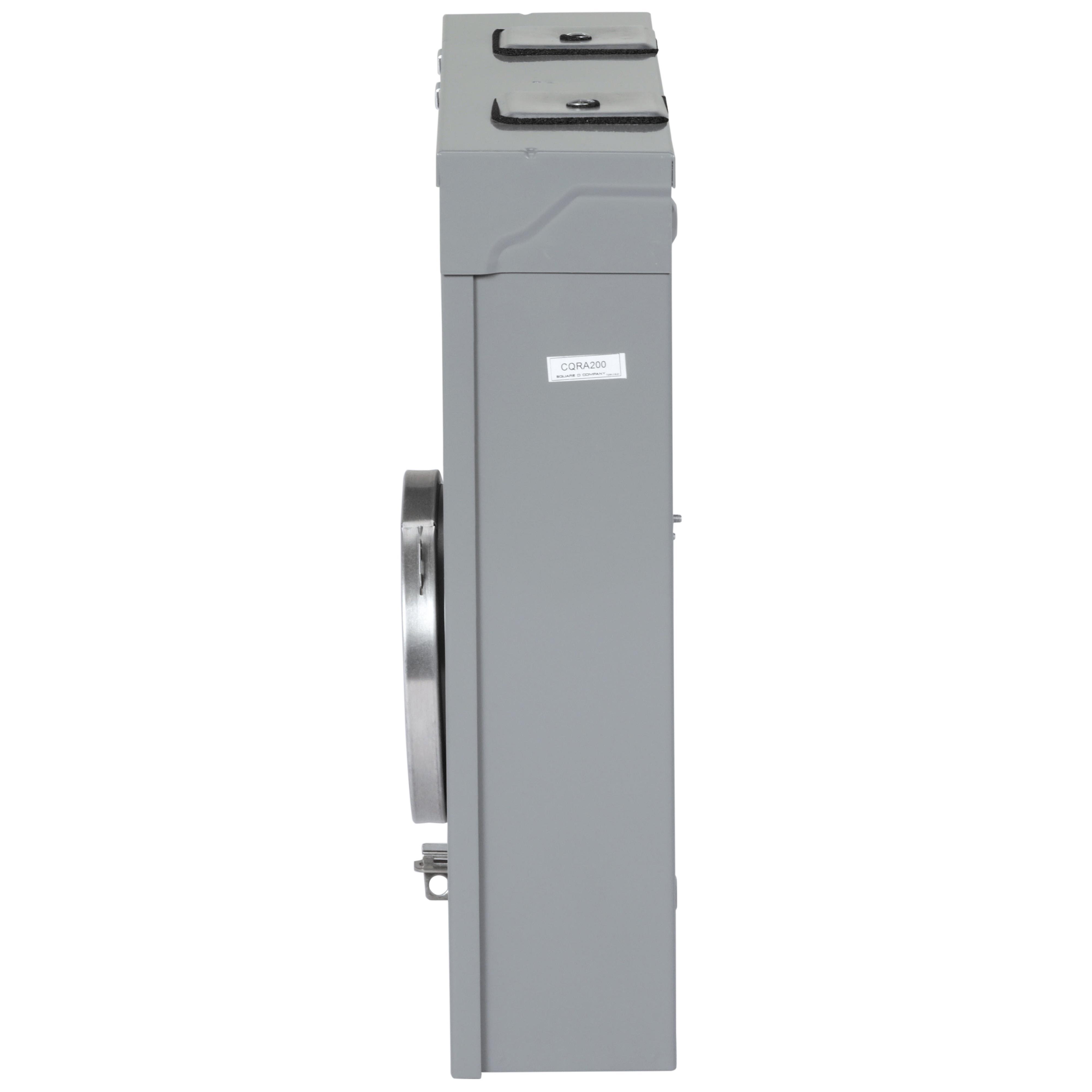

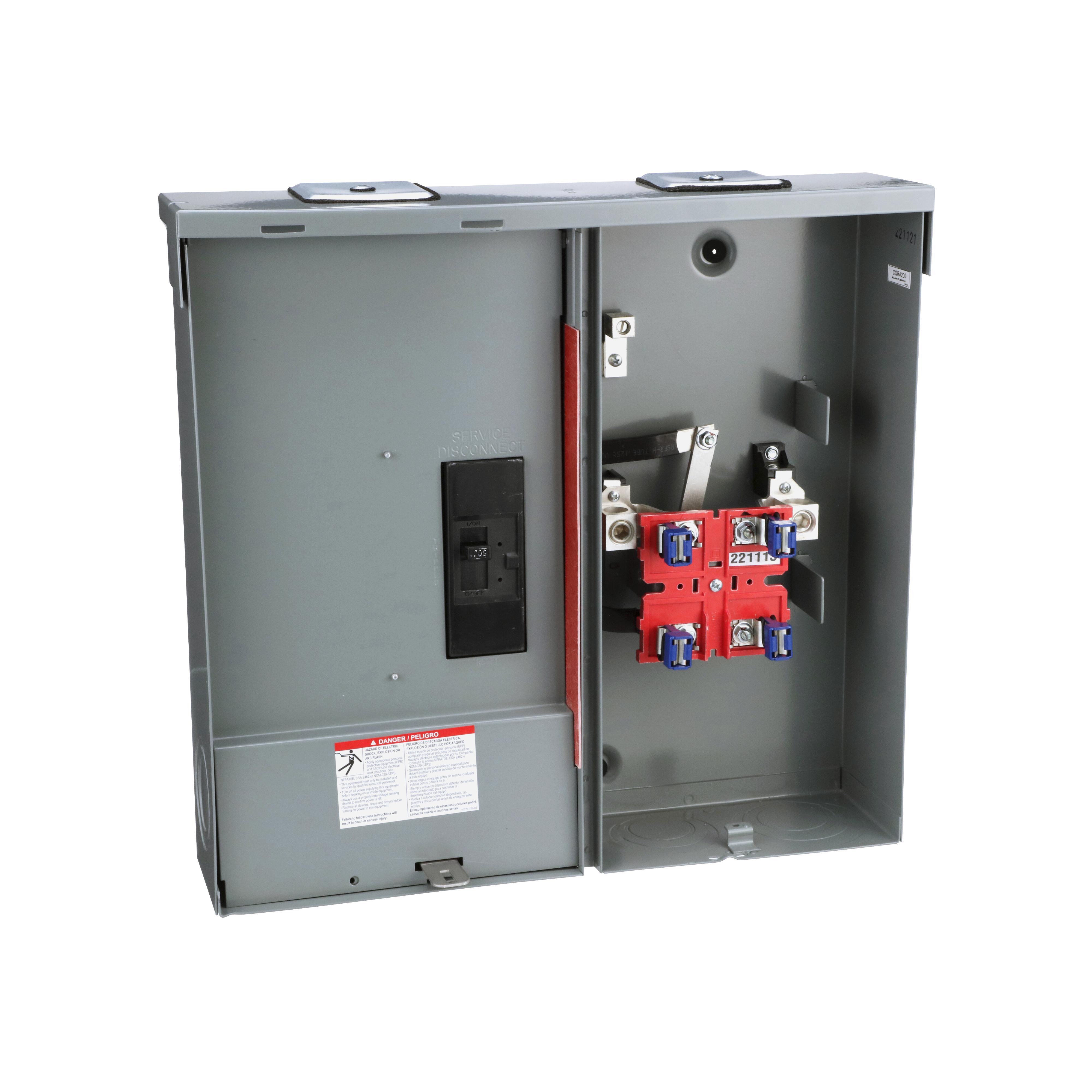

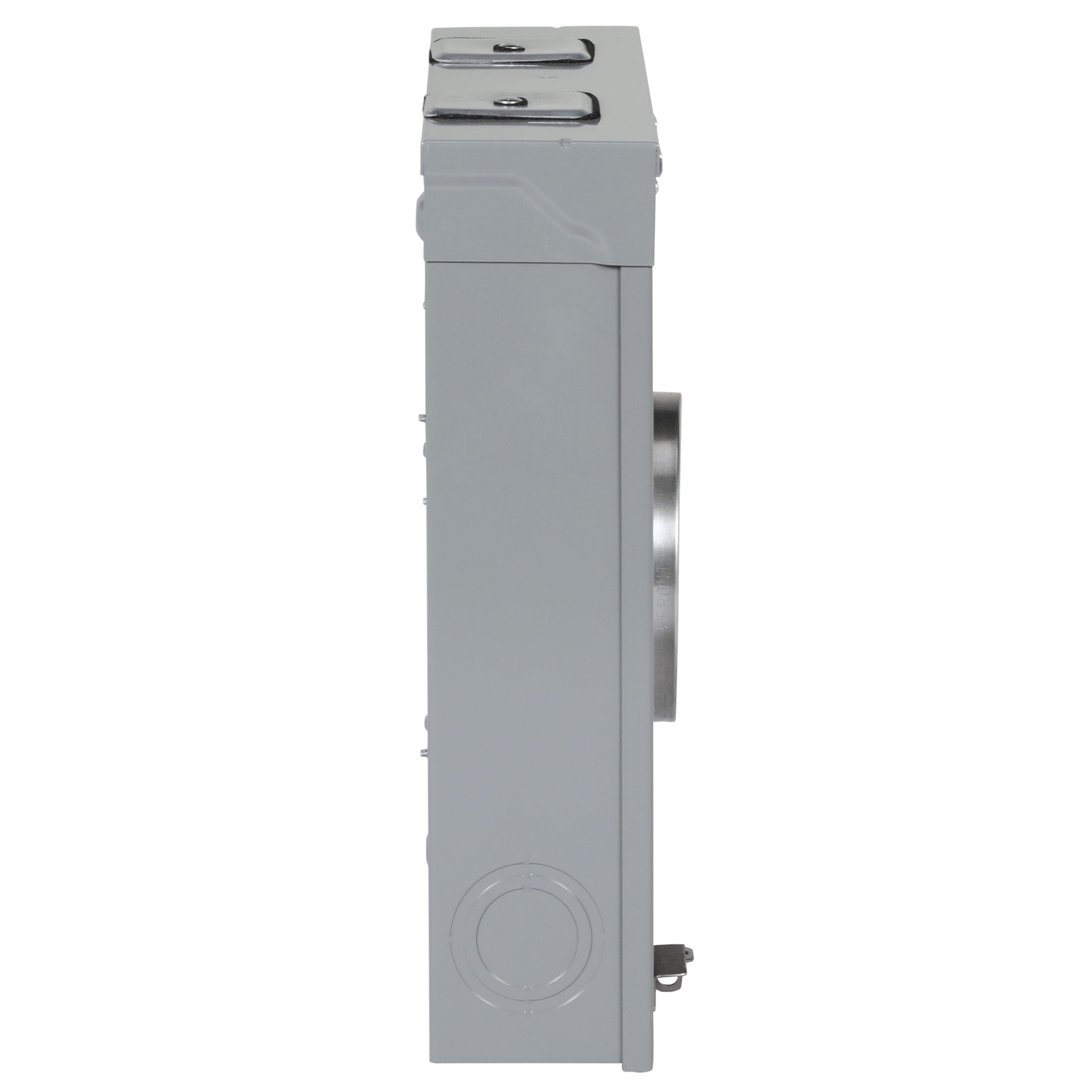

Description: Square D™ QO™ Combination Service Entrance Meter Main, Factory Installed Rainproof, 120/240 VAC, 200 A, 1 Phase, Overhead/Underground Feed, 4 Jaws, A Hub, Ring Cover, Surface Mounting, NEMA 3R Enclosure, 18.23 in H x 19.58 in W x 4.54 in D Dimensions

Manufacturer PN: CQRA200

UPC:  47569291807

Kendall Electric Inc PN: 4525802

Invoice Description:

CQRA200 SQD METER MAIN RING T-200A


SPEC SHEET

▸ See All in Meter Socket Meter Main Combinations


How Can We Make This Page Better?

Square D™ QO™ CQRA200 Factory Installed Rainproof Combination Service Entrance Meter Main, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Meter main devices are used in residential applications where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and provisions for field installation of service disconnect to feed downstream devices. Meter mains are surface mount and typically used with interior mounted sub-feed load centers.
Square D™ QO™ Combination Service Entrance Meter Main, Factory Installed Rainproof, 120/240 VAC, 200 A, 1 Phase, Overhead/Underground Feed, 4 Jaws, A Hub, Ring Cover, Surface Mounting, NEMA 3R Enclosure, 18.23 in H x 19.58 in W x 4.54 in D Dimensions

Specifications

 Amperage Rating 200 A
 Application Residential, Service Equipment, Compact Design and Outdoor Applications
 Brand Name Square D
 Cover Type Ring
 Dimensions 18.23 in H x 19.58 in W x 4.54 in D
 Enclosure NEMA 3R
 Feed Type Overhead/Underground
 Hub Type A
 Manufacturer Part Number CQRA200
 Mounting Type Surface
 Number of Jaws 4
 Phase 1
 Standards/Approvals RoHS Compliant|UL 50|UL 67|UL 414 File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
 Type Factory Installed Rainproof
 Voltage Rating 120/240 VAC

Features

▪ Multiple disconnect units can accommodate plug-on surge breaker™ secondary surge arrester
▪ Multiple disconnect units can be converted to semi-flush with addition of flange kit
