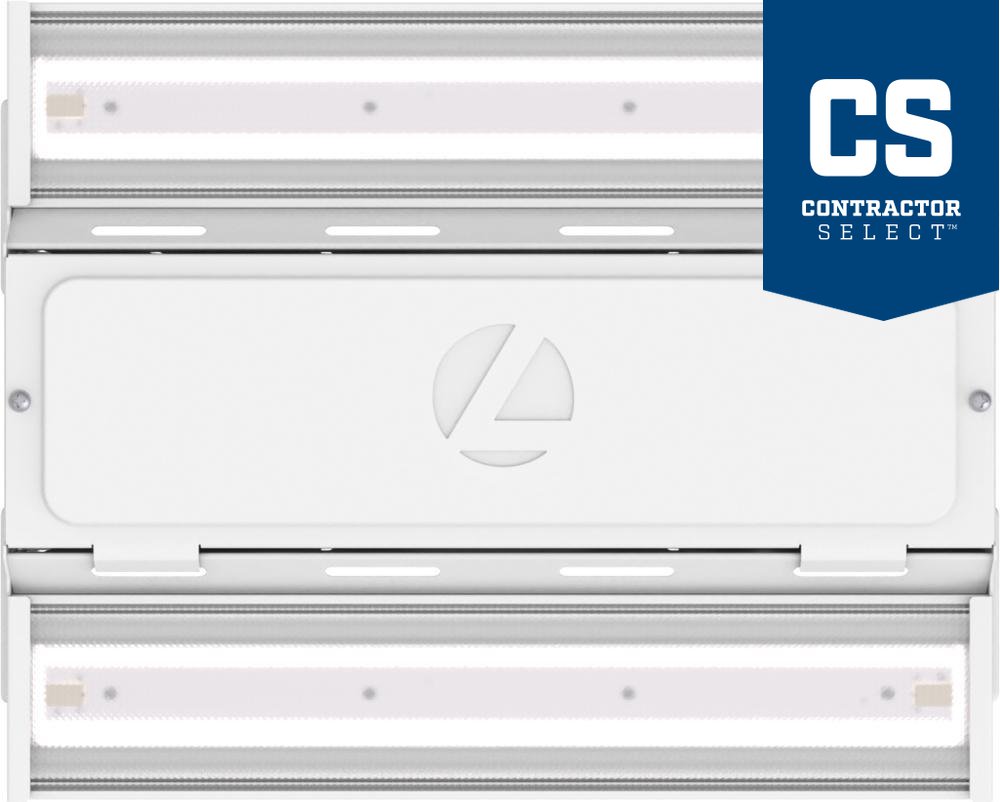

CPHB-24LM-MVOLT-40K LITHONIA COMPACT PRO HIGH BAY, LED, 24000 LUMENS, 120V-277V, 4000K (CI#2681JE )

Mouse over image to zoom, click to enlarge

  • CPHB-24LM-MVOLT-40K LITHONIA COMPACT PRO HIGH BAY, LED, 24000 LUMENS, 120V-277V, 4000K (CI#2681JE )
  • CPHB-24LM-MVOLT-40K LITHONIA COMPACT PRO HIGH BAY, LED, 24000 LUMENS, 120V-277V, 4000K (CI#2681JE )
  • CPHB-24LM-MVOLT-40K LITHONIA COMPACT PRO HIGH BAY, LED, 24000 LUMENS, 120V-277V, 4000K (CI#2681JE )
  • CPHB-24LM-MVOLT-40K LITHONIA COMPACT PRO HIGH BAY, LED, 24000 LUMENS, 120V-277V, 4000K (CI#2681JE )
  • CPHB-24LM-MVOLT-40K LITHONIA COMPACT PRO HIGH BAY, LED, 24000 LUMENS, 120V-277V, 4000K (CI#2681JE )

Description: Lithonia Lighting® COMPACT PRO™ High Bay Fixture, Hardwired Rectangular, Series: CPHB Series, 120 to 277 V, 174 W Fixture, >135 Lumens/W, 100000 hr Average Life, 4000 K Color, Acrylic Glare Control Lens, 24000 Lumens, Pendant/Surface/Suspended Mount, White Housing, 14.44 in L x 11.52 in W x 2.3 in H

Manufacturer PN: CPHB24LMMVOLT40K

UPC:  19499442968

Kendall Electric Inc PN: 4307432

Invoice Description:

CPHB-24LM-MVOLT-40K LITHONIA COMPACT PRO HIGH BAY, LED, 24000 LUMENS, 120V-277V, 4000K (CI#2681JE )


SPEC SHEET

▸ See All in Indoor High Bay Fixtures


How Can We Make This Page Better?

Lithonia Lighting® COMPACT PRO™ CPHB 24LM MVOLT 40K Hardwired Rectangular High Bay Fixture, 174 W Fixture, 120 to 277 V, White Housing

Log In for Pricing and Availability




Description

The COMPACT PRO™ High Bay by Lithonia Lighting® delivers an industrial-grade lighting solution in an exceptionally compact fixture that provides for cheaper shipping, condensed storage, and quicker installation. Built with quality to last and performance to get the job don, all at an affordable price.
Lithonia Lighting® COMPACT PRO™ High Bay Fixture, Hardwired Rectangular, Series: CPHB Series, 120 to 277 V, 174 W Fixture, >135 Lumens/W, 100000 hr Average Life, 4000 K Color, Acrylic Glare Control Lens, 24000 Lumens, Pendant/Surface/Suspended Mount, White Housing, 14.44 in L x 11.52 in W x 2.3 in H

Specifications

 Application Industrial, Retrofit and Warehouses
 Average Life 100000 hr
 Brand Name Lithonia Lighting®
 Color Temperature 4000 K
 Dimensions 14.44 in L x 11.52 in W x 2.3 in H
 Fixture Wattage 174 W
 Housing Finish White
 Light Output >135 Lumens/W
 Lumens 24000 Lumens
 Manufacturer Part Number CPHB 24LM MVOLT 40K
 Mounting Type Pendant/Surface/Suspended
 Series CPHB Series
 Standards/Approvals cCSAus Certified|Damp Location Listed|DLC QPL Listed
 Type Hardwired Rectangular
 Video Links
 Voltage Rating 120 to 277 V

Features

▪ The Compact Pro High Bay by Lithonia Lighting delivers an industrial-grade lighting solution in an exceptionally compact fixture that provides for cheaper shipping, condensed storage, and quicker installation
▪ Built with quality to last and performance to get the job done at an affordable price for an base-level product
▪ TECHNOLOGY - Glare reduction optics featuring WhiteOptics Technology allowing for maximum light output while reducing glare
▪ ENERGY SAVINGS - LEDs provided 80 color rendering index (CRI), nominal 12,000 lumens at 4000K with a cool white color temperature
▪ DIMMING - Thermally protected driver standard with 0-10V dimming
▪ VOLTAGE - Multi-volt driver, 120-277V standard
▪ HOURS OF LIFE - 70 Percent lumen maintenance at greater than 100,000 hr
▪ INSTALLATION - Fixture is suitable for mounting by chain, cable, surface-mount bracket, pendant monopoint, or hook monopoint
▪ BATTERY - LED emergency driver sold separately
