Description: Superstrut® Cobra® Conduit and Cable Clamp, 1-Piece, Series: 700, 2 in Conduit, 200 lb Load, 1.98 to 2.576 in OD, Parallel Hook Mounting, For Use With: EMT, Rigid Conduit and Cable, Specifications: 35 ft-lb Torque, Steel, Electro Galvanized/Silver Galv®

Manufacturer PN: CPC200

UPC:  61601310708

Kendall Electric Inc PN: 2242509

Invoice Description:

CPC200 T&B STRUT COBRA PIPECLAMP 2"..


SPEC SHEET

▸ See All in Conduit/Cable To Channel Clamps


How Can We Make This Page Better?

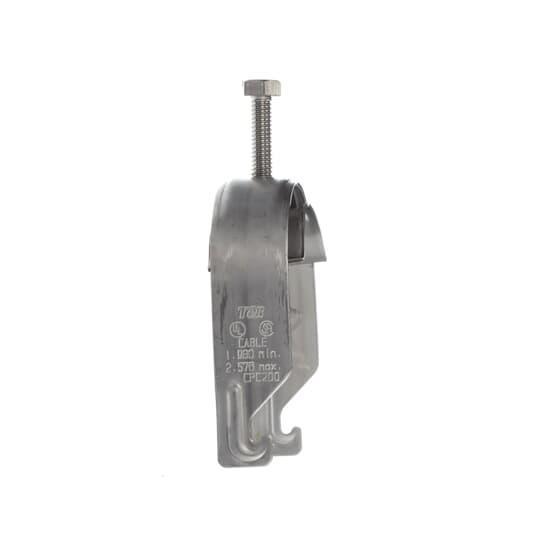

Superstrut® Cobra® CPC200 700 1-Piece Conduit and Cable Clamp, 2 in Conduit, 200 lb Load, 1.98 to 2.576 in OD, Steel

Log In for Pricing and Availability




Description

Superstrut® with a full compliment of fittings, hardware and accessories to complete any metal framing job, is the only system of its kind to provide multiple finishes for total corrosion protection.
Superstrut® Cobra® Conduit and Cable Clamp, 1-Piece, Series: 700, 2 in Conduit, 200 lb Load, 1.98 to 2.576 in OD, Parallel Hook Mounting, For Use With: EMT, Rigid Conduit and Cable, Specifications: 35 ft-lb Torque, Steel, Electro Galvanized/Silver Galv®

Specifications

 Application For attaching a full range of rigid/EMT conduit and cable to strut channels
 Brand Name Superstrut®
 Conduit Size 2 in
 Finish Electro Galvanized/Silver Galv®
 Load Capacity 200 lb
 Manufacturer Part Number CPC200
 Material Steel
 Mounting Type Parallel Hook
 Series 700
 Specifications 35 ft-lb Torque
 Standards/Approvals UL E160899
 Suitable For Use With EMT, Rigid Conduit and Cable
 Type 1-Piece

Features

▪ 1-piece, heavy duty construction ready-to install right out of the box, no need to break-apart and reassemble, no screws or bolts to drop
▪ Heavy duty 5/16 in hex bolt with multi-driver head (Robertson square, Philips® cross-recess and slot) provides a full range of installation options
▪ Reconfigure wiring without complete disassembly
▪ Remove cables easily without disturbing neighboring clamps
▪ Parallel hook design keeps conduits and cable square with strut
▪ Works with all depth of strut 13/16 to 3-1/4 in
▪ 2 hooks on the same side make the clamp easy-to install and keep conduits and cable square with strut
▪ Rugged stirrup and wide saddle design holds securely with no damage to conduit or cable
