Description: Superstrut® Cobra® Conduit and Cable Clamp, 1-Piece 1-Hole, Series: 700, 1-1/2 in Conduit, 200 lb Load, 1.69 to 1.98 in OD, 0.112 in Thickness, Parallel Hook Mounting, For Use With: EMT, Rigid Conduit and Cable, Specifications: 35 ft-lb Torque, Steel, GoldGalv®, 1 in W Dimensions

Manufacturer PN: CPC150

UPC:  61601310706

Kendall Electric Inc PN: 2235083

Invoice Description:

CPC150 T&B STRUT COBRA PIPECLAMP 1-1/2 IN..


SPEC SHEET

▸ See All in Conduit/Cable To Channel Clamps


How Can We Make This Page Better?

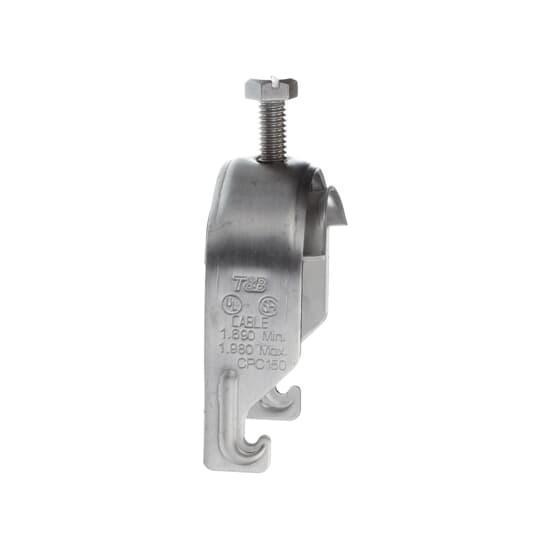

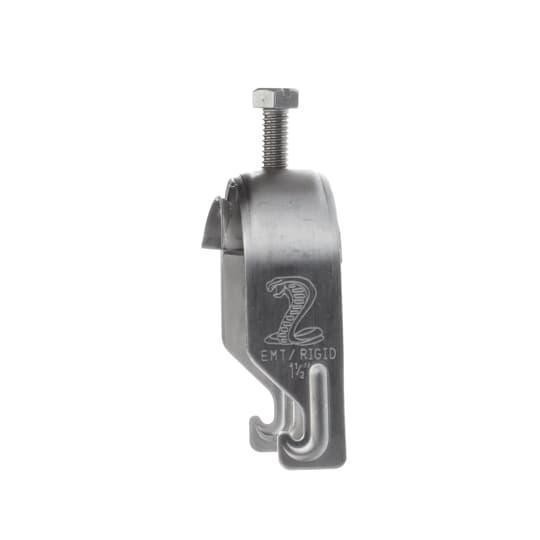

Superstrut® Cobra® CPC150 700 1-Piece 1-Hole Conduit and Cable Clamp, 1-1/2 in Conduit, 200 lb Load, 1.69 to 1.98 in OD, Steel

Log In for Pricing and Availability




Description

Superstrut® with a full compliment of fittings, hardware and accessories to complete any metal framing job, is the only system of its kind to provide multiple finishes for total corrosion protection.
Superstrut® Cobra® Conduit and Cable Clamp, 1-Piece 1-Hole, Series: 700, 1-1/2 in Conduit, 200 lb Load, 1.69 to 1.98 in OD, 0.112 in Thickness, Parallel Hook Mounting, For Use With: EMT, Rigid Conduit and Cable, Specifications: 35 ft-lb Torque, Steel, GoldGalv®, 1 in W Dimensions

Specifications

 Application For attaching a full range of rigid/EMT conduit and cable to strut channels
 Brand Name Superstrut®
 Conduit Size 1-1/2 in
 Dimensions 1 in W
 Finish GoldGalv®
 Load Capacity 200 lb
 Manufacturer Part Number CPC150
 Material Steel
 Mounting Type Parallel Hook
 Series 700
 Specifications 35 ft-lb Torque
 Standards/Approvals UL E160899
 Suitable For Use With EMT, Rigid Conduit and Cable
 Type 1-Piece 1-Hole

Features

▪ 1-piece, heavy duty construction ready-to install right out of the box, no need to break-apart and reassemble, no screws or bolts to drop
▪ Heavy duty 5/16 in hex bolt with multi-driver head (Robertson square, Philips® cross-recess and slot) provides a full range of installation options
▪ Reconfigure wiring without complete disassembly
▪ Remove cables easily without disturbing neighboring clamps
▪ Parallel hook design keeps conduits and cable square with strut
▪ Works with all depth of strut 13/16 to 3-1/4 in
▪ 2 hooks on the same side make the clamp easy-to install and keep conduits and cable square with strut
▪ Rugged stirrup and wide saddle design holds securely with no damage to conduit or cable
