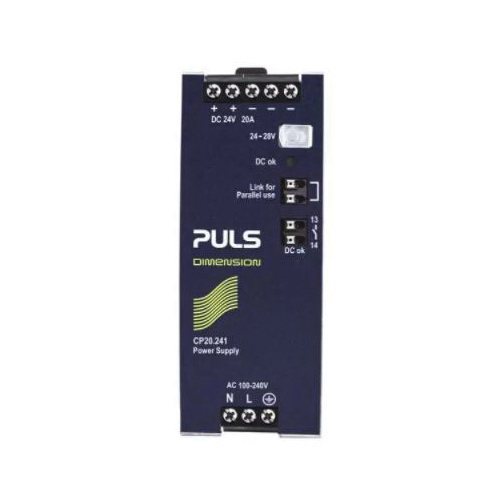

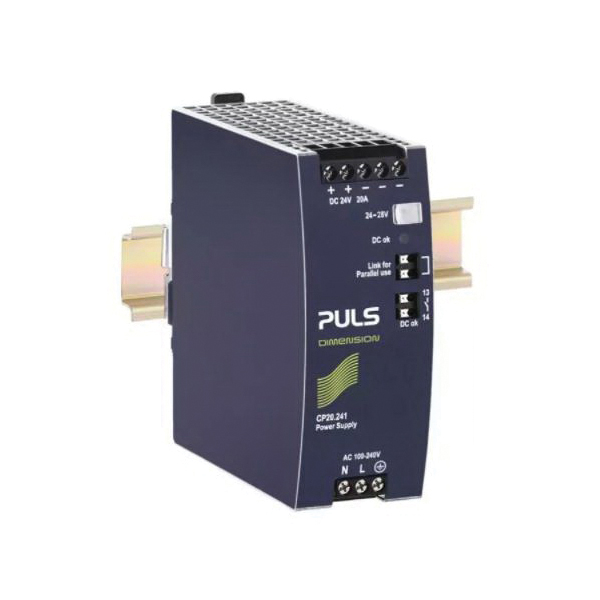

CP20.241 PULS DIMENSION SERIES POWER SUPPLY 24VDC 20AMP 120V 240V 1PHASE INPUT 100-240VAC 50-60HZ SINGLE PHASE OUTPUT 24-28VDC 20-17.1AMP SCREW TERMINAL 20% BOOST W48XH124xD127MM

Mouse over image to zoom, click to enlarge

  • CP20.241 PULS DIMENSION SERIES POWER SUPPLY 24VDC 20AMP 120V 240V 1PHASE INPUT 100-240VAC 50-60HZ SINGLE PHASE OUTPUT 24-28VDC 20-17.1AMP SCREW TERMINAL 20% BOOST W48XH124xD127MM
  • CP20.241 PULS DIMENSION SERIES POWER SUPPLY 24VDC 20AMP 120V 240V 1PHASE INPUT 100-240VAC 50-60HZ SINGLE PHASE OUTPUT 24-28VDC 20-17.1AMP SCREW TERMINAL 20% BOOST W48XH124xD127MM
  • CP20.241 PULS DIMENSION SERIES POWER SUPPLY 24VDC 20AMP 120V 240V 1PHASE INPUT 100-240VAC 50-60HZ SINGLE PHASE OUTPUT 24-28VDC 20-17.1AMP SCREW TERMINAL 20% BOOST W48XH124xD127MM

Manufacturer PN: CP20.241

Kendall Electric Inc PN: 3737590

Invoice Description:

CP20.241 PULS DIMENSION SERIES POWER SUPPLY 24VDC 20AMP 120V 240V 1PHASE INPUT 100-240VAC 50-60HZ SINGLE PHASE OUTPUT 24-28VDC 20-17.1AMP SCREW TERMINAL 20% BOOST W48XH124xD127MM


SPEC SHEET

▸ See All in DC Power Supplies


How Can We Make This Page Better?

Puls CP20.241 DIN Rail Power Supply for 1-Phase system, 24 V, 20 A

Log In for Pricing and Availability




Specifications

 AC Input Voltage AC 100 - 240 V ( 10 %)
 Adjustment Range 24 - 28 V
 Brand Name Puls
 Connection Method Screw terminals
 DC Input Voltage DC 110 V - 150 V ( 20 %)
 DC OK Signal yes
 Efficiency Typ 95.6 %
 External Input Fuse Recommendation B-10 A / C-10 A
 Harmonic Correction active
 Input Inrush Current 10 A / 4.5 A
 Input Inrush Current Limitation active
 MTBF SN 29500 40 C H 590000 h
 Mounting Method DIN rail
 Operating Temp Range -25 °C to 70 °C
 Output Current 17.1 A at 28 V
 Output Current Range 20 - 17.1 A
 Output Power 480 W
 Power Factor 0.98
 Power Losses Typ 22.1 W
 Power Reserves 20 % Power Boost
 Ripple And Noise Voltage Max 50 mVpp
 Weight Per Unit Excl Packaging 830 g

Features

▪ AC 100-240V Wide-range input
▪ Width only 48mm
▪ Efficiency up to 95.6%
▪ Excellent partial load efficiency
▪ 20% Output power reserves
▪ Easy fuse breaking - 3 times nominal current for 12ms
▪ Safe HiccupPLUS overload mode
▪ Active power factor correction (PFC)
▪ Minimal inrush current surge
▪ Full power between -25°C and +60°C
▪ DC-OK relay contact
▪ Current sharing feature for parallel use
