Emerson Electric

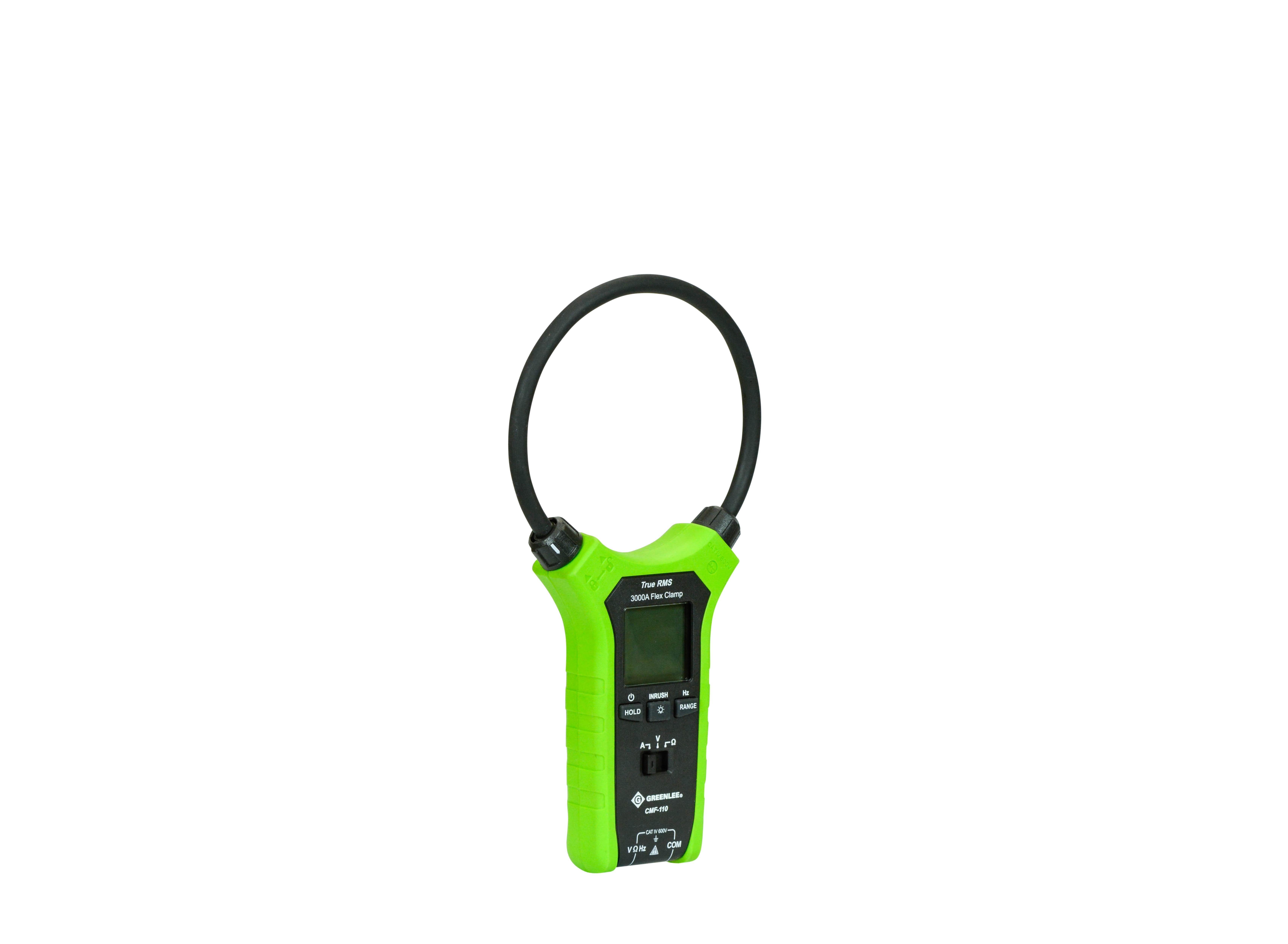

CMF-110 GREENLEE METER, FLEX CLAMP 10" (CMF-110)

Mouse over image to zoom, click to enlarge

  • CMF-110 GREENLEE METER, FLEX CLAMP 10" (CMF-110)
  • CMF-110 GREENLEE METER, FLEX CLAMP 10" (CMF-110)

Description: Greenlee® Flexible Clamp Meter, Series: CMF, 30/300/3000 A, 6/60/600 V AC, 60 MOhm, 20 to 30 kHz, LCD, +/-3% + 5 A Accuracy, +/- 1.2% + 300 mV Accuracy, Safety Rating: CAT IV 600V, 1.5 V Battery, 0 to 50 deg C Operating, 10 in Dia Coil

Manufacturer PN: CMF-110

UPC:  78331008853

Kendall Electric Inc PN: 3965929

Invoice Description:

CMF-110 GREENLEE METER, FLEX CLAMP 10" (CMF-110)


SPEC SHEET

How Can We Make This Page Better?

Greenlee® CMF-110 Flexible Clamp Meter, 30/300/3000 A, 6/60/600 V AC, 60 MOhm, 20 to 30 kHz, LCD Display

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Flex meter accurately measures TRUE RMS AC current, AC voltage, resitance, frequency and inrush current.
Greenlee® Flexible Clamp Meter, Series: CMF, 30/300/3000 A, 6/60/600 V AC, 60 MOhm, 20 to 30 kHz, LCD, +/-3% + 5 A Accuracy, +/- 1.2% + 300 mV Accuracy, Safety Rating: CAT IV 600V, 1.5 V Battery, 0 to 50 deg C Operating, 10 in Dia Coil

Specifications

 AC Current Accuracy +/-3% + 5 A
 Brand Name Greenlee®
 Dimensions 10 in Dia Coil
 Electrical Ratings 30/300/3000 A, 6/60/600 V AC
 Frequency Rating 20 to 30 kHz
 Includes Universal Banana Leads, Soft Carrying Case, 3 AAA Batteries
 Manufacturer Part Number CMF-110
 Operating Temperature 0 to 50 deg C
 PART NUMBER KEYWORDS CMF-110 ; CMF110 ; 14708893 ; 783310088530 ; 78331008853 ; 00783310088530
 Power Source 1.5 V Battery
 Resistance 60 MOhm
 Series CMF
 Standards/Approvals ARRA Compliant|CE Marked|CETLUS Listed
 Video Links
 Voltage Accuracy +/- 1.2% + 300 mV

Features

▪ Flex meter accurately measures TRUE RMS AC current, AC voltage, resitance, frequency and inrush current
▪ Flexible Rogowski coil easily maneuvers around cables that are hard to reach or deep within cabinets

Resources

 Catalog Page
 MSDS URL
 Product Data Sheet
