Eaton

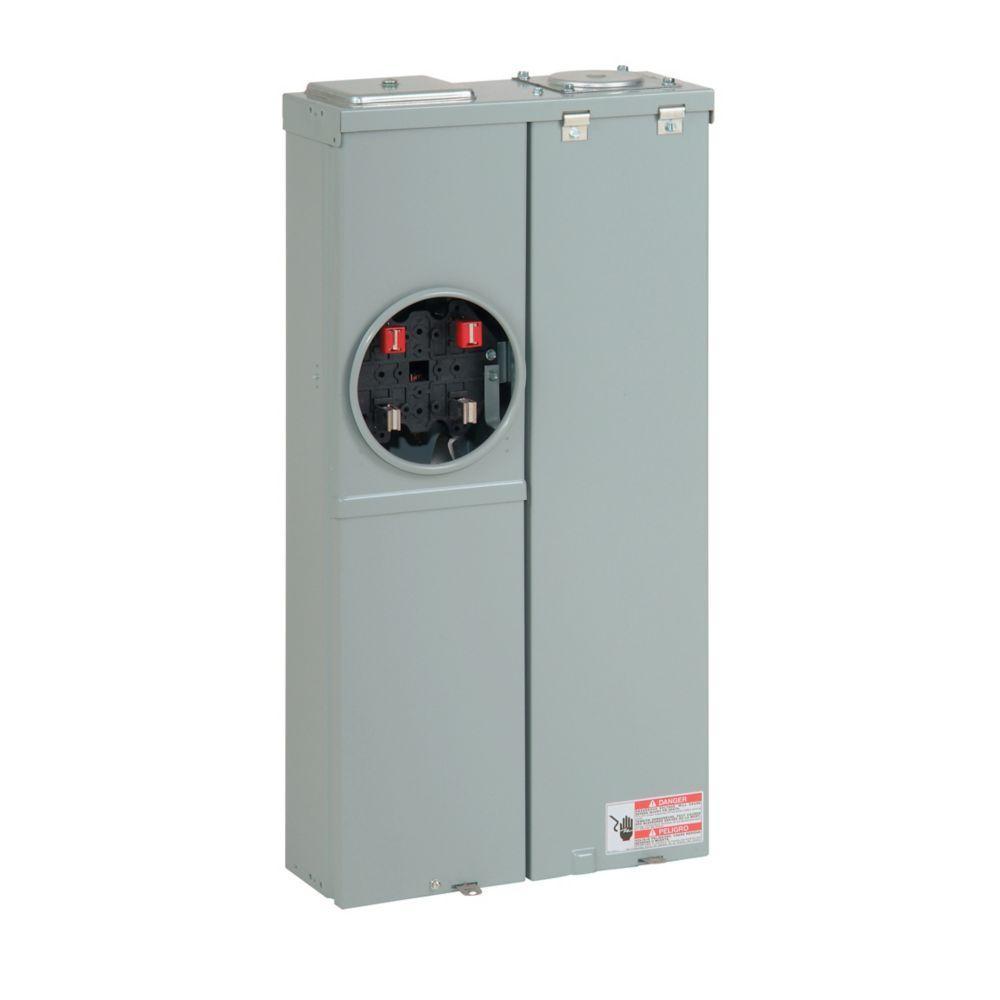

CMBEB200BTS CH MTR-BRKR EUSERC CH 200A MB W/O DIST BTM/TOP FEED SURFA

Mouse over image to zoom, click to enlarge

  • CMBEB200BTS CH MTR-BRKR EUSERC CH 200A MB W/O DIST BTM/TOP FEED SURFA
  • CMBEB200BTS CH MTR-BRKR EUSERC CH 200A MB W/O DIST BTM/TOP FEED SURFA

Description: EATON Meter Main Breaker, Type CH 1-Socket 3-Wire Combination Service Entrance, Series: CMBE, 120/240 V, 200 A, 1 ph, Bottom/Overhead/Top/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil Wire, Top Endwall, 3/4 in Hub, Ring Cover, Line/Load Terminal, Surface Mount, NEMA 3R, 5.38 in L x 14.44 in W x 28.38 in H

Manufacturer PN: CMBEB200BTS

UPC:  78211484900

Kendall Electric Inc PN: 4824217

Invoice Description:

CMBEB200BTS CH MTR-BRKR EUSERC CH 200A MB W/O DIST BTM/TOP FEED SURFA


SPEC SHEET

▸ See All in Meter Socket Meter Main Combinations


How Can We Make This Page Better?

EATON CMBEB200BTS CMBE Type CH 1-Socket 3-Wire Combination Service Entrance Meter Main Breaker, 120/240 V, 200 A, 1 Phase , NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Residential Meter Breakers save time and cost by providing contractors with all-in-one service entrance equipment. They allow for quick, flexible, simple installation, and can be used with BR- or CH-type branch circuit breaker styles. Constructed to be a self-contained durable enclosure and meet the latest NEC wire bending space requirements, they are particularly useful for residential metering in areas where utilities are deregulated, and the electrical contractor has to supply watt-hour meter sockets.
EATON Meter Main Breaker, Type CH 1-Socket 3-Wire Combination Service Entrance, Series: CMBE, 120/240 V, 200 A, 1 ph, Bottom/Overhead/Top/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil Wire, Top Endwall, 3/4 in Hub, Ring Cover, Line/Load Terminal, Surface Mount, NEMA 3R, 5.38 in L x 14.44 in W x 28.38 in H

Specifications

 Amperage Rating 200 A
 Application Electrical Assemblies, Panels and EOEMs
 Brand Name EATON
 Cover Type Ring
 Dimensions 5.38 in L x 14.44 in W x 28.38 in H
 Enclosure NEMA 3R
 Feed Type Bottom/Overhead/Top/Underground
 Hub Size 3/4 in
 Hub Type Top Endwall
 Includes Distribution Section and CSR2200N Main Breaker
 Manufacturer Part Number CMBEB200BTS
 Mounting Type Surface
 Number of Jaws 4
 Phase 1
 Series CMBE
 Standards/Approvals UL Listed,EUSERC Approved
 Terminal Type Line/Load
 Type Type CH 1-Socket 3-Wire Combination Service Entrance
 Voltage Rating 120/240 V

Features

▪ Larger 250 kcmil lugs and additional knockouts for ease of installation
▪ Factory installed neutral assemblies
▪ Hub provisions on top endwall
▪ Ring type sockets are provided with a sealing ring
▪ Padlockable device covers provide an additional measure of security and help prevent tampering
▪ Most units have center keyhole for easy one person installation
