Eaton
CMB1212B200BTS CH MTR-BRKR, CH, 12 CKT, 200A MAIN BREAKER, BTM/TOP FEED, SURFA

Mouse over image to zoom, click to enlarge

  • CMB1212B200BTS CH MTR-BRKR, CH, 12 CKT, 200A MAIN BREAKER, BTM/TOP FEED, SURFA
  • CMB1212B200BTS CH MTR-BRKR, CH, 12 CKT, 200A MAIN BREAKER, BTM/TOP FEED, SURFA
  • CMB1212B200BTS CH MTR-BRKR, CH, 12 CKT, 200A MAIN BREAKER, BTM/TOP FEED, SURFA
  • CMB1212B200BTS CH MTR-BRKR, CH, 12 CKT, 200A MAIN BREAKER, BTM/TOP FEED, SURFA
  • CMB1212B200BTS CH MTR-BRKR, CH, 12 CKT, 200A MAIN BREAKER, BTM/TOP FEED, SURFA

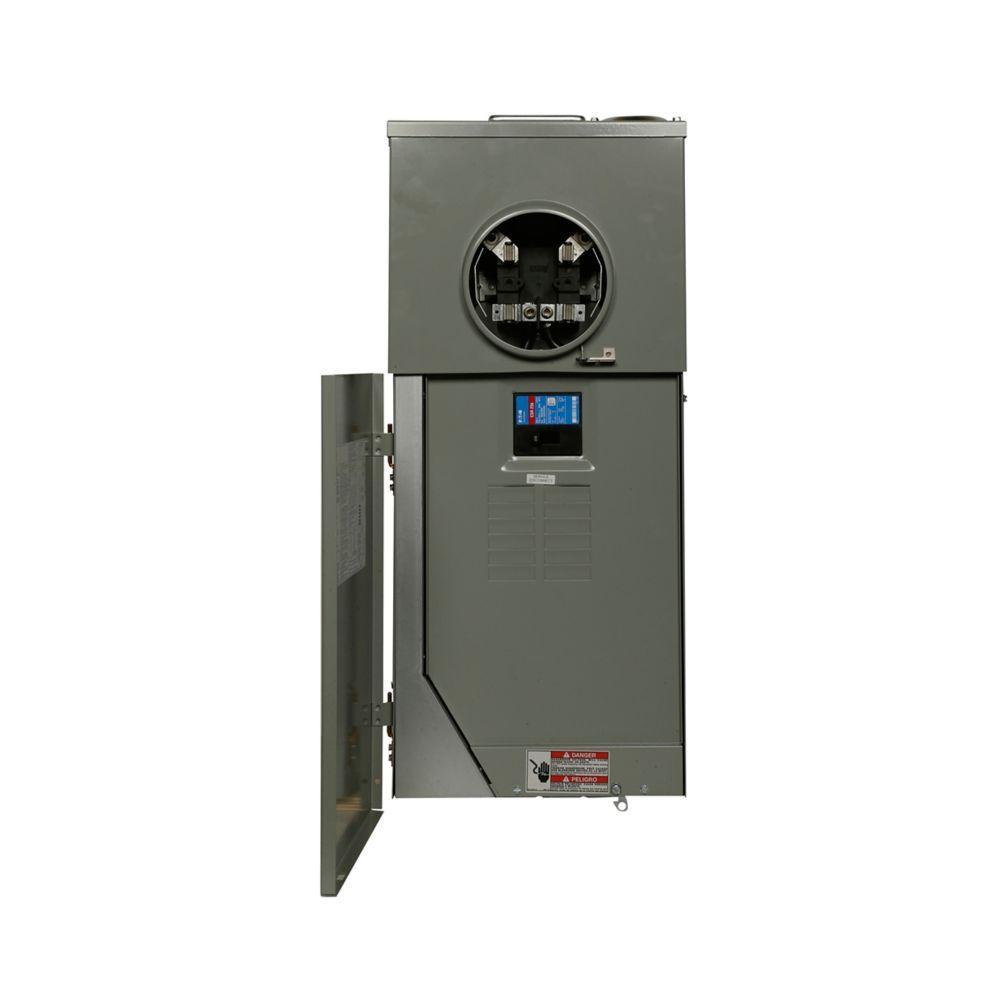

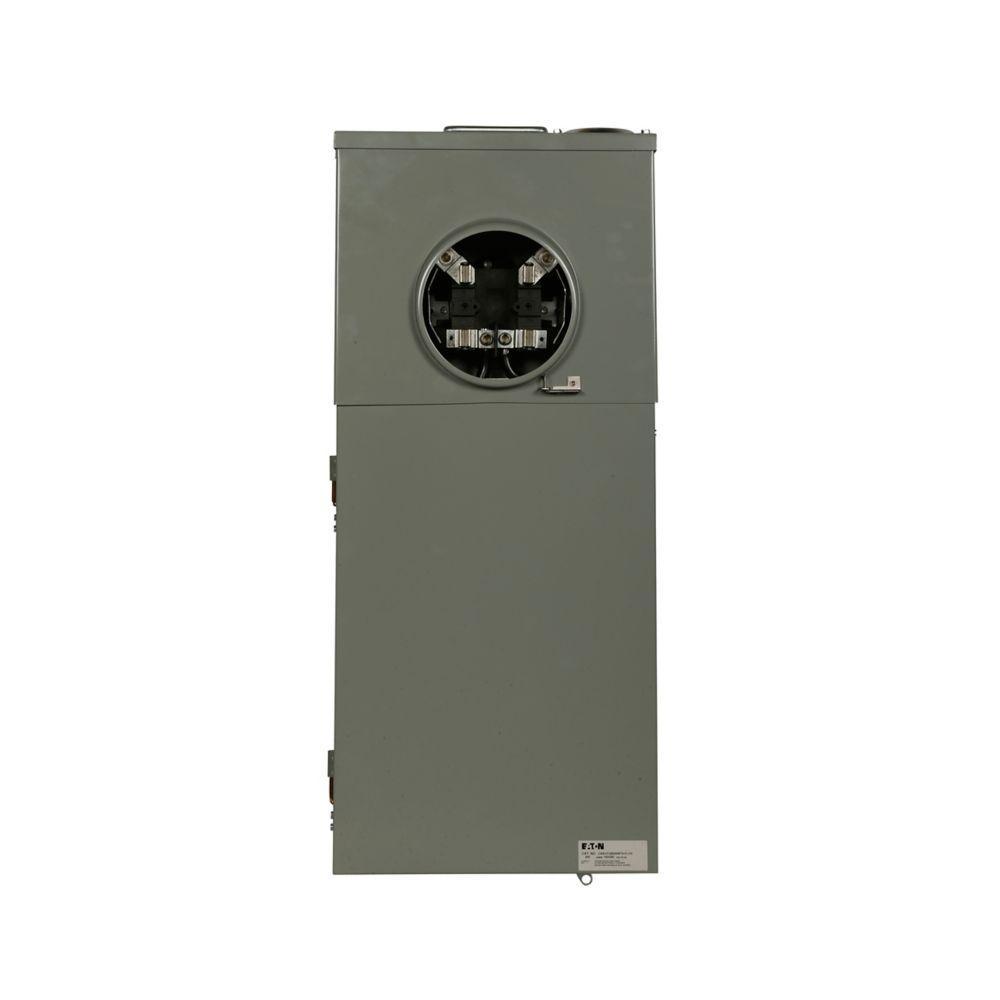

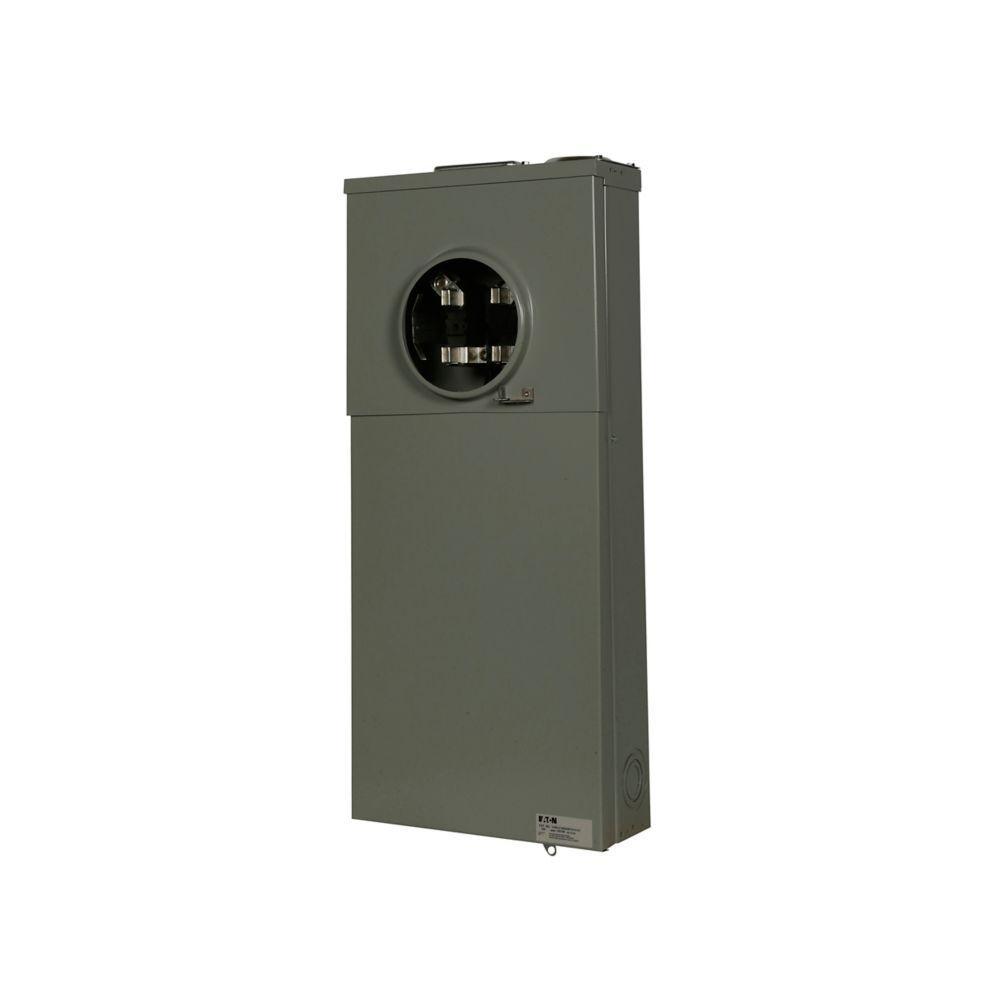

Description: EATON Meter Breaker, Type CH 12-Circuit 12-Space 3-Wire All-In-One Combination Service Entrance Non-EUSERC, Series: CMB, 120/240 V AC, 200 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Top Endwall, 3/4 in Hub, Ringless Cover, Line/Load Terminal, Surface Mount, NEMA 3R, 5.38 in L x 14.44 in W x 32.38 in H

Manufacturer PN: CMB1212B200BTS

UPC:  78211485856

Kendall Electric Inc PN: 4400416

Invoice Description:

CMB1212B200BTS CH MTR-BRKR, CH, 12 CKT, 200A MAIN BREAKER, BTM/TOP FEED, SURFA


SPEC SHEET

▸ See All in Meter Socket Circuit Breaker Combination


How Can We Make This Page Better?

EATON CMB1212B200BTS Type CH 12-Circuit 12-Space 3-Wire All-In-One Combination Service Entrance Non-EUSERC Meter Breaker With MBDF1M Mechanical Interlock Deadfront Cover and Feed-Through Lugs, 120/240 V AC, 200 A, 1 Phase , NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Residential Meter Breakers save time and cost by providing contractors with all-in-one service entrance equipment. They allow for quick, flexible, simple installation, and can be used with BR- or CH-type branch circuit breaker styles. Constructed to be a self-contained durable enclosure and meet the latest NEC wire bending space requirements, they are particularly useful for residential metering in areas where utilities are deregulated, and the electrical contractor has to supply watt-hour meter sockets.
EATON Meter Breaker, Type CH 12-Circuit 12-Space 3-Wire All-In-One Combination Service Entrance Non-EUSERC, Series: CMB, 120/240 V AC, 200 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Top Endwall, 3/4 in Hub, Ringless Cover, Line/Load Terminal, Surface Mount, NEMA 3R, 5.38 in L x 14.44 in W x 32.38 in H

Specifications

 Amperage Rating 200 A
 Application Power Distribution, Electrical Assemblies, Panel and EOEM and Residential Applications
 Brand Name EATON
 Cover Type Ringless
 Dimensions 5.38 in L x 14.44 in W x 32.38 in H
 Enclosure NEMA 3R
 Feed Type Bottom/Overhead/Top/Underground
 Hub Size 3/4 in
 Hub Type Top Endwall
 Includes Distribution Section and CSR2200 Main Breaker
 Manufacturer Part Number CMB1212B200BTS
 Mounting Type Surface
 Number of Jaws 4
 Phase 1
 Series CMB
 Standards/Approvals UL Listed
 Terminal Type Line/Load
 Type Type CH 12-Circuit 12-Space 3-Wire All-In-One Combination Service Entrance Non-EUSERC
 Voltage Rating 120/240 V AC

Features

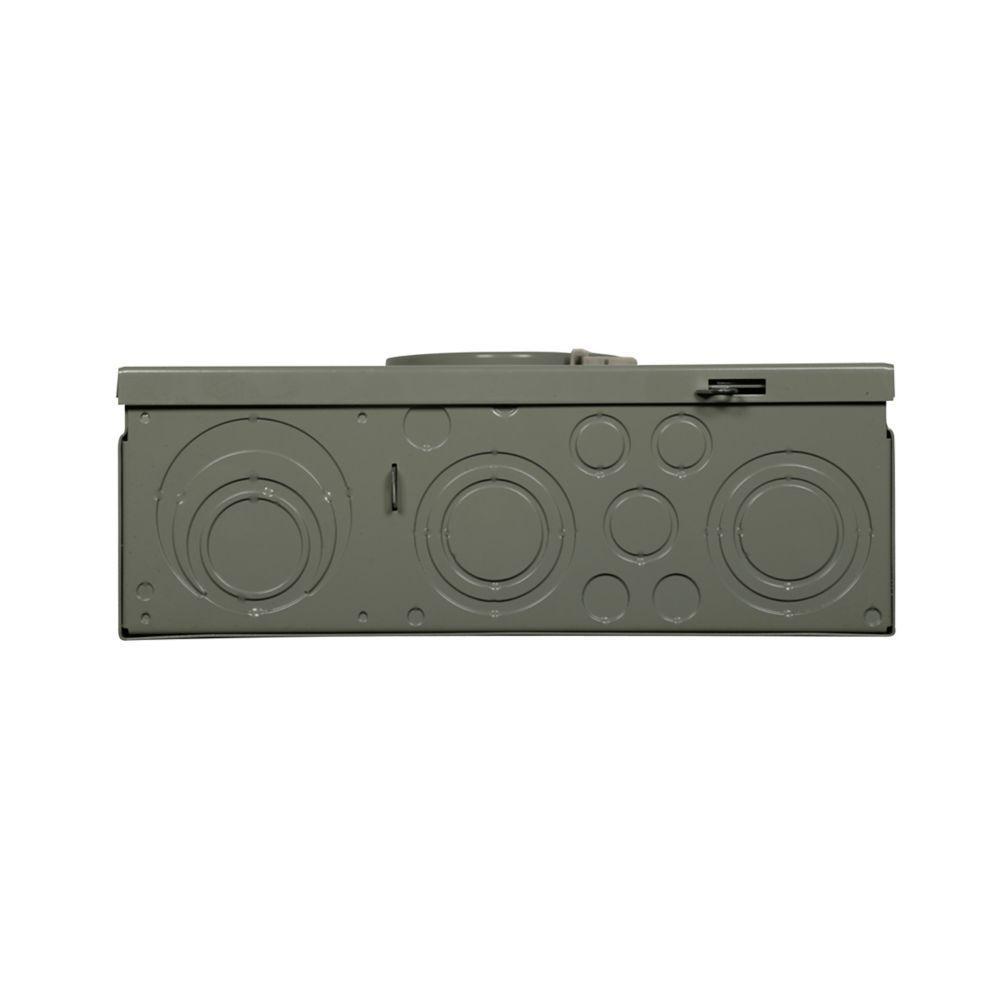

▪ Larger lay-in lugs and 3 in knockouts for ease of installation
▪ Factory installed neutral assemblies
▪ Hub provisions on top endwall
▪ Padlockable device covers provide an additional measure of security and help prevent tampering
