Emerson Electric
CM-960-C GREENLEE CLAMPMETER AC/DC-CALIBRATED

Mouse over image to zoom, click to enlarge

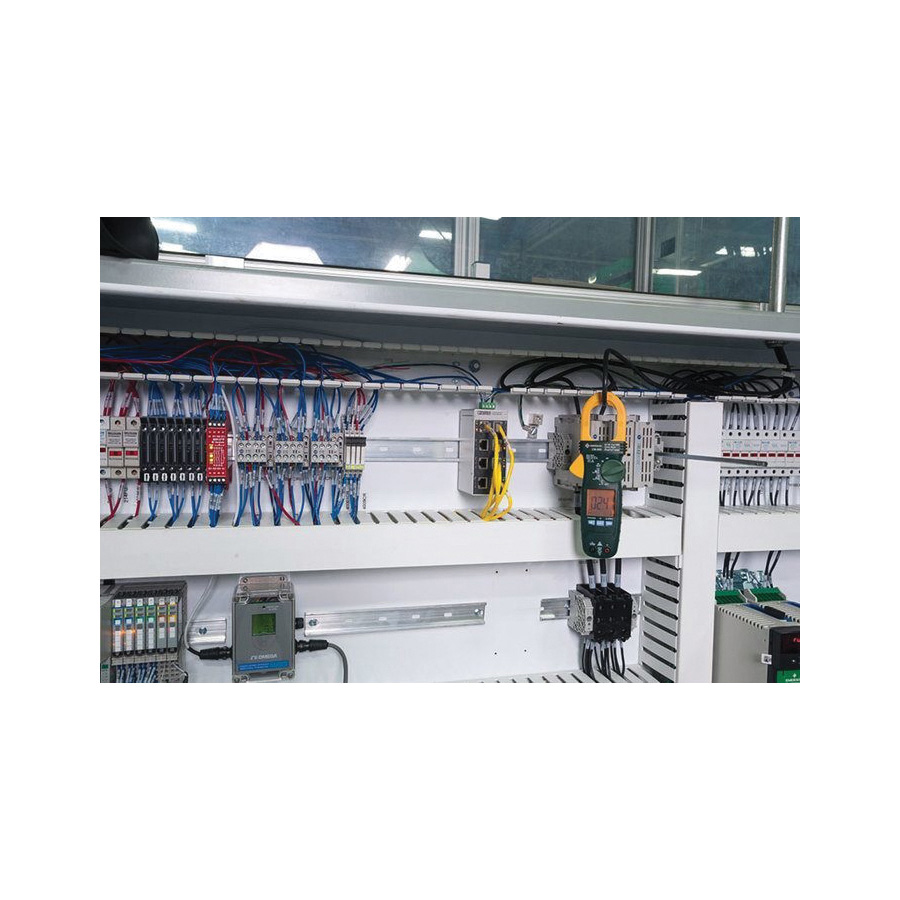

  • CM-960-C GREENLEE CLAMPMETER AC/DC-CALIBRATED
  • CM-960-C GREENLEE CLAMPMETER AC/DC-CALIBRATED

Description: Greenlee® Clamp Meter, AC Non-Contact, 60/600 A at 300/600 V AC/DC Electrical Rating, 600 Ohm/6/60 kOhm Resistance, 50/60 Hz Frequency, 1.18 in Jaw, 6000 Count, Backlit LCD Display, True RMS AC Response, +/-1.5% + 0.15 A at 0 to 3.99 A, +/-1.5% + 0.05 A at 4 to 60 A AC Current Accuracy, +/-1.2% + 0.7 VDC at 600 VAC Voltage Accuracy, Safety Rating: CAT III 600 V/CAT IV 300 V, 1.5 V AAA Battery Power Source, 32 to 104 deg F Operating, 8.7 in L x 3 in W x 1.4 in D Dimensions

Manufacturer PN: CM-960-C

UPC:  78331002230

Kendall Electric Inc PN: 3954214

Invoice Description:

CM-960-C GREENLEE CLAMPMETER AC/DC-CALIBRATED

▸ See All in Clamp Meters


How Can We Make This Page Better?

Greenlee® CM-960-C AC Non-Contact Clamp Meter, 60/600 A at 300/600 V AC/DC, 600 Ohm/6/60 kOhm, 50/60 Hz, 1.18 in Jaw, Backlit LCD Display

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Greenlee® Clamp Meter, AC Non-Contact, 60/600 A at 300/600 V AC/DC Electrical Rating, 600 Ohm/6/60 kOhm Resistance, 50/60 Hz Frequency, 1.18 in Jaw, 6000 Count, Backlit LCD Display, True RMS AC Response, +/-1.5% + 0.15 A at 0 to 3.99 A, +/-1.5% + 0.05 A at 4 to 60 A AC Current Accuracy, +/-1.2% + 0.7 VDC at 600 VAC Voltage Accuracy, Safety Rating: CAT III 600 V/CAT IV 300 V, 1.5 V AAA Battery Power Source, 32 to 104 deg F Operating, 8.7 in L x 3 in W x 1.4 in D Dimensions

Specifications

 AC Current Accuracy +/-1.5% + 0.15 A at 0 to 3.99 A, +/-1.5% + 0.05 A at 4 to 60 A
 AC Response True RMS
 Application General Purpose and Industrial Applications
 Brand Name Greenlee®
 Counts 6000
 Dimensions 8.7 in L x 3 in W x 1.4 in D
 Electrical Ratings 60/600 A at 300/600 V AC/DC
 Frequency Rating 50/60 Hz
 Includes (2) Batteries, (1) TSG-3 Test Lead and (1) TC-10 Carrying Case
 Jaw Capacity 1.18 in
 Manufacturer Part Number CM-960-C
 Operating Temperature 32 to 104 deg F
 PART NUMBER KEYWORDS CM-960-C ; CM960C ; 02230 ; 9137140 ; 783310022305 ; 78331002230 ; 00783310022305
 Power Source 1.5 V AAA Battery
 Resistance 600 Ohm/6/60 kOhm
 Standards/Approvals ARRA Compliant|cUL/UL Listed|UL Listed|CE Certified
 Type AC Non-Contact
 Voltage Accuracy +/-1.2% + 0.7 V DC at 600 V AC

Features

▪ CM-960 Clamp meter with Certificate of Calibration
▪ AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
▪ Tests continuity and diodes
▪ Peak-RMS measures motor inrush current
▪ Backlight and relative mode for added versatility
▪ AmpTip increases accuracy on small wires and low current
▪ Two voltage detection modes - non-contact or using a single test lead
▪ Data hold
