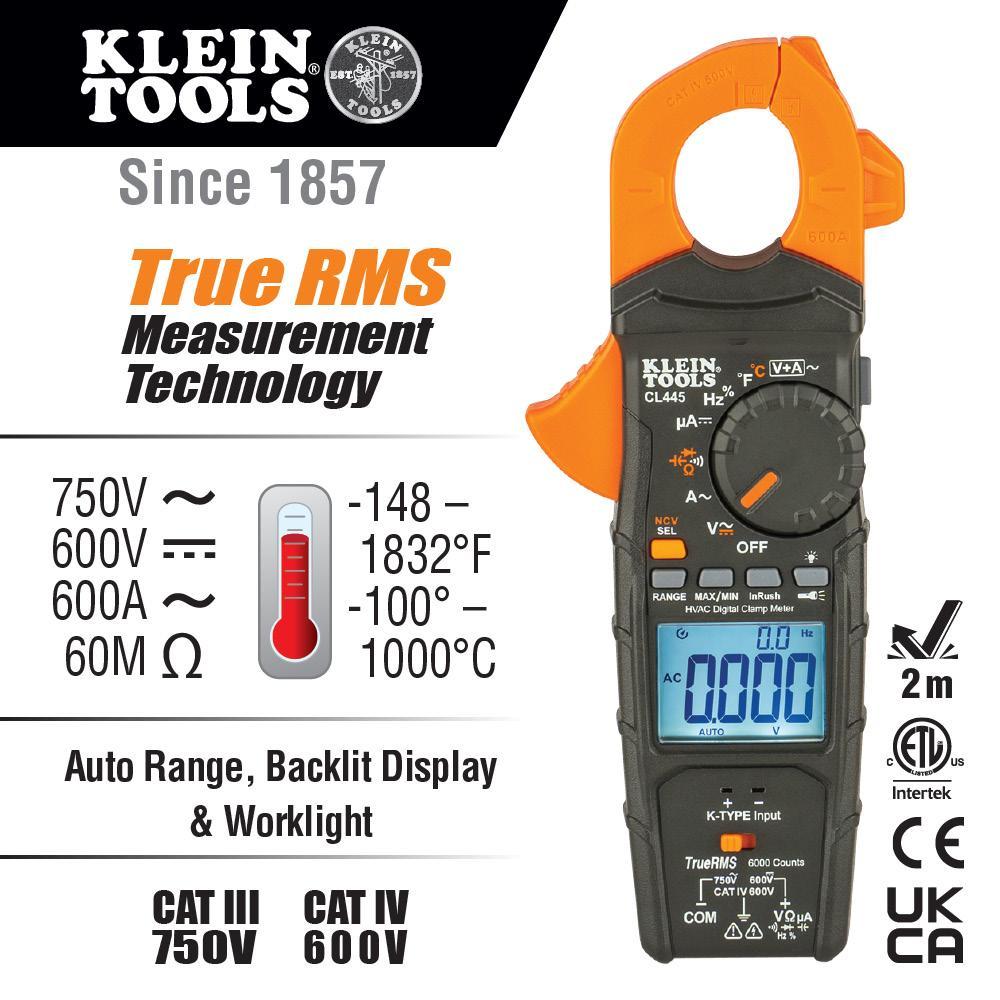

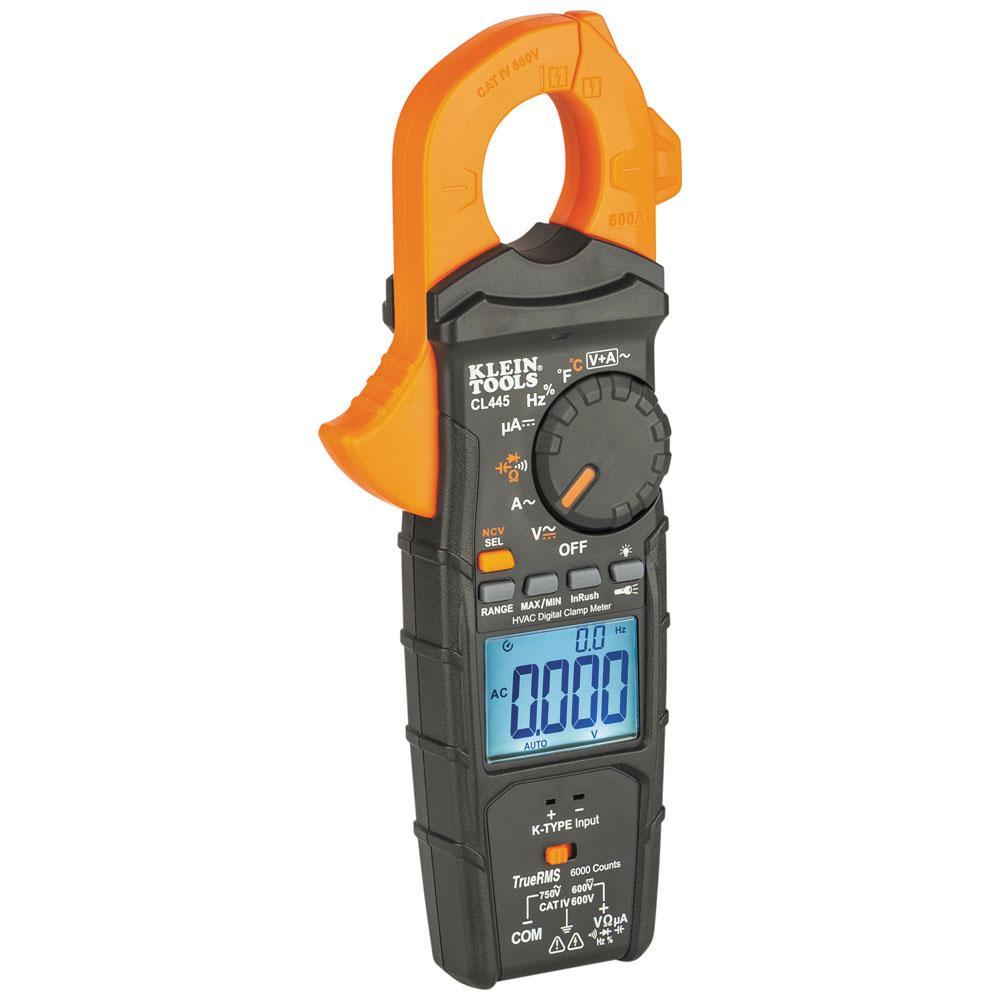

Description: Klein®, CL445, HVAC Clamp Meter, Auto-Ranging, 750 V AC/600 V DC, 600 A Electrical Rating, 60 mOhm Resistance, 60 kHz Frequency, 6000 Count, LCD Display, Safety Rating: CAT IV 600 V, CAT III 750V, Class II, Double Insulation, (3) AAA Batteries Power Source, -148 to 1832 deg F Operating, 1.59 in H x 3.77 in W x 9.24 in L Dimensions, ABS

Manufacturer PN: CL445

UPC:  09264469378

Kendall Electric Inc PN: 4930197

Invoice Description:

CL445 KLEIN HVAC CLAMP METER


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

Klein® CL445 Auto-Ranging HVAC Clamp Meter, Electrical Ratings: 750 V AC/600 V DC, 600 A, 60 mOhm, 60 kHz, LCD Display

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

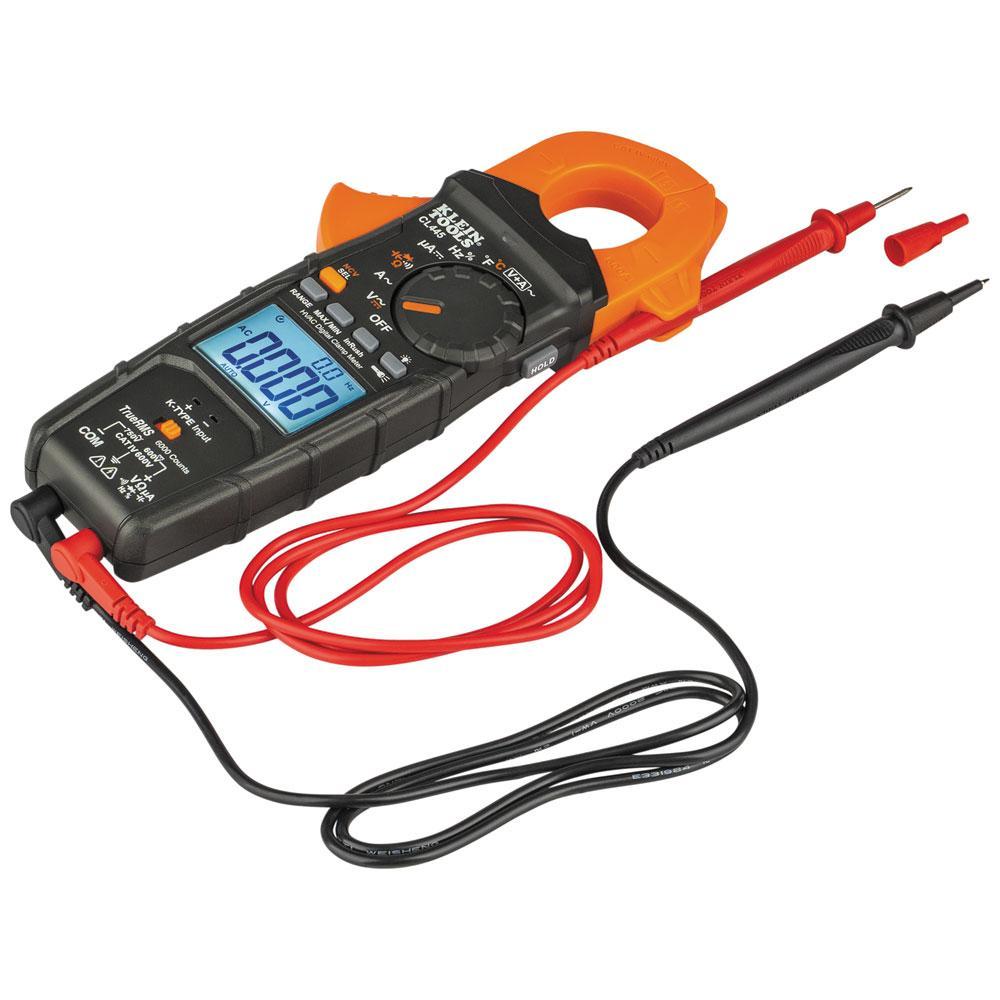

Klein Tools CL445 Clamp Meter is an advanced HVAC clamp meter with automatically ranging true root mean square (TRMS) for maximum accuracy. The meter measures AC current, inrush current, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, temperature, diodes, and more. This Digital Clamp Meter can simultaneously measure current and voltage, has a built-in worklight and comes with right-angle input test leads, push-on alligator clips, K-Type thermocouple, storage pouch, instructional manual, and 3 x AAA batteries.
Klein®, CL445, HVAC Clamp Meter, Auto-Ranging, 750 V AC/600 V DC, 600 A Electrical Rating, 60 mOhm Resistance, 60 kHz Frequency, 6000 Count, LCD Display, Safety Rating: CAT IV 600 V, CAT III 750V, Class II, Double Insulation, (3) AAA Batteries Power Source, -148 to 1832 deg F Operating, 1.59 in H x 3.77 in W x 9.24 in L Dimensions, ABS

Specifications

 Application Measures AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Continuity, Frequency, Capacitance, Temperature, Diodes, and More
 Brand Name Klein
 Counts 6000
 Dimensions 1.59 in H x 3.77 in W x 9.24 in L
 Electrical Ratings 750 V AC/600 V DC, 600 A
 Frequency Rating 60 kHz
 Includes Clamp Meter, Right-Angle Input Test Leads, Push-On Alligator Clips, K-Type Thermocouple, Storage Pouch, Instruction Manual, and 3 x AAA Batteries
 Manufacturer Part Number CL445
 Material ABS
 Operating Temperature -148 to 1832 deg F
 PART NUMBER KEYWORDS CL445 ; 092644693786 ; 92644693786 ; 09264469378 ; 00092644693786
 Power Source (3) AAA Batteries
 Resistance 60 mOhm
 Standards/Approvals CAT IV 600V|CAT III 750V|Class 2|Double Insulation
 Type Auto-Ranging
 Video Links

Features

▪ CL445 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
▪ K-Type thermocouple port for measuring temperature from -148 to 1832 deg Fahrenheit (-100 to 1000 deg Celsius)
▪ Detect AC current with non-contact voltage tester integrated into the clamp jaw
▪ Backlit LCD with dual V + A function allows simultaneous viewing of voltage and current measurements
▪ Dedicated mode for capturing DC micro amp and inrush current

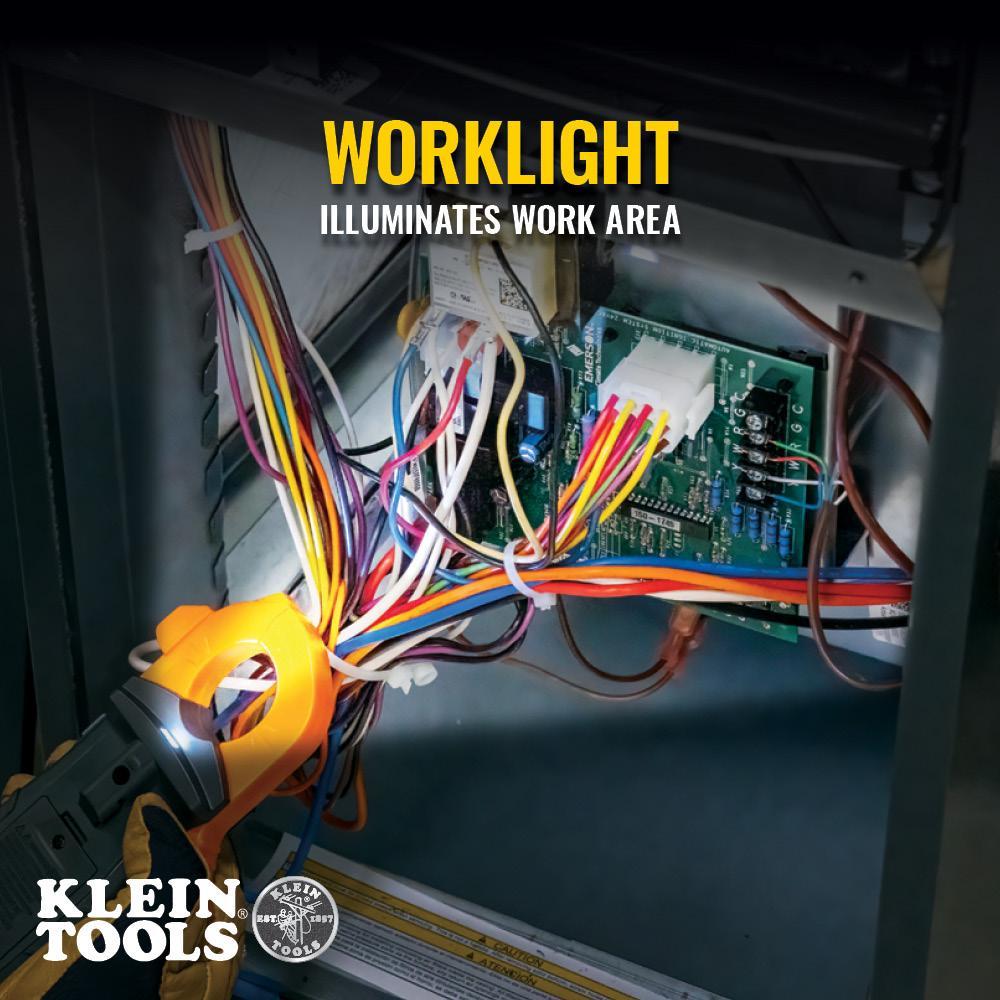

▪ Meter has a built-in worklight to illuminate in low light areas
▪ Can be used with Magnetic Hanger (Catalog Number 69417, sold separately) for hands free operation
