Klein Tools

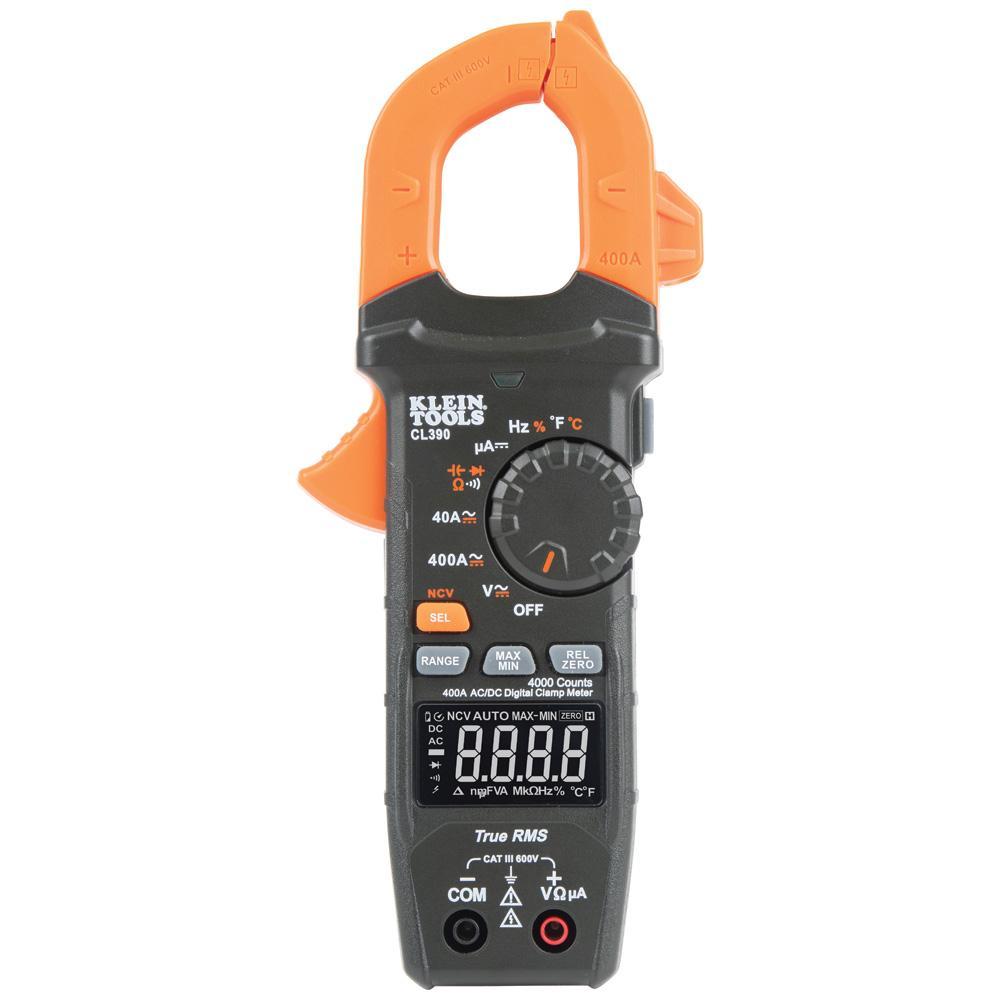

  • CL390 KLEIN AC/DC DIGITAL CLAMP METER AUTO-RANGING 400 AMP
  • CL390 KLEIN AC/DC DIGITAL CLAMP METER AUTO-RANGING 400 AMP
  • CL390 KLEIN AC/DC DIGITAL CLAMP METER AUTO-RANGING 400 AMP
  • CL390 KLEIN AC/DC DIGITAL CLAMP METER AUTO-RANGING 400 AMP
  • CL390 KLEIN AC/DC DIGITAL CLAMP METER AUTO-RANGING 400 AMP
  • CL390 KLEIN AC/DC DIGITAL CLAMP METER AUTO-RANGING 400 AMP

Description: Klein® AC/DC Digital Clamp Meter, Auto-Ranging, 600 V AC/DC, 400 A, 4000 uF, 200 uA, 40 MOhm, 10 Hz to 60 kHz, 1.61 in Jaw, Counts: 4000, Reverse Contrast LCD, +/-2.0 % + 9 Digits Accuracy, +/-1.5 % + 5 Digits at VAC, +/-1.0 % + 3 Digits at VDC Accuracy, Safety Rating: CATIII 600 V, Class 2, Double Insulation, (3) AAA Battery, -40 to 1832 deg F Operating, 8.45 in L x 3.51 in W x 1.51 in H, ABS

Manufacturer PN: CL390

UPC:  09264469287

Kendall Electric Inc PN: 4163473

Invoice Description:

CL390 KLEIN AC/DC DIGITAL CLAMP METER AUTO-RANGING 400 AMP


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

Klein® CL390 Auto-Ranging AC/DC Digital Clamp Meter, 600 V AC/DC, 400 A, 4000 uF, 200 uA, 40 Mohm, 10 Hz to 60 kHz, 1.61 in Jaw, Reverse Contrast LCD Display

Log In for Pricing and Availability




Description

Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.
Klein® AC/DC Digital Clamp Meter, Auto-Ranging, 600 V AC/DC, 400 A, 4000 uF, 200 uA, 40 MOhm, 10 Hz to 60 kHz, 1.61 in Jaw, Counts: 4000, Reverse Contrast LCD, +/-2.0 % + 9 Digits Accuracy, +/-1.5 % + 5 Digits at VAC, +/-1.0 % + 3 Digits at VDC Accuracy, Safety Rating: CATIII 600 V, Class 2, Double Insulation, (3) AAA Battery, -40 to 1832 deg F Operating, 8.45 in L x 3.51 in W x 1.51 in H, ABS

Specifications

 AC Current Accuracy +/-2 % + 9 Digits
 Application For use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
 Brand Name Klein
 Counts 4000
 Dimensions 8.45 in L x 3.51 in W x 1.51 in H
 Electrical Ratings 600 V AC/DC, 400 A, 4000 uF, 200 uA
 Frequency Rating 10 Hz to 60 kHz
 Includes Carrying Case, Test Lead with CAT III/CAT IV Safety Cap, Thermocouple, Instructions and (3) AAA Batteries
 Jaw Capacity 1.61 in
 Manufacturer Part Number CL390
 Material ABS
 Operating Temperature -40 to 1832 deg F
 PART NUMBER KEYWORDS CL390 ; 092644692871 ; 09264469287 ; 92644692871
 Power Source (3) AAA Battery
 Resistance 40 MOhm
 Standards/Approvals CE Certified|cETLus Listed
 Type Auto-Ranging
 Video Links
 Voltage Accuracy +/-1.5 % + 5 Digits at V AC, +/-1 % + 3 Digits at V DC

Features

▪ Test lead holder on side of clamp and optional magnetic hanger for meter (Catalog Numbers 69445 or 69417) for hands free operation
▪ Non-contact voltage tester integrated into the clamp jaw
▪ High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
▪ Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
▪ Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
▪ Max/Min, Rel/Zero and Data Hold capability
▪ Auto-power off after 10 min to conserve battery life
▪ Low battery indicator and easily accessible battery compartment
▪ Built to withstand a 6.6-Foot (2 m) drop
