Klein Tools
  • CL320 KLEIN HVAC DIGITAL CLAMP METER
  • CL320 KLEIN HVAC DIGITAL CLAMP METER
  • CL320 KLEIN HVAC DIGITAL CLAMP METER
  • CL320 KLEIN HVAC DIGITAL CLAMP METER
  • CL320 KLEIN HVAC DIGITAL CLAMP METER
  • CL320 KLEIN HVAC DIGITAL CLAMP METER

Description: Klein® HVAC Digital Clamp Meter, 600 V AC/DC, 400 A AC, 40 Mohm Electrical Rating, 10 Hz to 1 MHz Frequency, 1.61 in Jaw, 4000 Count, Backlit LCD Display, 400 A AC Response, Safety Rating: Category III 600 V Class 2, Battery Power Source, -40 to 1832 deg F Operating, 8.45 in L x 1.51 in W x 3.51 in H Dimensions, ABS

Manufacturer PN: CL320

UPC:  09264469286

Kendall Electric Inc PN: 4169165

Invoice Description:

CL320 KLEIN HVAC DIGITAL CLAMP METER


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

Klein® CL320 HVAC Digital Clamp Meter, 600 V AC/DC, 400 A AC, 40 Mohm, 10 Hz to 1 MHz, 1.61 in Jaw, Backlit LCD Display

Log In for Pricing and Availability




Description

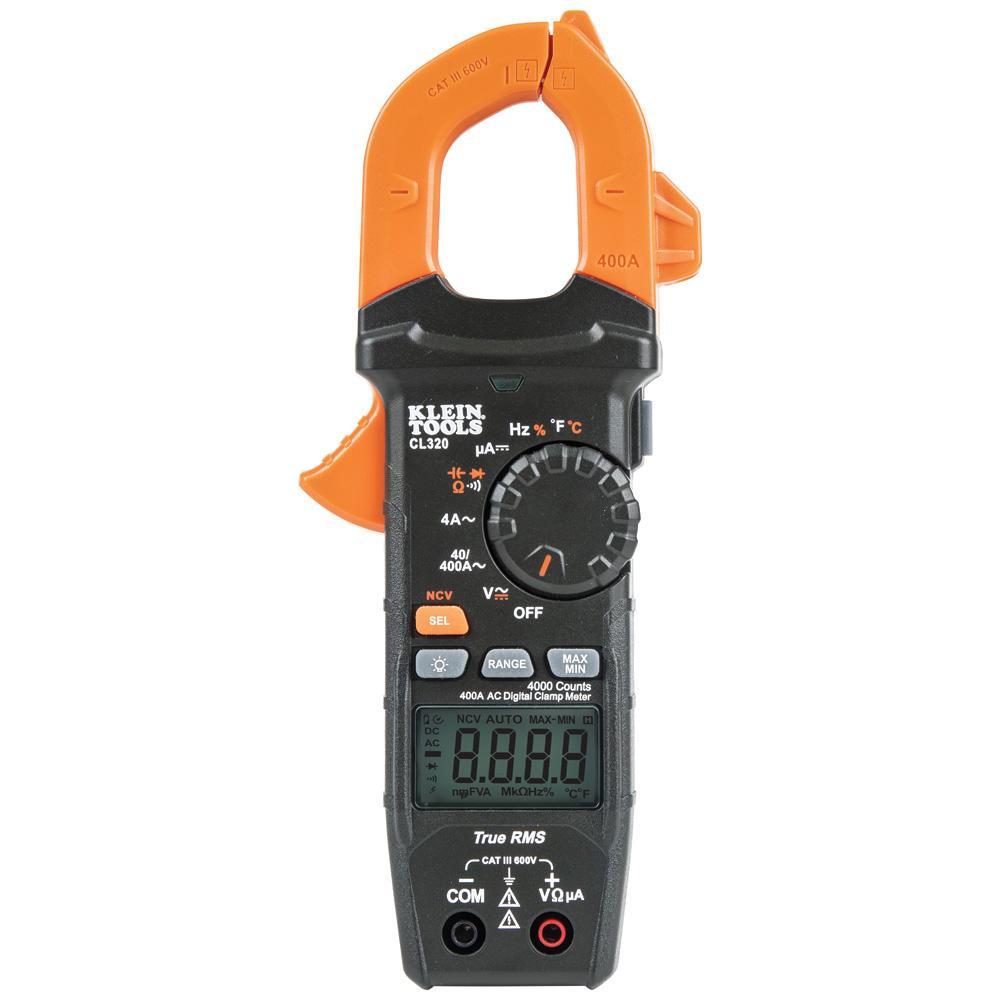

Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.
Klein® HVAC Digital Clamp Meter, 600 V AC/DC, 400 A AC, 40 Mohm Electrical Rating, 10 Hz to 1 MHz Frequency, 1.61 in Jaw, 4000 Count, Backlit LCD Display, 400 A AC Response, Safety Rating: Category III 600 V Class 2, Battery Power Source, -40 to 1832 deg F Operating, 8.45 in L x 1.51 in W x 3.51 in H Dimensions, ABS

Specifications

 AC Response 400 A
 Application For use to measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC micro amp, capacitance, duty cycle, diode test and continuity via test leads and temperature with thermocouple and cable testing
 Brand Name Klein
 Counts 4000
 Dimensions 8.45 in L x 1.51 in W x 3.51 in H
 Electrical Ratings 600 V AC/DC, 400 A AC, 40 Mohm
 Frequency Rating 10 Hz to 1 MHz
 Includes Carrying Case, Instructions, Test Lead and (3) AAA Batteries
 Jaw Capacity 1.61 in
 Manufacturer Part Number CL320
 Material ABS
 Operating Temperature -40 to 1832 deg F
 PART NUMBER KEYWORDS CL320 ; 15705463 ; 092644692864 ; 92644692864 ; 09264469286 ; 00092644692864
 Power Source Battery
 Standards/Approvals CAT III 600 V Class 2|CE Certified|Double Insulation Safety Rated|ECCN: EAR99|PROP65: Cancer and reproductive harm - see www.P65Warnings.ca.gov for more information
 Video Links

Features

▪ Non-contact voltage tester integrated into the clamp jaw
▪ Backlit LCD for ease of viewing in low light
▪ Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
▪ Test lead holder on side of clamp and optional magnetic hanger for meter (Catalog Numbers 69445 or 69417) for hands free operation
▪ Auto-Range, Data Hold, and Max/Min value
▪ Auto-power off after 10 min to conserve battery life
▪ Low battery indicator and easily accessible battery compartment
▪ Built to withstand a 6.6-Foot (2 m) drop
▪ Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
