Klein Tools
  • CL220 KLEIN DIGITAL CLAMP METER WITH TEMP
  • CL220 KLEIN DIGITAL CLAMP METER WITH TEMP
  • CL220 KLEIN DIGITAL CLAMP METER WITH TEMP
  • CL220 KLEIN DIGITAL CLAMP METER WITH TEMP
  • CL220 KLEIN DIGITAL CLAMP METER WITH TEMP
  • CL220 KLEIN DIGITAL CLAMP METER WITH TEMP

Description: Klein® Digital Clamp Meter, Auto-Ranging, 600 V AC/DC, 400 A AC, 20 Mohm Electrical Rating, 1.61 in Jaw, 2000 Count, Backlit LCD Display, 400 A AC Response, Safety Rating: Category III 600 V Class 2, Battery Power Source, -40 to 1832 deg F Operating, 8.45 in L x 1.51 in W x 3.51 in H Dimensions, ABS

Manufacturer PN: CL220

UPC:  09264469285

Kendall Electric Inc PN: 4377150

Invoice Description:

CL220 KLEIN DIGITAL CLAMP METER WITH TEMP


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

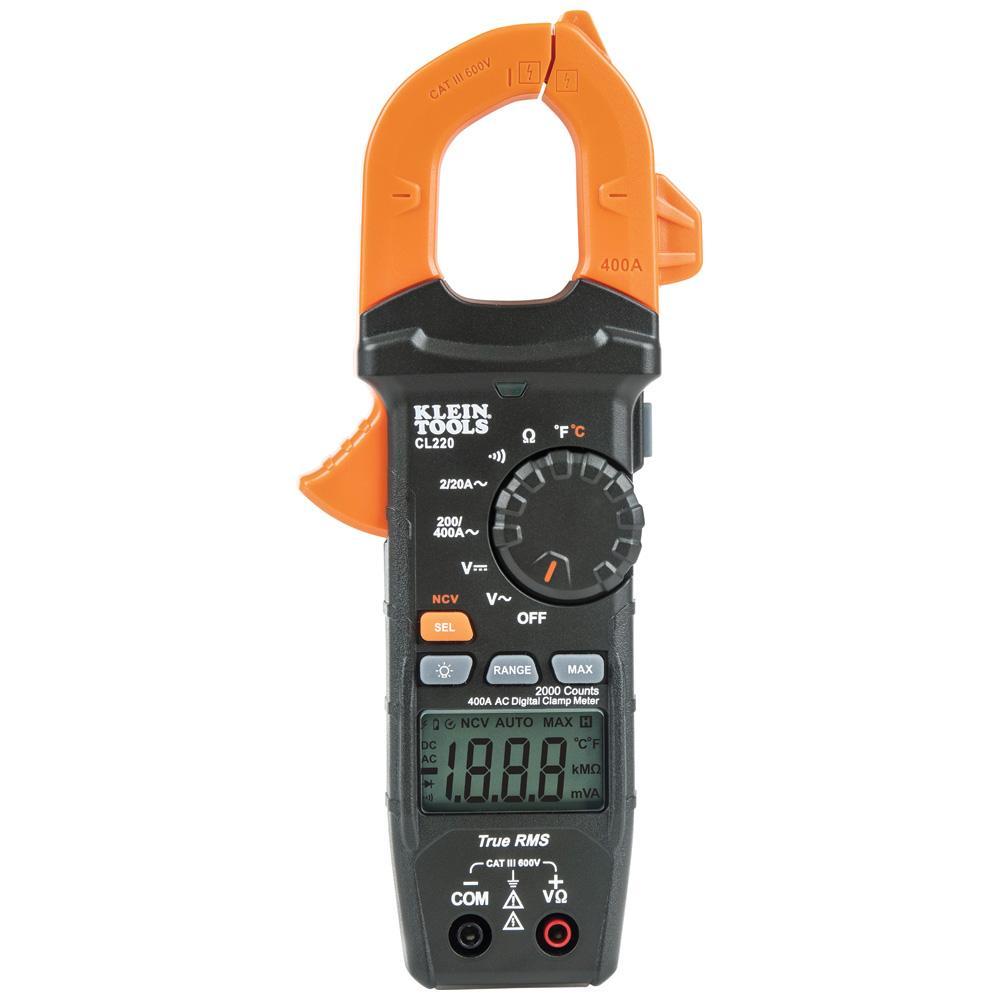

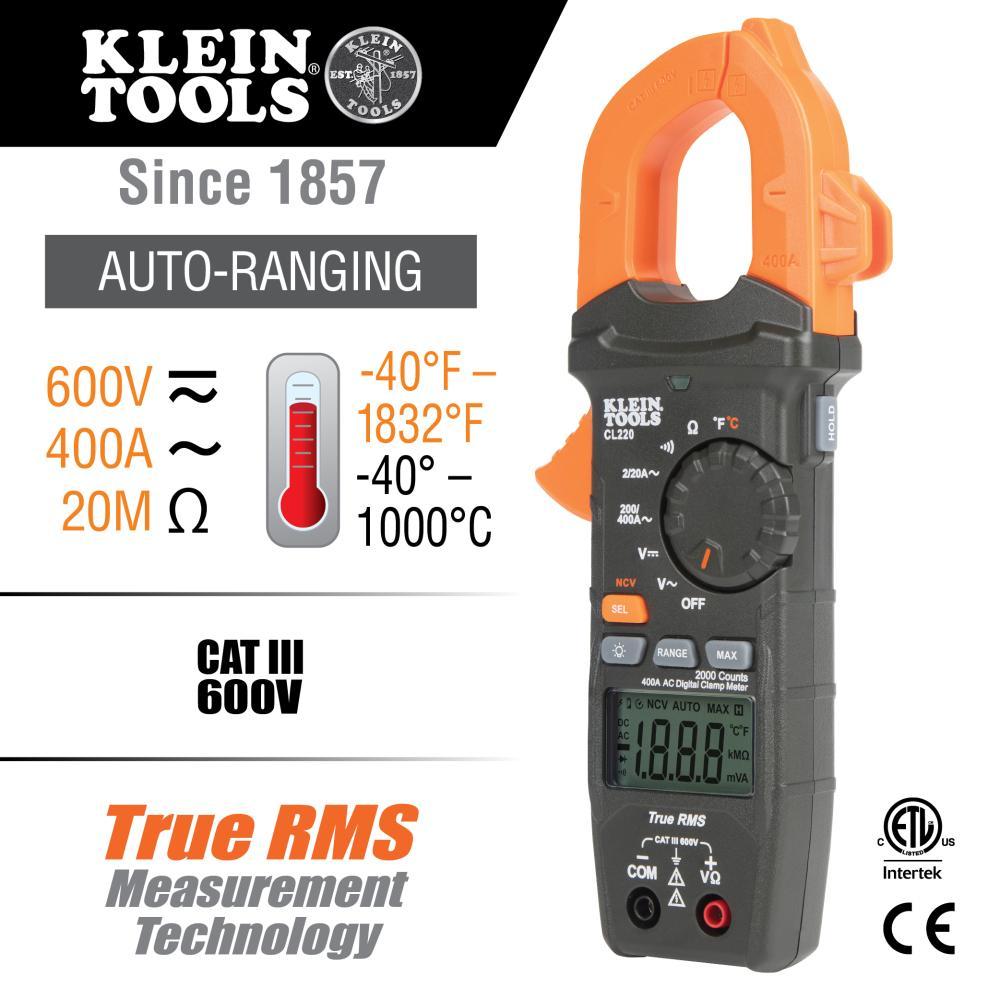

Klein® CL220 Auto-Ranging Digital Clamp Meter With Temperature Measure, 600 V AC/DC, 400 A AC, 20 Mohm, 1.61 in Jaw, Backlit LCD Display

Log In for Pricing and Availability




Description

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.
Klein® Digital Clamp Meter, Auto-Ranging, 600 V AC/DC, 400 A AC, 20 Mohm Electrical Rating, 1.61 in Jaw, 2000 Count, Backlit LCD Display, 400 A AC Response, Safety Rating: Category III 600 V Class 2, Battery Power Source, -40 to 1832 deg F Operating, 8.45 in L x 1.51 in W x 3.51 in H Dimensions, ABS

Specifications

 AC Response 400 A
 Application For electrical, HVAC, plumbing, aircraft applications, measures AC current and NCVT via clamp and AC/DC voltage, resistance and continuity via test leads and temperature with thermocouple
 Brand Name Klein
 Counts 2000
 Dimensions 8.45 in L x 1.51 in W x 3.51 in H
 Electrical Ratings 600 V AC/DC, 400 A AC, 20 Mohm
 Includes Carrying Case, Instructions, Test Lead, Thermocouple and (3) AAA Batteries
 Jaw Capacity 1.61 in
 Manufacturer Part Number CL220
 Material ABS
 Operating Temperature -40 to 1832 deg F
 PART NUMBER KEYWORDS CL220 ; 15971234 ; 092644692857 ; 92644692857 ; 09264469285 ; 00092644692857
 Power Source Battery
 Standards/Approvals CAT III 600 V Class 2|CE Certified|Double Insulation Safety Rated|ECCN: EAR99|PROP65: Cancer and reproductive harm - see www.P65Warnings.ca.gov for more information
 Type Auto-Ranging
 Video Links

Features

▪ Non-contact voltage tester integrated into the clamp jaw
▪ Backlit LCD for ease of viewing in low light
▪ Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
▪ Test lead holder on side of clamp and optional magnetic hanger for meter (Catalog Numbers 69445 or 69417) for hands free operation
▪ Auto-Range, Hold, Data Hold, and Max value
▪ Auto-power off after 10 min to conserve battery life
▪ Low battery indicator and easily accessible battery compartment
▪ Built to withstand a 6.6-Foot (2 m) drop
▪ Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
