  • CL120 KLEIN DIGITAL CLAMP METER AC AUTO-RANGING 400A
  • CL120 KLEIN DIGITAL CLAMP METER AC AUTO-RANGING 400A
  • CL120 KLEIN DIGITAL CLAMP METER AC AUTO-RANGING 400A
  • CL120 KLEIN DIGITAL CLAMP METER AC AUTO-RANGING 400A
  • CL120 KLEIN DIGITAL CLAMP METER AC AUTO-RANGING 400A
  • CL120 KLEIN DIGITAL CLAMP METER AC AUTO-RANGING 400A

Description: Klein® Digital Clamp Meter, 600 V AC/DC, 400 A AC, 20 Mohm Electrical Rating, 1.61 in Jaw, 2000 Count, Backlit LCD Display, 400 A AC Response, Safety Rating: Category III 600 V Class 2, Battery Power Source, 8-1/2 in L x 1-1/2 in W x 3-1/2 in H Dimensions, ABS

Manufacturer PN: CL120

UPC:  09264469283

Kendall Electric Inc PN: 4155936

Invoice Description:

CL120 KLEIN DIGITAL CLAMP METER AC AUTO-RANGING 400A


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

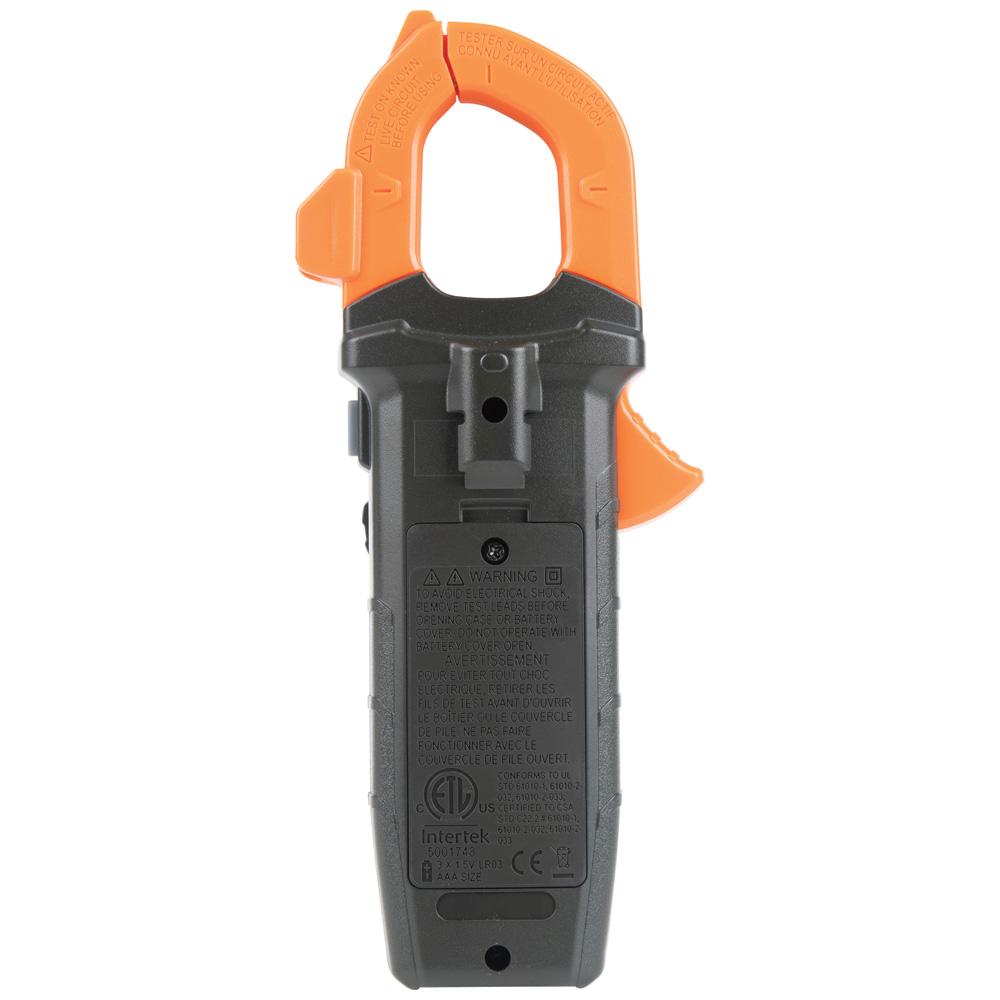

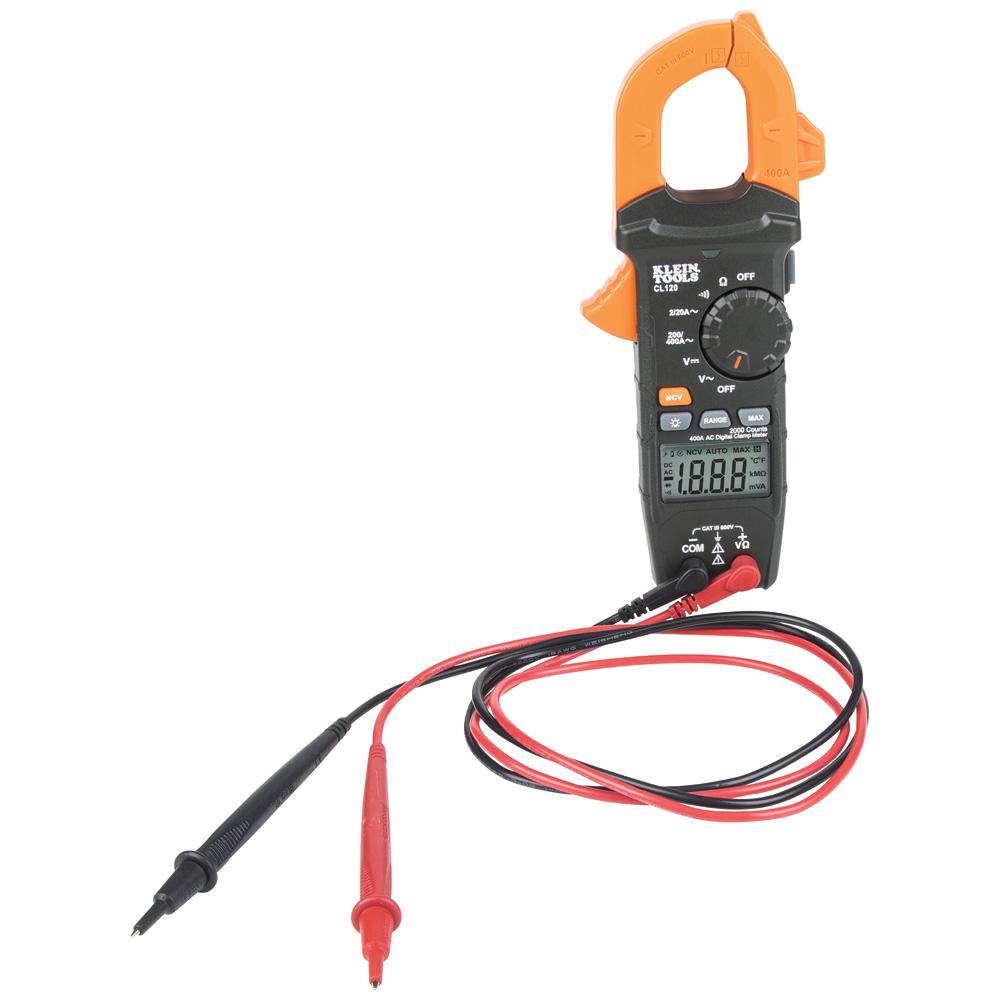

Klein® CL120 Digital Clamp Meter, 600 V AC/DC, 400 A AC, 20 Mohm, 1.61 in Jaw, Backlit LCD Display

Log In for Pricing and Availability




Description

Klein Tools CL120 Clamp Meter is an automatically ranging digital clamp-meter that measures AC current and NCVT via the clamp, and AC/DC voltage, resistance and continuity via test-leads. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with time-saving features.
Klein® Digital Clamp Meter, 600 V AC/DC, 400 A AC, 20 Mohm Electrical Rating, 1.61 in Jaw, 2000 Count, Backlit LCD Display, 400 A AC Response, Safety Rating: Category III 600 V Class 2, Battery Power Source, 8-1/2 in L x 1-1/2 in W x 3-1/2 in H Dimensions, ABS

Specifications

 AC Response 400 A
 Application For detects and indicates low voltage and standard voltage, detects most common wiring problems in standard receptacles, measures AC current and NCVT via clamp and AC/DC voltage, resistance and continuity via test leads
 Brand Name Klein
 Counts 2000
 Dimensions 8-1/2 in L x 1-1/2 in W x 3-1/2 in H
 Electrical Ratings 600 V AC/DC, 400 A AC, 20 Mohm
 Includes Carrying Case, Instructions, Test Lead and (3) AAA Batteries
 Jaw Capacity 1.61 in
 Manufacturer Part Number CL120
 Material ABS
 PART NUMBER KEYWORDS CL120 ; 15705281 ; 092644692833 ; 92644692833 ; 09264469283 ; 00092644692833
 Power Source Battery
 Standards/Approvals CAT III 600 V Class 2|CE Certified|Double Insulation Safety Rated|ECCN: EAR99|NCVT-2P|RT105|PROP65: Cancer and reproductive harm - see www.P65Warnings.ca.gov for more information
 Video Links

Features

▪ Can be used with Magnetic Hanger Catalog Number 69417 (sold separately)
▪ Rugged Klein TOUGH METER industrial design stands up to jobsite demands, built to withstand a 6.6-Foot (2m) drop
▪ Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
▪ Backlit display for clear visibility in environments with low ambient lighting
▪ Dedicated mode for capturing Inrush Current
▪ Non-contact voltage tester integrated into the clamp
▪ Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
▪ Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
▪ Powers off automatically after 30 min of non-use to conserve battery life
▪ Low battery indicator and easily accessible battery compartment
