Part # 4553345

instructions how to enable JavaScript in your web browser

Page Loading...

Eaton

Mouse over image to zoom, click to enlarge

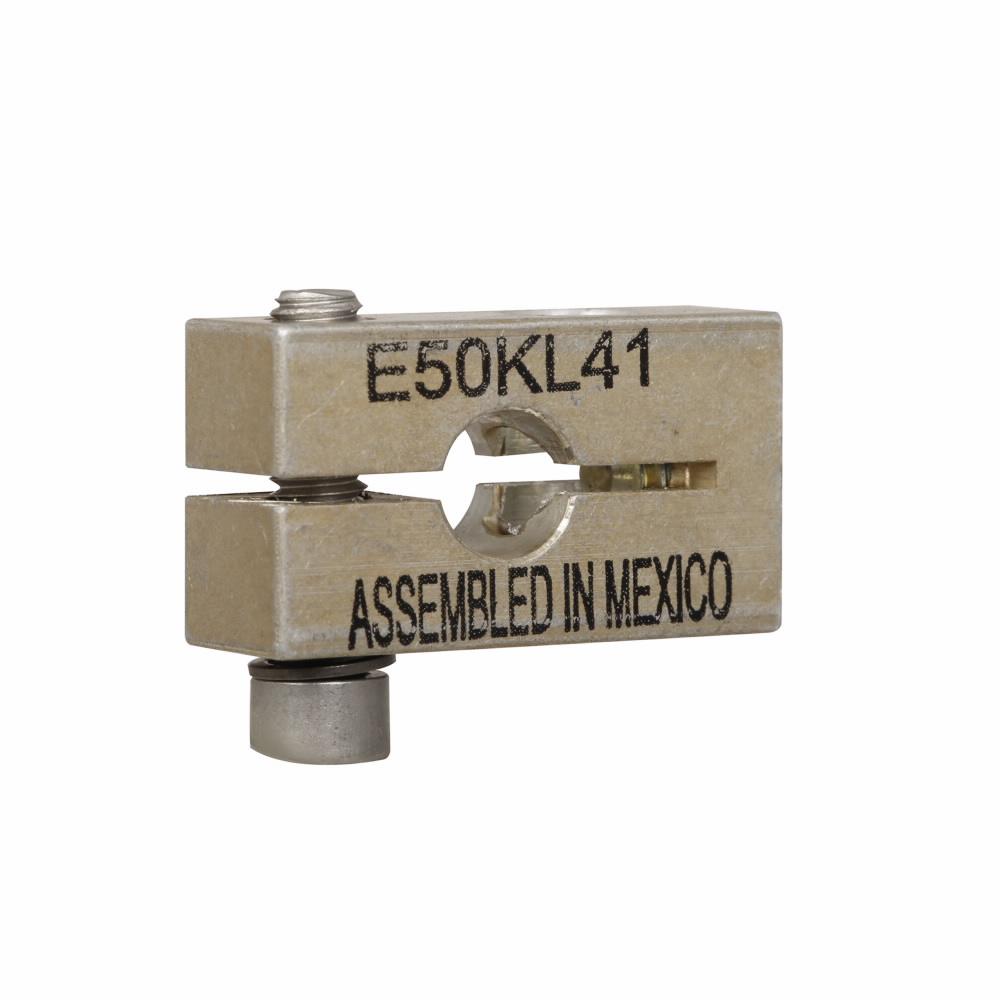

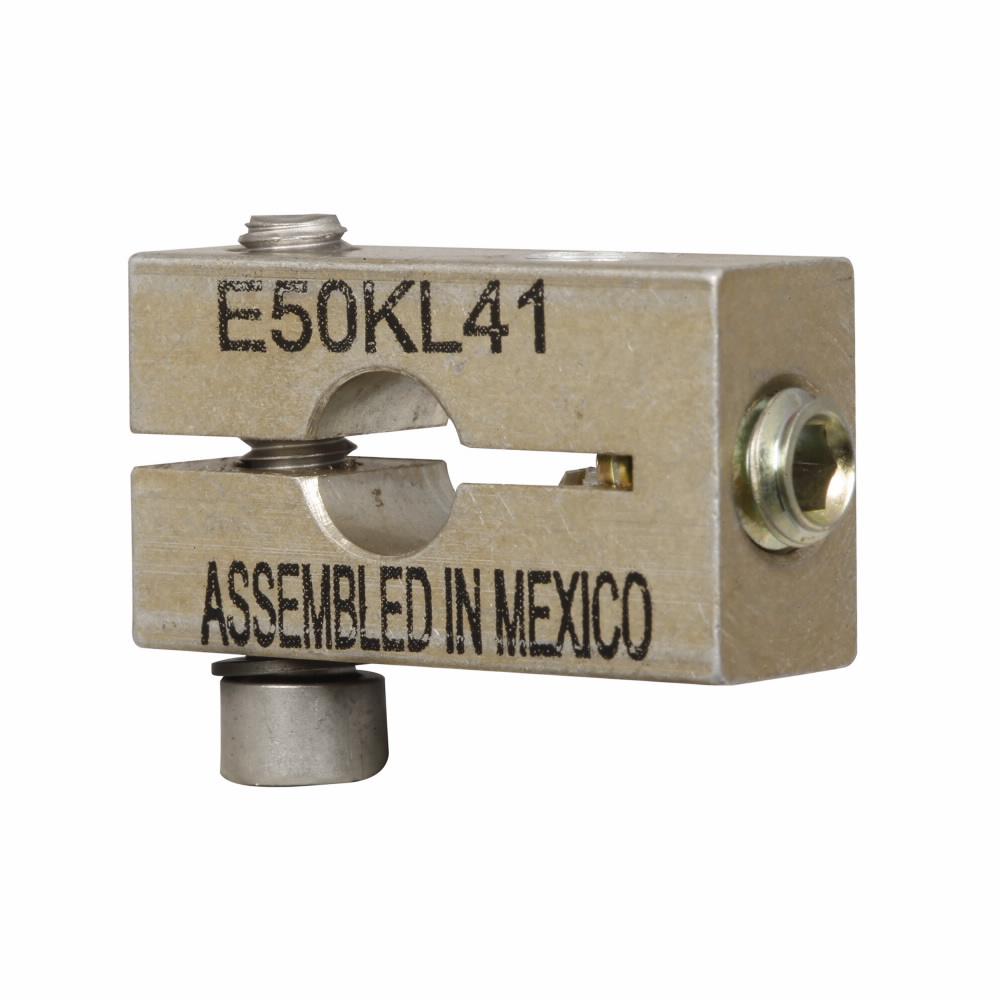

Description: EATON Limit Switch Lever Clamp, Heavy Duty, Series: E50, For Use With: 1/4 in Dia Adjustable Rod and E50 Series Limit Switch, 10 to 200 deg F Operating Temperature, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Clamp Actuator, Metal/Steel, 0.64 in L x 1.12 in W x 0.38 in H

Manufacturer PN: E50KL41

UPC: 78211394728

Kendall Electric Inc PN: 4553345

Invoice Description:

E50KL41 CH CLAMP ONLY-1/4"" DIA.

SPEC SHEET

▸ See All in Limit Switch Accessories

How Can We Make This Page Better?

EATON E50KL41 Heavy Duty Limit Switch Lever Clamp, For Use With 1/4 in Dia Adjustable Rod and E50 Series Limit Switch, 10 to 200 deg F Operating Temperature, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Clamp Actuator, Metal/Steel

Note: Lead times are estimates only

Description Specifications Resources

Description

Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.

EATON Limit Switch Lever Clamp, Heavy Duty, Series: E50, For Use With: 1/4 in Dia Adjustable Rod and E50 Series Limit Switch, 10 to 200 deg F Operating Temperature, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Clamp Actuator, Metal/Steel, 0.64 in L x 1.12 in W x 0.38 in H

Specifications

Application	Automation and Logic Control Equipment, Electrical Assemblies, Panels and EOEMs Applications
Brand Name	EATON
Dimensions	0.64 in L x 1.12 in W x 0.38 in H
Manufacturer Part Number	E50KL41
Material	Metal/Steel
PART NUMBER KEYWORDS	E50KL41 ; 7367882 ; 782113947280 ; 78211394728 ; 00782113947280
Series	E50
Specifications	10 to 200 deg F Operating Temperature, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Clamp Actuator
Standards/Approvals	UL Listed,CSA Certified,CE Marked
Suitable For Use With	1/4 in Dia Adjustable Rod and E50 Series Limit Switch
Type	Heavy Duty
