Eaton

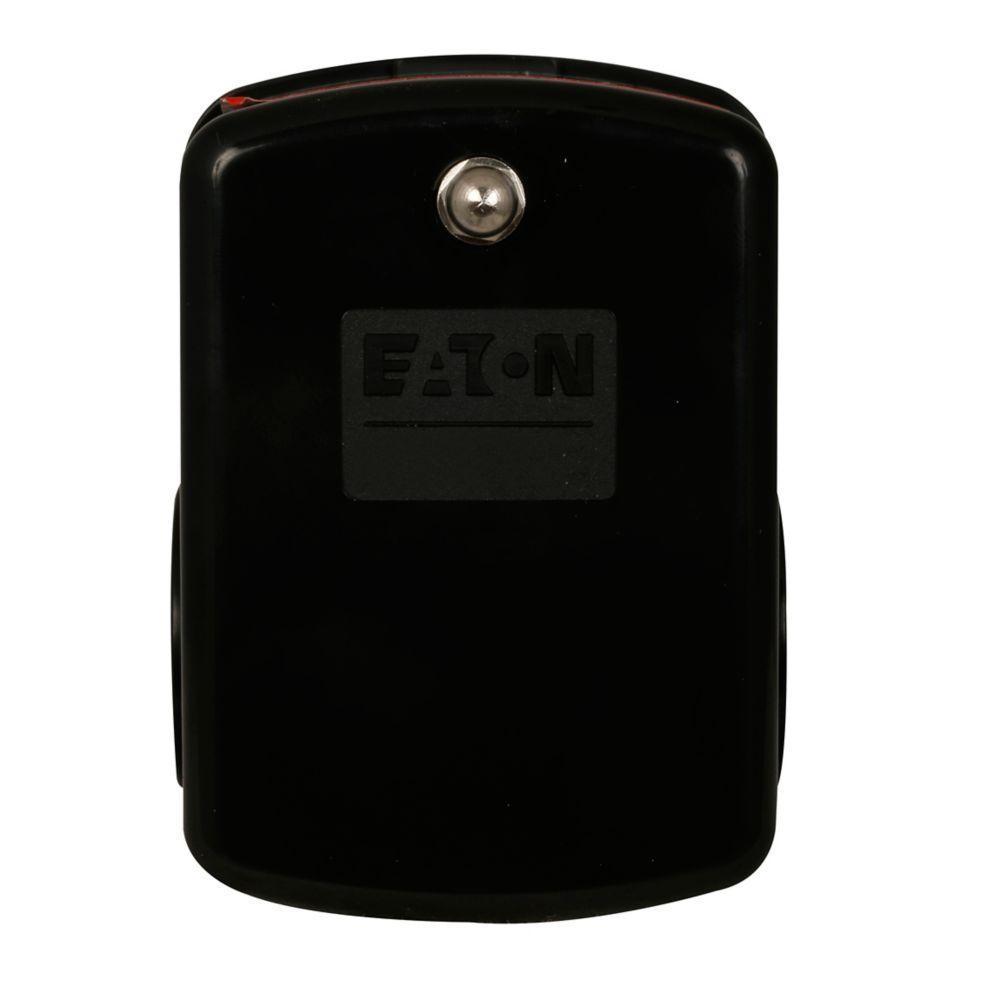

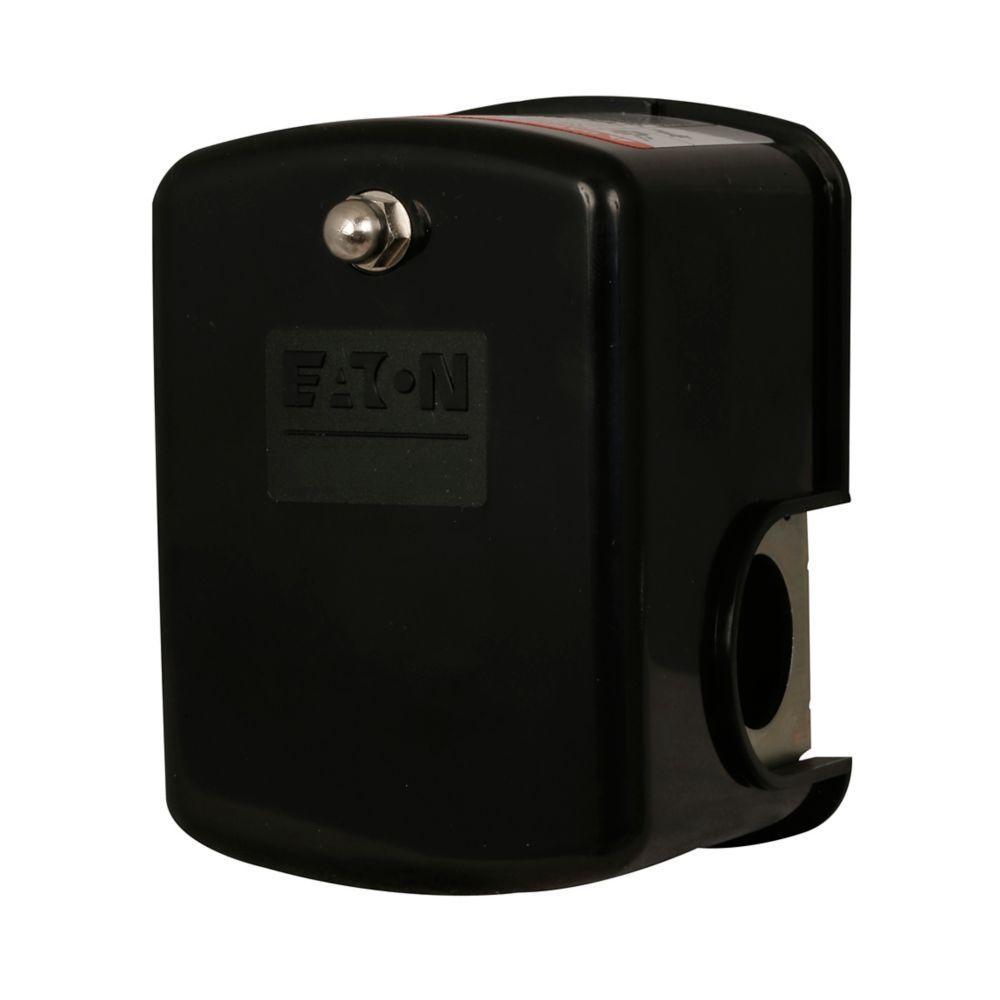

CHWPS3050D CH WATER PUMP PRESSURE SWITCH 30-50 PSI

Mouse over image to zoom, click to enlarge

  • CHWPS3050D CH WATER PUMP PRESSURE SWITCH 30-50 PSI
  • CHWPS3050D CH WATER PUMP PRESSURE SWITCH 30-50 PSI
  • CHWPS3050D CH WATER PUMP PRESSURE SWITCH 30-50 PSI

Description: EATON Water Pressure Switch, 1-Phase, 30 to 50 psi Pressure, 12 A at 230 V AC Contact, NEMA 1 Enclosure, 3.93 x 2.95 x 4.13 in Dimensions

Manufacturer PN: CHWPS3050D

UPC:  78211615921

Kendall Electric Inc PN: 2202946

Invoice Description:

CHWPS3050D CH WATER PUMP PRESSURE SWITCH 30-50 PSI


SPEC SHEET

How Can We Make This Page Better?

EATON CHWPS3050D 1-Phase Water Pressure Switch, 30 to 50 psi Pressure, 12 A at 230 V AC Contact

Log In for Pricing and Availability




Description

Eaton's main service modules are part of Gangable Metering, which consists of a main service module used in conjunction with meter stacks to make a custom metering lineup. Gangable metering is used in large condominiums, strip malls or other applications where more than six units are metered.
EATON Water Pressure Switch, 1-Phase, 30 to 50 psi Pressure, 12 A at 230 V AC Contact, NEMA 1 Enclosure, 3.93 x 2.95 x 4.13 in Dimensions

Specifications

 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Contact Rating 12 A at 230 V AC
 Dimensions 3.93 x 2.95 x 4.13 in
 Enclosure NEMA 1
 Manufacturer Part Number CHWPS3050D
 PART NUMBER KEYWORDS CHWPS3050D ; 9196140 ; 782116159215 ; 78211615921 ; 00782116159215
 Pressure Rating 30 to 50 psi
 Standards/Approvals CSA Certified,UL Listed
 Type 1-Phase

Features

▪ Removable cover with captive screw to ensure no loss of screw during installation
▪ Ample wiring space for easy connection
▪ Diaphragm actuated contacts for smooth operation of the system
▪ Adjustable cut-in and cutout pressure to fit your system requirements
▪ High impact molded cover for extra durability and increased life
▪ 115 VAC, 1.5 hp, 20 A, 240 VAC, 2 hp, 12 A electrical rating
▪ Used with type CH 3/4 in loadcenters
