Eaton
CHUSX CH TEMPORARY POWER/RV PARK PEDESTAL 78211612170

Mouse over image to zoom, click to enlarge

  • CHUSX CH TEMPORARY POWER/RV PARK PEDESTAL 78211612170
  • CHUSX CH TEMPORARY POWER/RV PARK PEDESTAL 78211612170
  • CHUSX CH TEMPORARY POWER/RV PARK PEDESTAL 78211612170

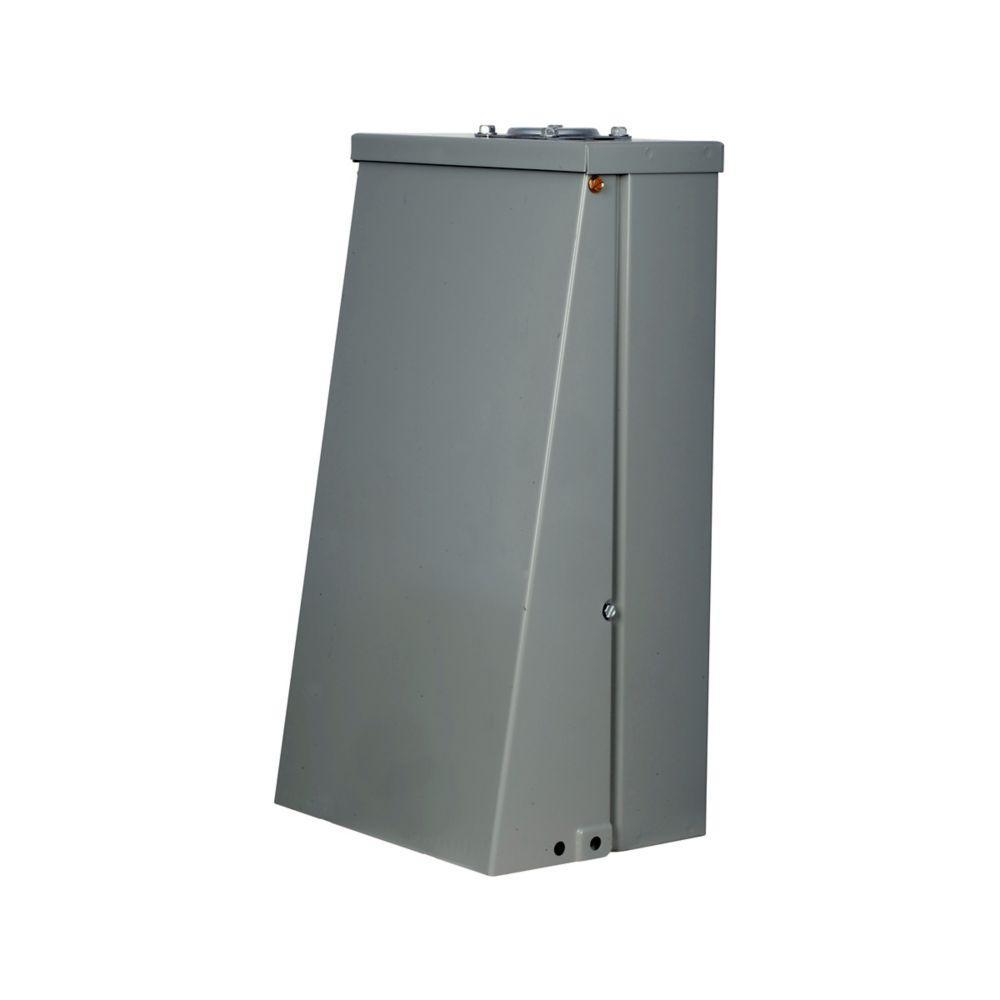

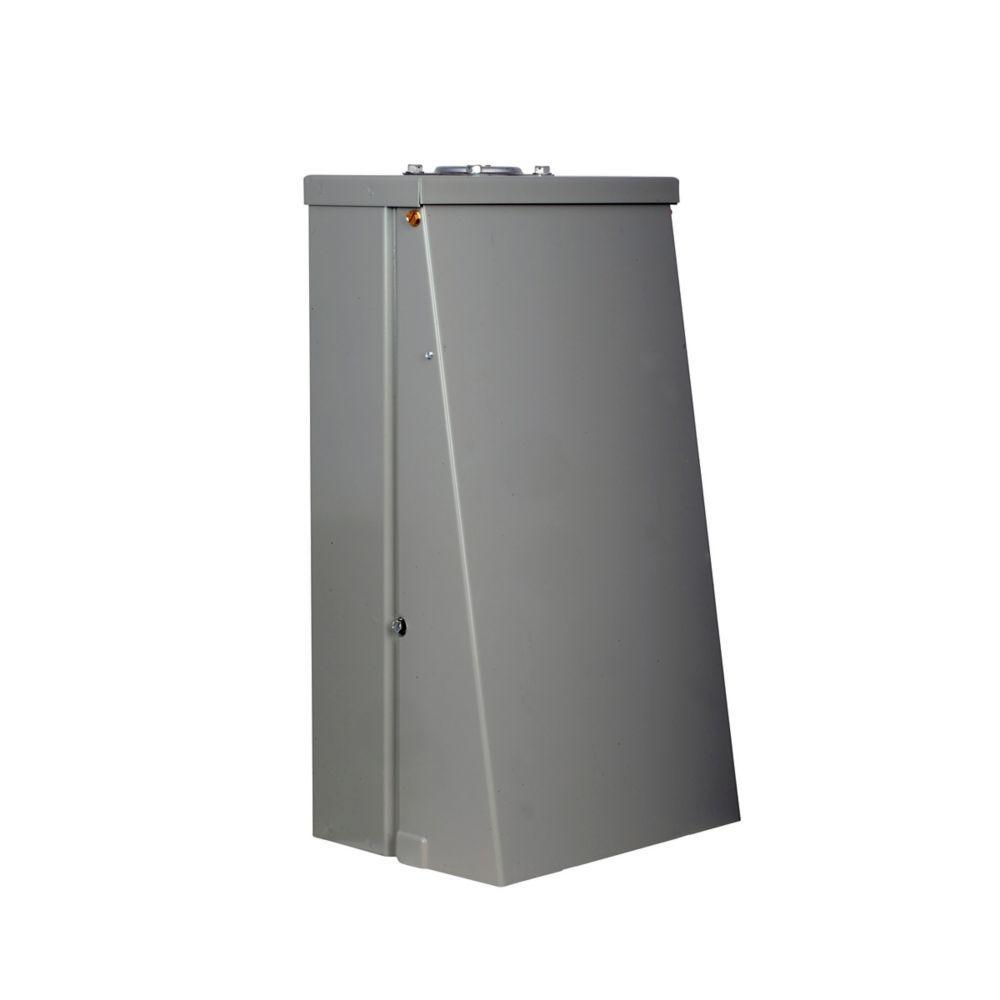

Description: EATON Unmetered Power Outlet Pedestal, 6-Circuit, Top Feed, NEMA 3R, Galvanized Steel, Surface Mount

Manufacturer PN: CHUSX

UPC:  78211612170

Kendall Electric Inc PN: 3644980

Invoice Description:

CHUSX CH TEMPORARY POWER/RV PARK PEDESTAL 78211612170


SPEC SHEET

▸ See All in Unmetered Power Outlet Pedestals


How Can We Make This Page Better?

EATON CHUSX 6-Circuit Unmetered Power Outlet Pedestal, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

A power outlet panel (or POP) is a device designed for outdoor service to meet temporary power requirements at construction sites and Recreation Vehicle (RV) parks. POPs provide a safe and reliable means for users to access electricity at such locations.
EATON Unmetered Power Outlet Pedestal, 6-Circuit, Top Feed, NEMA 3R, Galvanized Steel, Surface Mount

Specifications

 Application Residential Buildings and Facilities, Outdoor Services, Temporary Power Requirements at Construction Sites and RV Parks
 Brand Name EATON
 Enclosure NEMA 3R
 Feed Type Top
 Includes Neutral Bar
 Manufacturer Part Number CHUSX
 Material Galvanized Steel
 Mounting Type Surface
 Standards/Approvals ANSI Specified|NEC Certified|NEMA Approved|UL 231/File No. E163588
 Type 6-Circuit

Features

▪ Lower deadfront cover can be removed for easy routing of incoming wires or receptacle changeouts
▪ Padlock provisions to prevent unauthorized entry
▪ Includes a factory installed insulated neutral bar with provisions for bonding when used for temporary service entrance applications
▪ 125 A rated meter socket
▪ 100% galvanized steel with baked on polyester powder coating
▪ Three point mounting
▪ 1-piece case back for metered and unmetered panels
▪ Unique steel barrier prevents unauthorized operation of breakers when door is closed and padlocked
▪ NEMA 3R construction for rainproof installation
▪ Door swings up when opening and allows cords to remain connected when closed
▪ Removable upper deadfront cover for easy incoming wire connections to breaker terminals

Resources

 Catalog Page
 Product Data Sheet
