Eaton

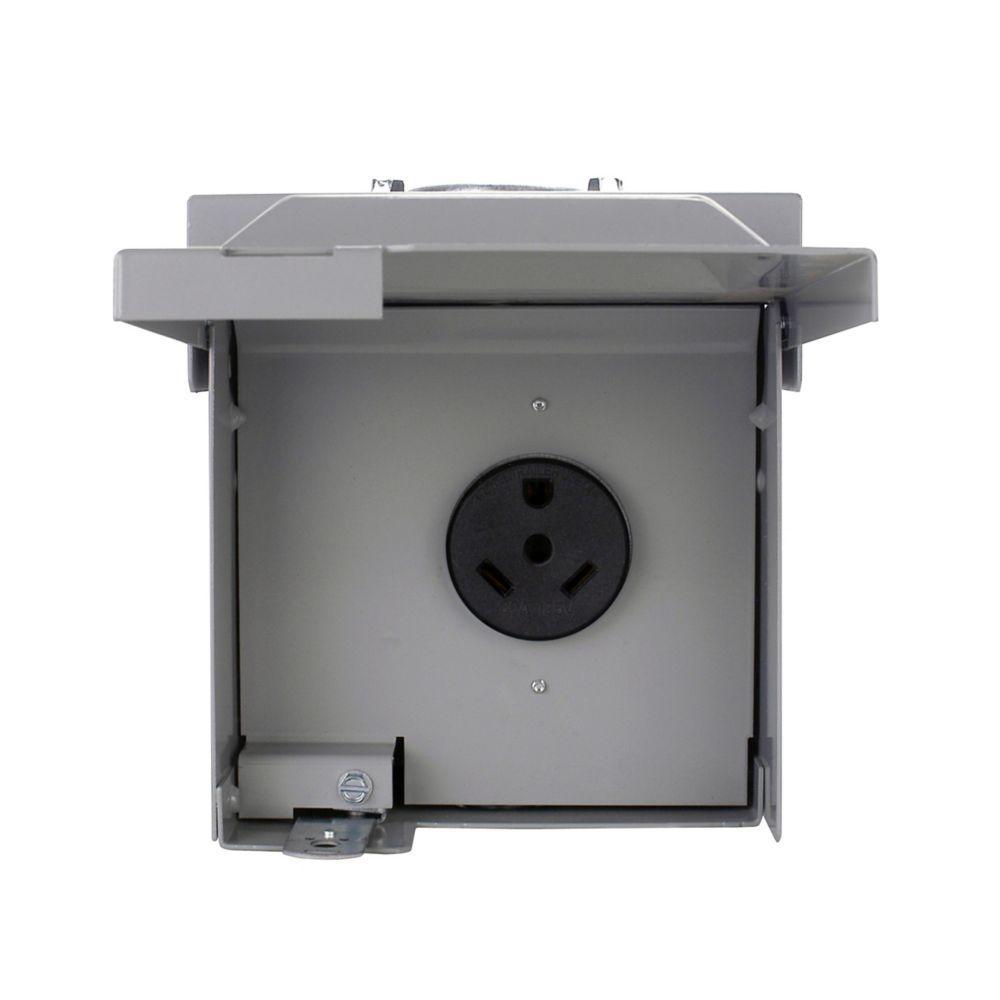

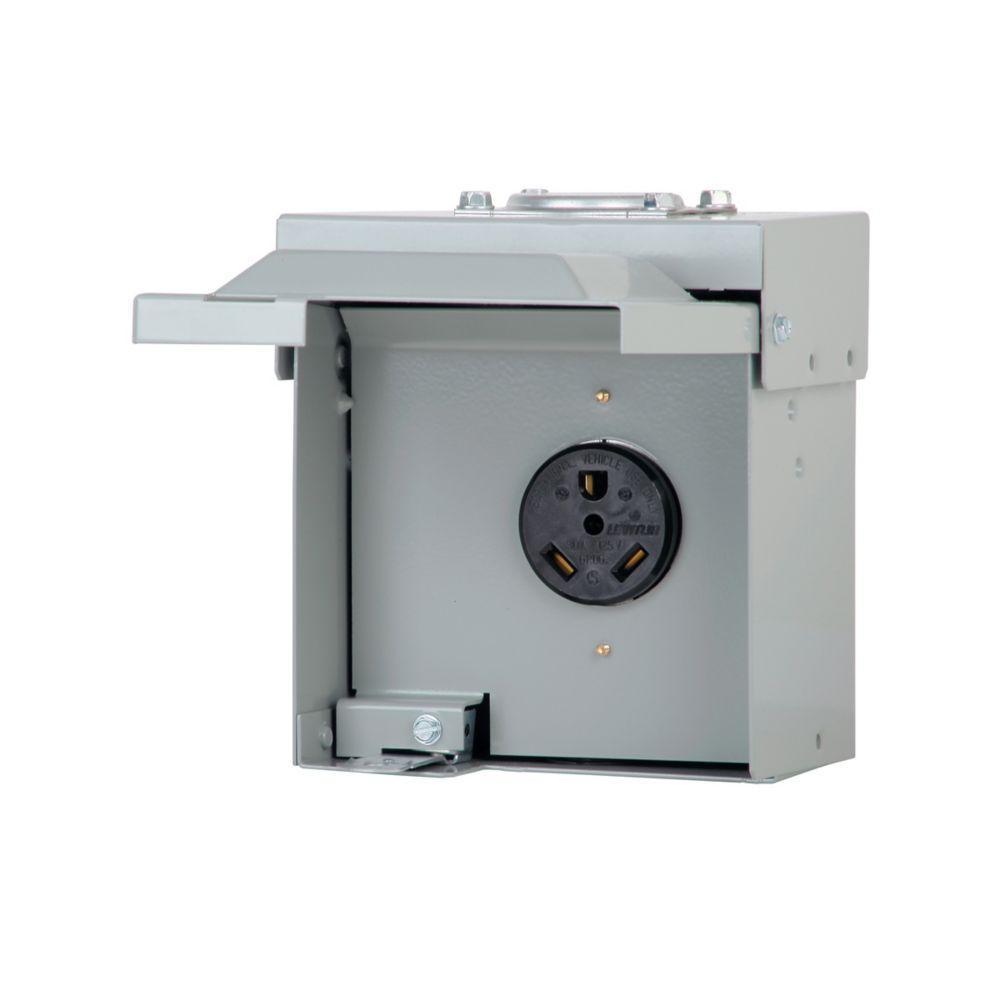

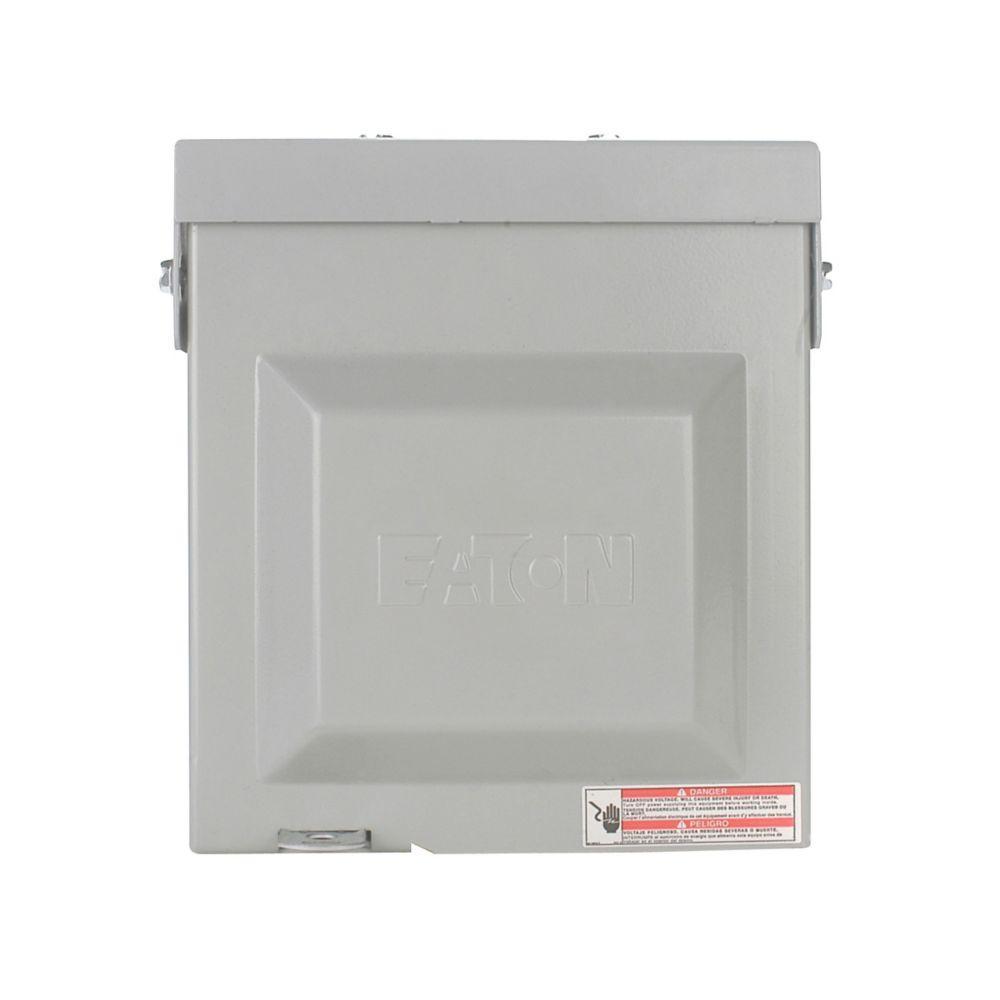

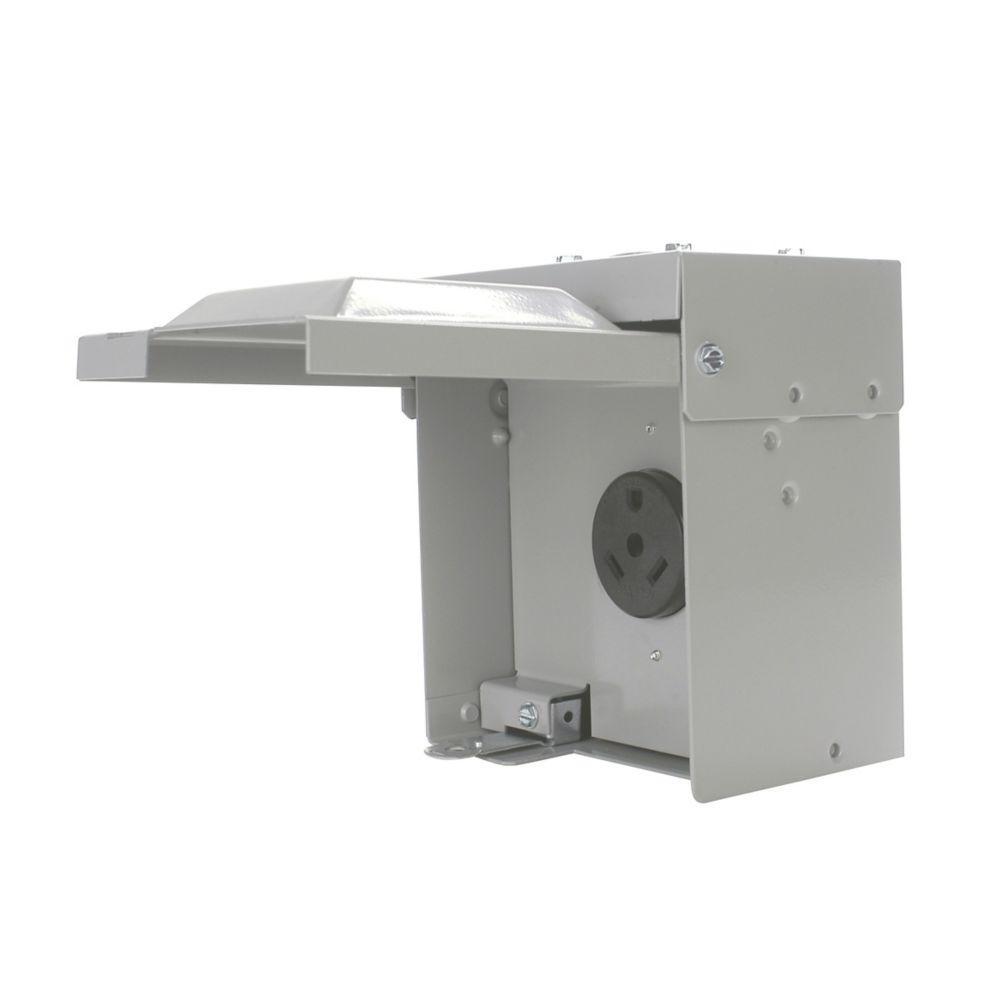

CHU4S C-H POWER OUTLET PANEL, NEMA TT-30R RECEPTACLE 30AMP, NO BREAKER

Mouse over image to zoom, click to enlarge

  • CHU4S C-H POWER OUTLET PANEL, NEMA TT-30R RECEPTACLE 30AMP, NO BREAKER
  • CHU4S C-H POWER OUTLET PANEL, NEMA TT-30R RECEPTACLE 30AMP, NO BREAKER
  • CHU4S C-H POWER OUTLET PANEL, NEMA TT-30R RECEPTACLE 30AMP, NO BREAKER
  • CHU4S C-H POWER OUTLET PANEL, NEMA TT-30R RECEPTACLE 30AMP, NO BREAKER
  • CHU4S C-H POWER OUTLET PANEL, NEMA TT-30R RECEPTACLE 30AMP, NO BREAKER

Description: EATON Power Outlet Panel, 2-Pole 3-Wire 4-Circuit, 125 V AC, 30 A, NEMA TT-30R Receptacle, Non-Ground Fault Circuit Breaker Type, 8 to 2/0 AWG Wire, Top Feed, NEMA 3R, Galvanized Steel, Surface Mount

Manufacturer PN: CHU4S

UPC:  78211612820

Kendall Electric Inc PN: 2771051

Invoice Description:

CHU4S C-H POWER OUTLET PANEL, NEMA TT-30R RECEPTACLE 30AMP, NO BREAKER


SPEC SHEET

▸ See All in Unmetered Power Outlet Panels


How Can We Make This Page Better?

EATON CHU4S 2-Pole 3-Wire 4-Circuit Power Outlet Panel, 125 V AC, 30 A, 8 to 2/0 AWG Wire, Surface Mount

Log In for Pricing and Availability




Description

Eaton's temporary power panels provide safe, reliable power for RV and construction sites. Durable, long-lasting units are available as metered (ring or ringless) or unmetered and can be mounted at the surface, on a pedestal, or in a back-to-back configuration.
EATON Power Outlet Panel, 2-Pole 3-Wire 4-Circuit, 125 V AC, 30 A, NEMA TT-30R Receptacle, Non-Ground Fault Circuit Breaker Type, 8 to 2/0 AWG Wire, Top Feed, NEMA 3R, Galvanized Steel, Surface Mount

Specifications

 Amperage Rating 30 A
 Application For outdoor services, temporary power requirements at construction sites, RV parks, power distribution, electrical assemblies, panels and OEM's
 Brand Name EATON
 Circuit Breaker Type Non-Ground Fault
 Enclosure NEMA 3R
 Feed Type Top
 Manufacturer Part Number CHU4S
 Material Galvanized Steel
 Mounting Type Surface
 PART NUMBER KEYWORDS CHU4S ; 9252496 ; 782116128204 ; 78211612820 ; 00782116128204
 Receptacle Type NEMA TT-30R
 Standards/Approvals UL 231,UL Listed file E163588
 Type 2-Pole 3-Wire 4-Circuit
 Voltage Rating 125 V AC

Features

▪ Receptacles conform to NEMA and/or ANSI configurations as specified by the national electrical Code® (NEC)
▪ Includes a factory installed insulated neutral bar with provisions for bonding when used for temporary service entrance applications
▪ NEMA TT-30R receptacle left
