Eaton

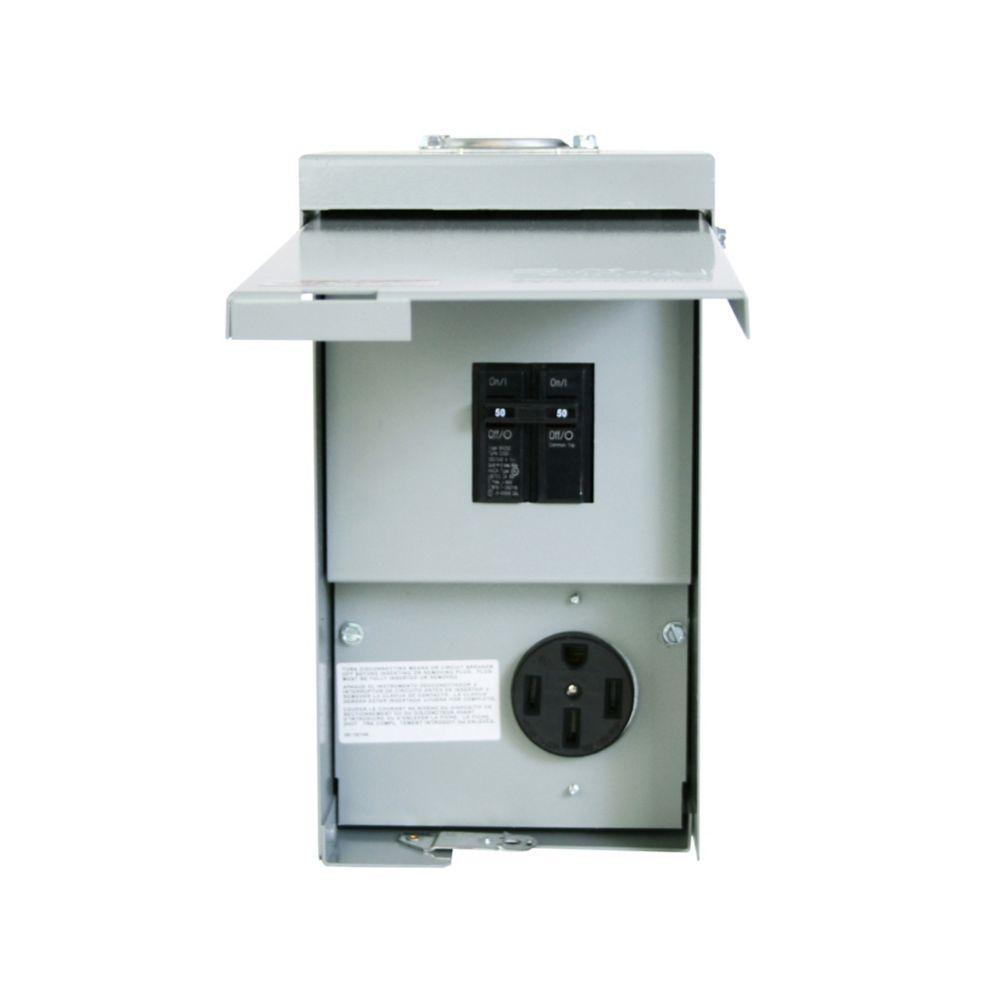

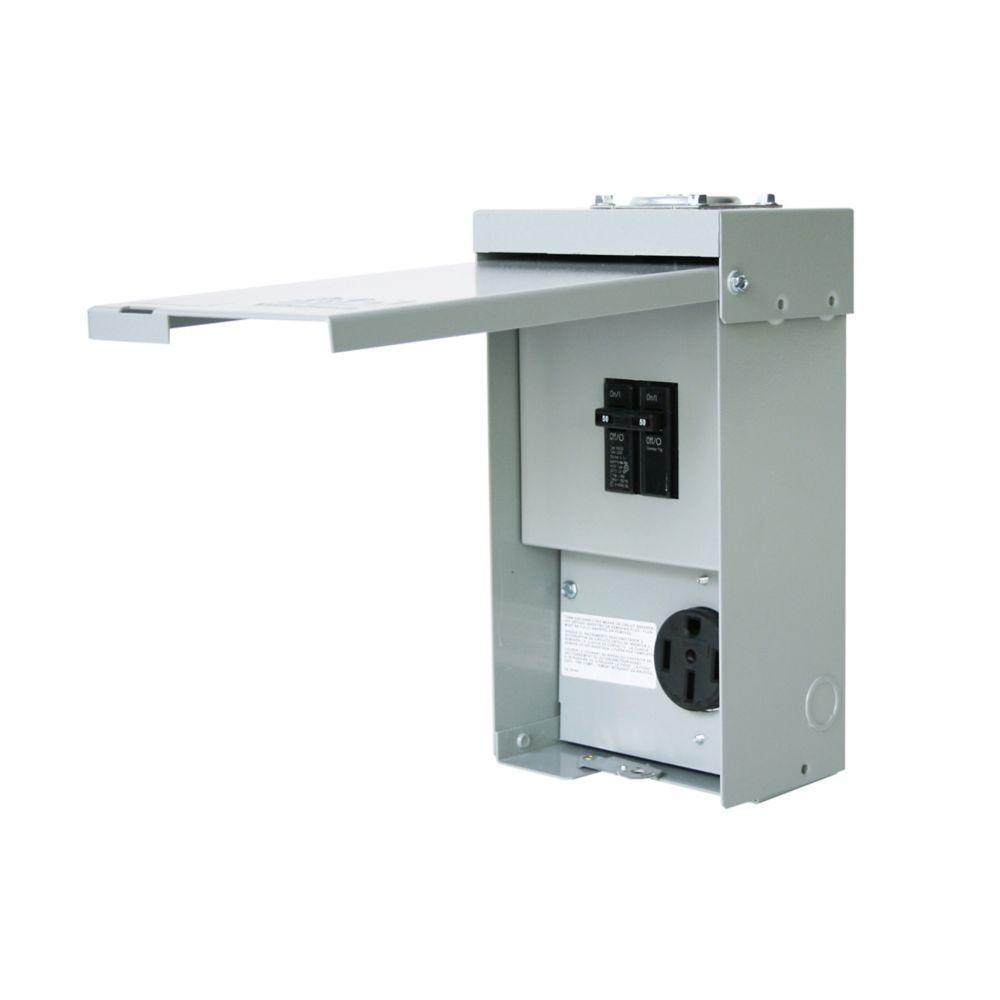

CHU1NSFEMA C-H TEMPORARY POWER/RV PARK PEDESTAL 78211691020

Mouse over image to zoom, click to enlarge

  • CHU1NSFEMA C-H TEMPORARY POWER/RV PARK PEDESTAL 78211691020
  • CHU1NSFEMA C-H TEMPORARY POWER/RV PARK PEDESTAL 78211691020
  • CHU1NSFEMA C-H TEMPORARY POWER/RV PARK PEDESTAL 78211691020

Description: EATON Power Outlet Panel, 3-Pole 4-Wire 4-Circuit, 125/250 V AC, 50 A, NEMA 14-50R Receptacle, Non-Ground Fault Circuit Breaker Type, 8 to 2/0 AWG Wire, Top Feed, NEMA 3R, Galvanized Steel, Surface Mount

Manufacturer PN: CHU1NSFEMA

UPC:  78211691020

Kendall Electric Inc PN: 3612186

Invoice Description:

CHU1NSFEMA C-H TEMPORARY POWER/RV PARK PEDESTAL 78211691020


SPEC SHEET

▸ See All in Unmetered Power Outlet Panels


How Can We Make This Page Better?

EATON CHU1NSFEMA 3-Pole 4-Wire 4-Circuit Power Outlet Panel, 125/250 V AC, 50 A, 8 to 2/0 AWG Wire, Surface Mount

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's temporary power panels provide safe, reliable power for RV and construction sites. Durable, long-lasting units are available as metered (ring or ringless) or unmetered and can be mounted at the surface, on a pedestal, or in a back-to-back configuration.
EATON Power Outlet Panel, 3-Pole 4-Wire 4-Circuit, 125/250 V AC, 50 A, NEMA 14-50R Receptacle, Non-Ground Fault Circuit Breaker Type, 8 to 2/0 AWG Wire, Top Feed, NEMA 3R, Galvanized Steel, Surface Mount

Specifications

 Amperage Rating 50 A
 Application For outdoor services, temporary power requirements at construction sites, RV parks, power distribution, electrical assemblies, panels and OEM's
 Brand Name EATON
 Circuit Breaker Type Non-Ground Fault
 Enclosure NEMA 3R
 Feed Type Top
 Manufacturer Part Number CHU1NSFEMA
 Material Galvanized Steel
 Mounting Type Surface
 Receptacle Type NEMA 14-50R
 Standards/Approvals UL 231,UL Listed file E163588
 Type 3-Pole 4-Wire 4-Circuit
 Voltage Rating 125/250 V AC

Features

▪ Receptacles conform to NEMA and/or ANSI configurations as specified by the national electrical Code® (NEC)
▪ Includes a factory installed insulated neutral bar with provisions for bonding when used for temporary service entrance applications
▪ NEMA 14-50R receptacle left
▪ Non-ground fault circuit breaker type P1

Resources

 Catalog Page
 Product Data Sheet
