Eaton

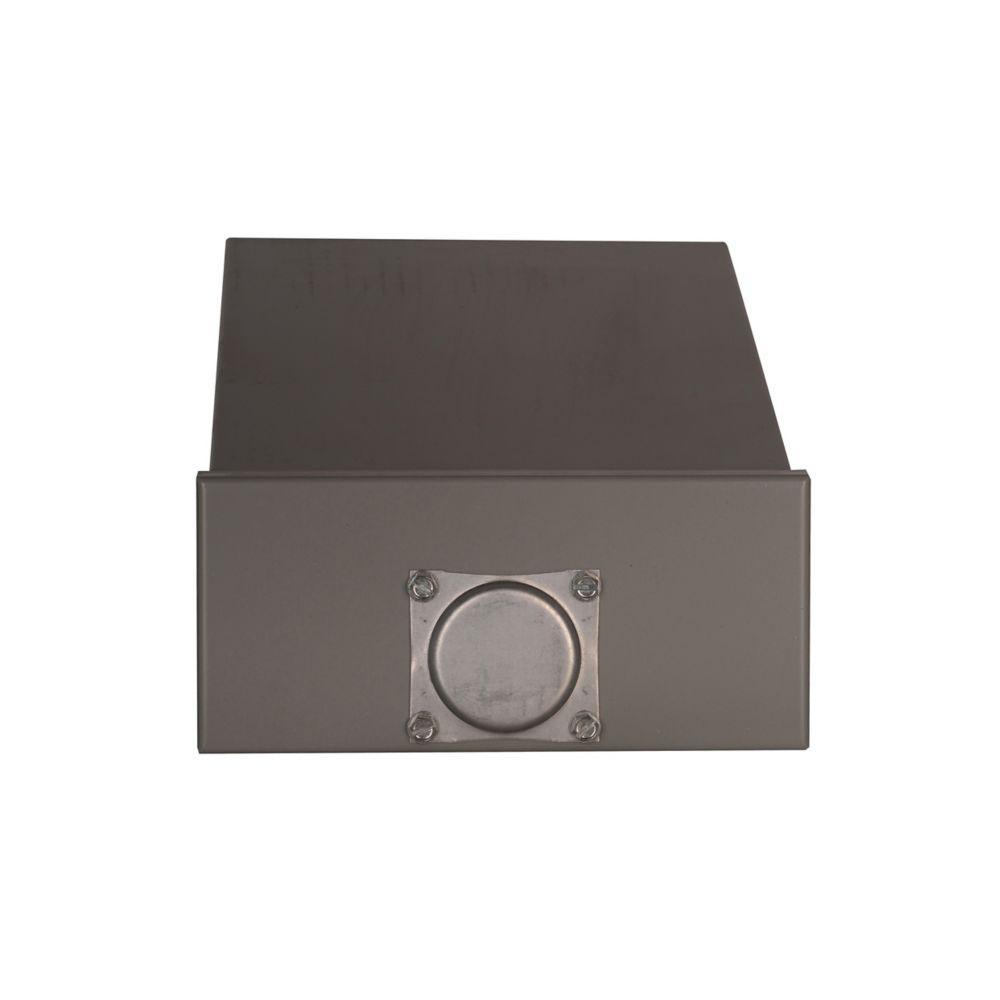

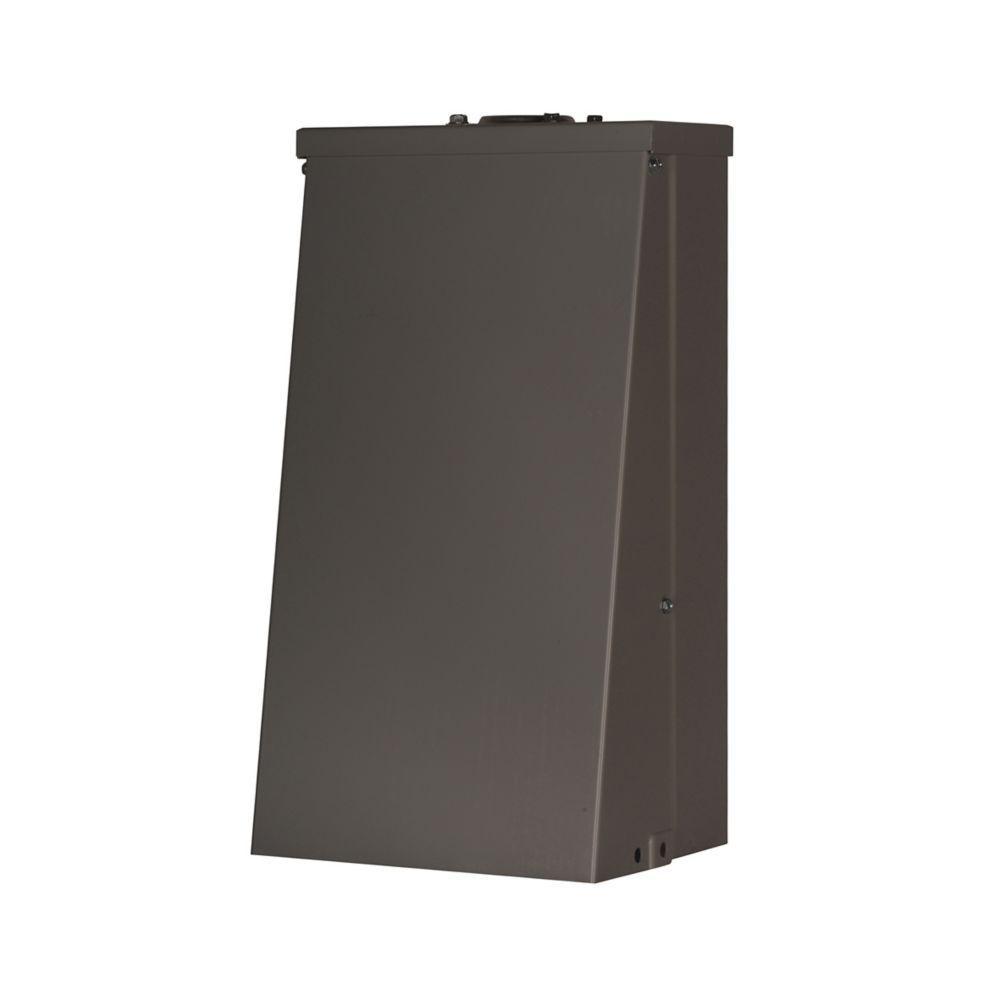

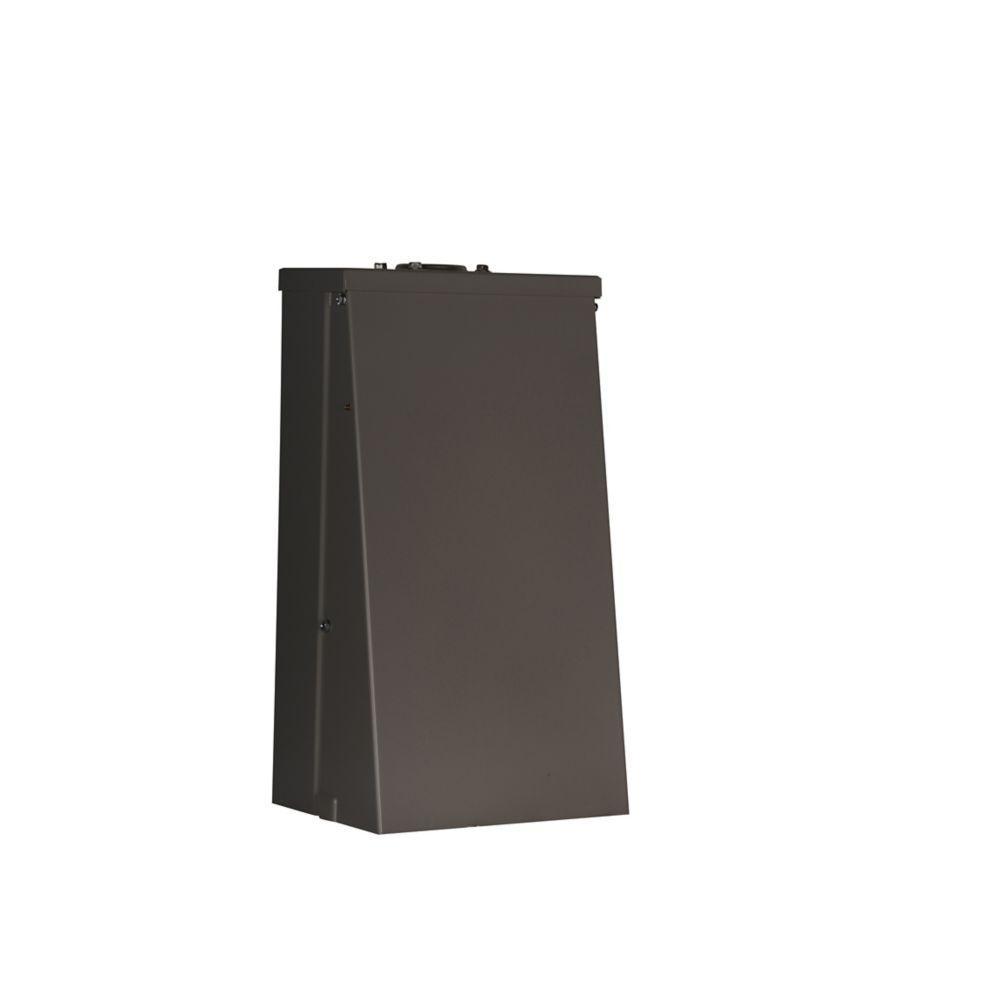

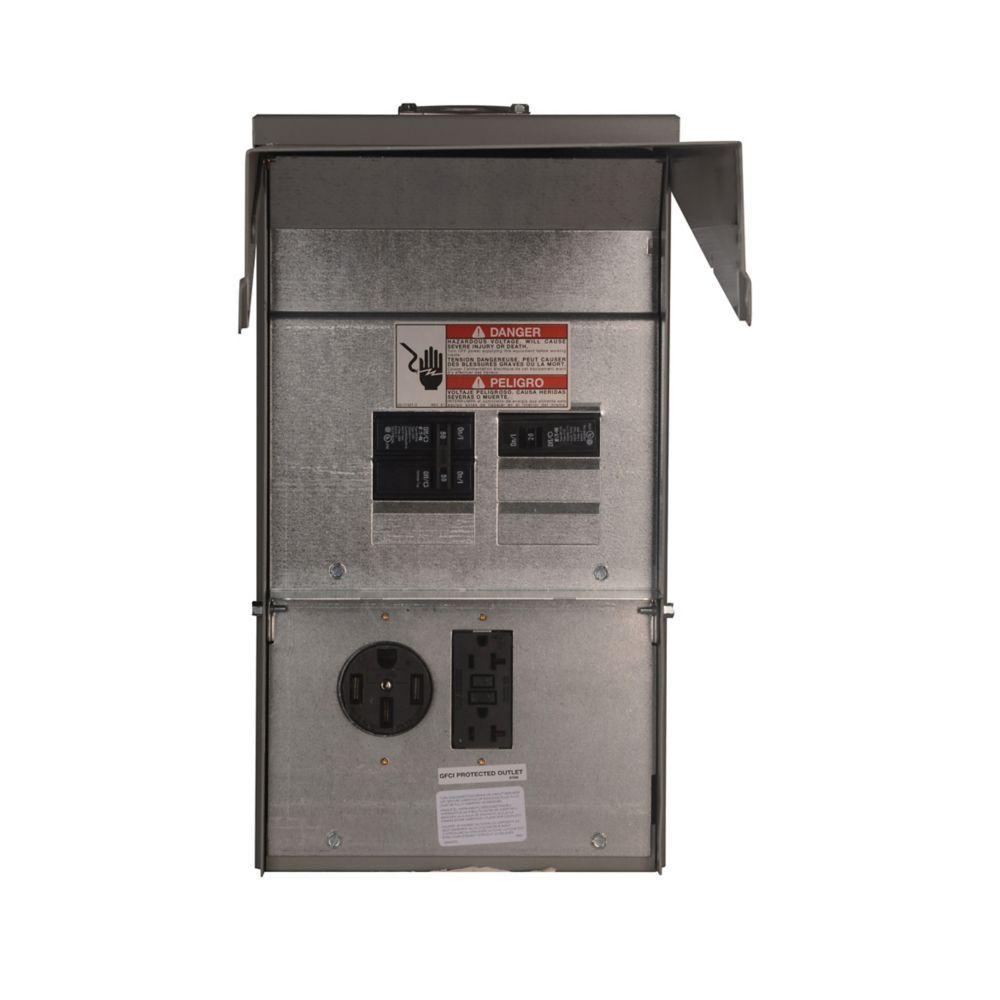

CHU1NP CH UNMETERED POP, (1) 14-50R W/ STD BRKR, PEDESTAL MOUNT

Mouse over image to zoom, click to enlarge

  • CHU1NP CH UNMETERED POP, (1) 14-50R W/ STD BRKR, PEDESTAL MOUNT
  • CHU1NP CH UNMETERED POP, (1) 14-50R W/ STD BRKR, PEDESTAL MOUNT
  • CHU1NP CH UNMETERED POP, (1) 14-50R W/ STD BRKR, PEDESTAL MOUNT
  • CHU1NP CH UNMETERED POP, (1) 14-50R W/ STD BRKR, PEDESTAL MOUNT
  • CHU1NP CH UNMETERED POP, (1) 14-50R W/ STD BRKR, PEDESTAL MOUNT

Description: EATON Power Outlet Pedestal, 4-Circuit Unmetered, 125/250 V AC, 50 A, NEMA 14-50R Receptacle, Non-Ground Fault Circuit Breaker Type, 350 kcmil Wire, Top Feed, NEMA 3R, Galvanized Steel, Pedestal Mount

Manufacturer PN: CHU1NP

UPC:  78211438015

Kendall Electric Inc PN: 4348273

Invoice Description:

CHU1NP CH UNMETERED POP, (1) 14-50R W/ STD BRKR, PEDESTAL MOUNT


SPEC SHEET

▸ See All in Unmetered Power Outlet Panels


How Can We Make This Page Better?

EATON CHU1NP 4-Circuit Unmetered Power Outlet Pedestal, 125/250 V AC, 50 A, 350 kcmil Wire, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's temporary power panels provide safe, reliable power for RV and construction sites. Durable, long-lasting units are available as metered (ring or ringless) or unmetered and can be mounted at the surface, on a pedestal, or in a back-to-back configuration.
EATON Power Outlet Pedestal, 4-Circuit Unmetered, 125/250 V AC, 50 A, NEMA 14-50R Receptacle, Non-Ground Fault Circuit Breaker Type, 350 kcmil Wire, Top Feed, NEMA 3R, Galvanized Steel, Pedestal Mount

Specifications

 Amperage Rating 50 A
 Application For outdoor services, temporary power requirements at construction sites, RV parks, electrical assemblies, panels and OEM's applications
 Brand Name EATON
 Circuit Breaker Type Non-Ground Fault
 Enclosure NEMA 3R
 Feed Type Top
 Manufacturer Part Number CHU1NP
 Material Galvanized Steel
 Mounting Type Pedestal
 PART NUMBER KEYWORDS CHU1NP ; 9136893 ; 782114380154 ; 78211438015 ; 00782114380154
 Receptacle Type NEMA 14-50R
 Standards/Approvals UL 231,UL Listed file E163588
 Type 4-Circuit Unmetered
 Voltage Rating 125/250 V AC

Features

▪ Designed for outdoor service to meet power outlet requirements
▪ Receptacles conform to NEMA and/or ANSI configurations as specified by the national electrical Code® (NEC)
▪ 125 A rated meter socket
▪ Temporary power and RV park POPs are CSA listed
▪ Compact pop and single receptacle devices are not CSA listed
▪ Non-ground fault circuit breaker position 4
