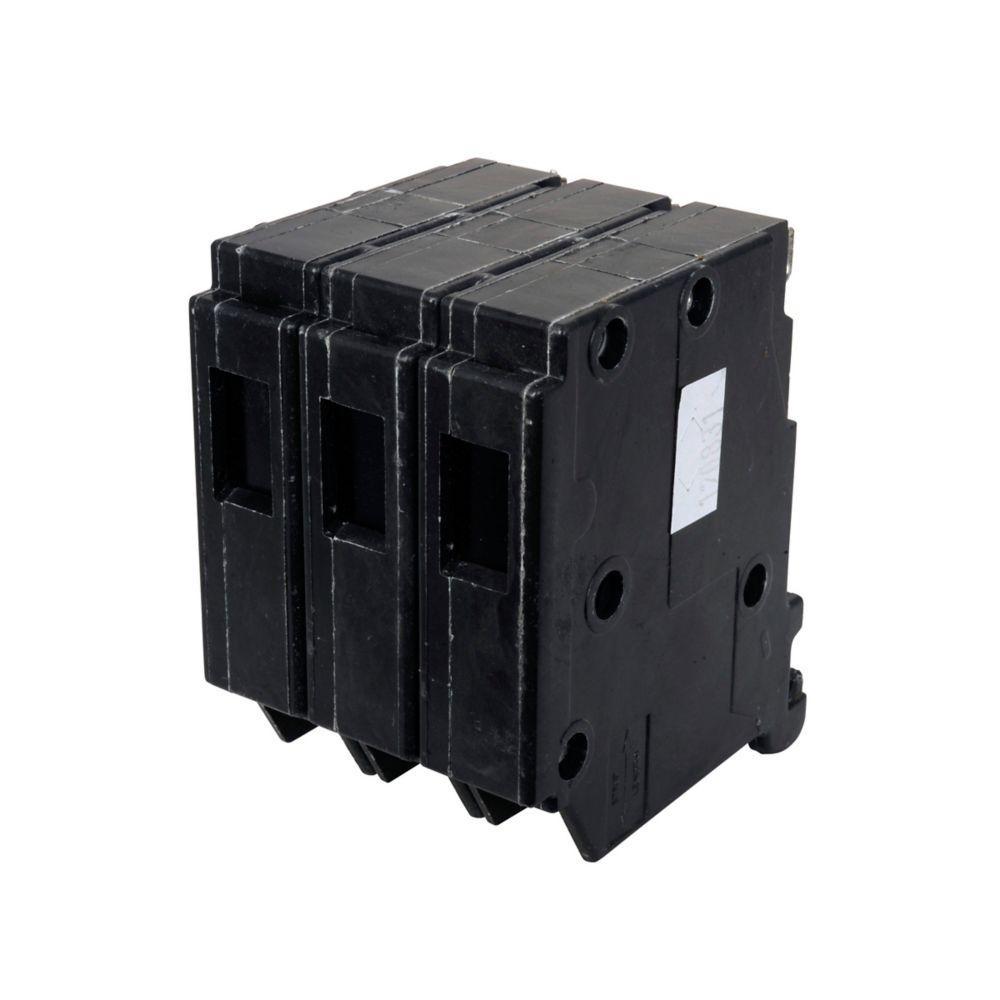

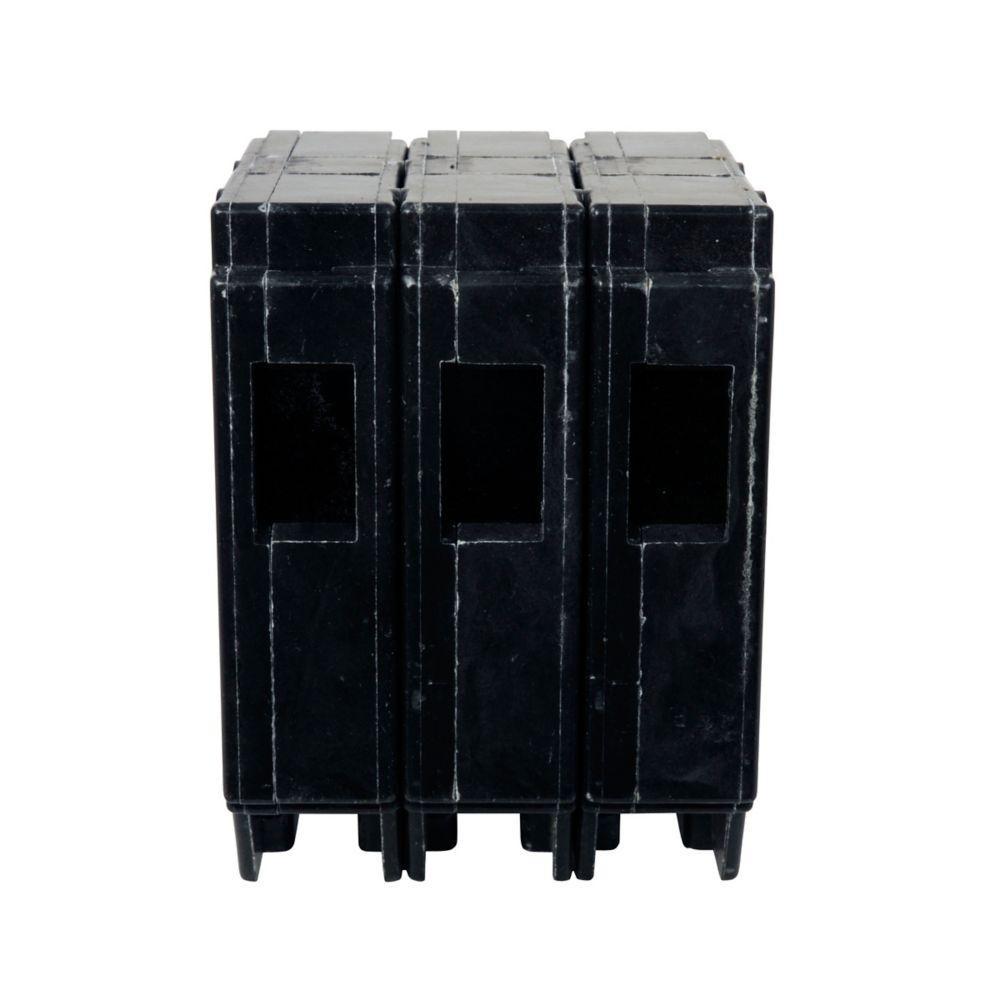

Description: EATON Sub-Feed Lug Block, 3 Pole, 125 A, For Use With: Type CH 3/4 in Loadcenter and Circuit Breaker

Manufacturer PN: CHSF3125

UPC: 78211309914

Kendall Electric Inc PN: 2025235

Invoice Description:

CHSF3125 CH 3P 125A SUB FEED LUG

SPEC SHEET

▸ See All in Load Center Sub-Feed Lug Blocks

How Can We Make This Page Better?

EATON CHSF3125 Sub-Feed Lug Block, 3 Poles, 125 A, For Use With Type CH 3/4 in Loadcenter and Circuit Breaker

Note: Lead times are estimates only

Description Specifications Resources

Description

Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.

EATON Sub-Feed Lug Block, 3 Pole, 125 A, For Use With: Type CH 3/4 in Loadcenter and Circuit Breaker

Specifications

Amperage Rating	125 A
Brand Name	EATON
Manufacturer Part Number	CHSF3125
Number of Poles	3
Standards/Approvals	CE Marked\|EN 60947-5-1/60947-5-5\|CSA C22.2 No. 14 File No. LR68551\|UL 508 File No. 131568
Suitable For Use With	Type CH 3/4 in Loadcenter and Circuit Breaker
