Eaton
CHR1G9N4GP CH MTRD RL PED POP 14-50R,TT-30R, 5-20R2GFI

Mouse over image to zoom, click to enlarge

  • CHR1G9N4GP CH MTRD RL PED POP 14-50R,TT-30R, 5-20R2GFI
  • CHR1G9N4GP CH MTRD RL PED POP 14-50R,TT-30R, 5-20R2GFI
  • CHR1G9N4GP CH MTRD RL PED POP 14-50R,TT-30R, 5-20R2GFI
  • CHR1G9N4GP CH MTRD RL PED POP 14-50R,TT-30R, 5-20R2GFI

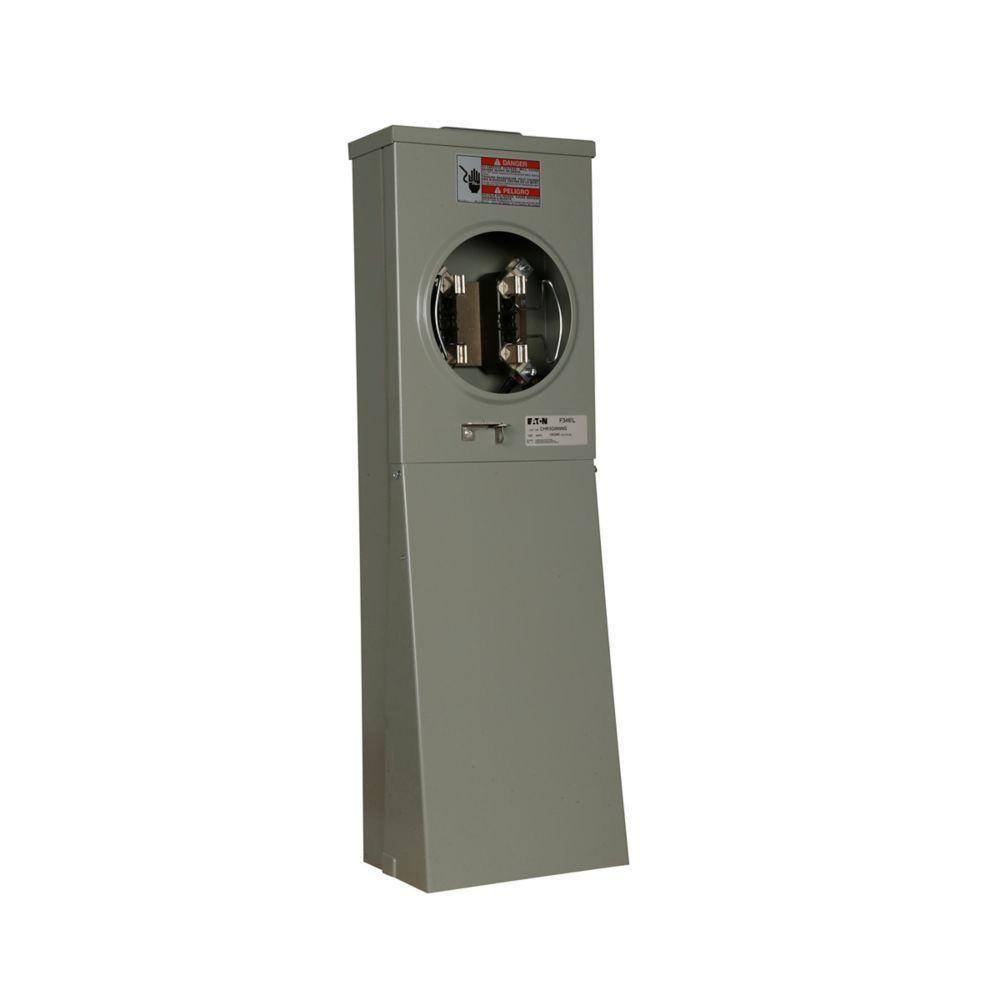

Description: EATON, CHR1G9N4GP, Pedestal Mount, Ringless, Pedestal Mounting, NEMA TT-30R, NEMA 14-50R, NEMA 5-20R Enclosure, 52 in H x 9.5 in W x 6.8 in L Dimensions

Manufacturer PN: CHR1G9N4GP

UPC:  78668932189

Kendall Electric Inc PN: 4124947

Invoice Description:

CHR1G9N4GP CH MTRD RL PED POP 14-50R,TT-30R, 5-20R2GFI


SPEC SHEET

▸ See All in Meter Pedestals


How Can We Make This Page Better?

EATON CHR1G9N4GP Ringless Pedestal Mount, NEMA TT-30R, NEMA 14-50R, NEMA 5-20R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's temporary power panels provide safe, reliable power for RV and construction sites. Durable, long-lasting units are available as metered (ring or ringless) or unmetered and can be mounted at the surface, on a pedestal, or in a back-to-back configuration.
EATON, CHR1G9N4GP, Pedestal Mount, Ringless, Pedestal Mounting, NEMA TT-30R, NEMA 14-50R, NEMA 5-20R Enclosure, 52 in H x 9.5 in W x 6.8 in L Dimensions

Specifications

 Application For Electrical Assemblies, Panels & EOEM Applications
 Brand Name EATON
 Dimensions 52 in H x 9.5 in W x 6.8 in L
 Enclosure NEMA TT-30R, NEMA 14-50R, NEMA 5-20R
 Manufacturer Part Number CHR1G9N4GP
 Mounting Type Pedestal
 Type Ringless

Features

▪ One-piece case back simplifies installation
▪ Removable upper deadfront cover for easy incoming wire connections to breaker terminals
▪ Door swings up and pushes in to lock into open position
▪ Pull out and push down to close door, which makes for easy installation and maintenance
▪ Padlockockable door prevents unauthorized entry and vandalism
▪ Galvanized steel with baked-on polyester powder coating offers long-term durability in outdoor conditions
▪ Removable upper deadfront cover allows easy incoming wire connections to breaker terminals
▪ Unique steel barrier prevents unauthorized operation of breakers when door is closed and padlocked
▪ Optional lighting feature provides extra safety and security onsite and during nighttime panel operations
▪ Units are factory wired and assembled, which saves time and money on installation
▪ Lower deadfront cover rotates 90 degrees or can be removed for easy routing of incoming wires or receptacle changeouts

Resources

 Catalog Page
 Product Data Sheet
