Eaton

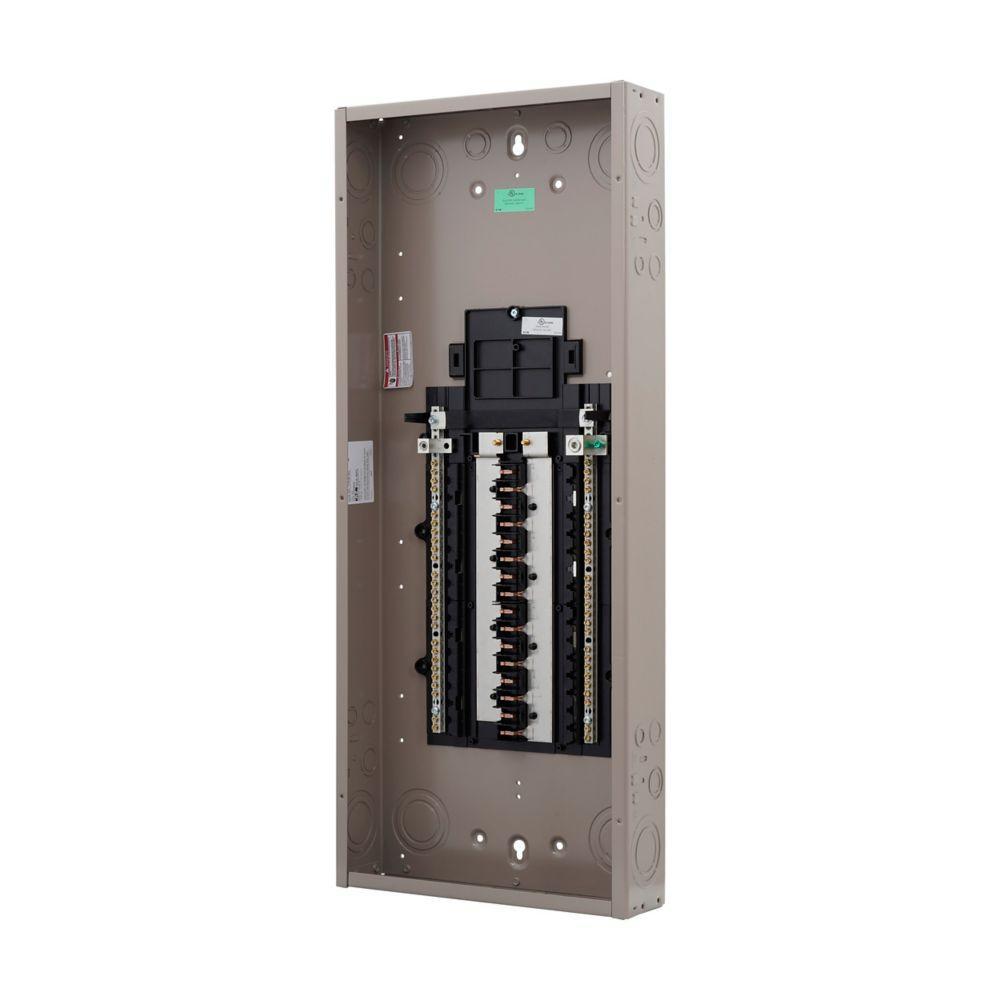

CHP42B225X7 CH CH PON LOADCENTER, 225A, MAIN BREAKER, 42 SPACE

Mouse over image to zoom, click to enlarge

  • CHP42B225X7 CH CH PON LOADCENTER, 225A, MAIN BREAKER, 42 SPACE
  • CHP42B225X7 CH CH PON LOADCENTER, 225A, MAIN BREAKER, 42 SPACE

Description: EATON Main Breaker Load Center, 1-Phase, 120/240 V AC, 225 A, 25 kA Interrupt, 42 Circuits, CH Breaker, Plug-On Neutral Breaker Mounting, 3 Wiring Configuration, 42 Spaces, 2 AWG to 300 kcmil Wire, Plug-On Mount, NEMA 1, X7 Enclosure Box, Sheet Steel Housing, 37 in L x 14.31 in W x 3.88 in H

Manufacturer PN: CHP42B225X7

UPC:  78667918965

Kendall Electric Inc PN: 3856877

Invoice Description:

CHP42B225X7 CH CH PON LOADCENTER, 225A, MAIN BREAKER, 42 SPACE


SPEC SHEET

▸ See All in Single Phase Main Breaker Load Centers


How Can We Make This Page Better?

EATON CHP42B225X7 1-Phase Main Breaker Load Center, 120/240 V AC, 225 A, 25 kA Interrupt

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.
EATON Main Breaker Load Center, 1-Phase, 120/240 V AC, 225 A, 25 kA Interrupt, 42 Circuits, CH Breaker, Plug-On Neutral Breaker Mounting, 3 Wiring Configuration, 42 Spaces, 2 AWG to 300 kcmil Wire, Plug-On Mount, NEMA 1, X7 Enclosure Box, Sheet Steel Housing, 37 in L x 14.31 in W x 3.88 in H

Specifications

 Amperage Rating 225 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Breaker Mounting Plug-On Neutral
 Breaker Type CH
 Dimensions 37 in L x 14.31 in W x 3.88 in H
 Enclosure NEMA 1
 Enclosure Box Size X7
 Housing Material Sheet Steel
 Manufacturer Part Number CHP42B225X7
 Mounting Type Plug-On
 Number of Circuits 42
 Number of Spaces 42
 PART NUMBER KEYWORDS CHP42B225X7 ; 14278296 ; 786679189658 ; 78667918965 ; 00786679189658
 Standards/Approvals UL 67,UL 50
 Type 1-Phase
 Video Links
 Voltage Rating 120/240 V AC
 Wiring Configuration 3

Features

▪ Quicker, easier and cleaner than the competition
▪ The CH plug-on neutral portfolio offers a unique design that offers improved safety, ease of installation and leaves the end result with a clean and professional look and feel
▪ 2 AWG to 300 kcmil copper/aluminum load center
▪ NEMA 1 indoor with no cover to be ordered separately
▪ Main breaker
