Eaton

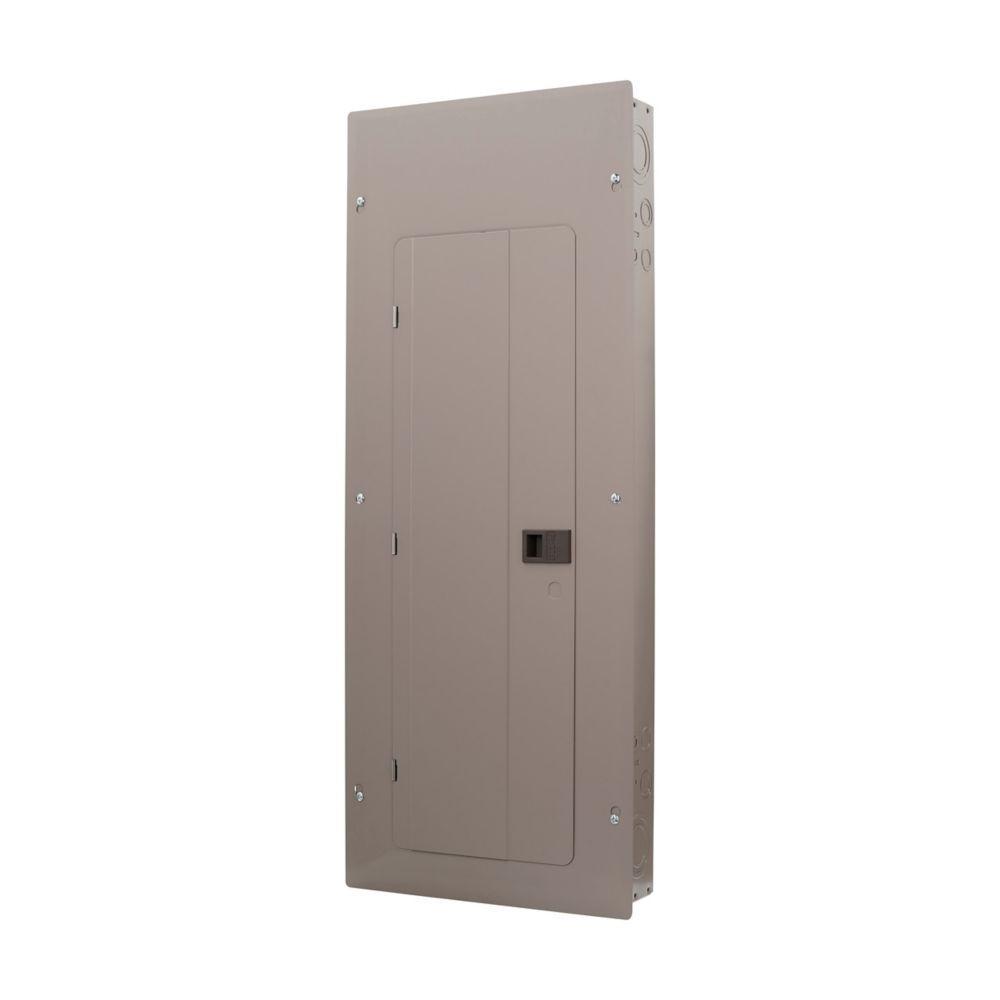

CHP32L150X5 CH CH PON LOADCENTER 150A MLO 32 SPACES

Mouse over image to zoom, click to enlarge

  • CHP32L150X5 CH CH PON LOADCENTER 150A MLO 32 SPACES
  • CHP32L150X5 CH CH PON LOADCENTER 150A MLO 32 SPACES

Description: EATON Main Lug Load Center, 1-Phase, 120/240 VAC, 150 A, 25 kA Interrupt, 64 Circuits, CH Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 32 Spaces, 4 AWG to 300 kcmil Wire, Plug-On Mount, NEMA 1, X5 Enclosure Box, Sheet Steel Housing, 29 in L x 14.3 in W x 4 in H

Manufacturer PN: CHP32L150X5

UPC:  78668905429

Kendall Electric Inc PN: 3860883

Invoice Description:

CHP32L150X5 CH CH PON LOADCENTER 150A MLO 32 SPACES


SPEC SHEET

▸ See All in Single Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON CHP32L150X5 1-Phase Main Lug Load Center, 120/240 VAC, 150 A, 25 kA Interrupt

Log In for Pricing and Availability




Description

Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Lug Load Center, 1-Phase, 120/240 VAC, 150 A, 25 kA Interrupt, 64 Circuits, CH Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 32 Spaces, 4 AWG to 300 kcmil Wire, Plug-On Mount, NEMA 1, X5 Enclosure Box, Sheet Steel Housing, 29 in L x 14.3 in W x 4 in H

Specifications

 Amperage Rating 150 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Breaker Mounting Plug-On Neutral
 Breaker Type CH
 Dimensions 29 in L x 14.3 in W x 4 in H
 Enclosure NEMA 1
 Enclosure Box Size X5
 Housing Material Sheet Steel
 Manufacturer Part Number CHP32L150X5
 Mounting Type Plug-On
 Number of Circuits 64
 Number of Spaces 32
 Standards/Approvals BAA Compliant|UL 50/67|UL E8741
 Type 1-Phase
 Video Links
 Voltage Rating 120/240 VAC
 Wiring Configuration 3-Wire

Features

▪ Quicker, easier and cleaner than the competition
▪ The CH plug-on neutral portfolio offers a unique design that offers improved safety, ease of installation and leaves the end result with a clean and professional look and feel
▪ Main lug only
▪ NEMA 1 indoor with no cover to be ordered separately
