Eaton

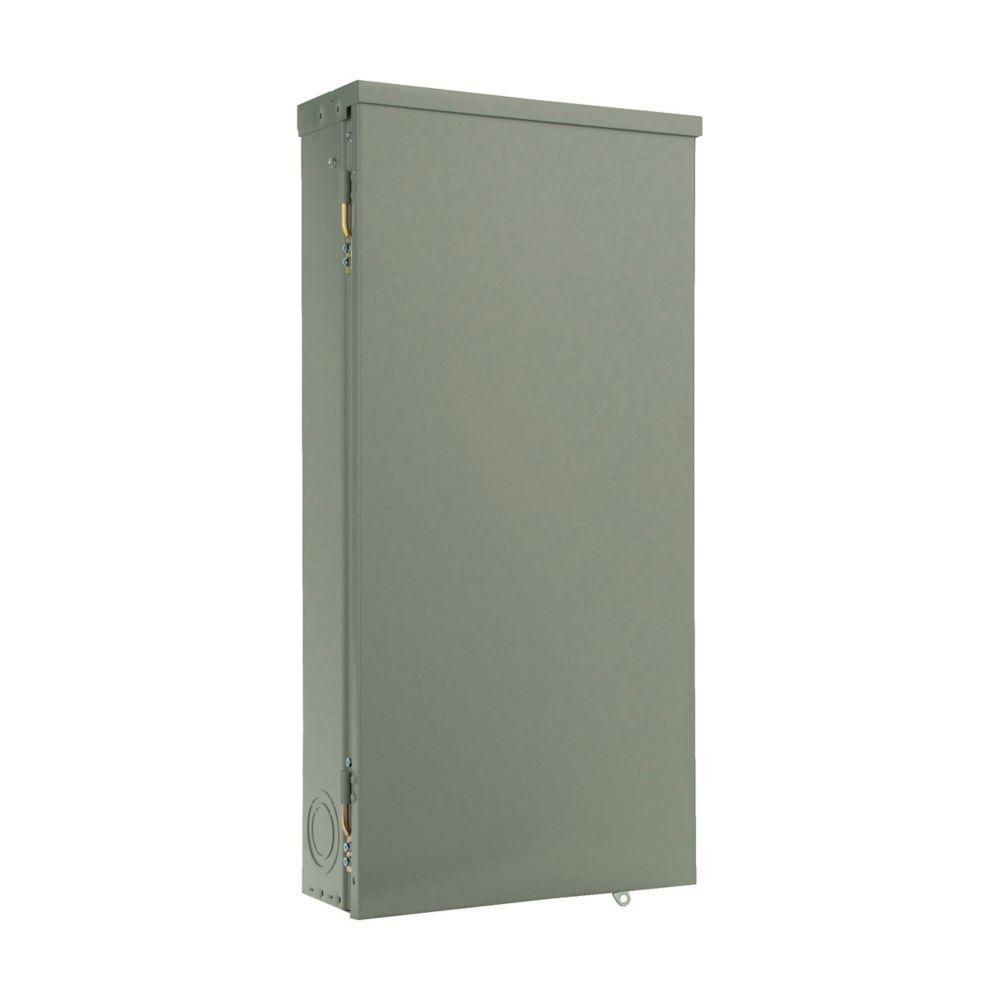

CHP30B100R CH CH PON LOADCENTER, 100A, MAIN BREAKER, 30 SPACES, N3R

Mouse over image to zoom, click to enlarge

  • CHP30B100R CH CH PON LOADCENTER, 100A, MAIN BREAKER, 30 SPACES, N3R
  • CHP30B100R CH CH PON LOADCENTER, 100A, MAIN BREAKER, 30 SPACES, N3R

Description: EATON Main Breaker Load Center, 1-Phase, 120/240 V AC, 100 A, 30 Circuits, CH Breaker, Plug-On Neutral Breaker Mounting, 3 Wiring Configuration, 30 Spaces, Plug-On Mount, NEMA 3R, X5 Enclosure Box, 29 in L x 14.31 in W x 5.19 in H

Manufacturer PN: CHP30B100R

UPC:  78668905864

Kendall Electric Inc PN: 3873333

Invoice Description:

CHP30B100R CH CH PON LOADCENTER, 100A, MAIN BREAKER, 30 SPACES, N3R


SPEC SHEET

How Can We Make This Page Better?

EATON CHP30B100R 1-Phase Main Breaker Load Center, 120/240 V AC, 100 A

Log In for Pricing and Availability




Description

Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.
EATON Main Breaker Load Center, 1-Phase, 120/240 V AC, 100 A, 30 Circuits, CH Breaker, Plug-On Neutral Breaker Mounting, 3 Wiring Configuration, 30 Spaces, Plug-On Mount, NEMA 3R, X5 Enclosure Box, 29 in L x 14.31 in W x 5.19 in H

Specifications

 Amperage Rating 100 A
 Application Residential Buildings and Facilities Applications
 Brand Name EATON
 Breaker Mounting Plug-On Neutral
 Breaker Type CH
 Dimensions 29 in L x 14.31 in W x 5.19 in H
 Enclosure NEMA 3R
 Enclosure Box Size X5
 Includes Cover
 Manufacturer Part Number CHP30B100R
 Mounting Type Plug-On
 Number of Circuits 30
 Number of Spaces 30
 PART NUMBER KEYWORDS CHP30B100R ; 14285097 ; 786689058647 ; 78668905864 ; 00786689058647
 Standards/Approvals UL 50,UL 67
 Type 1-Phase
 Video Links
 Voltage Rating 120/240 V AC
 Wiring Configuration 3

Features

▪ Quicker, easier and cleaner than the competition
▪ The CH plug-on neutral portfolio offers a unique design that offers improved safety, ease of installation and leaves the end result with a clean and professional look and feel
▪ NEMA 3R rain proof enclosure
▪ Main breaker

Resources

 Catalog Page
 Product Data Sheet
