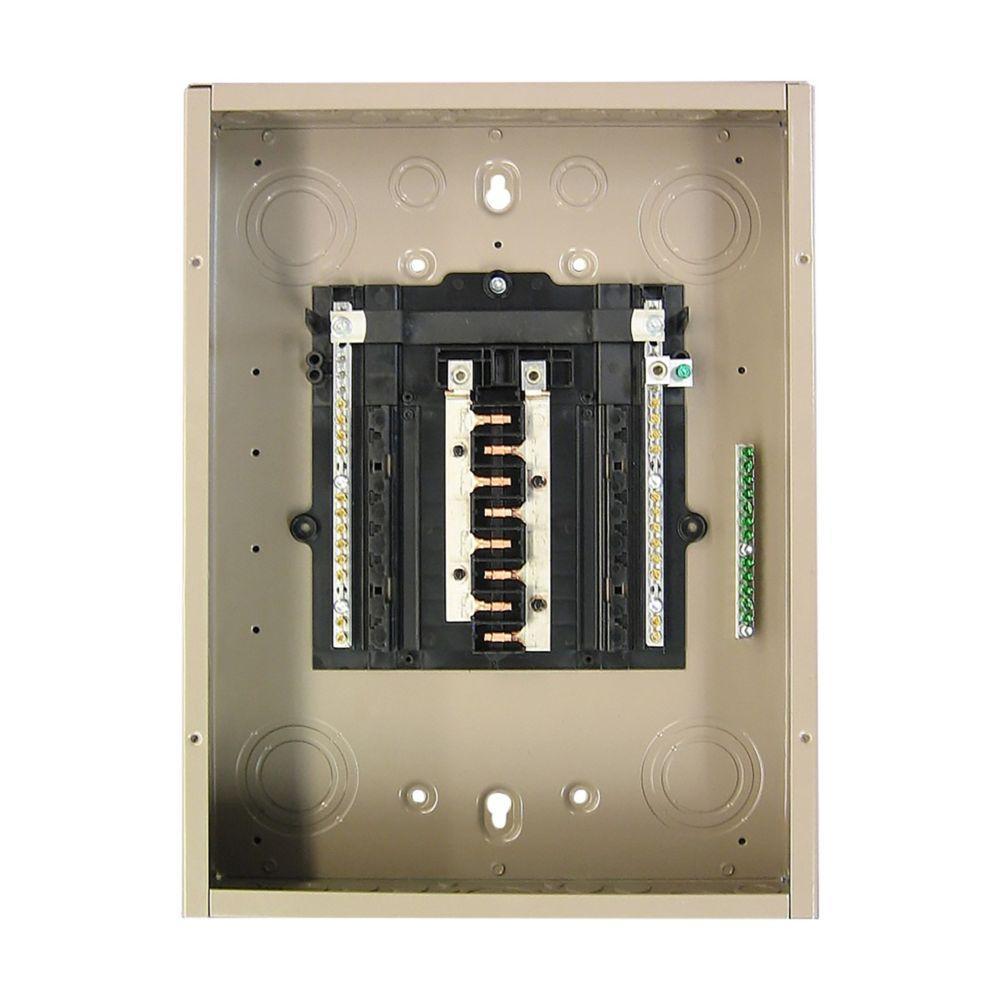

CHP16L125X1 CH CH PON LOADCENTER, 125A, MLO, 16 SPACES

Mouse over image to zoom, click to enlarge

  • CHP16L125X1 CH CH PON LOADCENTER, 125A, MLO, 16 SPACES
  • CHP16L125X1 CH CH PON LOADCENTER, 125A, MLO, 16 SPACES

Description: EATON Main Lug Load Center, 1-Phase Insulated/Bondable Split Standard, 120/240 V AC, 125 A, 1 Pole, 25 kA Interrupt, 32 Circuits, CH/CHP Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 16 Spaces, 6 to 2/0 AWG Wire, Plug-On Mount, NEMA 1, X1 Enclosure Box, Sheet Steel Housing, 18.75 in L x 14.3 in W x 4 in H

Manufacturer PN: CHP16L125X1

UPC:  78668905970

Kendall Electric Inc PN: 3858037

Invoice Description:

CHP16L125X1 CH CH PON LOADCENTER, 125A, MLO, 16 SPACES


SPEC SHEET

▸ See All in Single Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON CHP16L125X1 1-Phase Insulated/Bondable Split Standard Main Lug Load Center, 120/240 V AC, 125 A, 1 Poles, 25 kA Interrupt

Log In for Pricing and Availability




Description

Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.
EATON Main Lug Load Center, 1-Phase Insulated/Bondable Split Standard, 120/240 V AC, 125 A, 1 Pole, 25 kA Interrupt, 32 Circuits, CH/CHP Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 16 Spaces, 6 to 2/0 AWG Wire, Plug-On Mount, NEMA 1, X1 Enclosure Box, Sheet Steel Housing, 18.75 in L x 14.3 in W x 4 in H

Specifications

 Amperage Rating 125 A
 Application Residential Buildings, Facilities, Residential Loadcenters, Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels, Various OEM and Indoor Applications
 Brand Name EATON
 Breaker Mounting Plug-On Neutral
 Breaker Type CH/CHP
 Dimensions 18.75 in L x 14.3 in W x 4 in H
 Enclosure NEMA 1
 Enclosure Box Size X1
 Housing Material Sheet Steel
 Manufacturer Part Number CHP16L125X1
 Mounting Type Plug-On
 Number of Circuits 32
 Number of Poles 1
 Number of Spaces 16
 PART NUMBER KEYWORDS CHP16L125X1 ; 14562730 ; 786689059705 ; 78668905970 ; 00786689059705
 Standards/Approvals UL 50,UL 67
 Type 1-Phase Insulated/Bondable Split Standard
 Video Links
 Voltage Rating 120/240 V AC
 Wiring Configuration 3-Wire

Features

▪ Bonding Z-strap provides easy field conversion for service entrance applications
▪ Twin neutral bars, minimum 150% neutral capacity
▪ Without covers
▪ 6 to 2/0 AWG copper/aluminum wire size
▪ Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings for renovation installations
▪ Straight-in wiring saves labor and material
▪ One panel for either top or bottom applications
▪ 2/0 AWG lug - easily removable and can be installed in any location on the neutral bar
▪ One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
▪ Drywall marking on enclosure, indicates proper mounting depth for flush applications
▪ Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
▪ Tangential center knockout - easier installation for conduit applications
▪ Neutral bus, easily removable for sub-panel applications
