Eaton

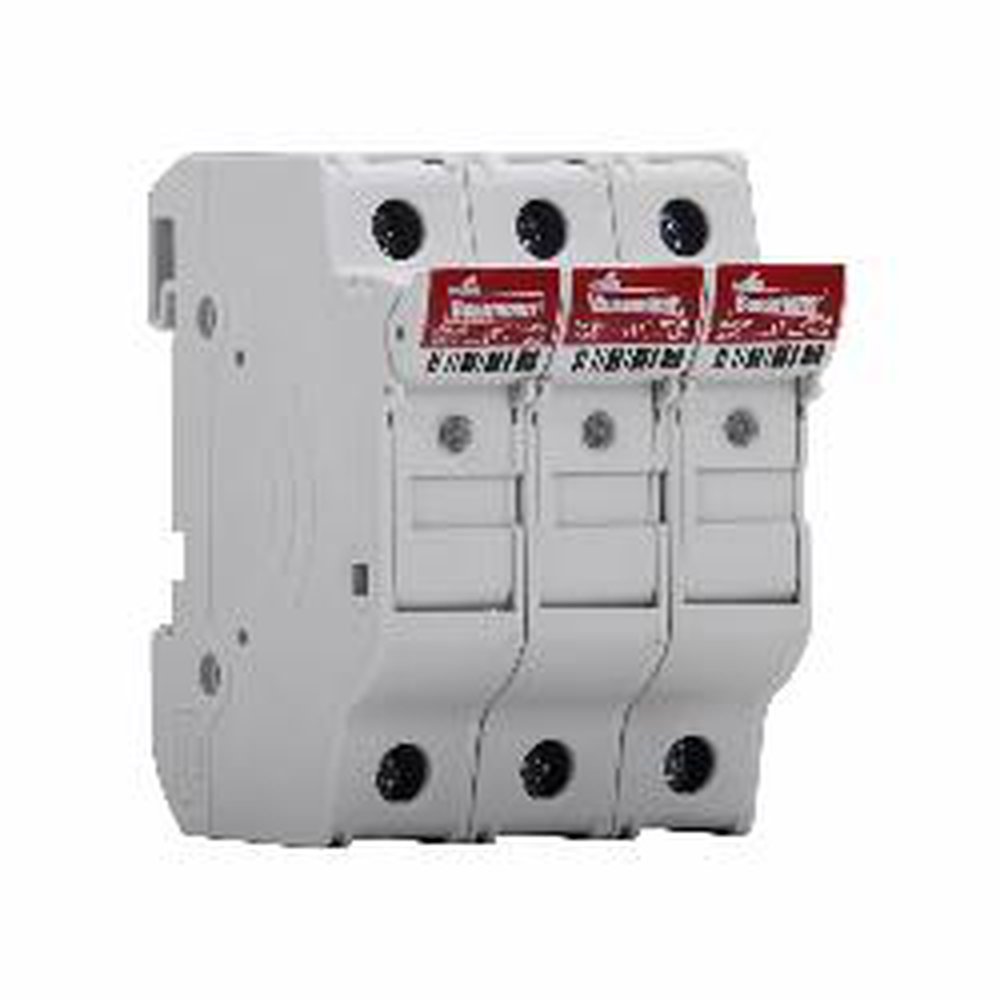

CHM3DIU BUS 3P 10X38MFH30A 600V MIDGET - INDICATOR

Mouse over image to zoom, click to enlarge

  • CHM3DIU BUS 3P 10X38MFH30A 600V MIDGET - INDICATOR
  • CHM3DIU BUS 3P 10X38MFH30A 600V MIDGET - INDICATOR
  • CHM3DIU BUS 3P 10X38MFH30A 600V MIDGET - INDICATOR
  • CHM3DIU BUS 3P 10X38MFH30A 600V MIDGET - INDICATOR
  • CHM3DIU BUS 3P 10X38MFH30A 600V MIDGET - INDICATOR

Description: Bussmann Fuse Holder, Modular, Series: CH Series, 600/690 V, 30/32 A, 3 Pole, Class: Midget, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse, 2.067 in W x 3.275 in D x 2.909 in H

Manufacturer PN: CHM3DIU

UPC:  05171236278

Kendall Electric Inc PN: 2860886

Invoice Description:

CHM3DIU BUS 3P 10X38MFH30A 600V MIDGET - INDICATOR


SPEC SHEET

How Can We Make This Page Better?

Bussmann CHM3DIU Modular Fuse Holder With Indicator, 600/690 V, 30/32 A, Class: Midget, 18 to 4 AWG Wire, 3 Poles

Log In for Pricing and Availability




Description

Bussmann Fuse Holder, Modular, Series: CH Series, 600/690 V, 30/32 A, 3 Pole, Class: Midget, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse, 2.067 in W x 3.275 in D x 2.909 in H

Specifications

 Amperage Rating 30/32 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name Bussmann
 Class Midget
 Dimensions 2.067 in W x 3.275 in D x 2.909 in H
 Fuse Diameter 10 mm
 Fuse Length 38 mm
 Manufacturer Part Number CHM3DIU
 Number of Poles 3
 PART NUMBER KEYWORDS CHM3DIU ; 11174974 ; 051712362788 ; 51712362788 ; 05171236278 ; 00051712362788
 Series CH Series
 Standards/Approvals CCC Certified|CSA Certified|IEC 60269-2|RoHS Compliant|UL 94-V-0 Flammability Rating|UL Listed|UL Recognized
 Suitable For Use With AGU/C10G/C10M/BAF/BAN/FNM/FNQ/FWA/FWC/KLM/KTK/CHM Fuse
 Temperature Rating -20 to 90 deg C
 Type Modular
 Video Links
 Voltage Rating 600/690 V

Features

▪ UL Recognized midget and 10 x 38 holders with factory assembled neutral pole option
▪ Complete range of UL listed and high SCCR rated 1/3 ph finger safe combination busbars and power feed lugs
▪ 30 A, 600 VAC UL, 32 A, 690 VAC IEC rated
