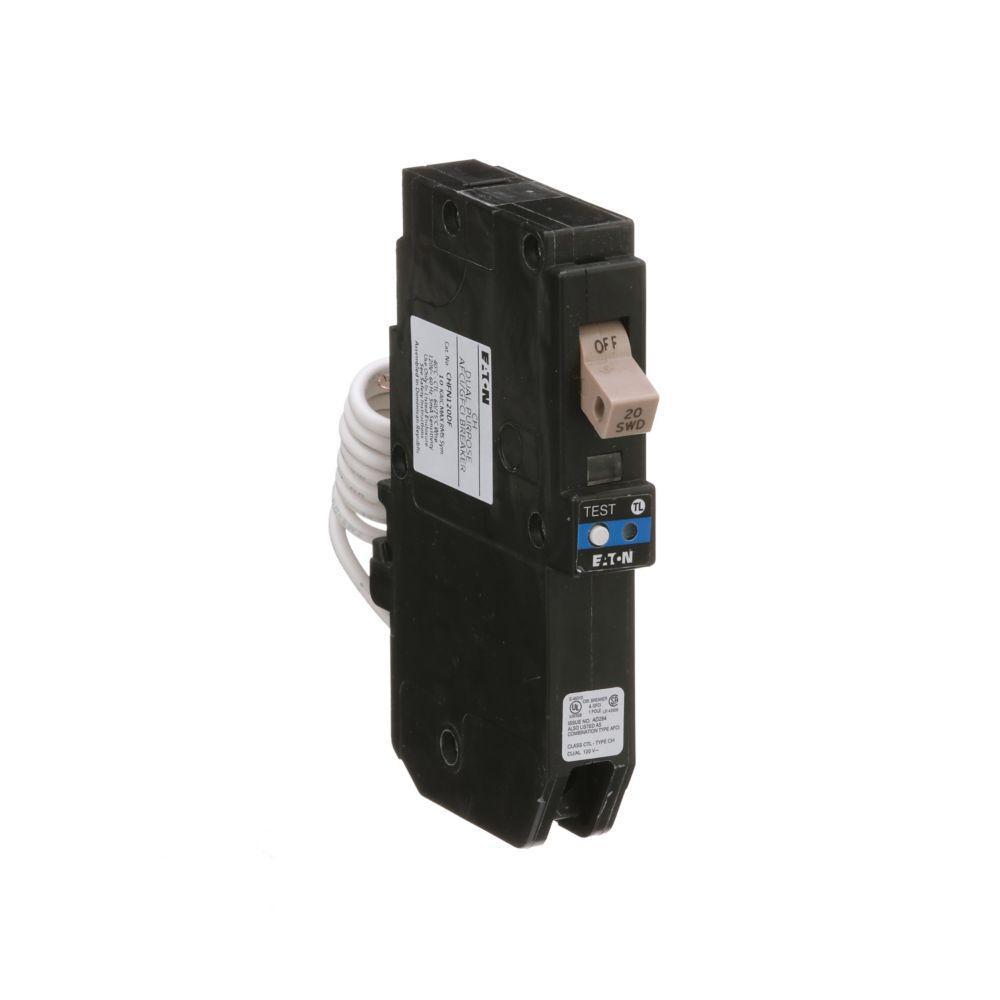

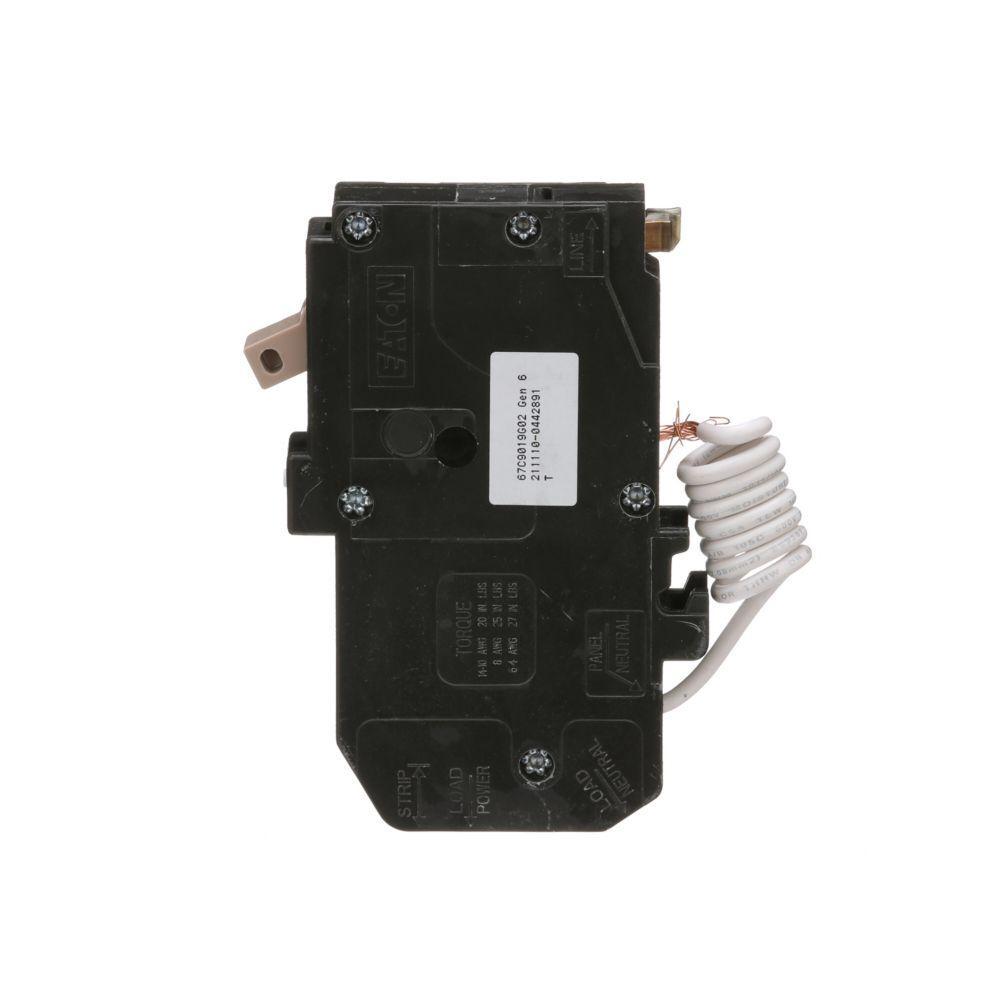

Description: EATON Combination Circuit Breaker, Type CH Dual Function Arc Fault/Ground Fault, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Pole, Pigtail Neutral Connection, 4-1/2 in L x 3/4 in W x 3-1/4 in H Dimensions

Manufacturer PN: CHFN120DF

UPC:  78668905885

Kendall Electric Inc PN: 3846949

Invoice Description:

CHFN120DF CH EATON CH DUAL FUNCTION AF/GF BREAKER..


SPEC SHEET

▸ See All in Combination Circuit Breakers


How Can We Make This Page Better?

EATON CHFN120DF Type CH Dual Function Arc Fault/Ground Fault Combination Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Poles

Log In for Pricing and Availability




Description

Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
EATON Combination Circuit Breaker, Type CH Dual Function Arc Fault/Ground Fault, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Pole, Pigtail Neutral Connection, 4-1/2 in L x 3/4 in W x 3-1/4 in H Dimensions

Specifications

 Amperage Rating 20 A
 Application Generation - Conventional Energy, Renewable Energy, Alternative Energy, Marine Vessels and Equipment, Datacenters, IT Space, CI and Hyper Converged and Circuit Protection Applications
 Brand Name EATON

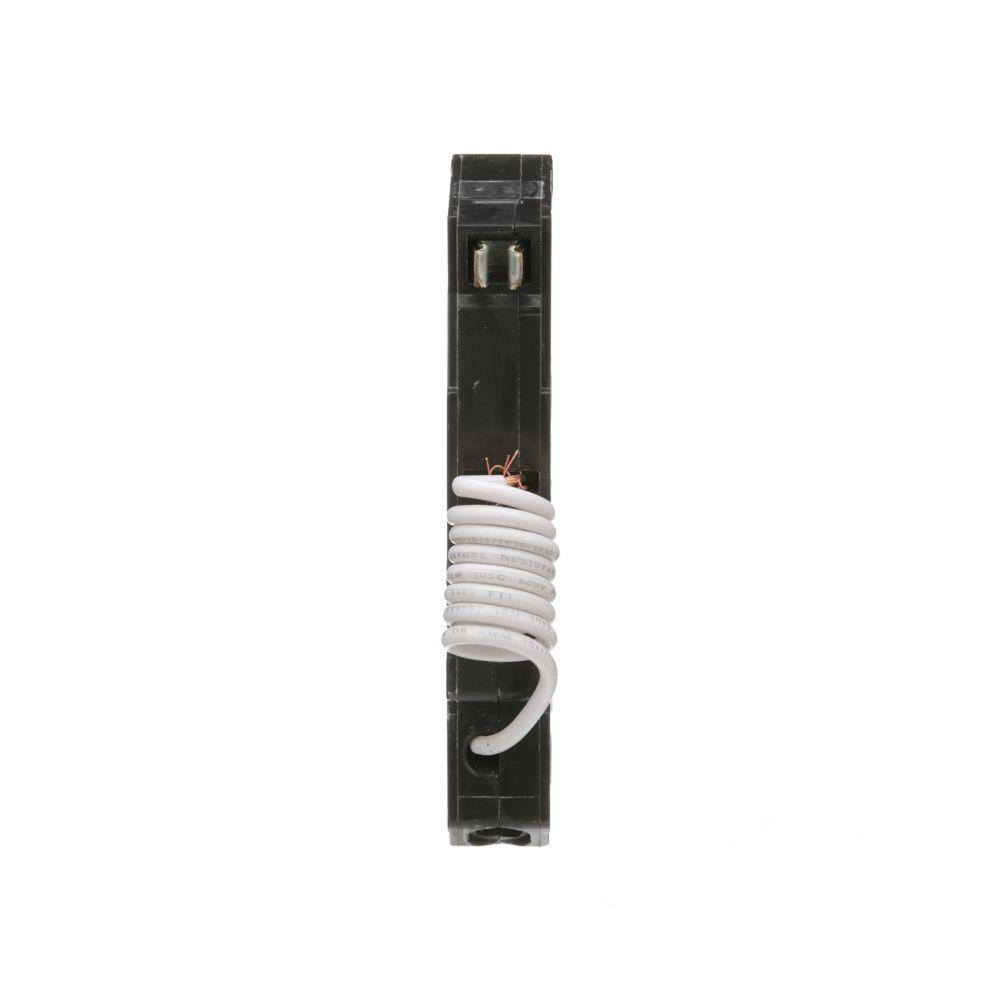

 Connection Type Pigtail Neutral
 Dimensions 4-1/2 in L x 3/4 in W x 3-1/4 in H
 Manufacturer Part Number CHFN120DF
 Number of Poles 1
 Standards/Approvals UL Listed
 Type Type CH Dual Function Arc Fault/Ground Fault
 Voltage Rating 120/240 V AC

Features

▪ 3/4 in breaker load center
