Eaton

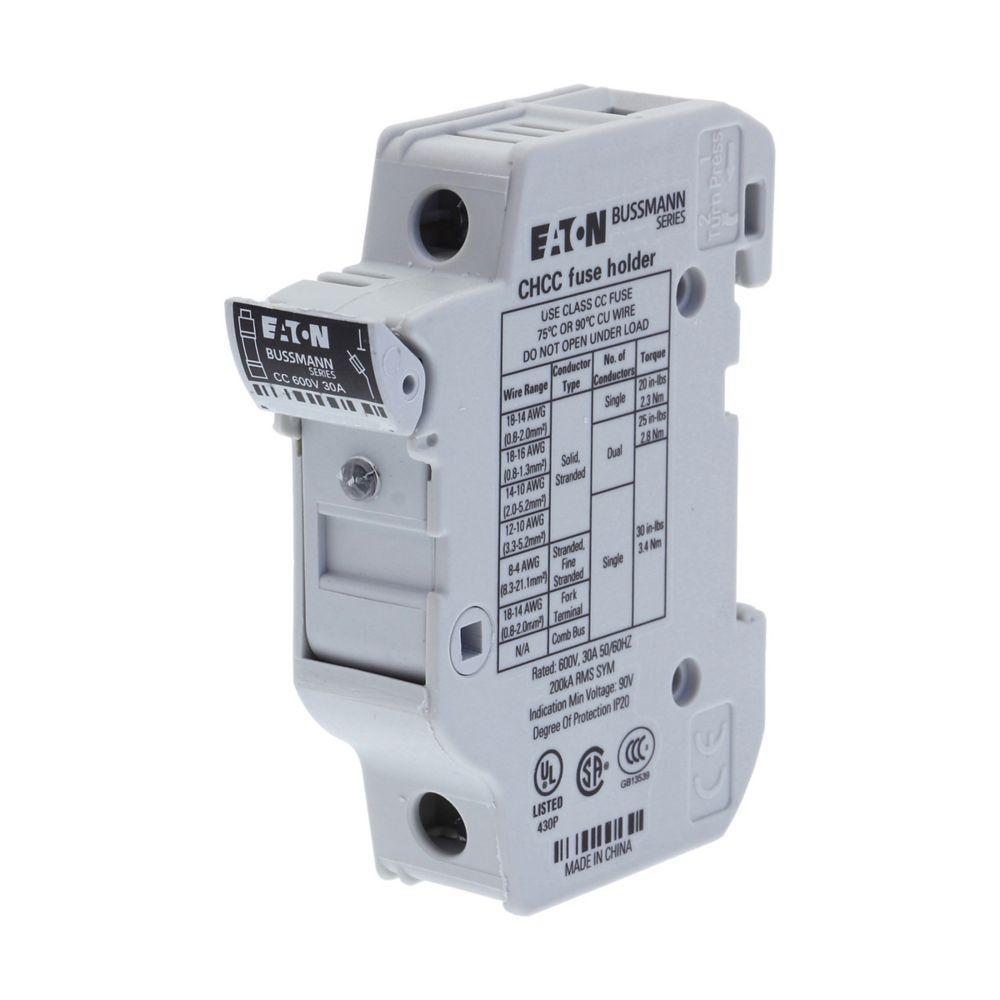

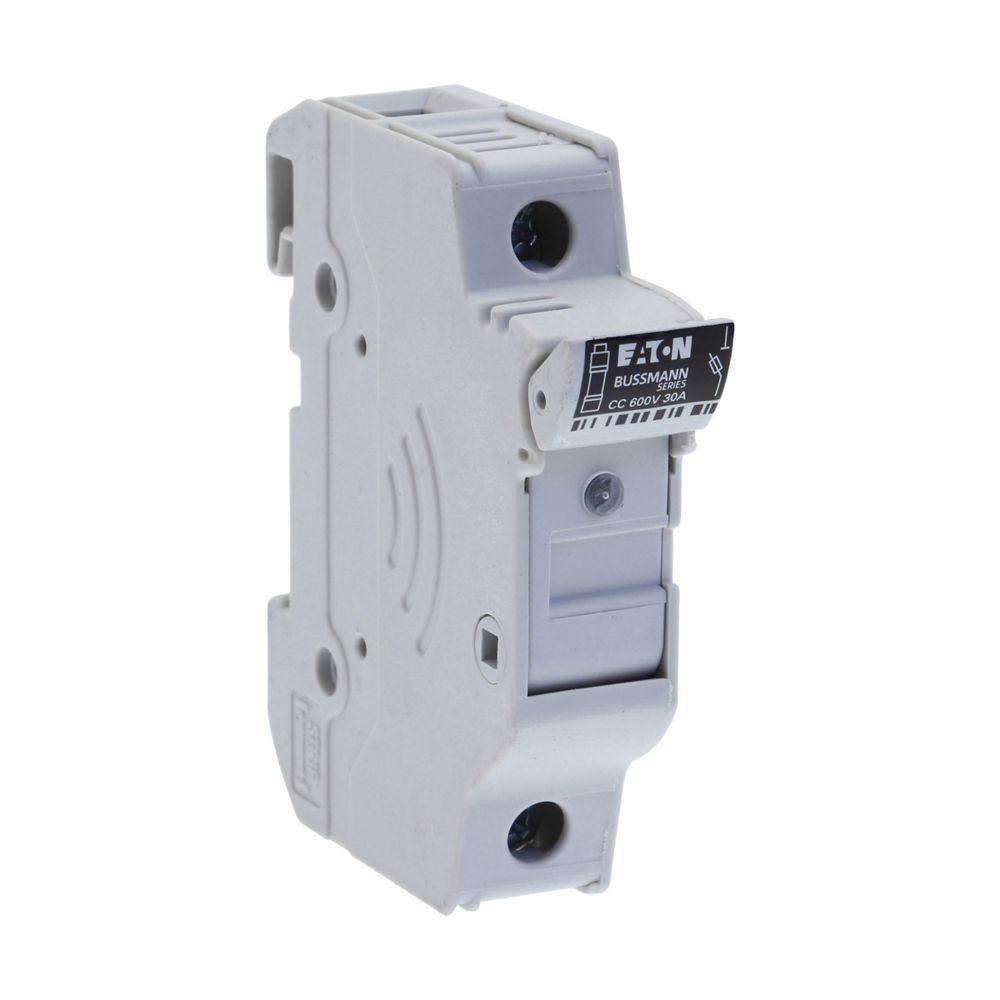

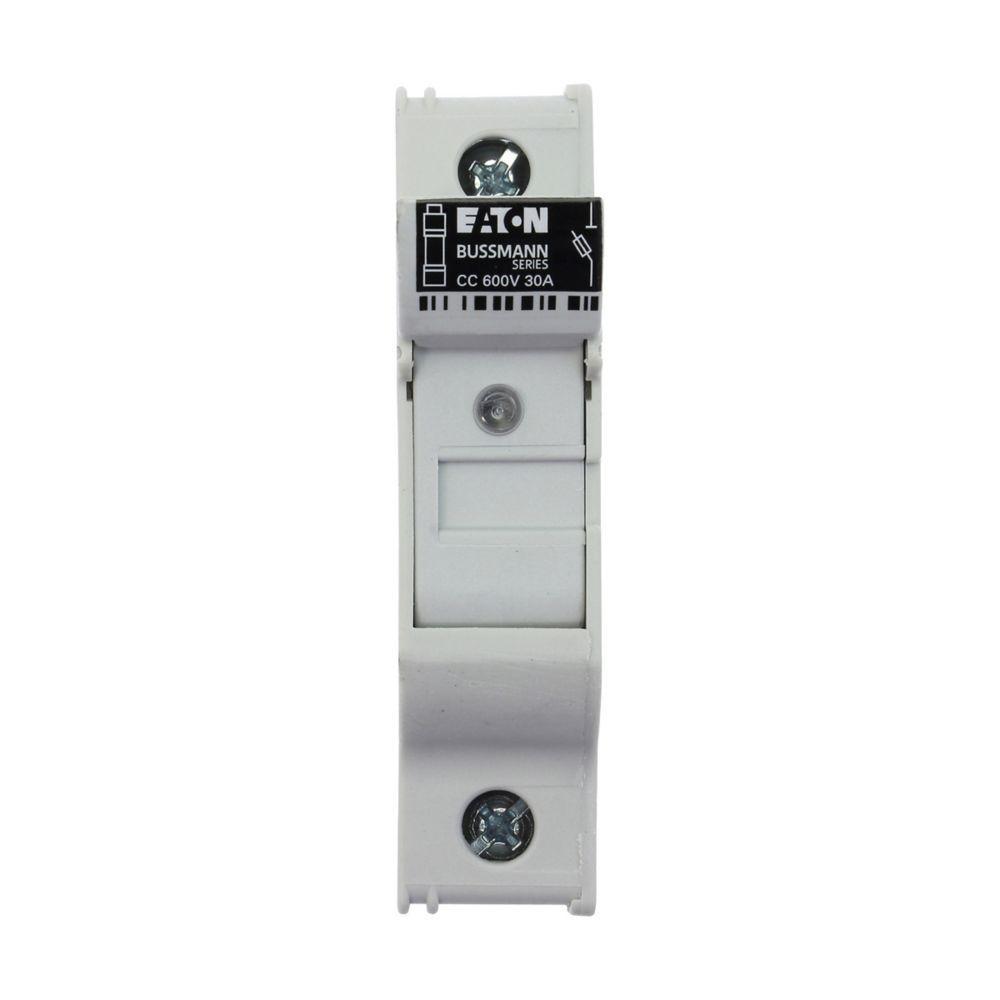

CHCC1DIU BUS 1-POLE 30A 600V MFH FOR 10X38 MIDGET FUSE CLASS CC-INDICATOR

Mouse over image to zoom, click to enlarge

  • CHCC1DIU BUS 1-POLE 30A 600V MFH FOR 10X38 MIDGET FUSE CLASS CC-INDICATOR
  • CHCC1DIU BUS 1-POLE 30A 600V MFH FOR 10X38 MIDGET FUSE CLASS CC-INDICATOR
  • CHCC1DIU BUS 1-POLE 30A 600V MFH FOR 10X38 MIDGET FUSE CLASS CC-INDICATOR
  • CHCC1DIU BUS 1-POLE 30A 600V MFH FOR 10X38 MIDGET FUSE CLASS CC-INDICATOR

Description: Bussmann Fuse Holder, Finger Safe Modular, Series: CH Series, 48 V DC, 30 A, 1 Pole, Class: CC, Fuse Holder Code: W, Spade Lug, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: KTK-R, LP-CC and FNQ-R Series CC Fuse, Polyester, White, 0.689 in W x 3.275 in D x 2.909 in H

Manufacturer PN: CHCC1DIU

UPC:  05171236266

Kendall Electric Inc PN: 2853708

Invoice Description:

CHCC1DIU BUS 1-POLE 30A 600V MFH FOR 10X38 MIDGET FUSE CLASS CC-INDICATOR


SPEC SHEET

▸ See All in Midget and CL-CC Fuse Holders


How Can We Make This Page Better?

Bussmann CHCC1DIU Finger Safe Modular Fuse Holder With LED Indicator, 48 V DC, 30 A, 18 to 4 AWG Wire, 1 Pole

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Bussmann series Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection.
Bussmann Fuse Holder, Finger Safe Modular, Series: CH Series, 48 V DC, 30 A, 1 Pole, Class: CC, Fuse Holder Code: W, Spade Lug, 18 to 4 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 90 deg C, For Use With: KTK-R, LP-CC and FNQ-R Series CC Fuse, Polyester, White, 0.689 in W x 3.275 in D x 2.909 in H

Specifications

 Amperage Rating 30 A
 Application Electrical Assemblies, Electrical System Applications, Panels and OEMs
 Brand Name Bussmann
 Class CC
 Color White
 Connection Type Spade Lug
 Dimensions 0.689 in W x 3.275 in D x 2.909 in H
 Fuse Diameter 10 mm
 Fuse Holder Code W
 Fuse Length 38 mm
 Manufacturer Part Number CHCC1DIU
 Material Polyester
 Mounting Type DIN Rail
 Number of Poles 1
 PART NUMBER KEYWORDS CHCC1DIU ; 11174954 ; 051712362665 ; 51712362665 ; 05171236266 ; 00051712362665
 Series CH Series
 Standards/Approvals CCC Certified|CSA 47235|CSA 6225-01|RoHS Compliant|UL File No. E14853|UL Guide IZLT/IZLT2
 Suitable For Use With KTK-R, LP-CC and FNQ-R Series CC Fuse
 Temperature Rating -20 to 90 deg C
 Type Finger Safe Modular
 Video Links
 Voltage Rating 48 V DC

Features

▪ Withstands 200 kA (RMS Symmetrical) interrupt rating
▪ Tool less ganging for multiple poles
▪ Wire strip gauge
▪ Captive fully backed out Phillips slotted screw
▪ 18 to 4 AWG copper wire
