Eaton
CHCC1DI-48U BUS 1P 30A 48VDC 10X38 CLASS CC FUSE W/LED

Mouse over image to zoom, click to enlarge

  • CHCC1DI-48U BUS 1P 30A 48VDC 10X38 CLASS CC FUSE W/LED
  • CHCC1DI-48U BUS 1P 30A 48VDC 10X38 CLASS CC FUSE W/LED
  • CHCC1DI-48U BUS 1P 30A 48VDC 10X38 CLASS CC FUSE W/LED
  • CHCC1DI-48U BUS 1P 30A 48VDC 10X38 CLASS CC FUSE W/LED
  • CHCC1DI-48U BUS 1P 30A 48VDC 10X38 CLASS CC FUSE W/LED

Description: Bussmann Fuse Holder, Modular, Series: CH Series, 48 V DC, 30 A, 1 Pole, Class: CC, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 120 deg C, For Use With: KTK-R, LP-CC and FNQ-R Fuse, 0.689 in W x 3.275 in D x 2.909 in H

Manufacturer PN: CHCC1DI-48U

UPC:  05171236281

Kendall Electric Inc PN: 2862825

Invoice Description:

CHCC1DI-48U BUS 1P 30A 48VDC 10X38 CLASS CC FUSE W/LED


SPEC SHEET

How Can We Make This Page Better?

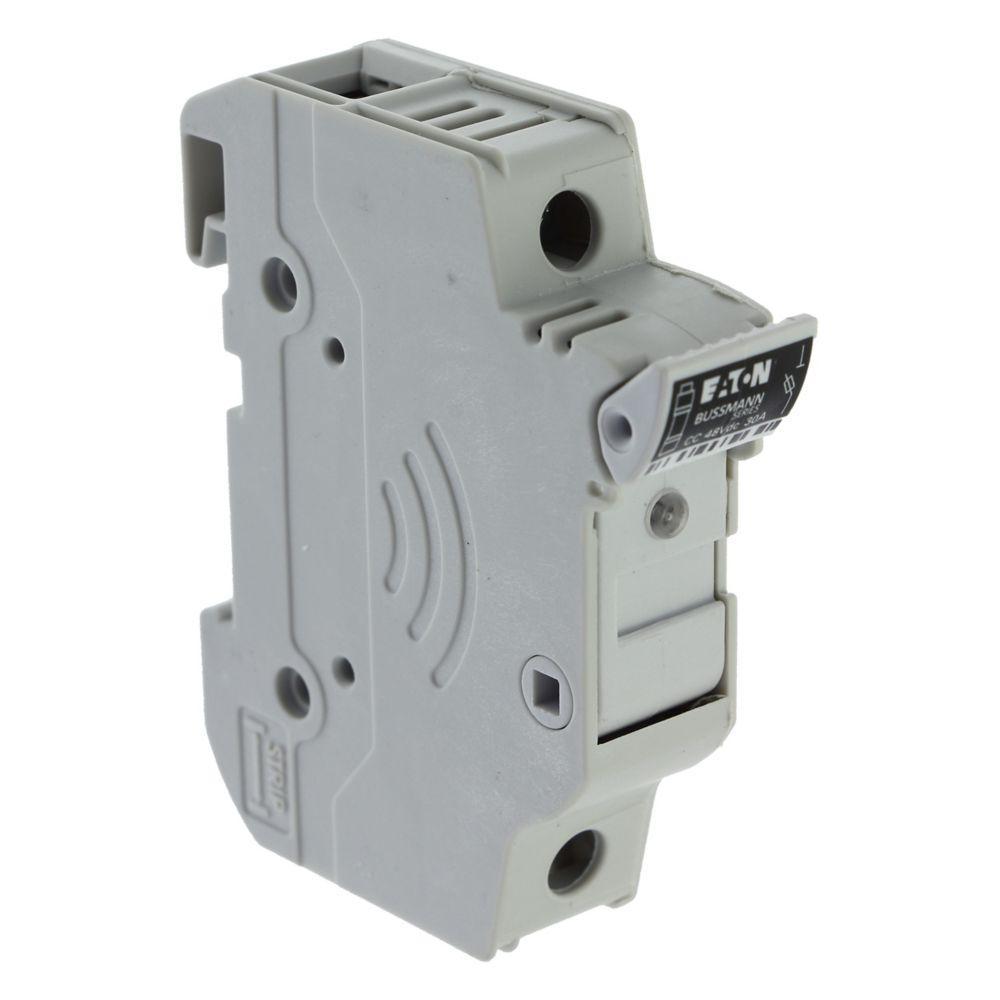

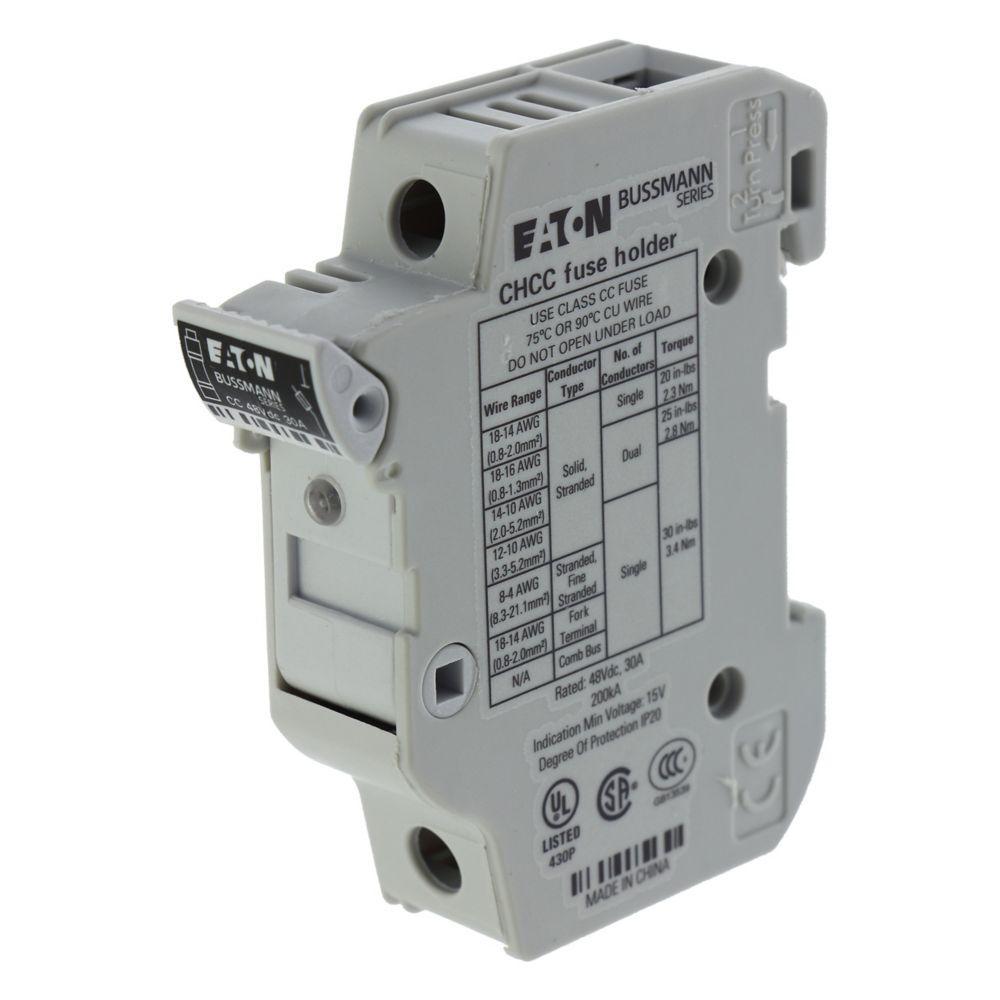

Bussmann CHCC1DI-48U Modular Fuse Holder With LED Indicator, 48 V DC, 30 A, Class: CC, 18 to 4 AWG Wire, 1 Pole

Log In for Pricing and Availability




Description

Bussmann series Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection.
Bussmann Fuse Holder, Modular, Series: CH Series, 48 V DC, 30 A, 1 Pole, Class: CC, 18 to 4 AWG Wire, 38 mm Fuse Length, 10 mm Fuse Dia, -20 to 120 deg C, For Use With: KTK-R, LP-CC and FNQ-R Fuse, 0.689 in W x 3.275 in D x 2.909 in H

Specifications

 Amperage Rating 30 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name Bussmann
 Class CC
 Dimensions 0.689 in W x 3.275 in D x 2.909 in H
 Fuse Diameter 10 mm
 Fuse Length 38 mm
 Manufacturer Part Number CHCC1DI-48U
 Number of Poles 1
 PART NUMBER KEYWORDS CHCC1DI-48U ; CHCC1DI48U ; 11174952 ; 051712362818 ; 51712362818 ; 05171236281 ; 00051712362818
 Series CH Series
 Standards/Approvals Contact Manufacturer,RoHS Compliant
 Suitable For Use With KTK-R, LP-CC and FNQ-R Fuse
 Temperature Rating -20 to 120 deg C
 Type Modular
 Video Links
 Voltage Rating 48 V DC

Features

▪ High SCCR rated, UL listed class CC holder with indicator option for 600 VAC/VDC and 48 VDC
▪ Rated for use with 75 deg C or 90 deg C wire, fine stranded wire, spade terminals and combination busbars, use any higher temperature rated wire with appropriate derating
▪ Complete range of UL listed and high SCCR rated 1/3 ph finger safe combination busbars and power feed lugs
