Eaton

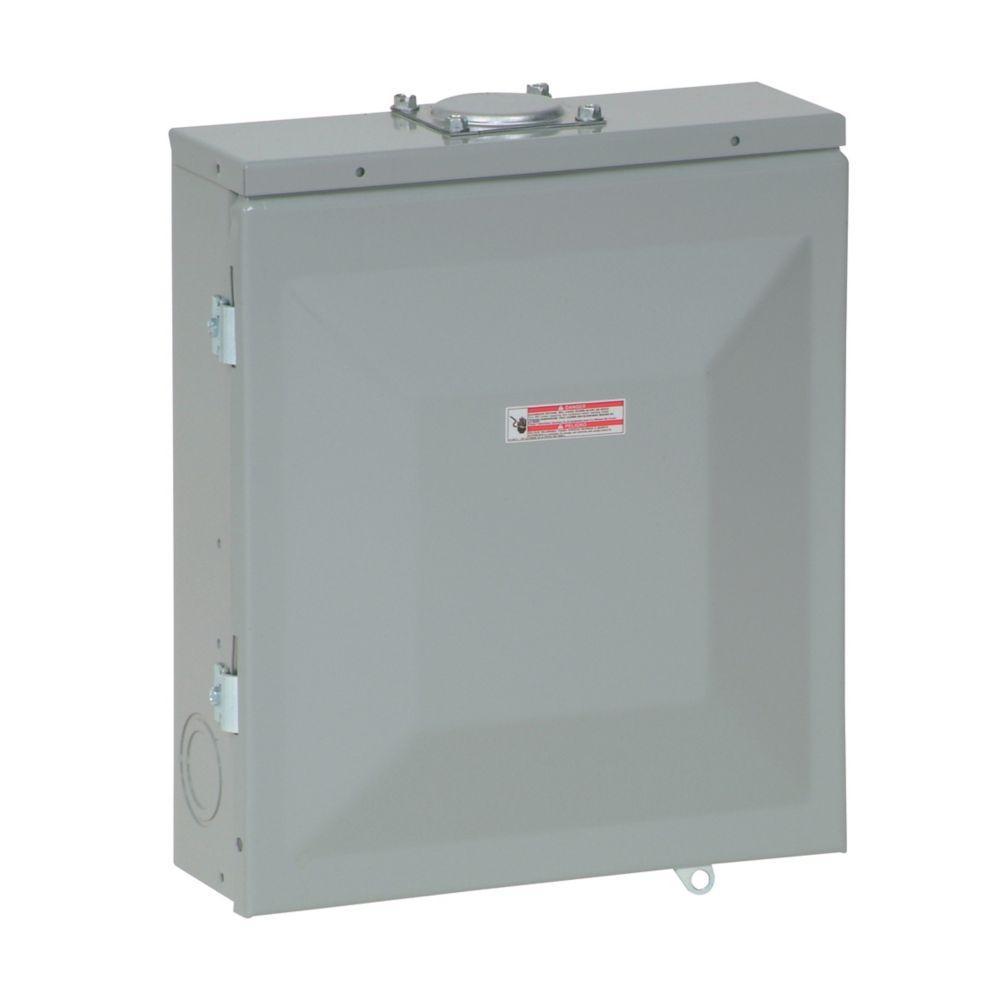

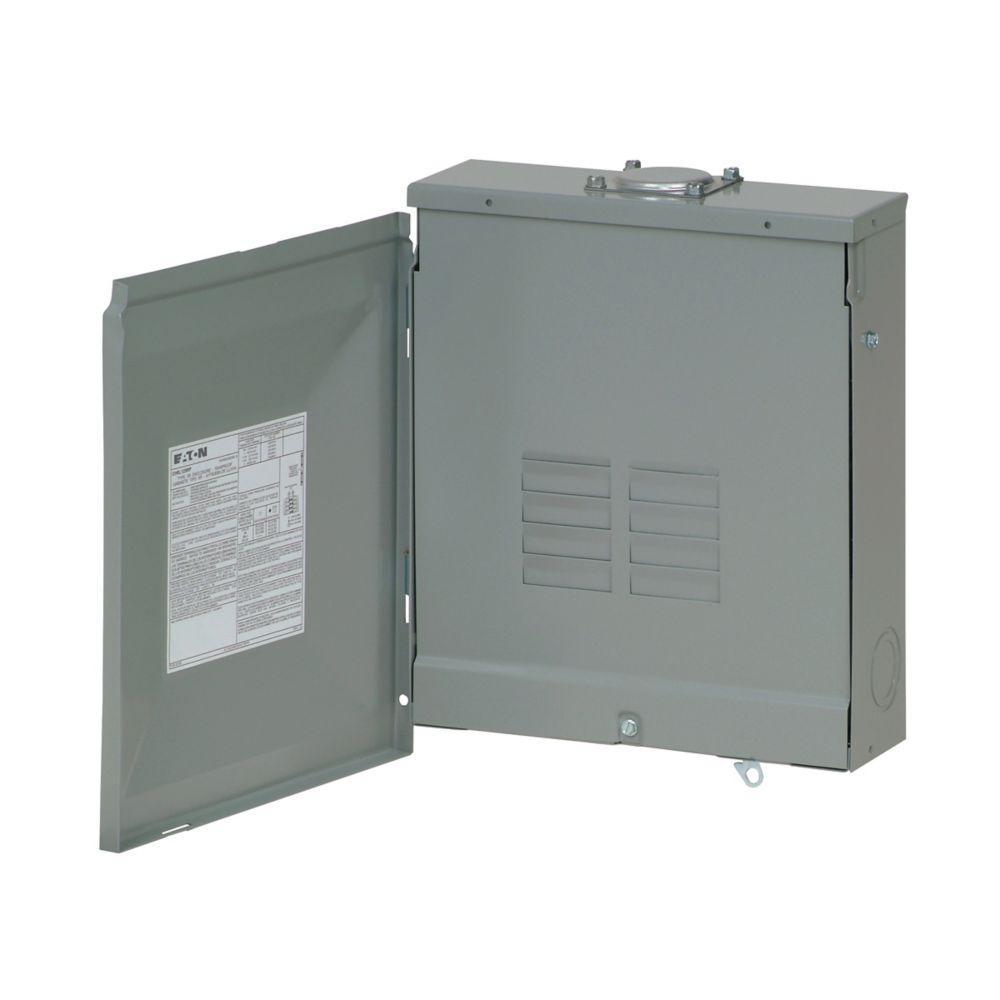

CH8L125RP CH 16 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER

Mouse over image to zoom, click to enlarge

  • CH8L125RP CH 16 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER
  • CH8L125RP CH 16 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER
  • CH8L125RP CH 16 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER

Description: EATON Main Lug Load Center, 1-Phase, 120/208Y/240 VAC, 125 A, 16 Pole, 25 kA Interrupt, 8 Circuits, CH Breaker, 3-Wire Wiring Configuration, 8 Spaces, 6 to 1/0 AWG Wire, Surface Mount, NEMA 3R, NEMA 7R Enclosure Box, Metal Housing, 13 in L x 11 in W x 3.69 in H

Manufacturer PN: CH8L125RP

UPC:  78211419054

Kendall Electric Inc PN: 2016461

Invoice Description:

CH8L125RP CH 16 CIRCUIT ML 1P 125 AMP NEMA 3R LOADCENTER


SPEC SHEET

▸ See All in Single Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON CH8L125RP 1-Phase Main Lug Load Center, 120/208Y/240 VAC, 125 A, 16 Poles, 25 kA Interrupt

Log In for Pricing and Availability




Description

Eaton's CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.
EATON Main Lug Load Center, 1-Phase, 120/208Y/240 VAC, 125 A, 16 Pole, 25 kA Interrupt, 8 Circuits, CH Breaker, 3-Wire Wiring Configuration, 8 Spaces, 6 to 1/0 AWG Wire, Surface Mount, NEMA 3R, NEMA 7R Enclosure Box, Metal Housing, 13 in L x 11 in W x 3.69 in H

Specifications

 Amperage Rating 125 A
 Application Industrial Facilities, Factories, Power Distribution and Control Applications
 Brand Name EATON
 Breaker Type CH
 Dimensions 13 in L x 11 in W x 3.69 in H
 Enclosure NEMA 3R
 Enclosure Box Size NEMA 7R
 Housing Material Metal
 Includes Cover
 Manufacturer Part Number CH8L125RP
 Mounting Type Surface
 Number of Circuits 8
 Number of Poles 16
 Number of Spaces 8
 Standards/Approvals PROP65:This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|UL 50/67
 Type 1-Phase
 Video Links
 Voltage Rating 120/208Y/240 VAC
 Wiring Configuration 3-Wire

Features

▪ Copper bus housing
▪ Overhead feed applications
▪ Ground bar kits priced separately
▪ For 2/4 and 6/12 circuit loadcenters, type GBK5 or GBK520 ground bar
▪ Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit loadcenters
▪ Neutral/ground holes (6) 14 to 6, (3) 14 to 2/0 AWG copper/aluminum wire
▪ Suitable for use as service equipment when not more than six service disconnecting mains are provided
▪ Insulated/bondable single neutral
