Eaton

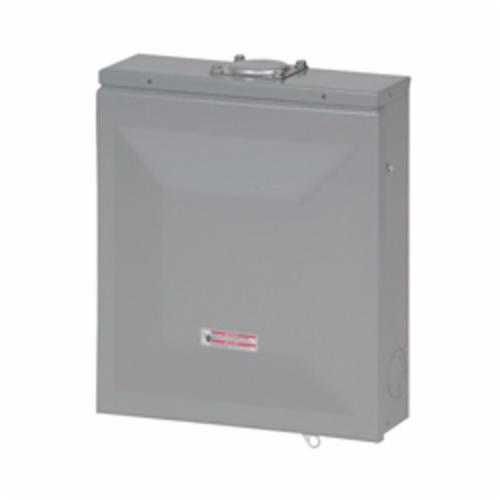

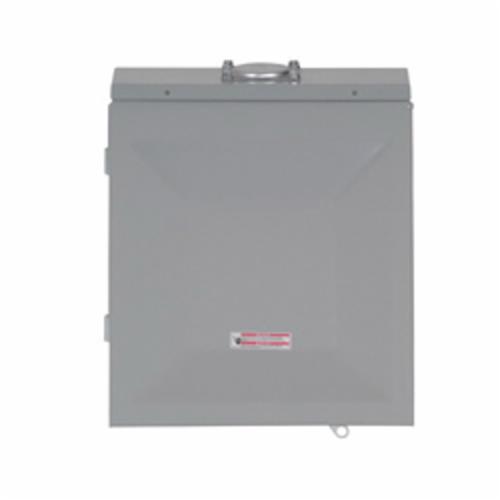

CH4L125RP CH 8 CIRCUIT ML SURF MOUNT 1P 125 AMP NEMA 3R LOADCENTER

Mouse over image to zoom, click to enlarge

  • CH4L125RP CH 8 CIRCUIT ML SURF MOUNT 1P 125 AMP NEMA 3R LOADCENTER
  • CH4L125RP CH 8 CIRCUIT ML SURF MOUNT 1P 125 AMP NEMA 3R LOADCENTER
  • CH4L125RP CH 8 CIRCUIT ML SURF MOUNT 1P 125 AMP NEMA 3R LOADCENTER

Description: EATON Main Lug Loadcenter, 1-Phase Standard, 120/208/240 VAC, 125 A, 8 Pole, 10 kA Interrupt, 4 Circuits, CH Breaker, 3-Wire Wiring Configuration, 4 Spaces, 14 to 1/0 AWG Wire, Surface Mount, NEMA 3R, NEMA 7R Enclosure Box, Metal Housing, 13 in L x 11 in W x 3.69 in H

Manufacturer PN: CH4L125RP

UPC:  78211419051

Kendall Electric Inc PN: 2016423

Invoice Description:

CH4L125RP CH 8 CIRCUIT ML SURF MOUNT 1P 125 AMP NEMA 3R LOADCENTER


SPEC SHEET

▸ See All in Single Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON CH4L125RP 1-Phase Standard Main Lug Loadcenter, 120/208/240 VAC, 125 A, 8 Poles, 10 kA Interrupt

Log In for Pricing and Availability




Description

Eaton's CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.
EATON Main Lug Loadcenter, 1-Phase Standard, 120/208/240 VAC, 125 A, 8 Pole, 10 kA Interrupt, 4 Circuits, CH Breaker, 3-Wire Wiring Configuration, 4 Spaces, 14 to 1/0 AWG Wire, Surface Mount, NEMA 3R, NEMA 7R Enclosure Box, Metal Housing, 13 in L x 11 in W x 3.69 in H

Specifications

 Amperage Rating 125 A
 Application Power Distribution Applications
 Brand Name EATON
 Breaker Type CH
 Dimensions 13 in L x 11 in W x 3.69 in H
 Enclosure NEMA 3R
 Enclosure Box Size NEMA 7R
 Housing Material Metal
 Manufacturer Part Number CH4L125RP
 Mounting Type Surface
 Number of Circuits 4
 Number of Poles 8
 Number of Spaces 4
 Standards/Approvals UL 50|UL 67|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other Reproductive harm. For more information go to www.P65Warnings.ca.gov
 Type 1-Phase Standard
 Video Links
 Voltage Rating 120/208/240 VAC
 Wiring Configuration 3-Wire

Features

▪ 3/4 in pole
▪ Copper bus material
▪ Overhead feed type
▪ Single-phase
▪ Ground bar kits priced separately
▪ For 2/4 and 6/12 circuit loadcenters, use type GBK5 or GBK520 ground bar
▪ Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit loadcenters
▪ Rainproof panels are furnished with hub closure plates, for rainproof hubs
▪ Suitable for use as service equipment when not more than six service disconnecting mains are provided
▪ Insulated/bondable split neutral type
