Eaton

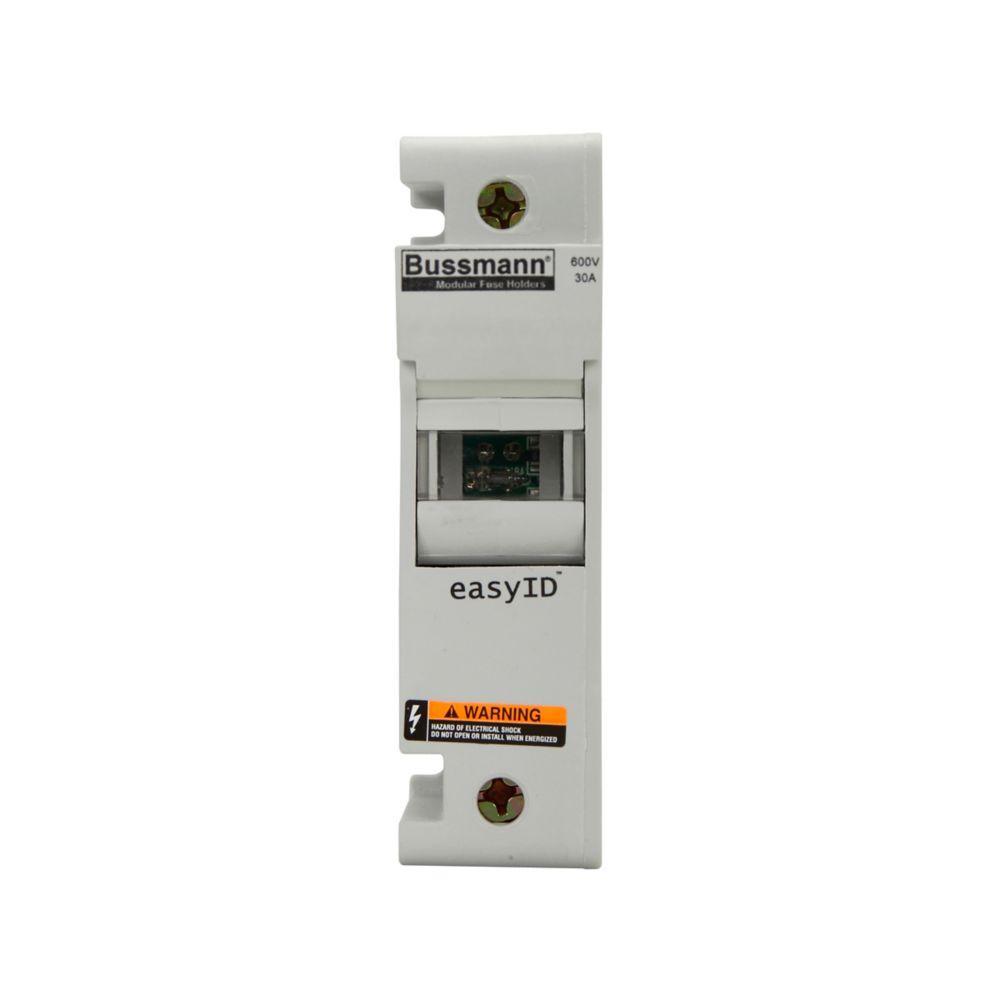

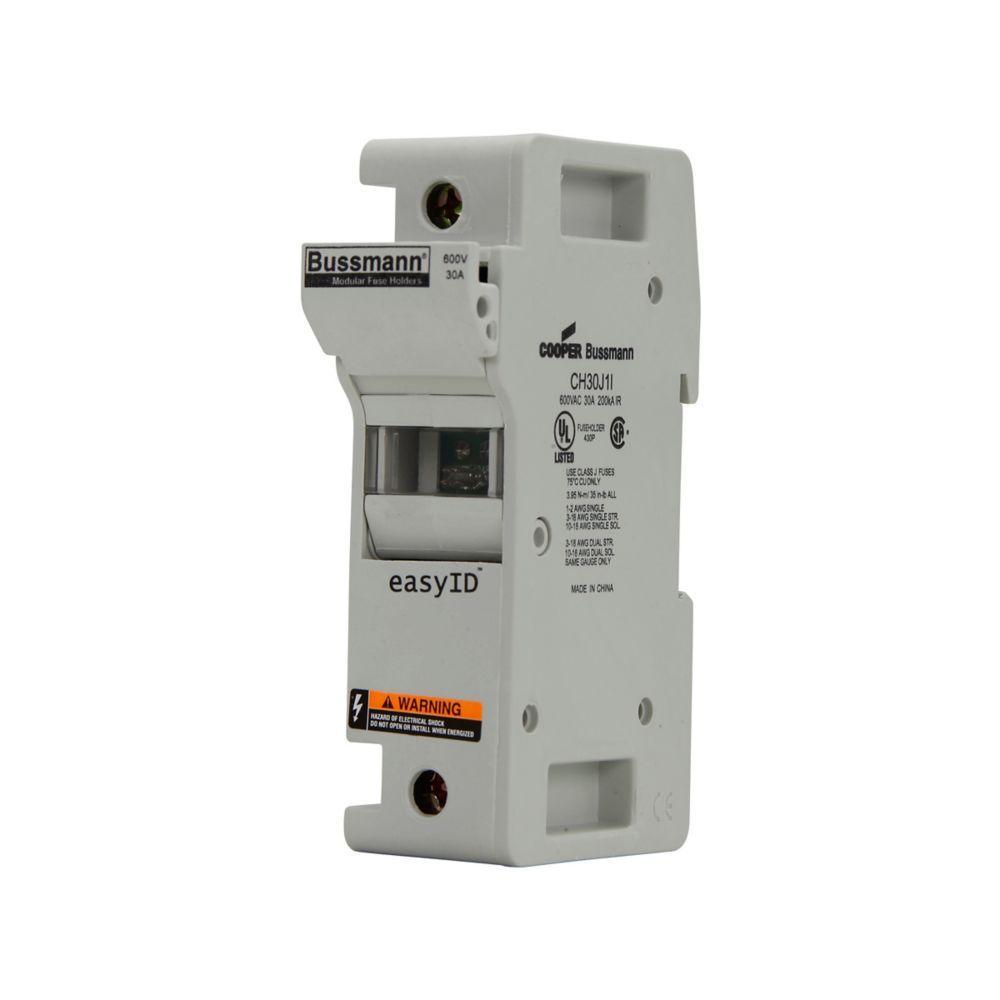

CH30J1I BUS CLASS J 1P 30A FUSEHOLDER W/INDICATOR (1)

Mouse over image to zoom, click to enlarge

  • CH30J1I BUS CLASS J 1P 30A FUSEHOLDER W/INDICATOR (1)
  • CH30J1I BUS CLASS J 1P 30A FUSEHOLDER W/INDICATOR (1)
  • CH30J1I BUS CLASS J 1P 30A FUSEHOLDER W/INDICATOR (1)

Description: Bussmann easyID™ Fuse Holder, Finger Safe Modular, Series: CH Series, 600 V AC/DC, 30 A, 1 Pole, 3, Class: J, Box Lug, 18 to 1 AWG Wire, DIN Rail/Panel Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, 85 deg C, For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed J Fuse, Thermoplastic, White, 1.28 in L x 2.83 in W x 4.59 in H

Manufacturer PN: CH30J1I

UPC:  05171263083

Kendall Electric Inc PN: 2295425

Invoice Description:

CH30J1I BUS CLASS J 1P 30A FUSEHOLDER W/INDICATOR (1)


SPEC SHEET

▸ See All in UL Class Power Fuse Holders


How Can We Make This Page Better?

Bussmann easyID™ CH30J1I Finger Safe Modular Fuse Holder, 600 V AC/DC, 30 A, Class: J, 18 to 1 AWG Wire, 1 Pole

Log In for Pricing and Availability




Description

Eaton’s Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65 less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses.
Bussmann easyID™ Fuse Holder, Finger Safe Modular, Series: CH Series, 600 V AC/DC, 30 A, 1 Pole, 3, Class: J, Box Lug, 18 to 1 AWG Wire, DIN Rail/Panel Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, 85 deg C, For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed J Fuse, Thermoplastic, White, 1.28 in L x 2.83 in W x 4.59 in H

Specifications

 Amperage Rating 30 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name Bussmann
 Class J
 Color White
 Connection Type Box Lug
 Dimensions 1.28 in L x 2.83 in W x 4.59 in H
 Fuse Diameter 0.81 in
 Fuse Length 2-1/4 in
 Manufacturer Part Number CH30J1I
 Material Thermoplastic
 Mounting Type DIN Rail/Panel
 Number of Poles 1
 Phase 3
 Series CH Series
 Standards/Approvals Contact Manufacturer ,CSA Certified ,UL Listed,RoHS Compliant,CE Marked
 Suitable For Use With LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed J Fuse
 Temperature Rating 85 deg C
 Type Finger Safe Modular
 Video Links
 Voltage Rating 600 V AC/DC

Features

▪ Neon lamp open fuse indicator
▪ Improved electrical safety with IP20 finger safe construction with lockout or tagout feature
▪ 3 ph fuse extraction assures all phases are opened for service work
▪ Tin plated copper clip
